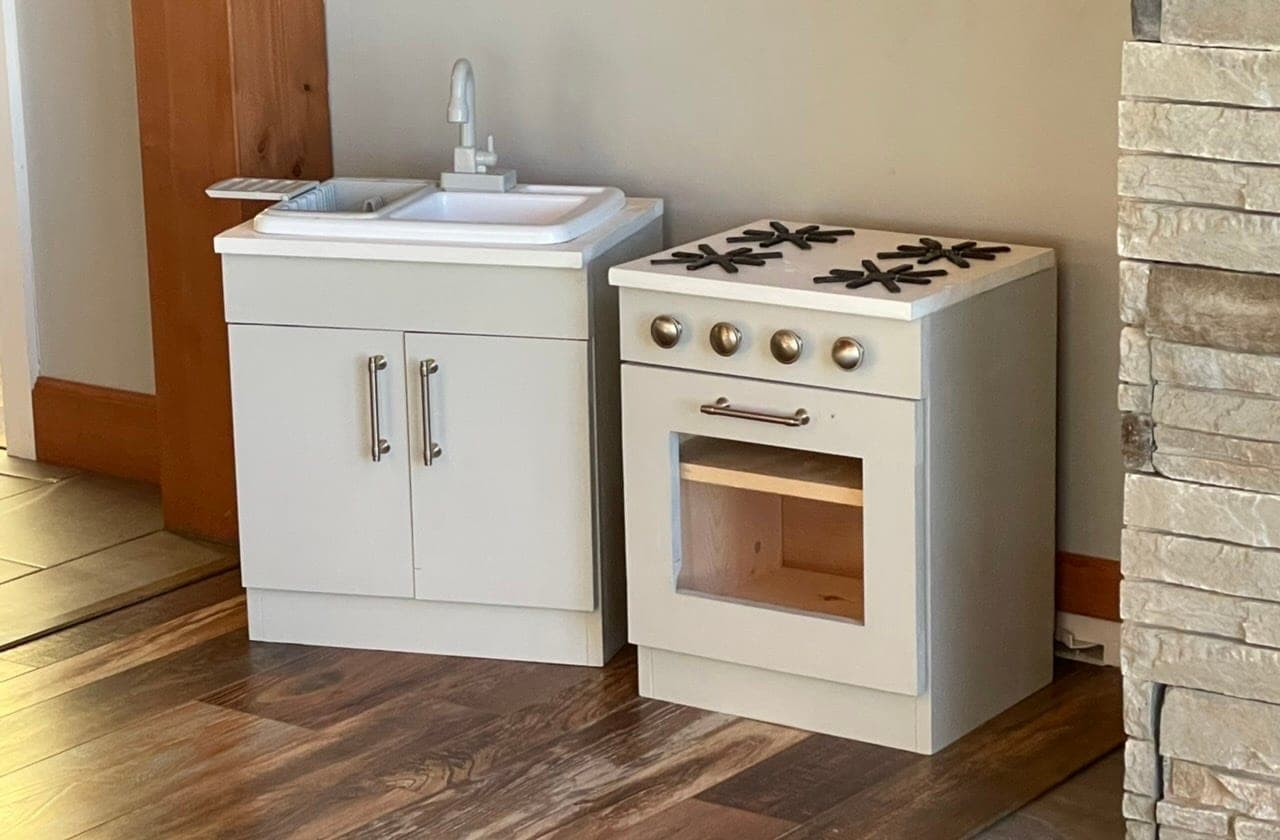

This is genuinely two builds sharing one construction method — a sink base and a stove base, sized around their specific inserts. Measure your own sink and adjust the plan as needed before cutting anything; the cut list is built around a sink roughly 16" x 10-3/4", and a different model will shift several dimensions.
Build both bases the same way: sides to toekick, front to sides, bottom shelf, back top support and interior shelf, then the back panel — nailed and glued at every joint, no screws needed in the case itself. The doors are the one place accuracy matters most: build each door frame to the actual opening (not a fixed number), keep the plywood door-back panel about 1" larger than the frame's center opening, and hang with surface-mount hinges and a magnetic clasp so a toddler can actually open it.
| Item | Qty |
|---|---|
| Pine, 1x12, 5 ftSink unit sides/bottom. | 1 each |
| Pine, 1x12, 6 ftStove unit sides/bottom/top. | 1 each |
| Pine, 1x4, 18 inSink unit front. | 1 each |
| Pine, 1x4, 15 inStove unit front. | 1 each |
| Pine, 1x3, 8 ftToekicks, back top supports, and door frames for both units. | 2 each |
| Pine, 1x10, 16-1/2 inSink unit shelf. | 1 each |
| Pine, 1x10, 13-1/2 inStove unit shelf. | 1 each |
| Pine, 1x2, 5 ftSink unit top trim. | 1 each |
| Pine, 1x2, 15 inStove unit top trim. | 1 each |
| 1/4" plywood, 2 ft x 2 ft plus scrap for door backs | 1 each |
| Toy sink with running water, about 16" x 10-3/4" | 1 each |
| Acrylic glass piece, 9" x 11"Stove cooktop. | 1 each |
| 1-1/4" and 5/8" brad nails | 1 box |
| Wood glue | 3 oz |
| 1-1/4" pocket hole screws | 1 box |
| Surface mount hinges | 6 each |
| Magnetic clasps | 3 each |
Overall cost: $$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Sink sidesPine 1x12, 5 ft | 2 | 3/4" × 11 1/4" × 19 1/4" |
| Sink bottomPine 1x12, 5 ft | 1 | 3/4" × 11 1/4" × 16 1/2" |
| Sink toekick and back top supportPine 1x3, 8 ft | 2 | 3/4" × 2 1/2" × 16 1/2" |
| Sink frontPine 1x4, 18 in | 1 | 3/4" × 3 1/2" × 18" |
| Sink shelfPine 1x10, 16-1/2 in | 1 | 3/4" × 9 1/4" × 16 1/2" |
| Sink back1/4" plywood, 2 ft x 2 ft plus scrap for door backs | 1 | 1/4" × 18" × 19 1/4" |
| Sink top, front and backPine 1x2, 5 ft | 2 | 3/4" × 1 1/2" × 18" |
| Sink top, sidesPine 1x2, 5 ft | 2 | 3/4" × 1 1/2" × 9 3/4" |
| Stove sidesPine 1x12, 6 ft | 2 | 3/4" × 11 1/4" × 19 1/4" |
| Stove bottomPine 1x12, 6 ft | 1 | 3/4" × 11 1/4" × 13 1/2" |
| Stove toekick and back top supportPine 1x3, 8 ft | 2 | 3/4" × 2 1/2" × 13 1/2" |
| Stove frontPine 1x4, 15 in | 1 | 3/4" × 3 1/2" × 15" |
| Stove shelfPine 1x10, 13-1/2 in | 1 | 3/4" × 9 1/4" × 13 1/2" |
| Stove back1/4" plywood, 2 ft x 2 ft plus scrap for door backs | 1 | 1/4" × 15" × 19 1/4" |
| Stove top back trimPine 1x2, 15 in | 1 | 3/4" × 1 1/2" × 15" |
| Stove top mainPine 1x12, 6 ft | 1 | 3/4" × 11 1/4" × 15" |
Buy 8 boards at 8 ft.
2 boards
1 board
1 board
For each unit, attach the sides to the toekick with 1-1/4" brad nails and wood glue.
Attach the front to the sides, flush on top and sides, with 1-1/4" brad nails and wood glue.
Attach the bottom shelf to the sides and the toekick with 1-1/4" brad nails and wood glue.
Attach the back top support to the back top corner with 1-1/4" brad nails and glue. Attach the interior 1x10 shelf, flush to the back, with 1-1/4" brad nails and glue, leaving about 6" of space under the bottom shelf.
Attach the plywood back panel with 5/8" brad nails and wood glue.
For the sink unit, attach the top frame with 3/4" pocket holes and 1-1/4" pocket hole screws. Then attach the top pieces to the tops of both the stove and sink units with 1-1/4" brad nails and glue.
Build each door frame from 1x3s sized to the actual opening, joined with 3/4" pocket holes and 1-1/4" pocket hole screws (two per joint). Attach a 1/4" plywood panel to the back of each frame with 5/8" brad nails and glue — the panel should be about 1" larger than the frame's center opening, not the full door size. On the stove, attach the acrylic glass cooktop with a suitable glue or predrilled small hardware screws. Hang each door with surface mount hinges on the side and a magnetic clasp to keep it closed, then add knobs or handles.
