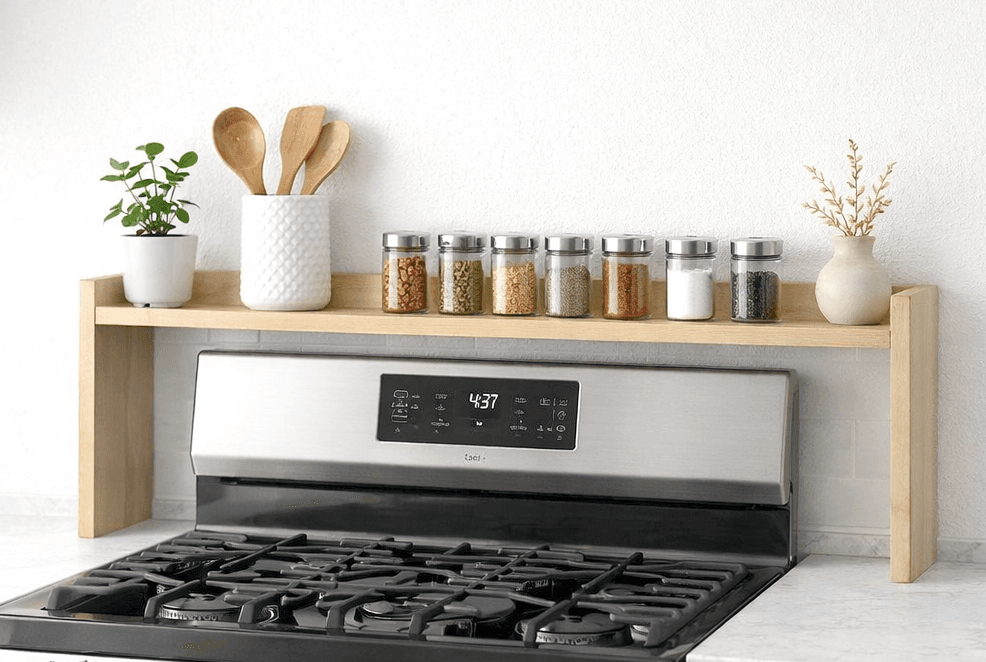

This is about as small a build as this catalog carries: three boards and ten screws, made to fill the open shelf gap directly above a stove or range. It's sized here for a 34"-wide, 15"-tall opening, which is a common over-range microwave or shelf cutout — measure your own opening before cutting, since this shelf is meant to fit a specific gap rather than a standard furniture dimension.
The build order matters more than the part count suggests: the 1x2 cap attaches to the top of the 1x6 shelf board first, screwed and glued from underneath so the top screws stay hidden. Only after that assembly is together do the two 1x6 side pieces attach to the ends, three trim screws per side. Fill every screw head with wood filler before staining — at this scale, an unfilled screw head is one of the few visible details on the whole piece.
| Item | Qty |
|---|---|
| 1x6, 6 ft |
| 1 each |
| 1x2, 3 ft | 1 each |
| Self-tapping wood trim screws, 1-5/8" | 10 each |
| Wood filler | 2 oz |
| Wood glue | 1 oz |
| Wood stain | 1 qt |
Overall cost: $. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Shelf board1x6Cut to your opening's actual width. | 1 | 3/4" × 5 1/2" × 34" |
| Top cap1x2Cut to your opening's actual width, minus the side pieces' thickness. | 1 | 3/4" × 1 1/2" × 32" |
| Side pieces1x6Cut to your opening's actual height plus 2-1/4". | 2 | 3/4" × 5 1/2" × 15" |
Buy 2 boards at 8 ft.
1 board
1 board
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Attach the 1x2 top cap on top of the 1x6 shelf board with four trim screws and wood glue, driven from underneath so the screw heads stay hidden.
Attach the two side pieces to the ends of the shelf-and-cap assembly with three trim screws per side. Fill every screw head with wood filler, sand smooth once dry, and stain.
