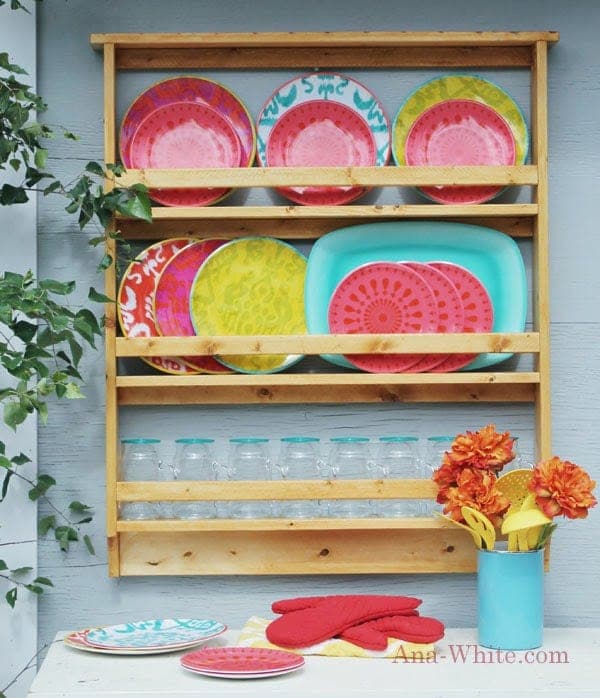

There's very little to this build beyond a square frame and evenly spaced 1x4 shelves, which is exactly the point — it's meant to live outside near a grill or outdoor kitchen, and a simple design means fewer joints for weather to work on over time. Pocket holes do almost all the joinery, driven from the back or underside wherever possible so the visible faces stay clean.
The bottom shelf is worth a small upgrade over the plan as written: add cup hooks along its underside and it doubles as a mug rack, which is a genuinely useful addition for almost no extra material. Use exterior-rated wood and hardware throughout, and finish it before its first season outside — this rack has no roof over it in most installations, and untreated pine won't last.
| Item | Qty |
|---|---|
| Cedar or pressure-treated, 1x4, 8 ftExtra length is built into the cut list. | 3 each |
| Cedar or pressure-treated, 1x2, 8 ft | 2 each |
| Pocket hole screws, 1-1/4" | 1 box |
| Finish nails | 1 box |
| Exterior finishUntreated pine won't survive a season with no roof overhead. | 1 each |
| Cup hooksOptional — turns the bottom shelf into a mug rack for very little extra cost. | 6 each |
Overall cost: $. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| SidesCedar or pressure-treated | 2 | 3/4" × 3 1/2" × 39 3/4" |
| TopCedar or pressure-treated | 1 | 3/4" × 3 1/2" × 35" |
| ShelvesCedar or pressure-treated | 4 | 3/4" × 3 1/2" × 31 1/2" |
| Rails and back supportsCedar or pressure-treated | 6 | 3/4" × 1 1/2" × 31 1/2" |
Buy 5 boards at 8 ft.
3 boards
2 boards
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Build the basic frame from the two sides and top using 3/4" pocket holes and 1-1/4" pocket screws.
Attach the bottom shelf to the sides using pocket holes. This is a good spot to add cup hooks along the underside for hanging mugs, if you'd like the added function.
Attach the remaining shelves the same way. Attach the front rails with pocket holes driven from the back side; for the top rail, add finish nails through the top face for extra hold.
Sand every edge and apply an exterior-rated finish before this rack sees its first season outdoors.
