Modular Miter Station – Phase 4 – Dust Hood

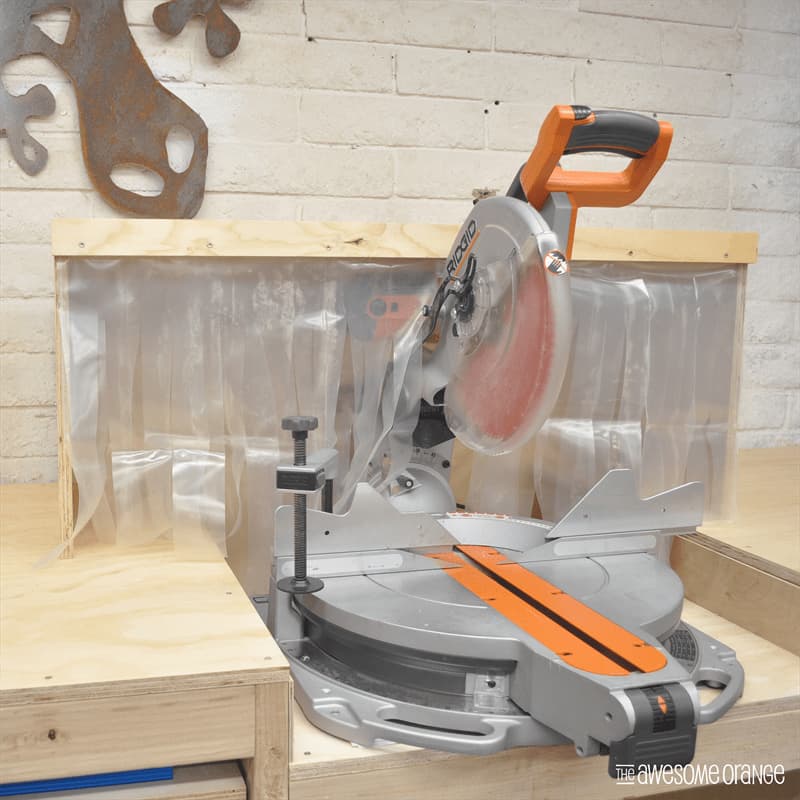

Every woodworkers nemesis is sawdust and this miter saw dust hood will help cut that down.

Difficulty: Easy
Time: 3–5.5 hours
Cost: $$

About this build

Every woodworkers nemesis is sawdust and this miter saw dust hood will help cut that down. Add a shop vac to your saw and it will be virtually dust free! This is phase 4 of my Modular Miter Station series…. this piece can be build with scraps from the other builds.

Tools

Essential

Drill / Driver
Pocket Hole Jig
Table Saw

Optional / nice to have

Bar / Pipe Clamps
Tape Measure

Materials

Item	Qty
Plywood, 3/4" Thick Full Sheet	1 board
Plywood, 1/4" Thick Scrap Piece 43 1/2"L x 7.5"W	1 board
Box of 1 1/4" coarse pocket holes screws	1 each
18 ga brad nails	1 each
Dust Collector Bag or Heavy Plastic	1 each
Tube of painter's caulk	1 each

Overall cost: $$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.

Cut list

Part	Qty	T × W × L
Sides	2	3/4" × 17" × 20"
Top & Back	2	3/4" × 16" × 42"
Angle Back Piece	1	1/4" × 7" × 43"
Front Trim	1	3/4" × 1" × 43"

What to buy

Buy 4 boards at 8 ft.

3/4" × 17"

1 board

20"20"

3/4" × 16"

1 board

42"42"

3/4" × 1"

1 board

1/4" × 7"

1 board

Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →

Start building →

Instructions

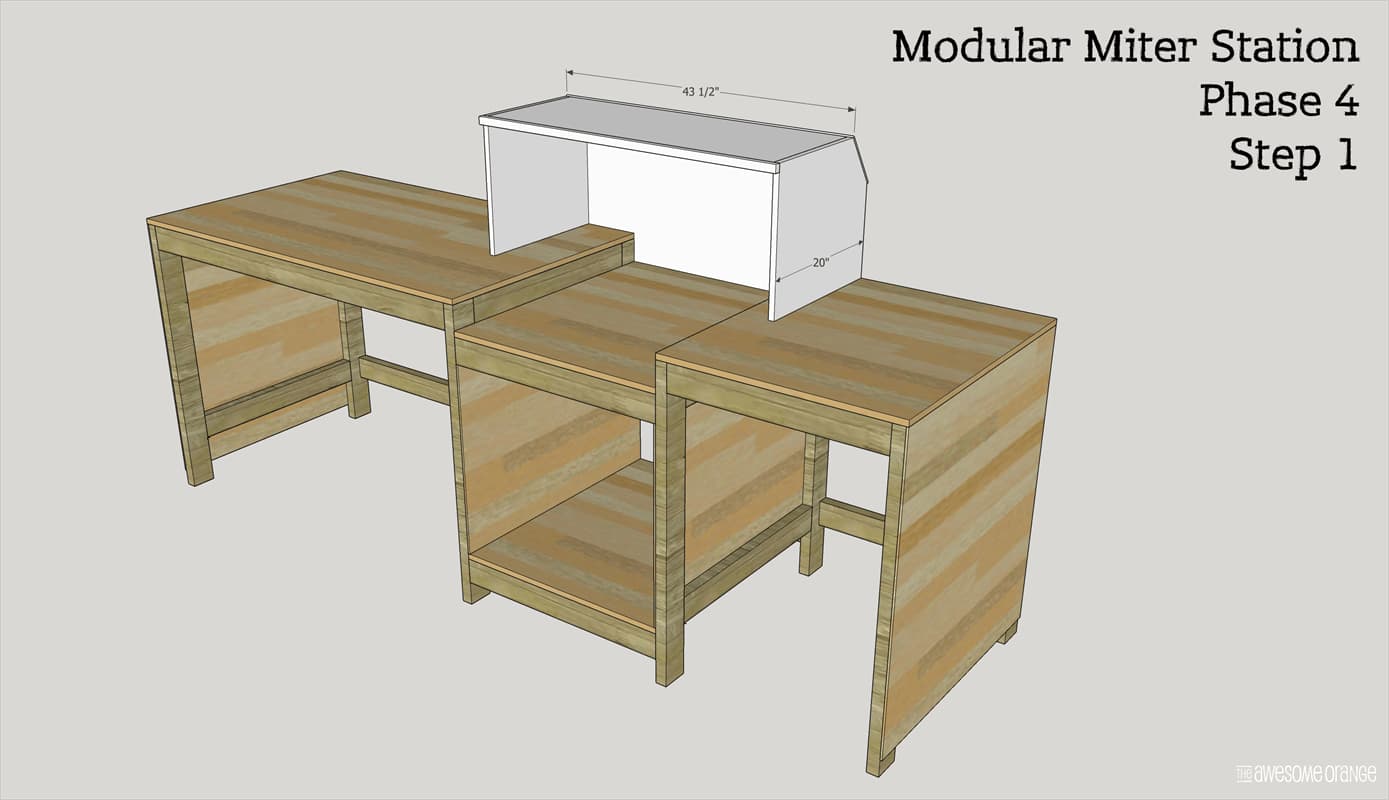

1Review Dimensions
Review dimensions and adjust as necessary to work with your miter saw. Check you saw in multiple positions... miter, bevel, etc. You want to keep the hood as small as possible so that you can get good suction with shop vac. With that in mind, I installed the hood offset 4" to the left to accommodate my saw and the majority of the cuts I make. Again, adjust dimensions as necessary to fit your saw.

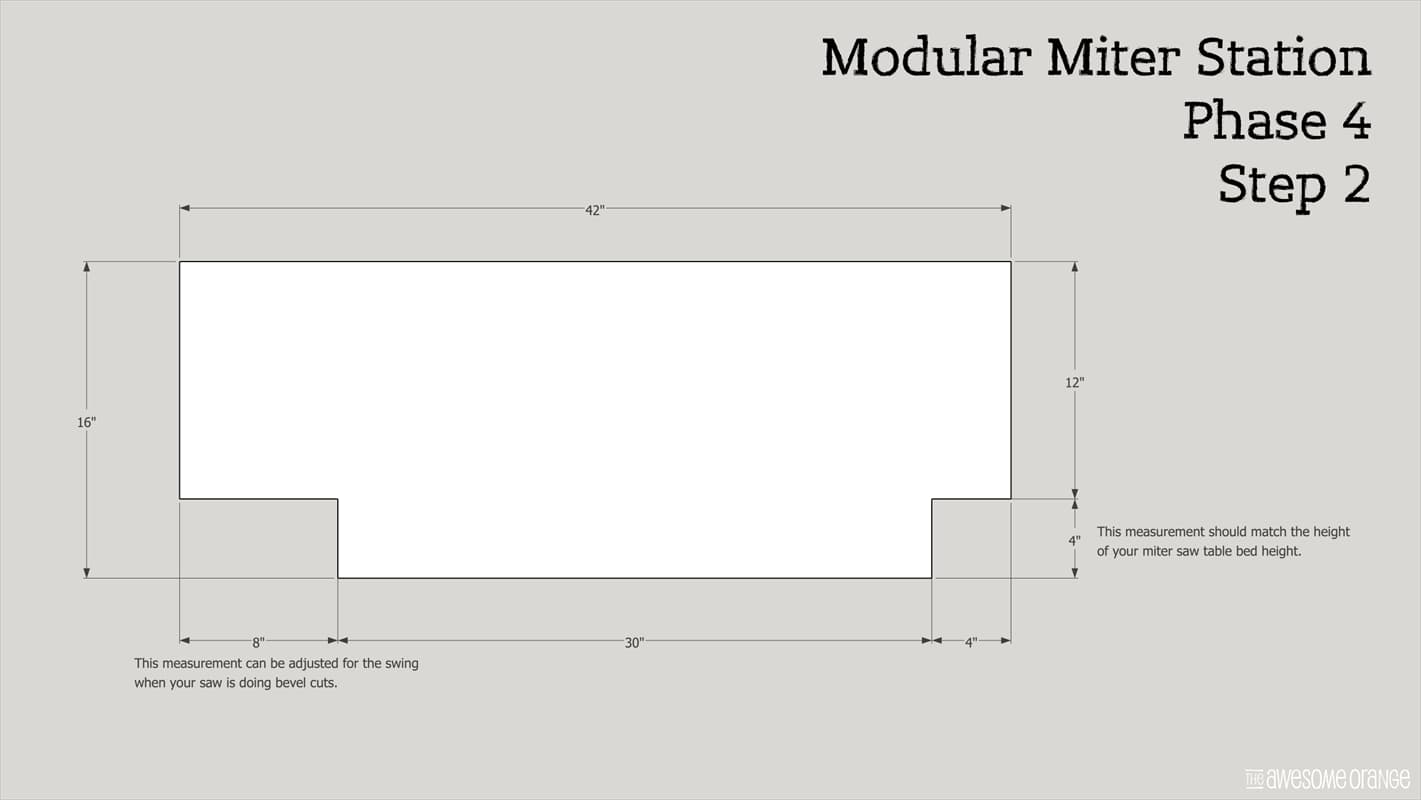

2Cut Back Piece
Using a jigsaw back piece to fit down in the middle section of the miter saw station. Depth will depend on the height of your miter saw table. In my case it was 4". Also, I allowed for more room on the left side (8") versus the right side (4"). You will be essentially cutting away two rectangles.

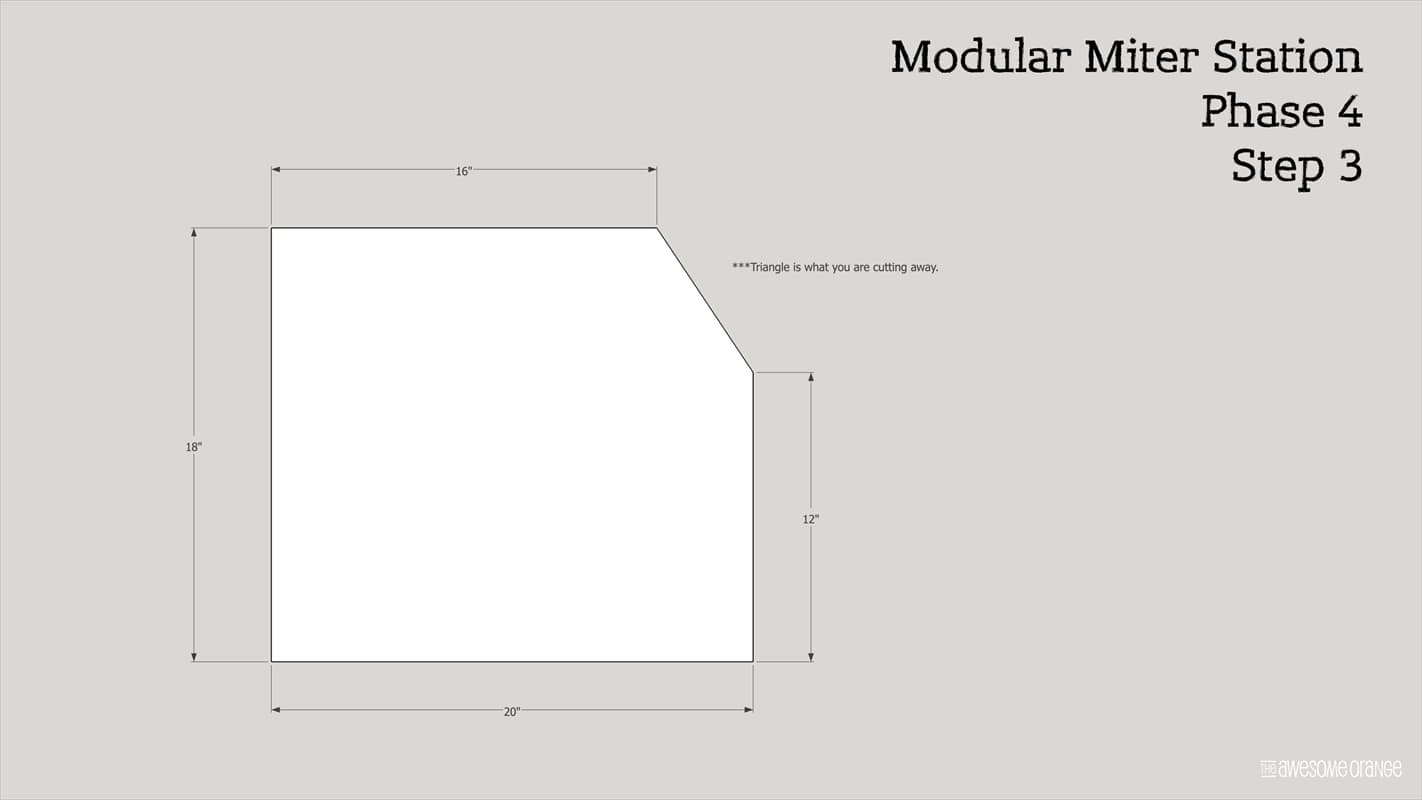

3Cut Side Pieces
Mark the top of the side pieces 16" from the front and mark the back of the side piece 12" up from the bottom. Draw a line between those two marks and cut away triangle section using a jigsaw. ***Angles on the top/back of the hood is to help the dust fall down easier.

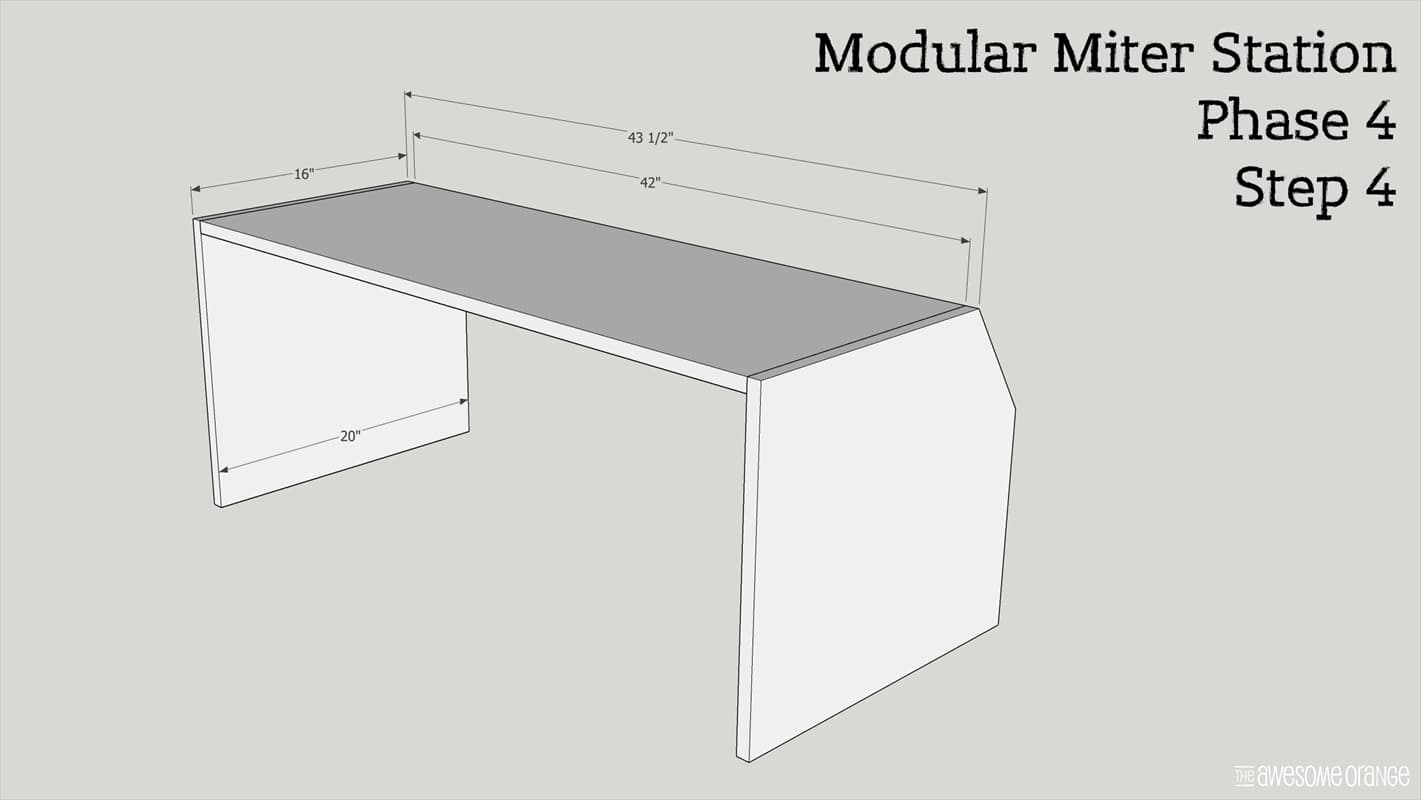

4Attach Top to Sides
Attach top to side pieces using 3/4" pocket holes with 1 1/4" coarse pocket holes screws.

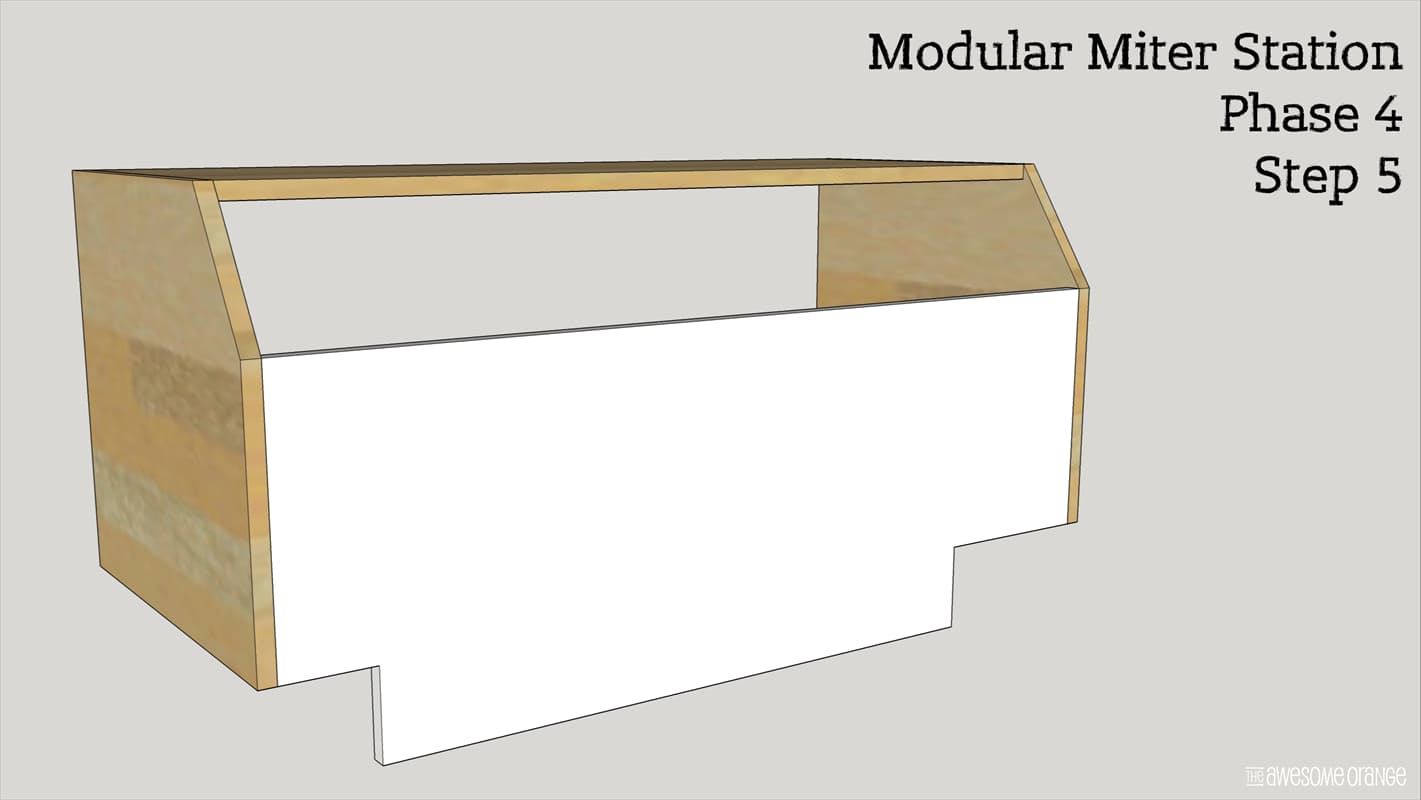

5Attach Back to Sides
Attach back to sides using 3/4" pocket holes with 1 1/4" coarse pocket hole screws.

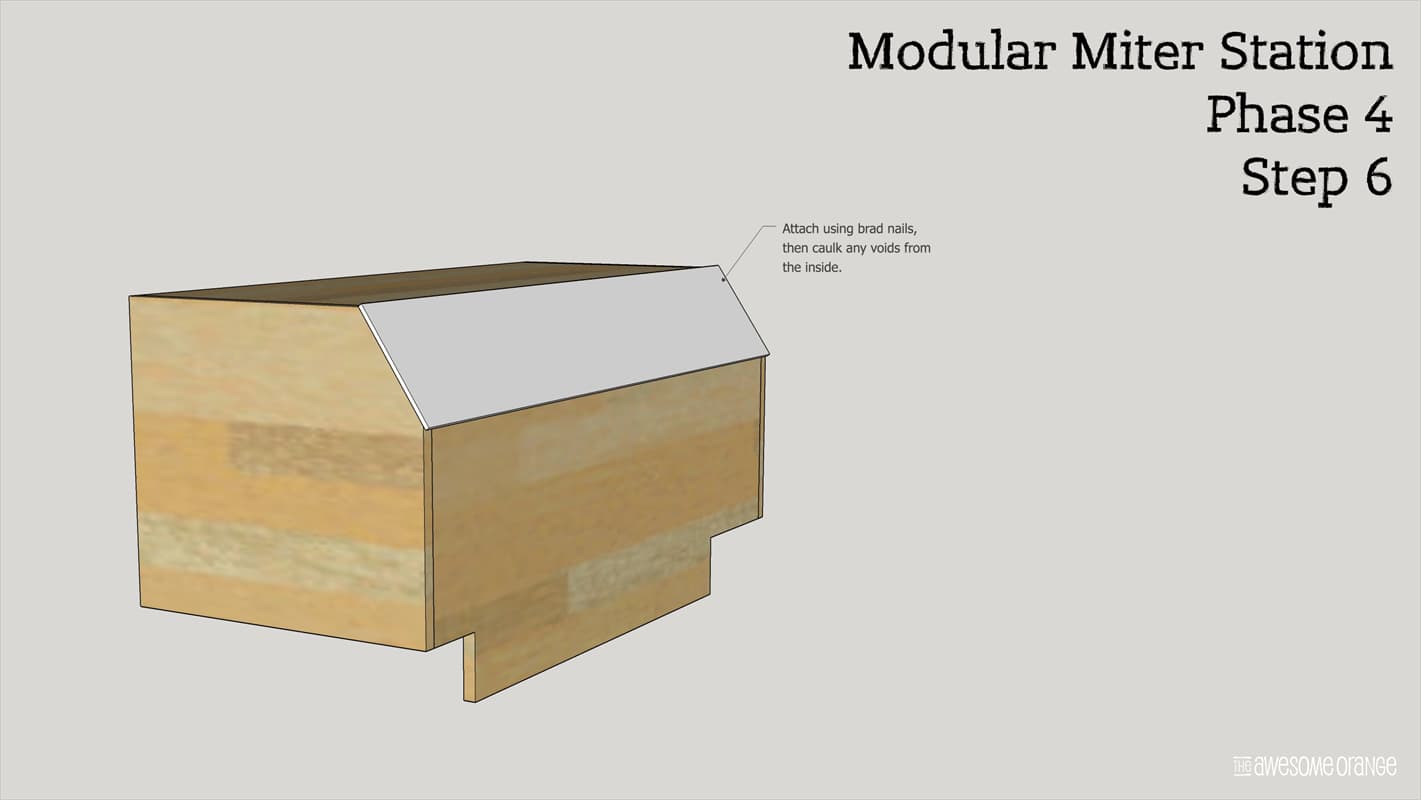

6Attach Angled Back
Using 18 ga brad nails attach 1/4" plywood piece. Once attached caulk any void s from the inside so dust can't escape.

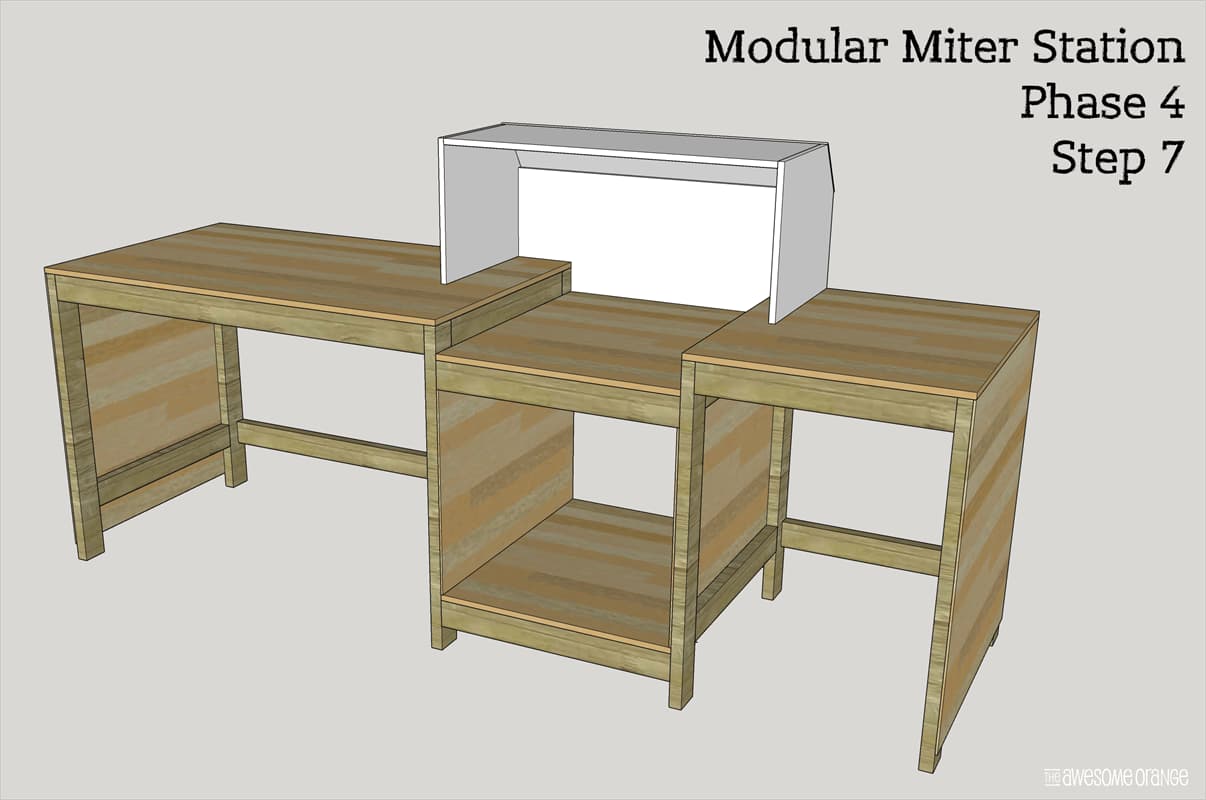

7Attached to Workbench
Attach dust hood to workbench using 3/4" pocket holes with 1 1/4" coarse pocket hole screws.

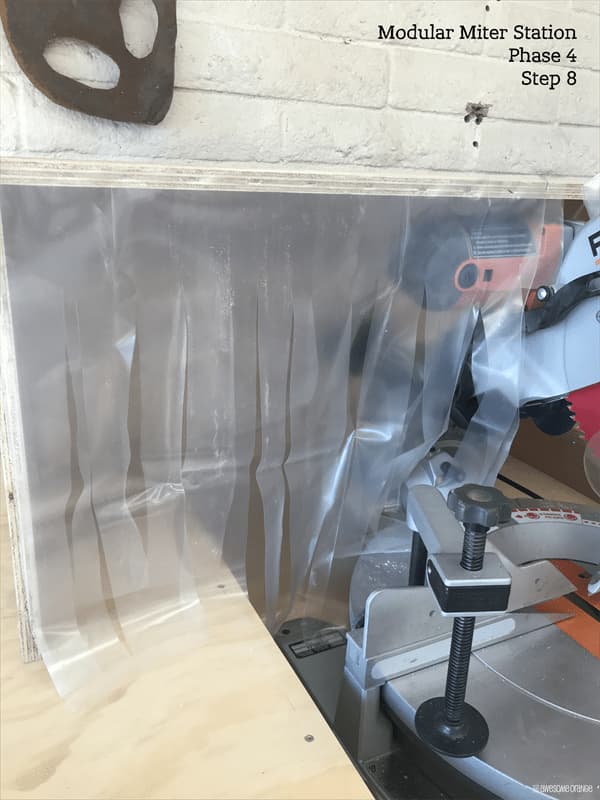

8Attach Plastic & Trim
- Attach heavy mil plastic (I used a dust collector bag) to the front of the hood using staples. I did a double layer of plastic and then cut strips in each layer offset from the other.
- Trim as necessary around saw.
- Then screw trim piece on to cover plastic edge. I used screws instead of brad nails so that it would be easier to replace the plastic, if needed, in the future.
9Visit theAwesomeOrange.com
Visit www.theAwesomeOrange.com to see more pics of this build as well as all Phases of the Modular Miter Station build. Happy Building and have an AWESOME day!
