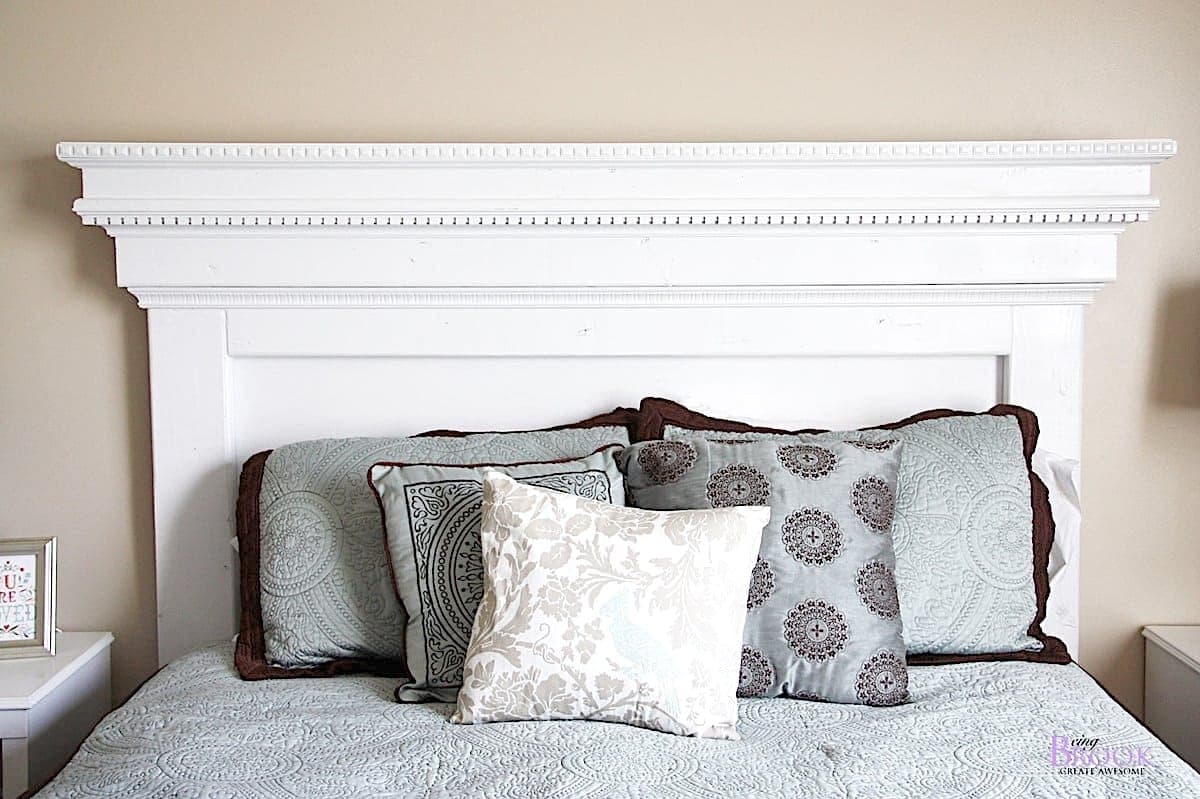

This headboard's structure is genuinely simple — a basic 2x6 frame, cleats down the sides, and a 1/4" plywood back panel — and every bit of its character comes from the moulding applied on top of that plain frame afterward, not from anything complicated in the joinery. Build the frame first sized for a queen mattress, widening it for a king or narrowing it for a twin or full by adjusting the frame width alone; every other dimension stays the same.
Cleats down the sides support the front boards, and the header cap goes on across the top once the front face is built up and flush. The back panel fills the frame's open face last, before any moulding goes on — you could substitute an upholstered panel here instead of plywood if you want a padded look rather than a flat painted one.
The moulding is genuinely flexible: this plan calls for three 7-foot lengths of moulding trim in the sizes noted, applied directly over the finished frame front, with an optional second moulding pattern on the center panel for extra detail. There's real room to choose a plainer or more ornate moulding profile here to match your own taste — the frame underneath doesn't change either way.
| Item | Qty |
|---|---|
| 2x6, 8 ft or stud length | 5 each |
| 2x2, 8 ft | 1 each |
| 2x4, 8 ft | 1 each |
| 1x6, 8 ft | 1 each |
| 1/4" plywood, full sheet | 1 each |
| Moulding trim, 7 ft lengths | 3 each |
| Moulding trim for center panel, 8 ft lengths, optional | 2 each |
| Pocket hole screws, 2-1/2" | 30 each |
| Brad nails, 2" and 1-1/4" | 100 each |
| Primer and paint, or stain and poly | 1 set |
Overall cost: $$$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Frame sides2x6, 8 ft or stud length | 2 | 1 1/2" × 5 1/2" × 59 1/4" |
| Frame top/bottom2x6, 8 ft or stud length | 2 | 1 1/2" × 5 1/2" × 54" |
| Side cleats2x2, 8 ft | 2 | 1 1/2" × 1 1/2" × 8 1/2" |
| Header cleat2x2, 8 ft | 1 | 1 1/2" × 1 1/2" × 68" |
| Header cap2x6, 8 ft or stud length | 1 | 1 1/2" × 5 1/2" × 68" |
| End blocking2x4, 8 ft | 2 | 1 1/2" × 3 1/2" × 3" |
| Top frame rail2x4, 8 ft | 1 | 1 1/2" × 3 1/2" × 71" |
| Top cap board1x6, 8 ft | 1 | 3/4" × 5 1/2" × 73" |
| Back panel1/4" plywood, full sheet | 1 | 1/4" × 56" × 22 3/4" |
Buy 9 boards at 8 ft.
5 boards
1 board
1 board
1 board
1 board
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Build the basic 2x6 frame sized for a queen mattress, using pocket holes and 2-1/2" pocket hole screws. Widen for a king or narrow for a twin/full by adjusting frame width only.
Attach the side cleats to the inside faces of the frame sides to support the front boards.
Attach additional boards to the front, taking time to make sure the ends match up perfectly and everything sits flush.
Add the end blocking pieces to finish off the frame ends.
Attach the header cleat, then the header cap across the top with screws.
Attach the 1/4" plywood back panel to fill in the open frame face, or substitute an upholstered panel for a padded look.
Apply the moulding trim directly over the finished frame front in your chosen pattern, mitering corners as needed. Optionally add a second moulding pattern on the center panel for extra detail.
Sand all surfaces and apply primer and paint, or stain and poly.
