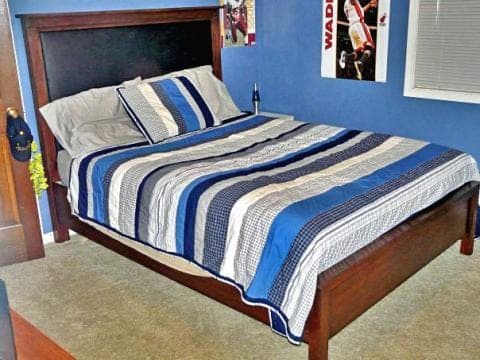

This headboard reads as an expensive upholstered piece but is mostly a plywood back with layered 1x3 trim and store-bought molding forming a frame, and a single foam-and-fabric panel dropped into the opening. The wood frame does the structural and visual work; the upholstery is one afternoon of foam, fabric, and a staple gun.
One thing to watch: the source's own diagrams overstate several lengths, and the corrected notes matter. The back is 76-1/2" x 40", the bottom and top rails are 76-1/2" and 78" (not the 82-1/2"/84" the drawings show), and the fabric panel is about 35" x 71-1/2" — the diagram's panel length runs 6" long. Cut to the corrected numbers, not the pictures.
Build it in layers: back, then the bottom-layer trim, then the bottom rail and legs and top, then the mitered molding frame, and finally the padded panel. Miter the molding corners cleanly at 45° — an upholstered field forgives a lot, but a gapped miter right next to it draws the eye. Dry-fit the panel before you upholster and leave a little clearance around it for the foam and fabric to take up, or the wrapped panel won't drop back into its opening.
| Item | Qty |
|---|---|
| 3/4" plywood or MDF, 4x8 sheetBack panel. Builder's grade is fine; just make sure it's flat. | 1 each |
| 1/2" plywood, half sheetFabric panel substrate. | 1 each |
| 1x3 board, 8 ftTrim layers, bottom, legs, and top. | 6 each |
| 2-1/2" unfinished molding, 10 ftThe mitered frame around the panel. | 2 each |
| Fabric, 45"+ wideCovers the panel; choose a mid-weight upholstery fabric. | 2.5 yard |
| Foam padding1"–2" foam sized to the panel. | 1 each |
| Staples | 100 each |
| Finish nails, 1-1/4" and 2" | 80 each |
| Wood screws, 1" and 2"1" to screw the panel to the back; 2" to fasten the headboard to the bed or wall. | 30 each |
| Wood glue | 6 oz |
| Wood filler | 4 oz |
| Paint, stain, or varnish | 16 oz |
Overall cost: $$$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Back3/4" plywood or MDF | 1 | 3/4" × 40" × 76 1/2" |
| Top and bottom trim (bottom layer)1x3 | 2 | 3/4" × 2 1/2" × 76 1/2" |
| Side trim (bottom layer)1x3 | 2 | 3/4" × 2 1/2" × 35" |
| Bottom rail1x3 | 1 | 3/4" × 2 1/2" × 76 1/2" |
| Legs1x3 | 2 | 3/4" × 2 1/2" × 55 1/4" |
| Top rail1x3 | 1 | 3/4" × 2 1/2" × 78" |
| Front of legs1x3 | 2 | 3/4" × 2 1/2" × 14 1/2" |
| Fabric panel substrate1/2" plywoodApproximate — dry-fit and trim to the opening, leaving room for foam and fabric. | 1 | 1/2" × 35" × 71 1/2" |
| Molding frameStore-bought moldingCut to fit the opening, mitered 45° at the corners. | 2 | 1/2" × 2 1/2" × 120" |
Some parts are longer than a 8 ft board, so there is no honest board count to show here. Open the board plan to pick a longer stock length — it names every part that does not fit.
1 board
6 boards
1 board
0 boards
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Cut (or have cut) the 3/4" back to 76-1/2" x 40". Builder's-grade plywood is fine here since it's fully covered, but pick a flat, undamaged sheet — a bowed back telegraphs through everything.
Fasten the top and bottom trim (1x3 at 76-1/2"), then the side trim, to the back with 1-1/4" nails and glue, keeping outside edges flush. This layer builds the frame's depth.
Fasten the bottom rail (76-1/2", not the diagram's 82-1/2") with 2" nails and glue into both the back and the trim layer; the front overhangs 1". Add the legs, then the top rail (78", not 84"), nailing into the legs, top trim, and back. Fasten the leg fronts through the sides and to the headboard top.
Measure and cut the store-bought molding to frame the opening, mitering the corners at 45°. Glue and nail it with 1-1/4" nails. Fill nail holes and any miter gaps, sand, and finish the wood now — before the fabric goes in, so you don't get finish on the upholstery.
Cut the 1/2" panel to about 35" x 71-1/2" and dry-fit it in the opening, leaving clearance for foam and fabric. Lay foam on the panel, wrap the fabric around, and staple it taut on the back — pull corners neatly so they don't bunch. Set the wrapped panel into the opening and screw it to the back from behind with 1" screws.
