About this build

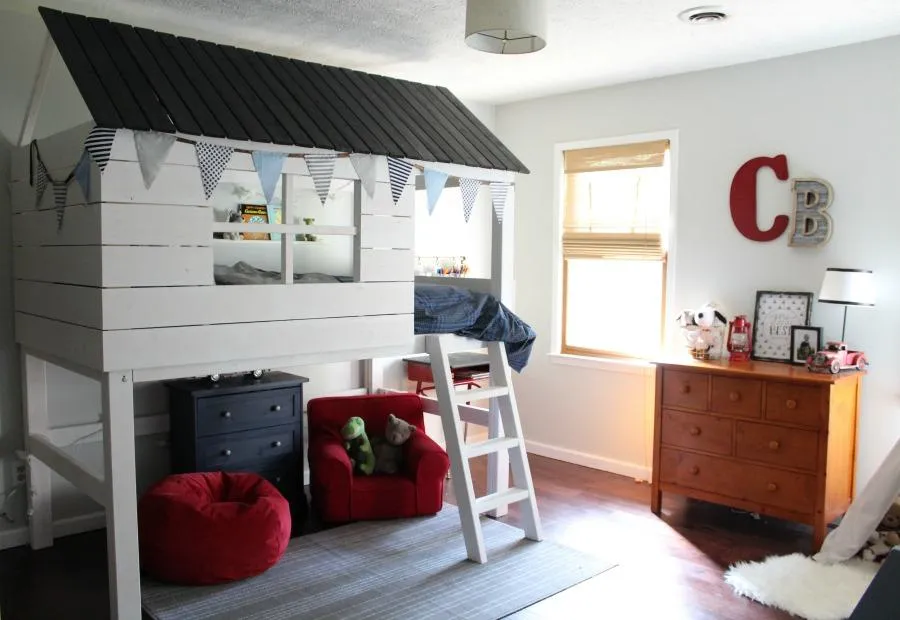

A twin size clubhouse style bed with upper loft and space for playing below.
Tools
Essential
- Brad Nailer
- Circular Saw
- Drill / Driver
- Miter Saw
- Pocket Hole Jig
- Random Orbit Sander
Optional / nice to have
- Bar / Pipe Clamps
- Tape Measure
Materials
| Item | Qty |
|---|---|
| Board, 2x4 96" | 18 board |
| Board, 1x4 96" | 7 board |
| Board, 1x3 96" | 9 board |
| Board, 2x2 96" | 5 board |
| Board, 1x6 72" | 9 board |
| Board, 1x6 72" | 1 board |
| 3.5" - Bolts, Washers & Nuts | 8 each |
| Box 3" Screws | 1 each |
| Box 2 1/2" Kreg Scews | 1 each |
| Box 1 1/2" Kreg Screws | 1 each |
| Box 2" Brad Nails | 1 each |
| Paint or stain of choice | 1 each |
| Large Flush Mount Hangers | 2 each |
| 3" Wood screws | 16 each |
Overall cost: $$$$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
Cut list
| Part | Qty | T × W × L |
|---|---|---|
| Corner Posts | 8 | 2" × 4" × 7" |
| Side Rails | 5 | 2" × 4" × 75" |
| Small Side Rails | 6 | 2" × 4" × 38" |
| Window Frame Horizontal | 2 | 2" × 2" × 29" |
| Window Frame Vertical | 2 | 2" × 2" × 27" |
| Door Post | 1 | 2" × 4" × 29" |
| Mattress Rails | 2 | 2" × 2" × 75" |
| Roof Frame | 4 | 2" × 2" × 28" |
| Roof Beams | 2 | 2" × 2" × 79" |
| Window Pane | 1 | 2" × 2" × 27" |
| Window Panes | 2 | 2" × 2" × 8" |
| Ladder Rails | 2 | 2" × 4" × 41" |
| Ladder Steps | 3 | 2" × 4" × 14" |
| Back Ladder Support | 1 | 1" × 4" × 17" |
| Roof Slats | 23 | 1" × 4" × 32" |
| Bed Slats | 18 | 1" × 3" × 41" |
| Siding | 6 | 1" × 6" × 12" |
| Siding | 3 | 1" × 6" × 55" |
| Siding | 9 | 1" × 6" × 44" |
| Back guard rail supports | 4 | 2" × 2" × 15" |
| Top guard rail | 1 | 2" × 4" × 75" |
| Back siding | 3 | 1" × 6" × 83" |
What to buy
Buy 50 boards at 8 ft.
2" × 4"
11 boards
2" × 2"
7 boards
1" × 6"
11 boards
1" × 4"
12 boards
1" × 3"
9 boards
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Instructions
1Assembling the Back Frame
Using 2 1/2" Pocket hole screws attach the 2x4 posts to the side rails as shown. Attach the 2x2's spaced equally using 2 1/2" pocket hole screws to the top guard rail and the mattress support.
2Assembling the Front Frame
Assemble the front frame using the same methods as the front except without the bottom rail.
3Assemble the Side Frames
Assemble the two side frames like using the same methods as the back frame.
4Attach the Frames
Use clamps to hold your frames together while you drill your holes for your bolts. There should be one bolt at the top of each post as well as one bolt half way down.
5Adding A Door Frame
Using 2 1/2" Kreg screws attach the door frame 2x4 to the front bed frame from the right end.
6Adding A Window Frame
Using 2 1/2" Kreg screws screw the 2x2 window frame 12" from the door opening and a second one 39" from the left bed post. Screw the top 2x2 window frame 5 1/2" from the top 2x4" and one 11" from the bottom 2x4" using 1 1/2" Kreg screws.
7Attaching the Mattress Rails
Glue and screw the 2x2" mattress rails to the bottom of the 2x4" frames. using 3" wood screws.
8Adding Bed Slats
Space the 18 bed slats out evenly and nail in place with brad nails.
9Assembling the Roof Frames
Cut 4 - 2"x2" to 28 3/4" long. One end should be cut at 50 degrees and the opposite end cut to 40 degrees. The roof frame should be 18" tall. Using glue and brad nails, nail the corners of the roof frame and use 3" wood screws to screw the frame down onto the bed posts from the corners.
10Adding the Roof Beams
Using 2" Kreg Screws attach the two 2x2 boards at the top of the roof frame and one 6" from the bottom of the rood frame. The Kreg clamp comes in very handy for this part, especially if you don't have a second set of hands to hold the 2x2's in place.
11Attach the Siding
Using a nail gun attach the 1x6" siding pieces with a 3/4" gap on all four sides. UPDATE Make sure to install three siding pieces to the back frame as a guard rail along with three siding pieces to the foot of the bed so that the railing is sitting at least 5" above the top of the mattress.
12Adding the Roof Slats
Nail the roof slats into place with 3/4" spacing and a 1" hang off on the two ends. I found that it was much easier to paint the slats before putting them in place.
13Assembling the Window Pane
Attach the 2x2x27" with 2" Kreg screws to the window frame. Attach the 2x2x8" with 2" Kreg screws to the horizontal pane and to the window frame.
14Assemble the Ladder
Use 3 - 3" screws on each side of the steps of the ladder to the two ladder posts.
15Paint or Stain
Sand the bed and paint or stain your however you choose. Finish up with a very fine grit sand paper for create a smooth finish.
16Attaching the Ladder
Using the flush mount hangers attach the ladder to the center of the door opening with the screws provided.
