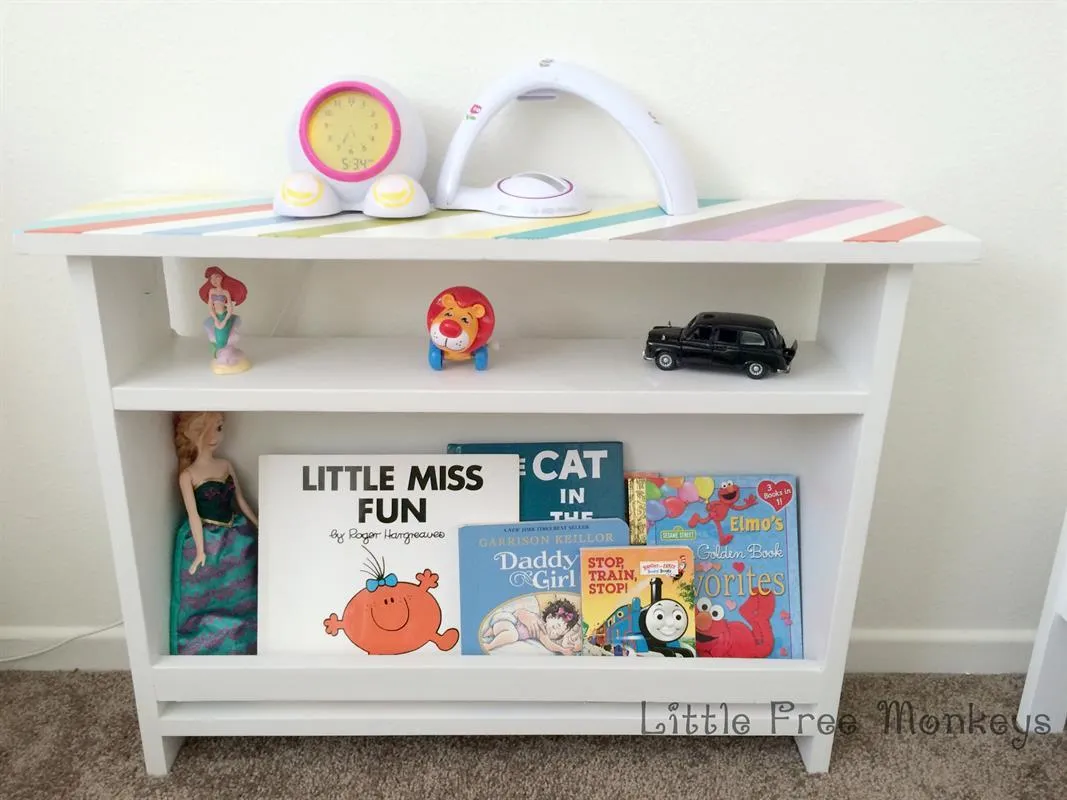

A simple bedside table with book storage especially for kids that love to read at bed time. And no bottomless drawers for Mom to clean up.
| Item | Qty |
|---|---|
| Board, 1x6 96" | 1 board |
| Board, 1x2 24" | 1 board |
| Board, 1x8 36" | 1 board |
| Plywood, 1/4" Thick Quarter Sheet | 1 board |
| Wood glue | 1 each |
| 1 1/4" kreg pocket hole screws |
| 22 each |
| 1/2" finish nails | 20 each |
| Wood putty | 1 each |
| Sandpaper - 80, 150 and 220 grit | 3 each |
| Primer | 1 each |
| Paint - color of choice | 1 each |
Overall cost: $$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Shelves | 2 | 3/4" × 5 1/2" × 22" |
| Sides | 2 | 3/4" × 5 1/2" × 20" |
| Book bar | 1 | 3/4" × 1 1/2" × 22" |
| Back | 1 | 1/4" × 18" × 23 1/2" |
| Table top | 1 | 3/4" × 7 1/2" × 25 1/2" |
Buy 4 boards at 8 ft.
1 board
1 board
1 board
1 board
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →

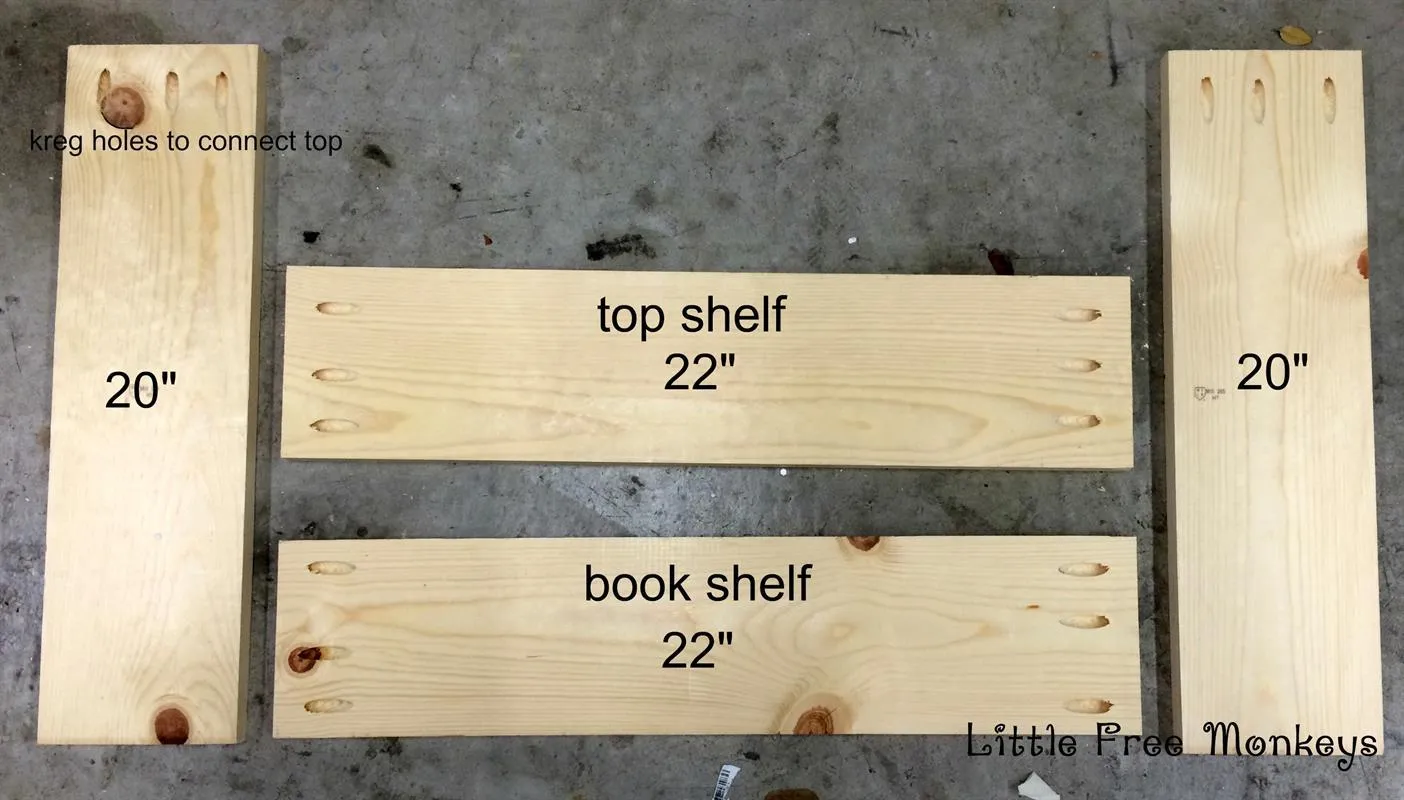

Use 1x6 board - Cut 2 shelves @ 22" Cut 2 sides @ 20" Make pocket holes as shown in picture

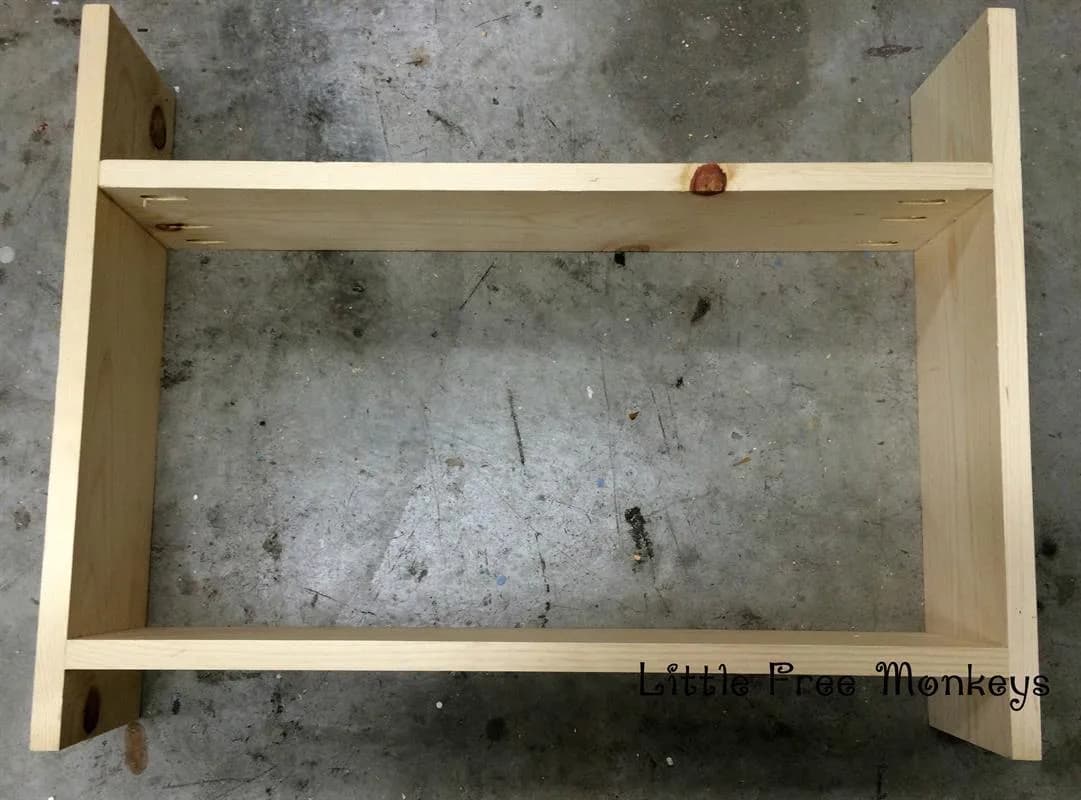

Attach the shelves to the sides at 2″ from the bottom and 5.5″ from the top using glue and pocket hole screws. Ensure that the pocket holes for the top are on the outside os the side boards.

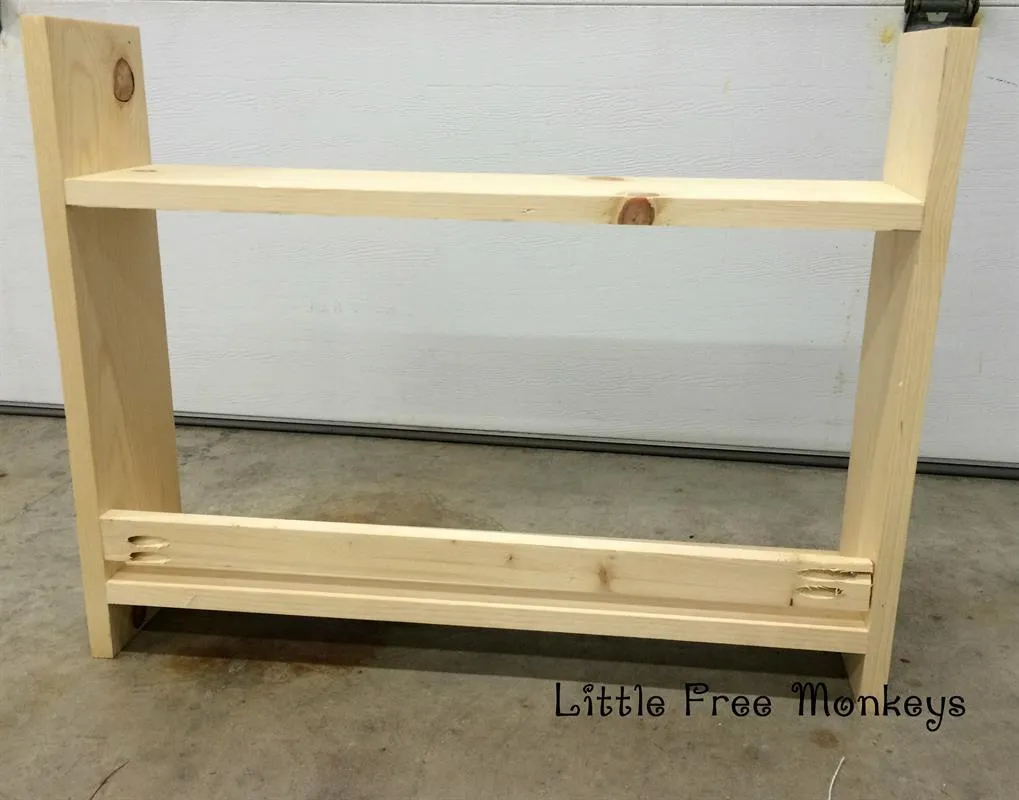

attach 1x2 @ 22" to the front leaving a 3/4" gap on the bottom. I used a scrap 1 x3 board for the spacing.

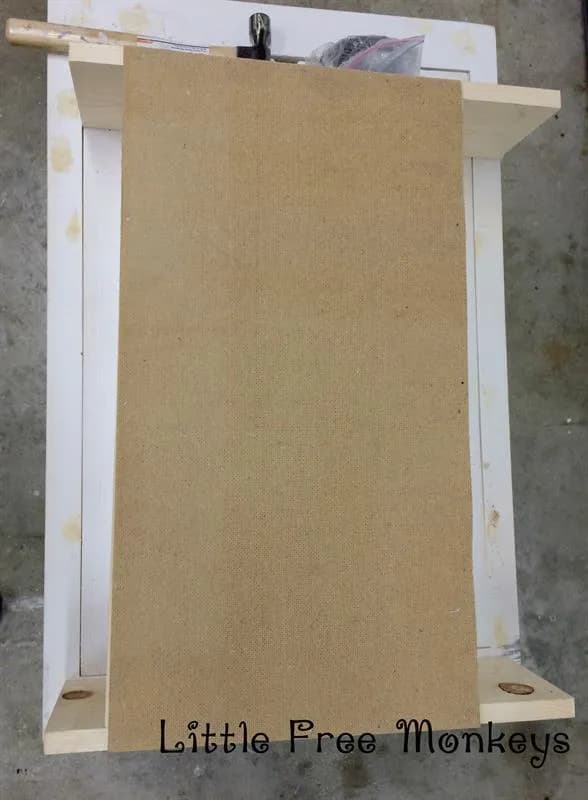

Attach the 1/4" plywood cut at 23.5″ x 18″ on the back between the two shelves to create a backing for the book storage area. Use glue and finish nails

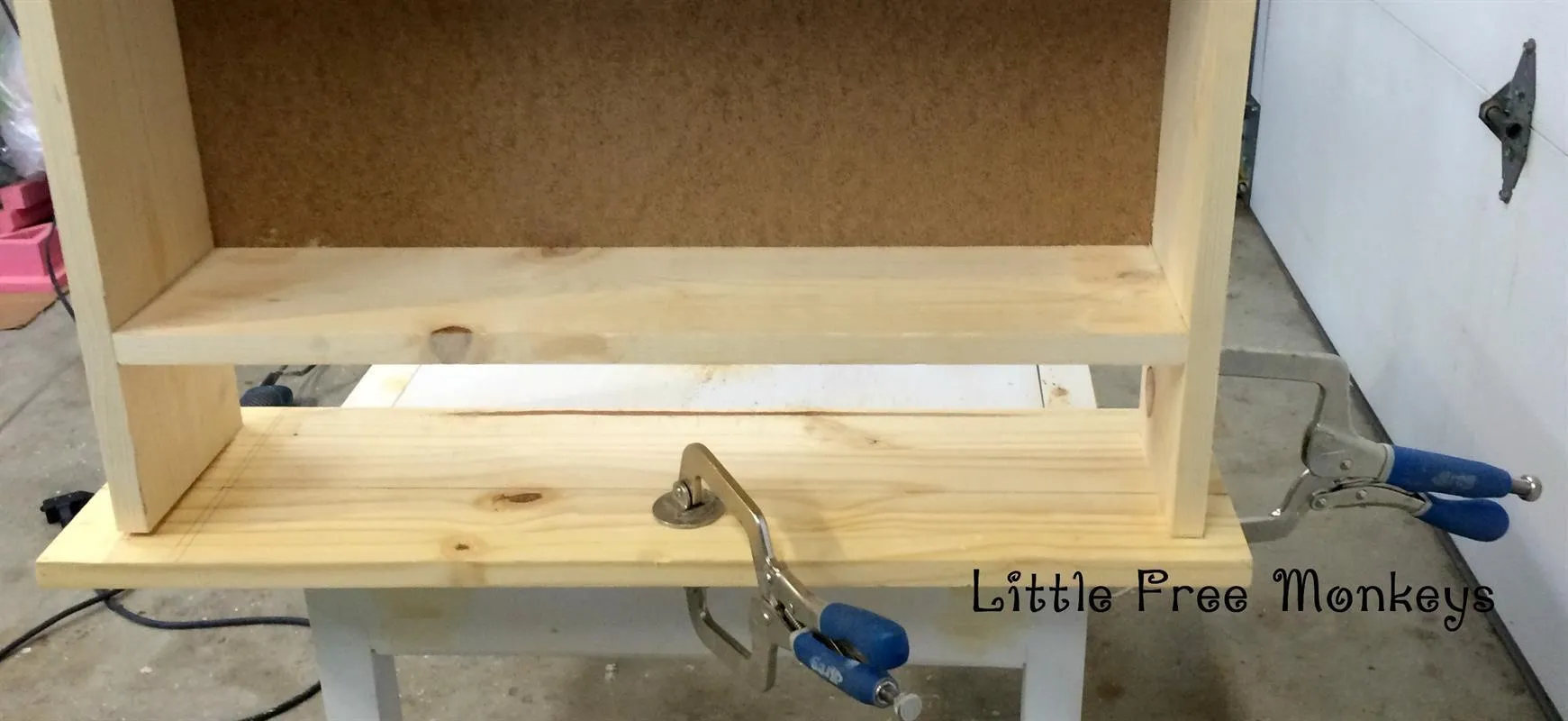

Attach 1 x 8 cut at 25.5" as the table top using the pocket hole screws. Leave an inch over hang on all four sides.

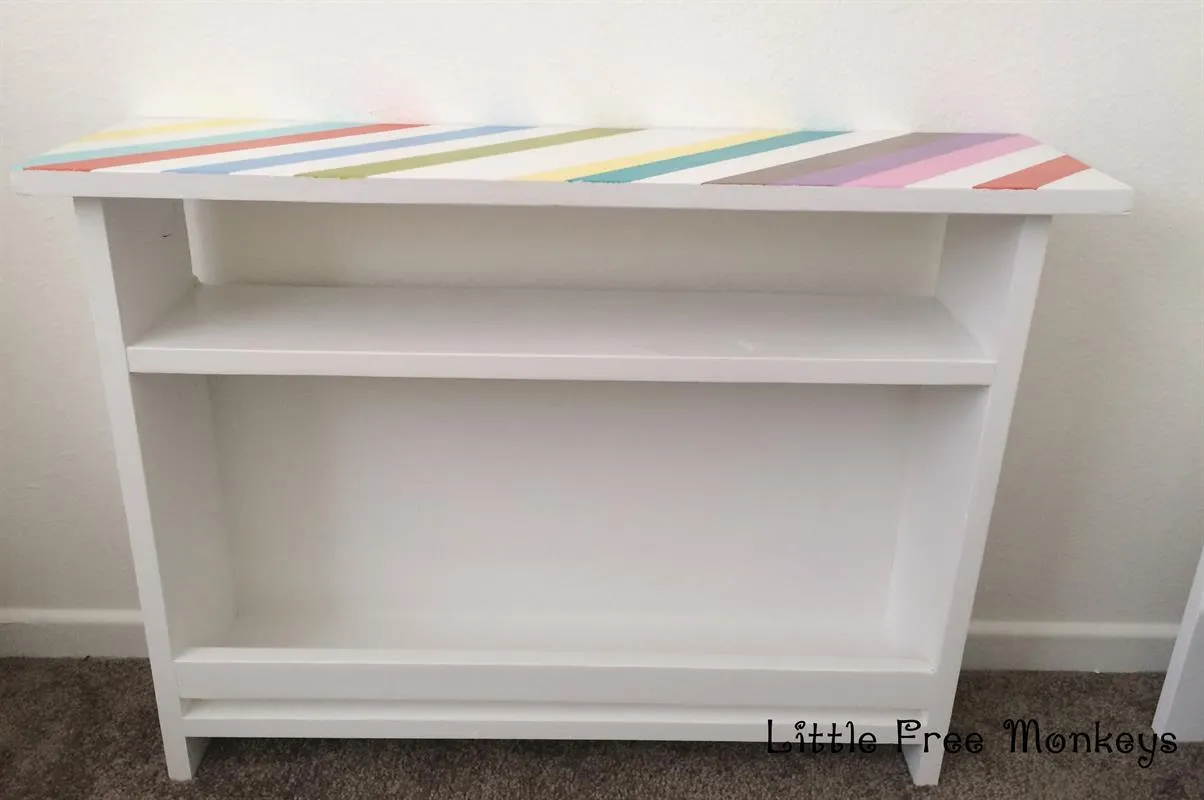

Fill all the holes with wood putty, sand, prime and paint the table. I also added a pattern on the top to make it a little colorful.
