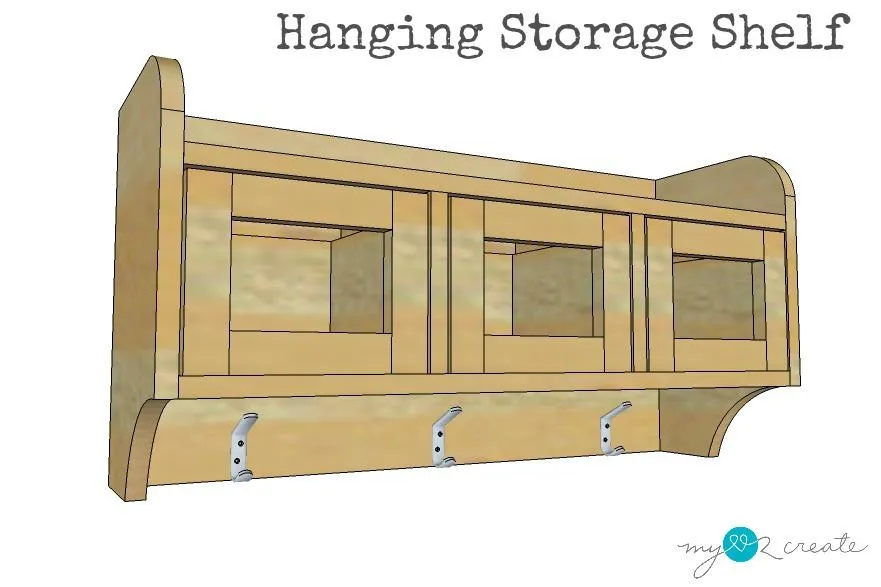

Hanging Storage Shelf

Instructions

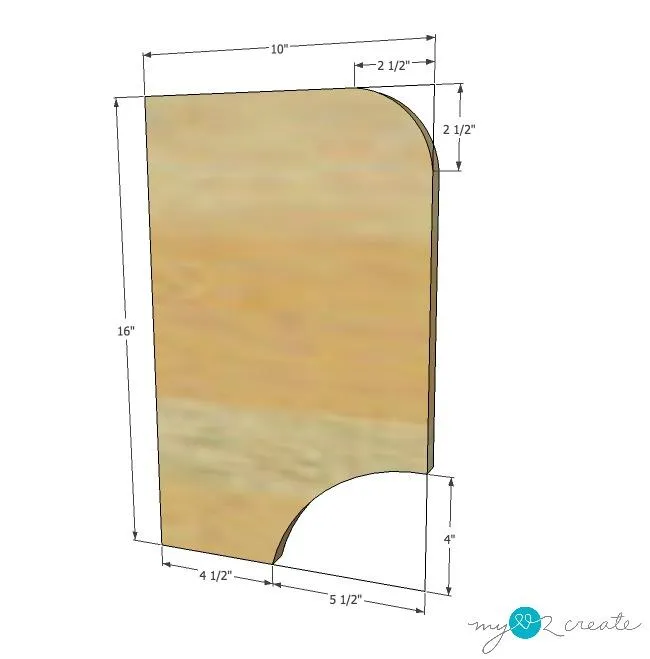

1. 1. Cut the sides

   • For the two sides you will need to cut two 16'' long pieces from a 1x12 board.
   • Then, using a Kreg Rip cut or table saw, rip the two boards to 10''. This will give you two 10''x16'' boards. Referring to the photo, measure and mark on your boards where the semi circles start by using the dimensions given. Using a circular object, like a bowl, trace a semi circle connecting the marks.
   • Cut out semi circles with a jigsaw and then sand smooth.

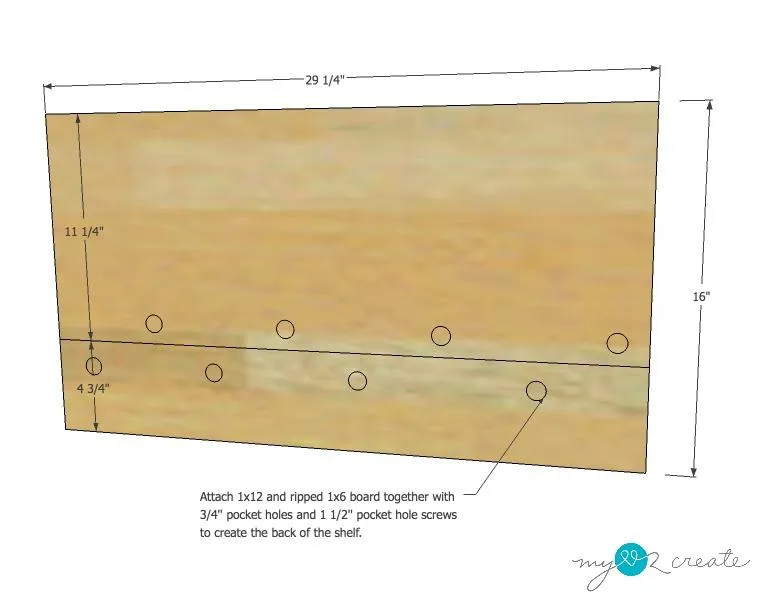

2. 2. Attach back pieces

   • For the back of the shelf you will need a 1x12 and a 1x6 board.
   • Cut both boards to 29 1/4'' long.
   • Rip your 1x6 board so that it is 4 3/4'' wide.
   • Then using glue and pocket hole screws attach your 1x12 and ripped 1x6 board together to create the 29 1/4''x16'' back piece.

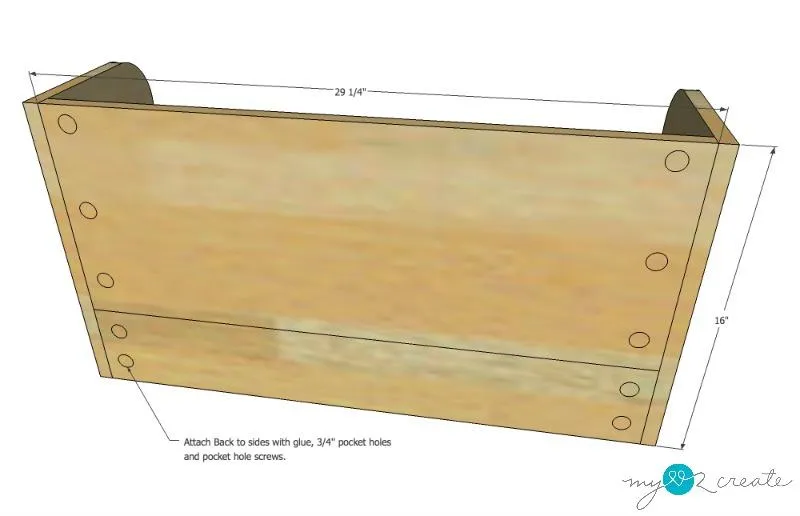

3. 3. Join back and sides together

   Using glue and pocket hole screws attach the back to the two side pieces.

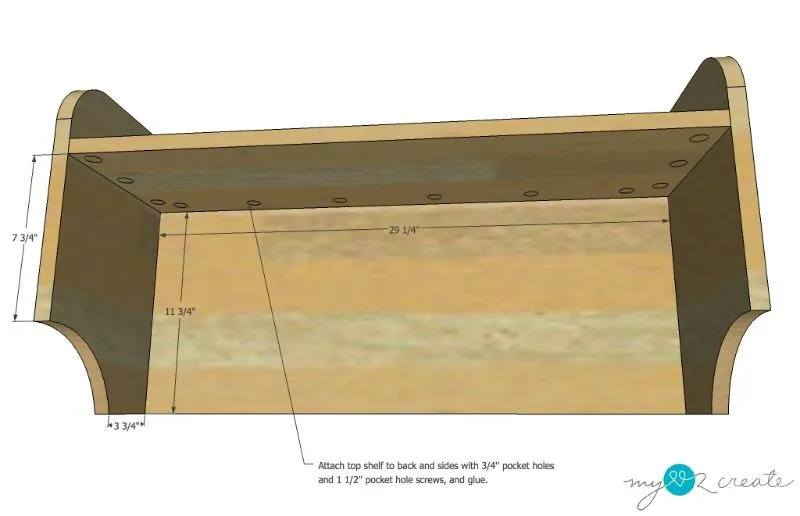

4. 4. Add top shelf

   With glue and pocket hole screws attach the top shelf to the sides and back of the shelf.

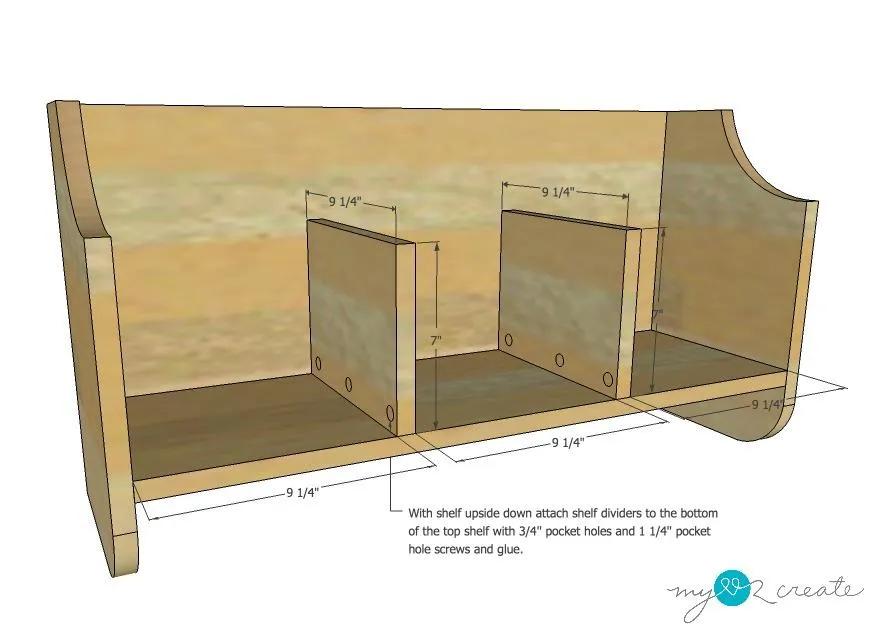

5. 5. Connecting dividers

   With the shelf upside down attach the shelf dividers with glue and pocket hole screws to the bottom of the top shelf.

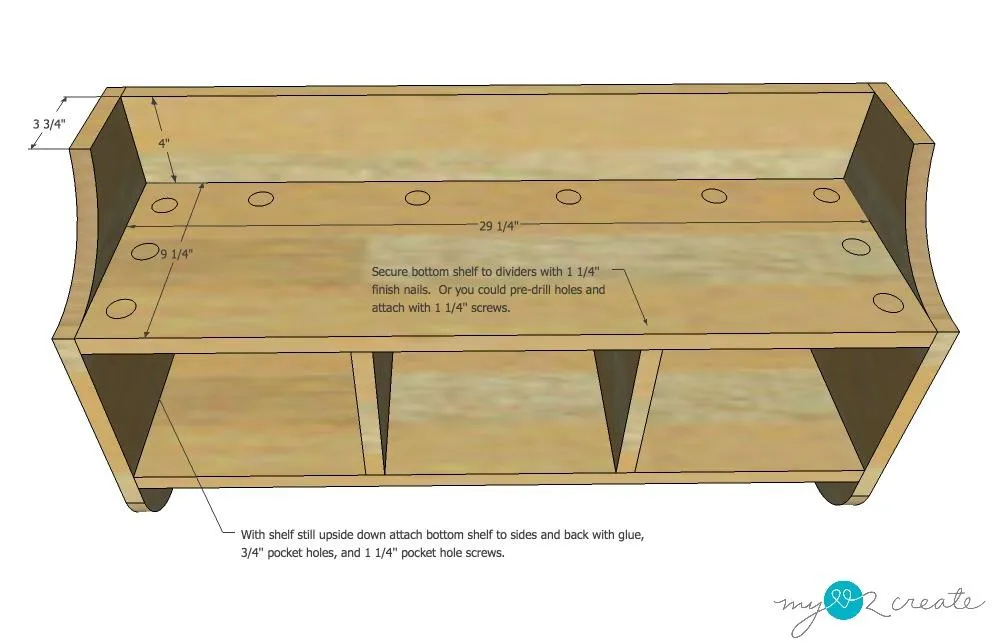

6. 6. Add the bottom shelf

   Glue and screw on the bottom shelf to the sides and back, and attach dividers with finish nails.

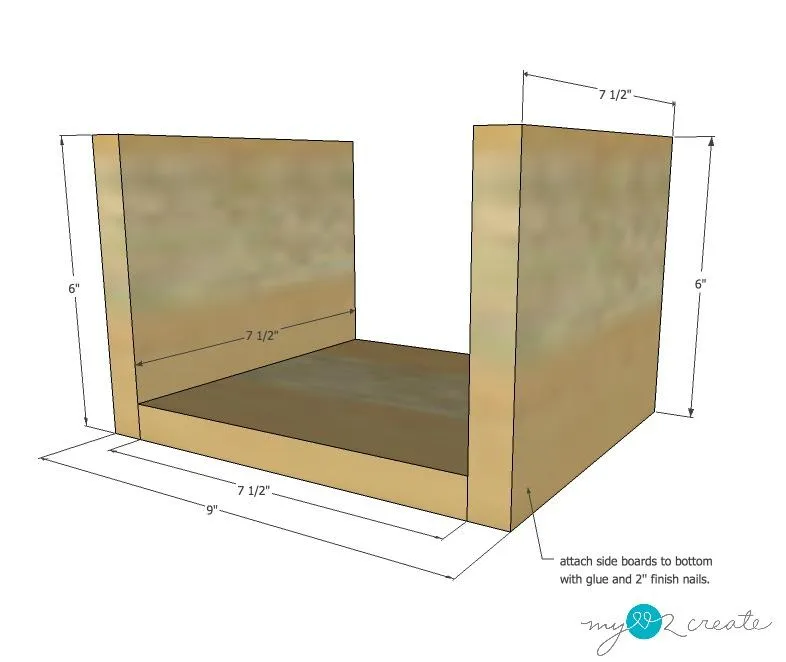

7. 7. Building storage bins

   I used scrap 3/4'' plywood for my storage bins, because I needed to use it up. You can use 3/4''or 1/2'' plywood or any scrap wood to build these bins. Using glue and 2'' finish nails attach the two sides to the bottom.

8. 8. Attach back of bin

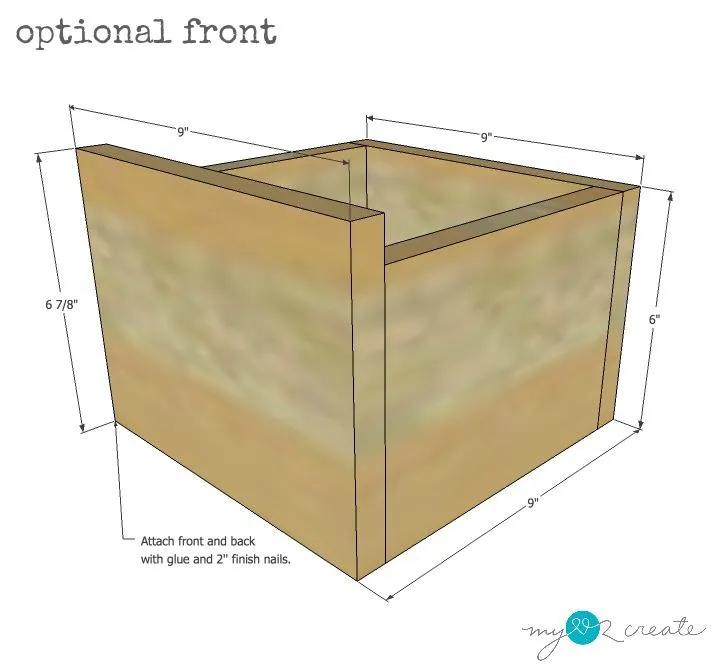

   Attach the back of the bin with glue and finish nails to the sides and bottom. Pictured is an optional front piece if you do not want to do the front that is in the next step.
