The dowel holes are the one detail that needs real precision — bored with a spade or Forstner bit sized exactly to a 3/4" dowel, since a loose hole lets the dowel (and every roll of wrapping paper hanging on it) tip and slide. Mark the hole centers carefully before drilling, and cut the corners off the top and bottom afterward for a softer profile.
Everything else is straightforward shelf-and-divider construction, screwed to studs through the back panel since a fully loaded wrapping station — paper rolls, ribbon, tape, scissors — carries real weight for a wall-mounted piece.
| Item | Qty |
|---|---|
| Pine, 1x6, 8 ft | 3 each |
| Wood dowels, 3/4", 36 in | 4 each |
| Brad nails, 1-1/4" | 1 box |
| Wood glue | 2 oz |
| Self-tapping screws, 3"For hanging into wall studs. | 4 each |
Overall cost: $$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| SidesPineMark and drill the 3/4" dowel holes before cutting the top and bottom corners. | 2 | 3/4" × 5 1/2" × 34" |
| Main shelves and backPine | 4 | 3/4" × 5 1/2" × 31" |
| DividerPine | 1 | 3/4" × 5 1/2" × 11 1/4" |
| Small shelfPine | 1 | 3/4" × 5 1/2" × 19 1/4" |
| DowelsWood dowel | 4 | 3/4" × 3/4" × 33" |
Buy 5 boards at 8 ft.
3 boards
2 boards
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Measure and mark the hole centers on both side panels. Drill with a 3/4" spade or Forstner bit sized exactly to the dowels — a loose hole lets the dowel (and everything hanging on it) tip. Cut the top and bottom corners off each side with a jigsaw or circular saw for a softer profile.
Attach the sides to the top and bottom.
Attach the main shelves to the sides.
Attach the divider to the shelves.
Attach the remaining small shelf.

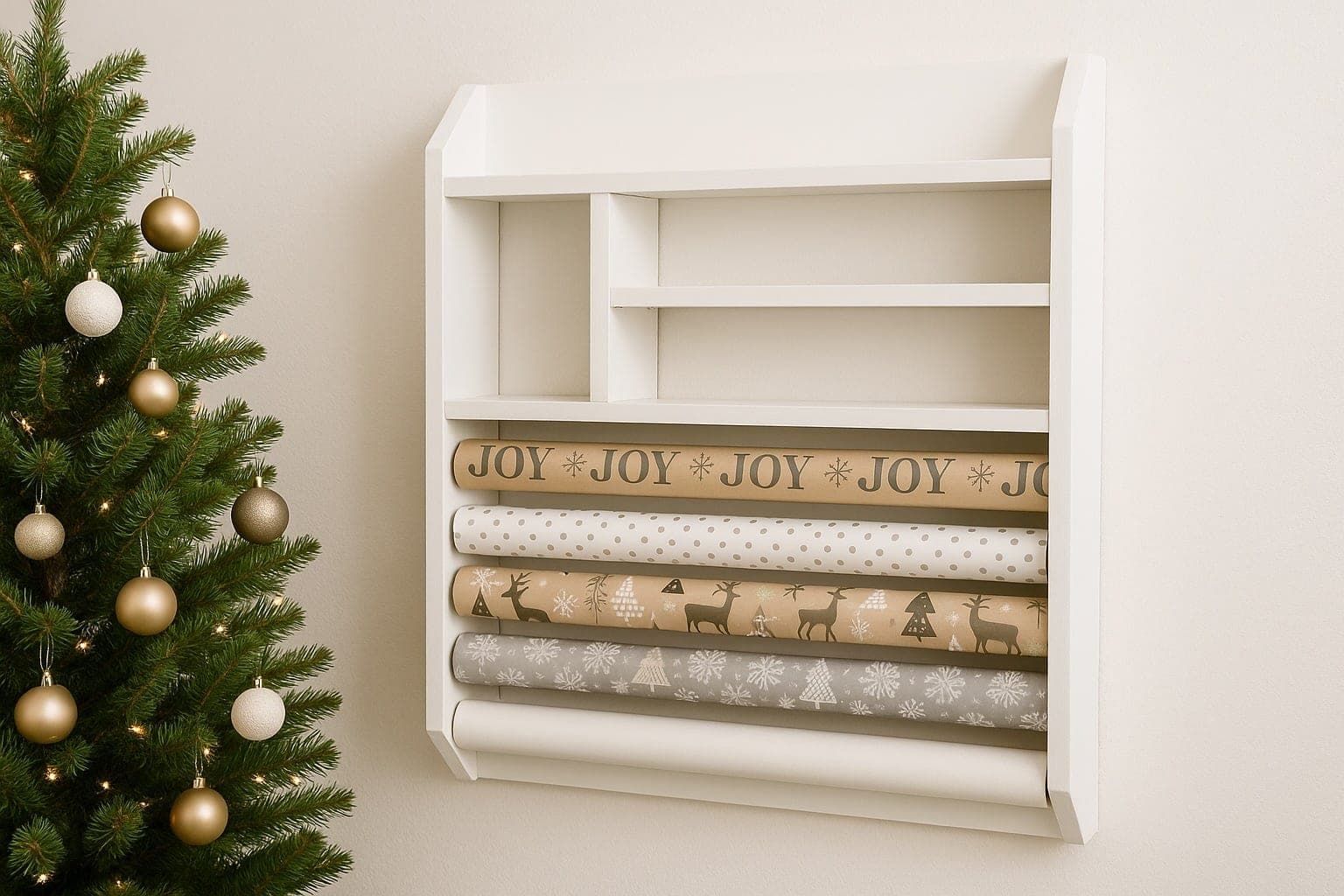

Hang the organizer on the wall through the back panel into studs, using 3" screws. Insert the dowels into the drilled holes to hold wrapping paper rolls upright.
