The source is explicit that every joint on this build gets reinforced, and that's worth taking seriously — a toy stove gets more abuse per square inch than almost any piece of furniture in the house, between a kid climbing on it, slamming the door, and spinning the knobs. Building it square from the very first step and rechecking square at each stage isn't a nice-to-have here; a rack in the box shows up immediately as a door that won't close evenly.

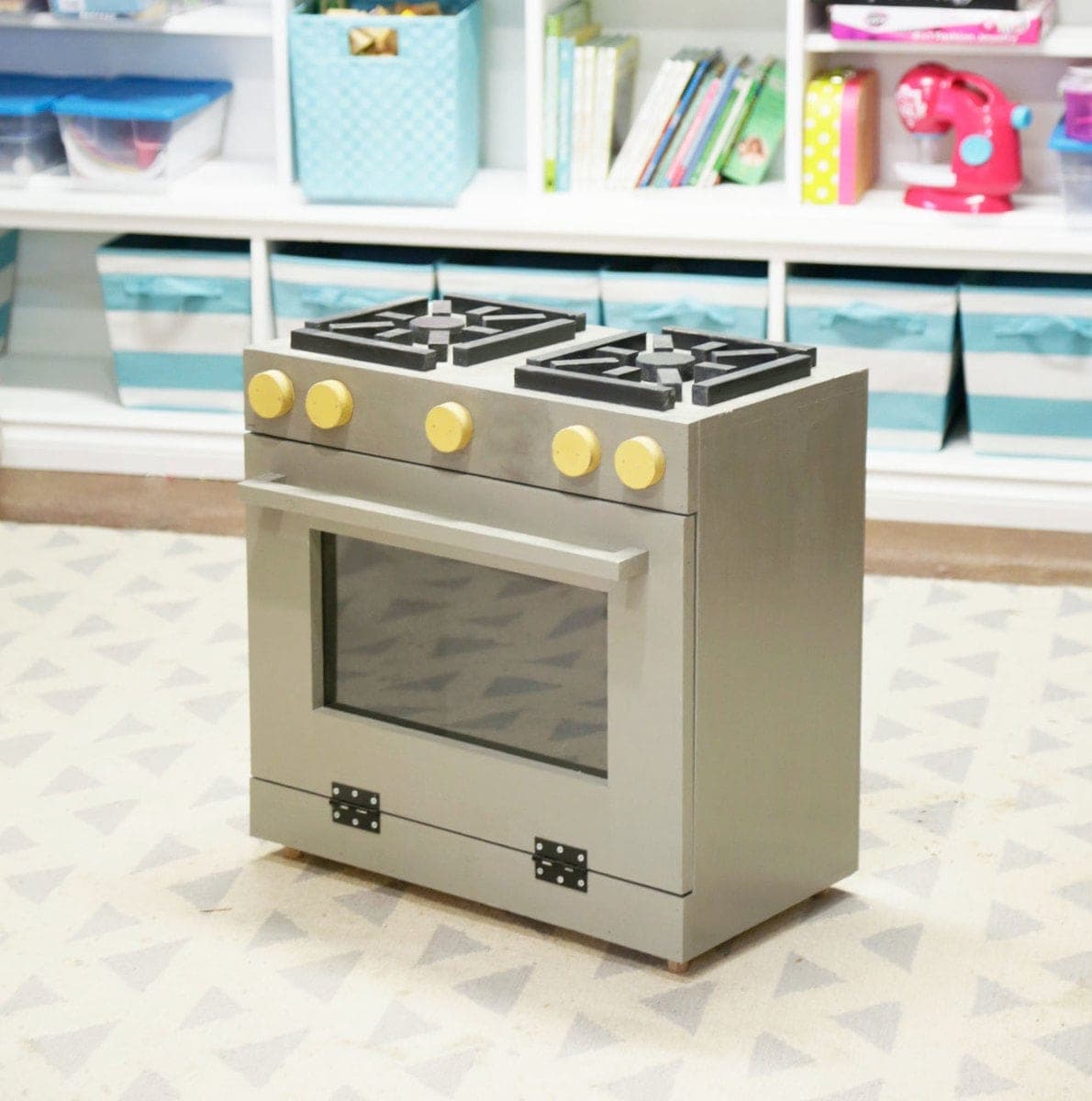

The plexiglass oven window is what makes this read as a real appliance instead of a plain box with a door — screwed in with just one screw per corner, it's simple to install but adds real visual payoff. Wood rounds for burner knobs and scrap-wood "grates" nailed onto the top are both details that take minutes but do most of the work of making the stovetop legible as a stovetop.
| Item | Qty |
|---|---|
| Pine, 1x12, 8 ft | 1 each |
| Pine, 1x2, 8 ft | 1 each |
| Plywood, 1/4", 24" x 24" | 1 each |
| Pine, 1x4, 8 ft | 1 each |
| Pine, 1x3, 2 ft | 1 each |
| Plexiglass, 8" x 16" | 1 each |
| Wood dowel pieces, 1" longLeftover closet rod pieces work well. | 4 each |
| Wood rounds, 2" diameter, 3/4" thickBurner knobs. | 4 each |
| Self-closing hinges, surface mount | 1 pair |
| Wood screws, 3/4" | 1 box |
| Brad nails, 1-1/4" | 1 box |
| Wood glue | 3 oz |
Overall cost: $$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| TopPine | 1 | 3/4" × 11 1/4" × 22" |
| SidesPine | 2 | 3/4" × 11 1/4" × 20" |
| BottomPine | 1 | 3/4" × 11 1/4" × 20 1/2" |
| BackPlywood | 1 | 1/4" × 22" × 20 3/4" |
| Front top railPine | 1 | 3/4" × 3 1/2" × 22" |
| Front bottom railPine | 1 | 3/4" × 2 1/2" × 22" |
| Door frame sidesPine | 2 | 3/4" × 3 1/2" × 14 1/2" |
| Door frame top/bottomPine | 2 | 3/4" × 3 1/2" × 15" |
| Burner knobsWood round | 4 | 3/4" × 2" × 2" |
| Stovetop grate stripPine | 1 | 3/4" × 1 1/2" × 18 1/2" |
Buy 6 boards at 8 ft.
1 board
1 board
1 board
1 board
1 board
1 board
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Build the box from the 1x12 top, sides, and bottom, using pocket holes or 1-1/4" brad nails and glue. Every joint on this build gets reinforced — a toy stove takes more abuse per square inch than most furniture in the house.
Attach the back to the sides, top, and bottom. Use shorter (3/4") nails here — longer nails tend to split out the sides and aren't needed just to tack the back on. Keep the whole project square as you attach it.
Attach the front top and bottom rail pieces with 1-1/4" nails and glue, checking for square again as you go.
Build the door panel, ideally with 3/4" pocket holes and 1-1/4" pocket hole screws. Attach the plexiglass window with 3/4" wood screws — just one in each corner is enough. Hang the door with self-closing hinges.
Add optional feet to the base for a more finished, appliance-like stance.
Cut wood scrap into grate shapes for the stovetop and nail them down with 1-1/4" nails and glue. Attach the wood-round burner knobs and dowel pieces last.
