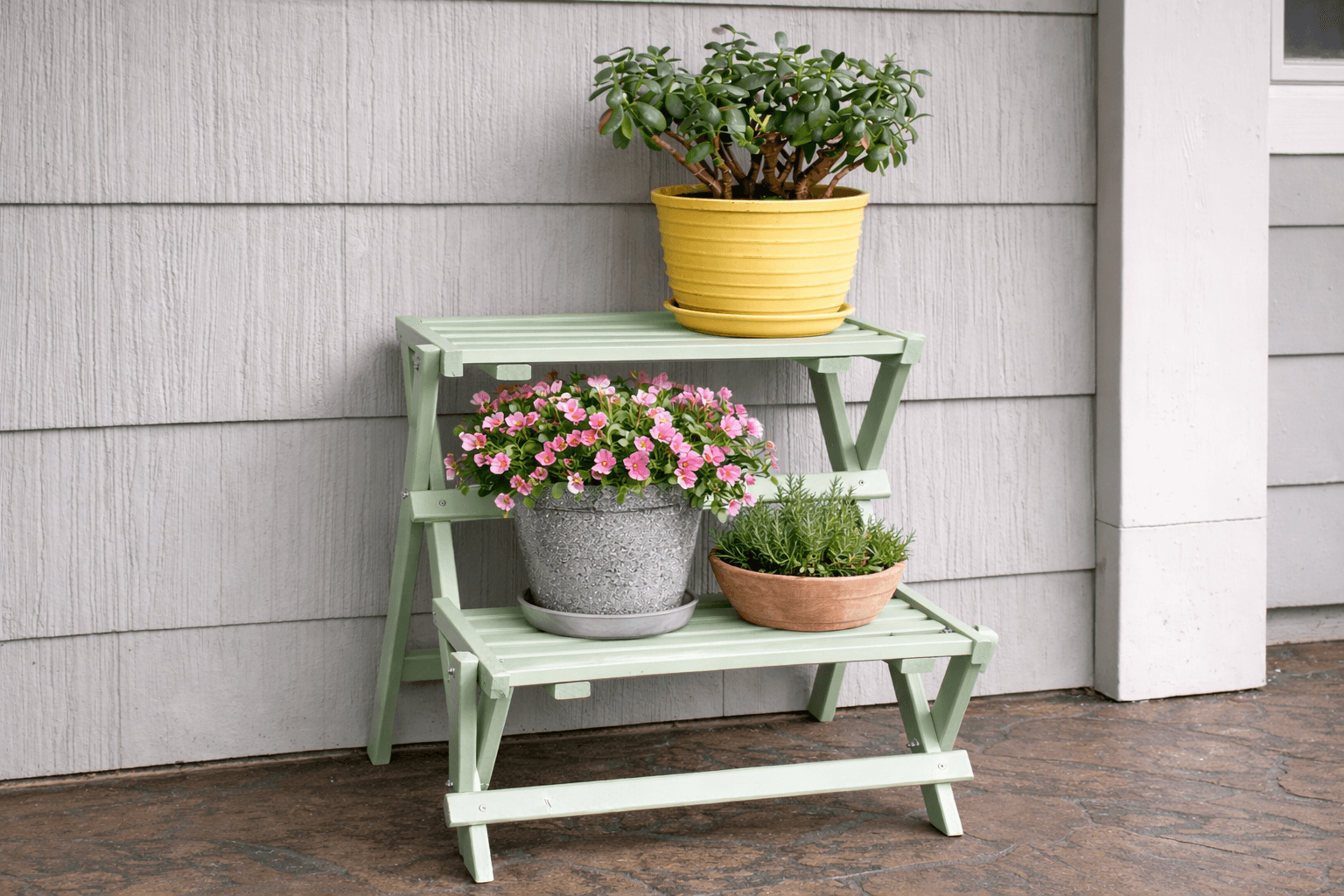

Unlike a fixed plant stand, this one is built to fold: the shelves pivot on bolts rather than screws, so the whole thing collapses flat when you don't need it and pops back open for the growing season. That means every pivot point in this build is a bolted joint, not a fastened one — get the hole locations and diameters consistent across matching parts, or the shelves won't swing evenly.
Assemble the frame first and level it before drilling the pivot holes for the shelves; the plan has you clamp a level against the shelf tops and drill through both the shelf and the leg assembly at once, which is what keeps every shelf sitting flat once it's folded open, rather than guessing at hole placement on each piece separately.
| Item | Qty |
|---|---|
| 2", 1/4" diameter bolts | 8 each |
| 1/4" washers | 24 each |
| 1/4" nuts | 8 each |
| Pine, 1x2, 8 ft | 6 each |
| Wood glue, exterior-rated | 4 oz |
Overall cost: $. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Leg boardsPine 1x2Both ends cut at 30° off square, ends parallel. | 4 | 3/4" × 1 1/2" × 27 11/16" |
| Shelf boardsPine 1x2 | 9 | 3/4" × 1 1/2" × 26" |
| Frame verticalsPine 1x2 | 2 | 3/4" × 1 1/2" × 29" |
| Bottom shelf supportPine 1x2Short point to short point, both ends 30° off square, not parallel. | 2 | 3/4" × 1 1/2" × 9 3/4" |
| Shelf end supportsPine 1x2 | 6 | 3/4" × 1 1/2" × 9" |
| Shelf angled supportsPine 1x2Long point to long point, both ends 30° off square, not parallel. | 4 | 3/4" × 1 1/2" × 10 1/2" |
Buy 6 boards at 8 ft.
6 boards
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Cut all boards to size, with the leg boards cut at their angled ends as specified. Drill pivot holes in the leg boards as laid out — you'll only need the bottom set of holes on two of the four leg boards.
Attach the two leg boards together in pairs with 2" fasteners. If screwing, predrill carefully; if nailing, use plenty of exterior-rated glue.
Measure carefully and attach the bottom shelf supports with 2" screws, overhanging 3/4" from the legs on each side.
Drill 1/4" holes in the bottom shelf support board. Attach the back leg and bottom shelf support together with a bolt, using three washers — one on each end and one between the boards to protect the finish from wear. Set this assembly aside.
Attach the shelf end supports with 2" screws and glue.
Set a level across the top of the shelves as you clamp them onto the frame, and drill matched 1/4" holes through both the shelf and the leg/support assembly at once — drilling them together, rather than separately, is what keeps every shelf sitting flat once folded open. Attach with bolts so the shelves can pivot freely, checking that the shelf tops are level before you fully tighten each one.
Fold the shelves flat against the frame and back open a few times to confirm everything pivots smoothly before loading it with plants.
