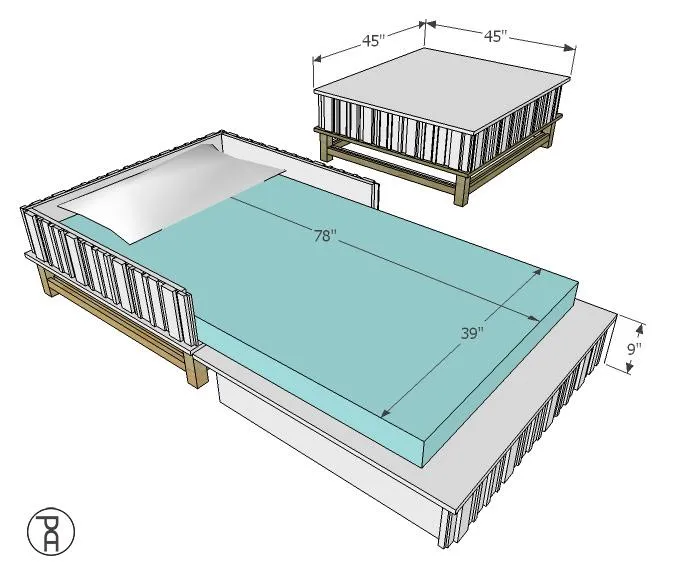

A coffee table which opens up to reveal and support a standard sized twin mattress!
| Part | Qty | T × W × L | Material | ✓ |
|---|---|---|---|---|
| Top & bottom | 2 | 3/4" × 45" × 45" | — | ☐ |
| Face boards | 2 | 3/4" × 8 1/4" × 42 1/2" | — | ☐ |
| Side boards | 4 | 3/4" × 8 1/4" × 41" | — | ☐ |
| Full-length leg pieces | 3 | 3/4" × 2 1/2" × 48" | — | ☐ |
| Stretchers | 8 | 3/4" × 3/4" × 39" | — | ☐ |
| Item | Qty | ✓ |
|---|---|---|
| MDF, 3/4" Thick Full Sheet | 2 board | ☐ |
| MDF, 1/4" Thick Quarter Sheet | 1 board | ☐ |
| MDF, 1/2" Thick Quarter Sheet | 1 board | ☐ |
| Board, 1x3 96" | 1 board | ☐ |
| Board, 1x3 48" | 1 board | ☐ |
| Dowel, 3/4" square dowel 48" | 8 board | ☐ |
| 1/14" pocket hole screws | 50 each | ☐ |
| 3", #8 wood screws | 16 each | ☐ |
| 1", 23 gauge brads | 500 each | ☐ |
Overall cost: $$$. Lumber varies by region, species, and season, so we give a band rather than a figure.

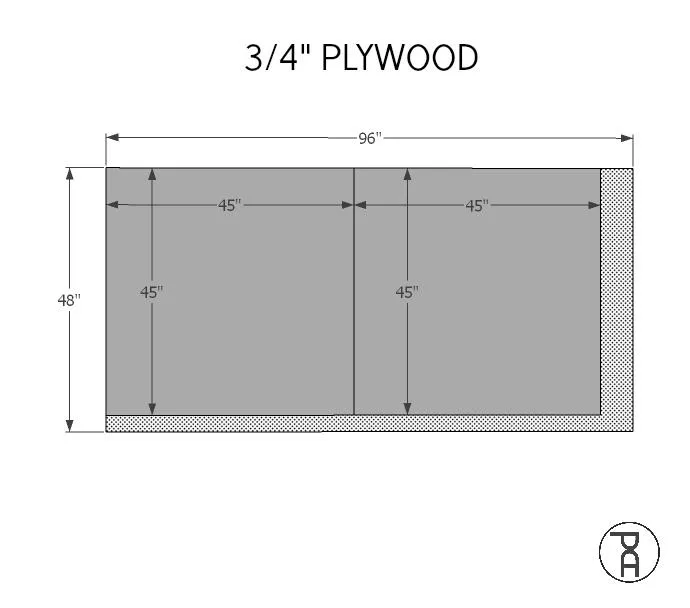

Cut two, 45" x 45" squares from 3/4" thick plywood or MDF

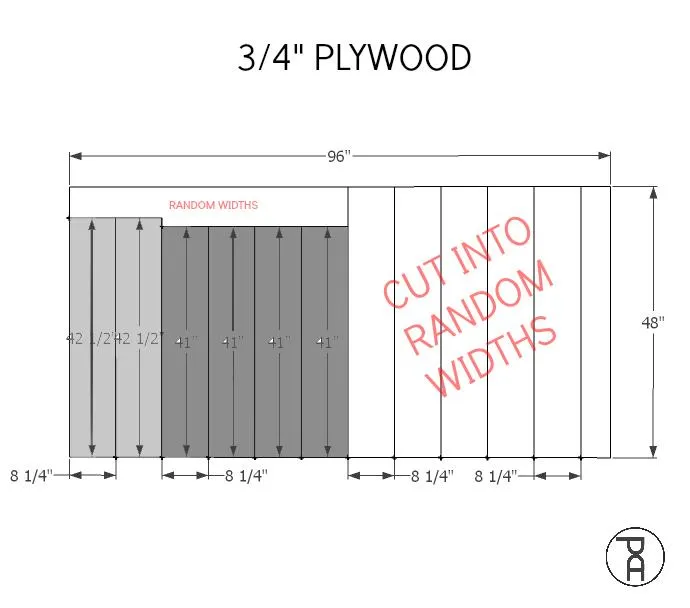

Cut two, 8-1/4" x 42-1/2" face panels and four, 8-1/4" x 41" sides panel from 3/4" thick plywood or MDF. Cut the remaining scrap into 8-1/4" lengths of material and various, random widths.

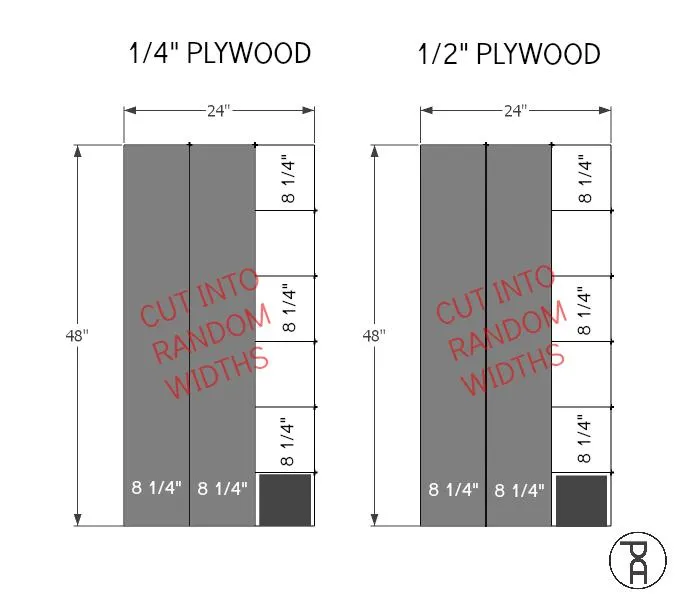

Cut an entire 2' x 4' x 1/4" plywood or MDF "hobby panel" AND an entire 2' x 4' x 1/2" plywood or MDF "hobby panel" into 8-1/4" lengths, at random widths.

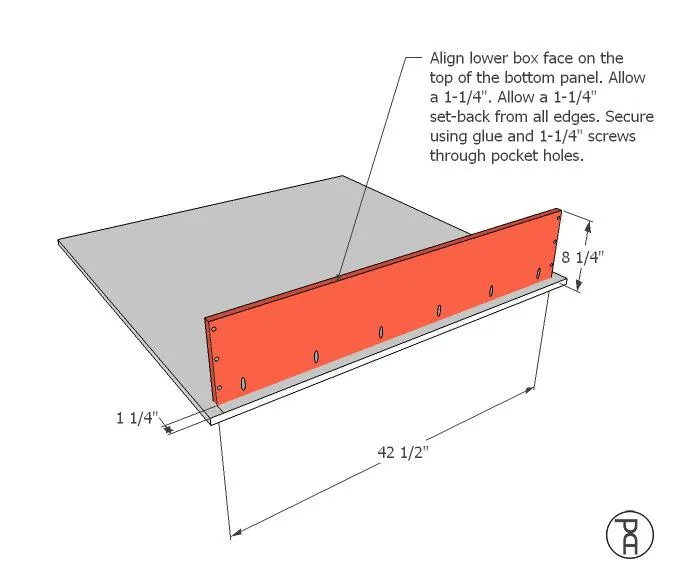

Align the lower box face on the top of the bottom panel. Allow a 1-1/4" set-back from all edges. Secure in place using glue and 1-1/4" screws through pocket holes.

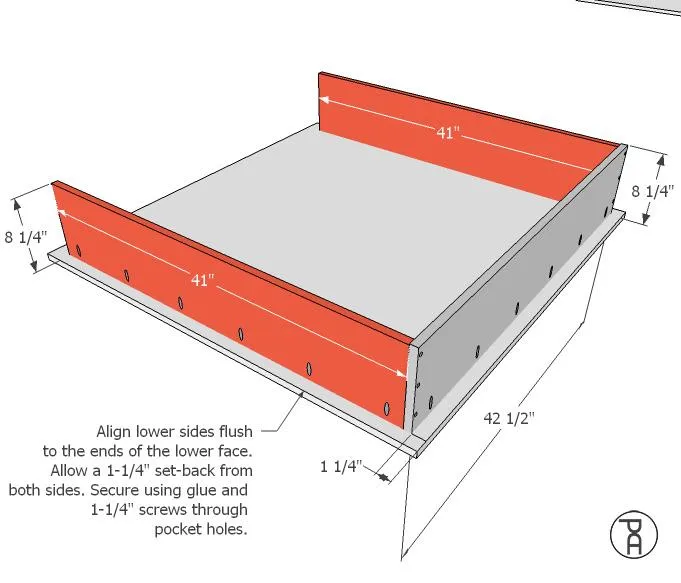

Align the lower sides flush to the ends of the lower face. Allow a 1-1/4" set-back from both sides. Secure in place using glue and 1-1/4" screws through pocket holes.

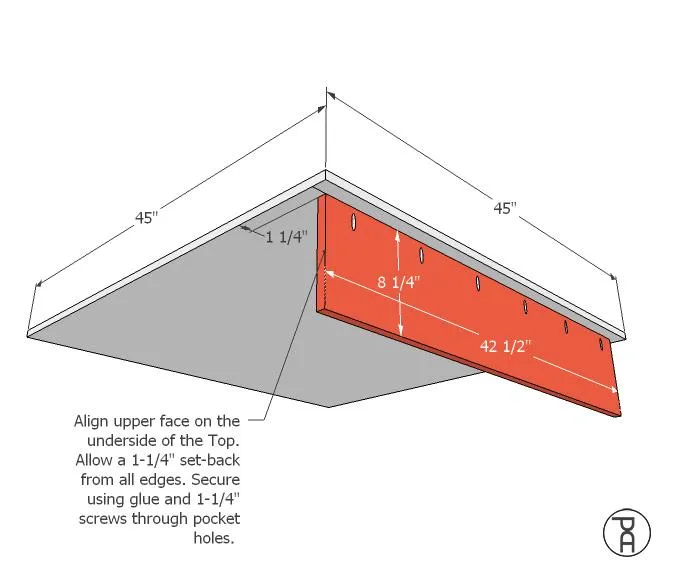

Align the upper face on the underside of the Top. Allow a 1-1/4" set-back from all edges. Secure in place using glue and 1-1/4" screws through pocket holes.

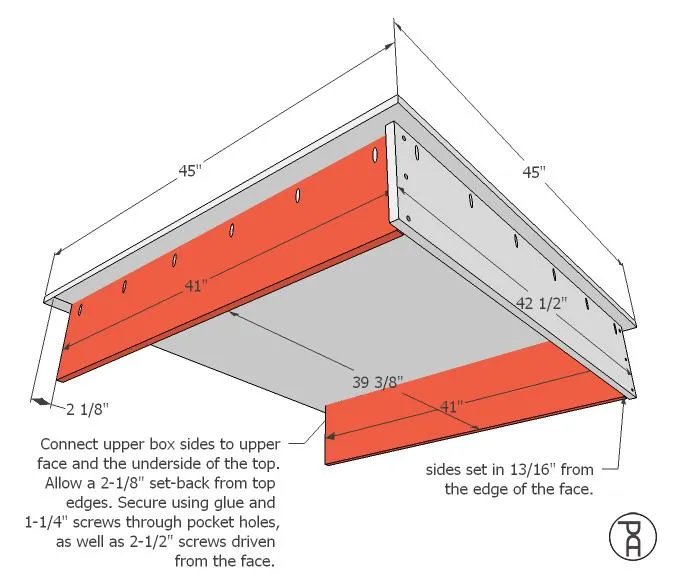

Connect the upper box sides to upper face and the underside of the top. Allow a 2-1/8" set-back from top edges. Secure in place using glue and 1-1/4" screws through pocket holes, as well as 2-1/2" screws driven from the face. The sides will be set in 13/16" from the ends of the face board.

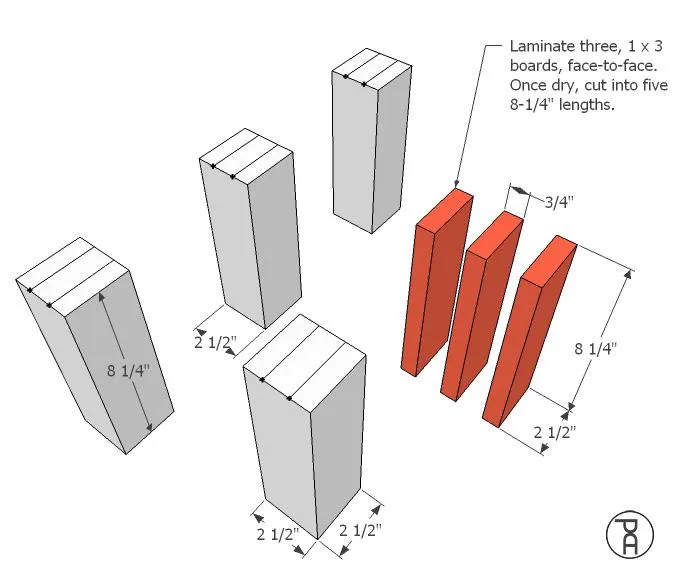

Laminate (glue together) three, 1 x 3 boards, face-to-face. Once dry, cut into five, 8-1/4" lengths. It is much easier to glue and clamp full-length boards together and allow to dry before cutting into shorter lengths.

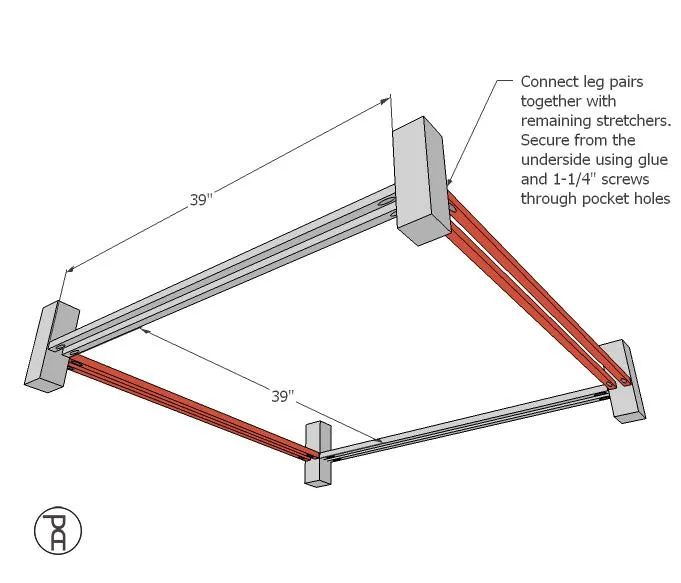

Connect leg pairs together with remaining stretchers. Secure in place from the underside using glue and 1-1/4" screws through 3/4" pocket holes

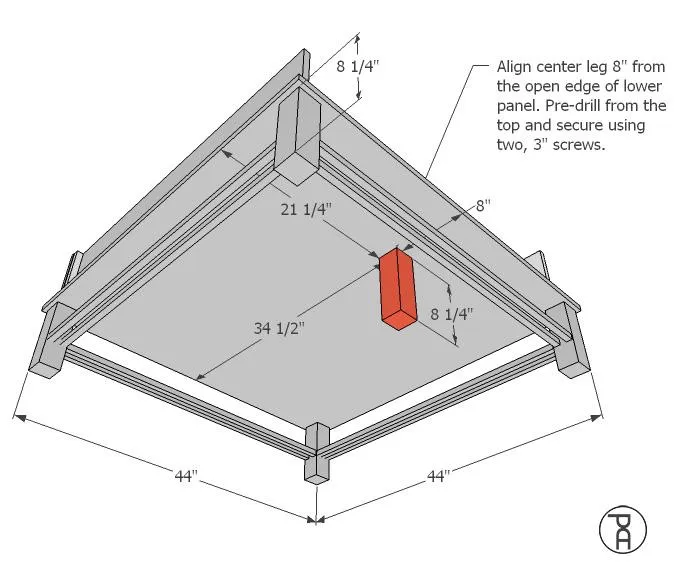

Align the center leg 8" from the open side of the lower box panel. Pre-drill into the top of the leg and secure using two, 3" screws.
