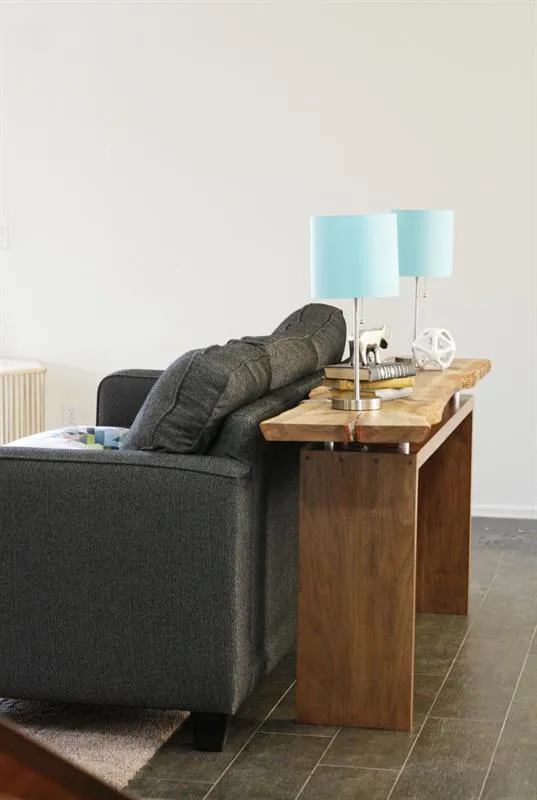

With the clean lines of this floating top console/sofa table, you can add any kind of top you would like. Construct a top out of wood, concrete, or even a live edge slab to create a custom look. Plan can be adapted for custom milled hardwood or off the shelf lumber.
| Item | Qty |
|---|---|
| Board, 2x12 96" | 2 board |
| Live edge slab or other material, 1-1/2" x 14" 72" |
| 1 board |
| Hardwood dowel, 1-3/8" 12" | 1 board |
| 1/4" x 4" lag screws | 4 each |
| 1/4" washers | 4 each |
Overall cost: $$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.

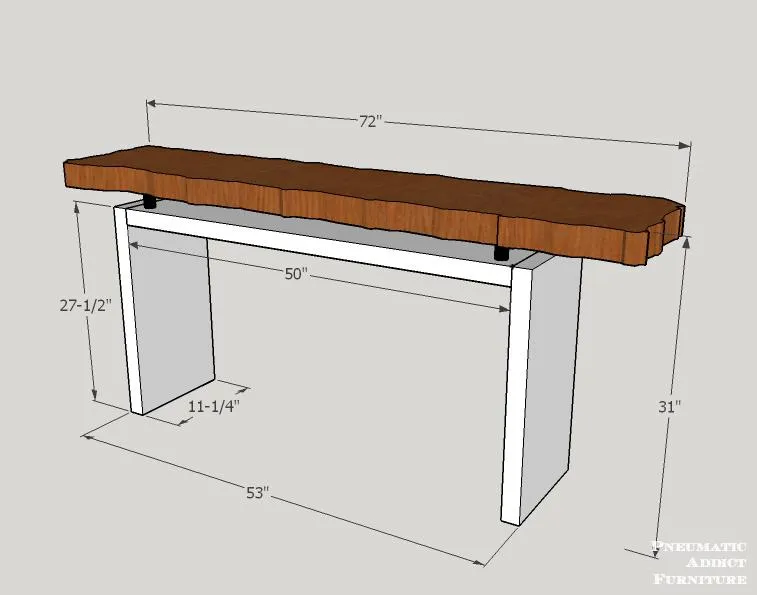

| Part | Qty | T × W × L |
|---|---|---|
| Floating top | 1 | 1 1/2" × 14" × 72" |
| Console top | 1 | 1 1/2" × 11 1/4" × 50" |
| Side panels | 2 | 1 1/2" × 11 1/4" × 27 1/2" |
Buy 3 boards at 8 ft.
1 board
2 boards
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →

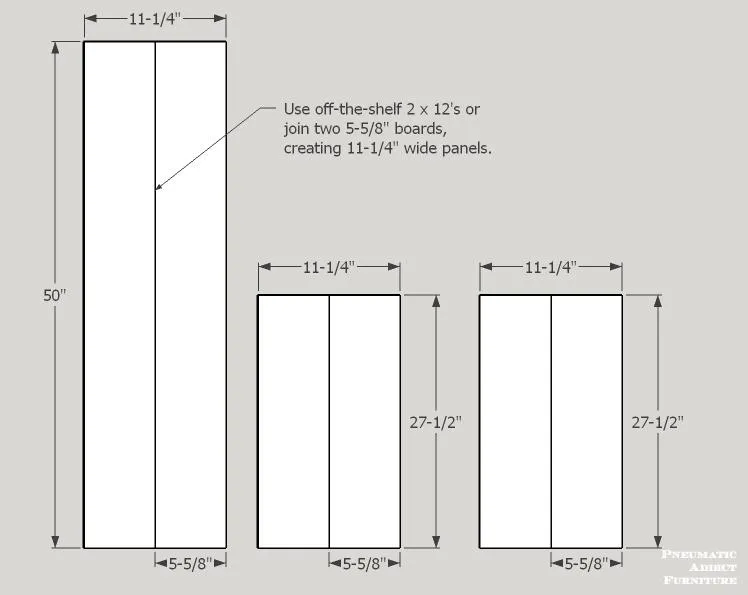

Join boards to create 11-1/4" wide panels, or use off-the-shelf 2 x 12 lumber. Cut one panel 50" in length and two 27-1/2" in length.
Sand entire piece and finish however you desire. Visit PneumaticAddict.com for finishing tips and ideas
