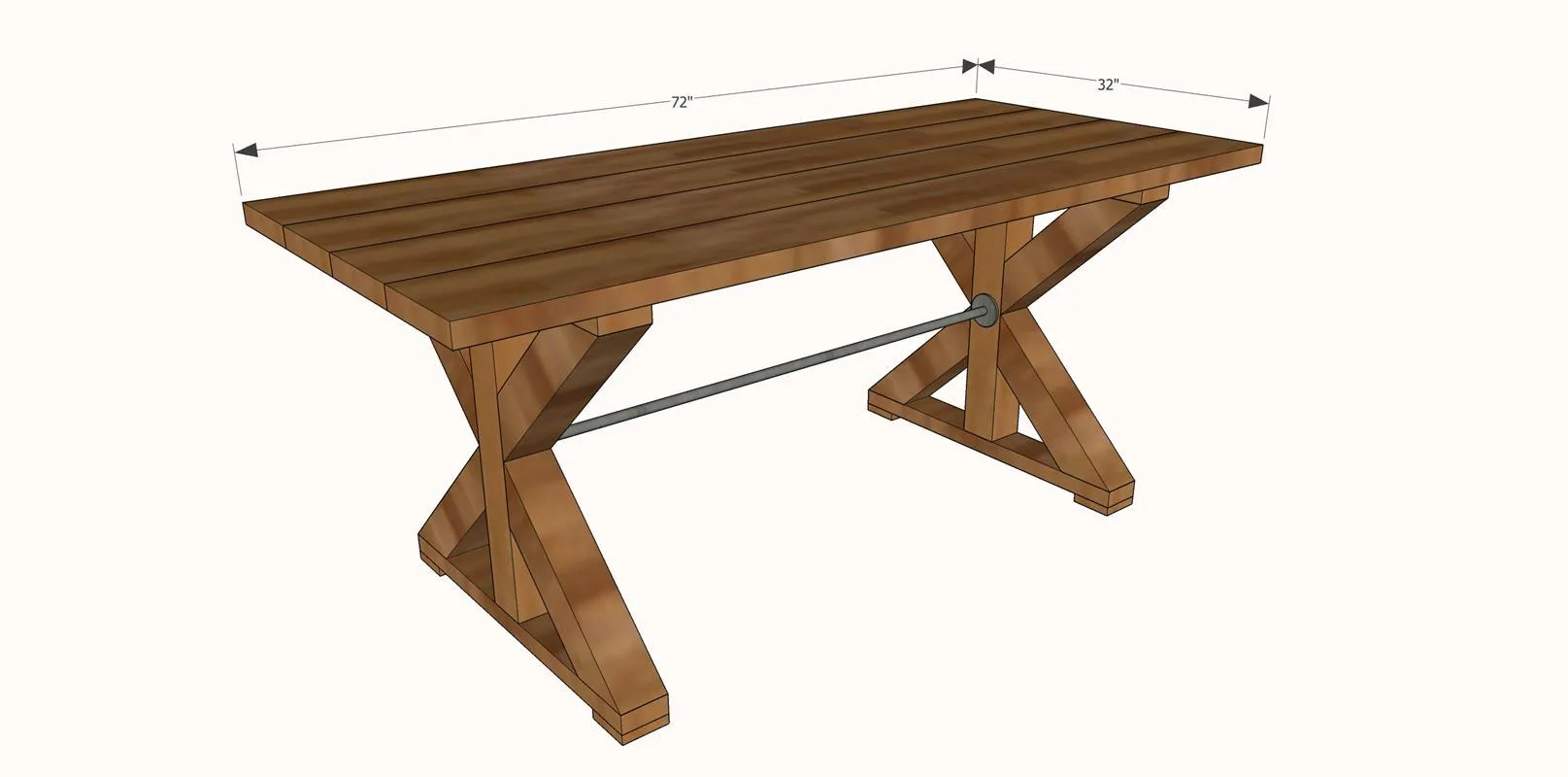

This X Style Farmhouse Dining Table is the perfect solution if you are limited on space but still desire a full size table.
| Part | Qty | T × W × L | Material | ✓ |
|---|---|---|---|---|
| Leg Base | 4 | 2" × 4" × 30" | — | ☐ |
| Leg Support | 2 | 4" × 4" × 24" | — | ☐ |
| X Supports | 8 | 4" × 4" × 18" | — | ☐ |
| Table Top Boards | 4 | 2" × 10" × 72" | — | ☐ |
| Item | Qty | ✓ |
|---|---|---|
| Board, 2x10 144" | 2 board | ☐ |
| Board, 2x4 120" | 1 board | ☐ |
| Board, 4x4 96" | 2 board | ☐ |
| Board, 1x4 72" | 1 board | ☐ |
| Box of 2 1/2" Coarse Kreg Jig Screws | 1 each | ☐ |
| Box of 2 1/2" Wood Screws | 1 each | ☐ |
| Countersink Drill Bit | 1 each | ☐ |
| Clamps | 2 each | ☐ |
Overall cost: $$. Lumber varies by region, species, and season, so we give a band rather than a figure.

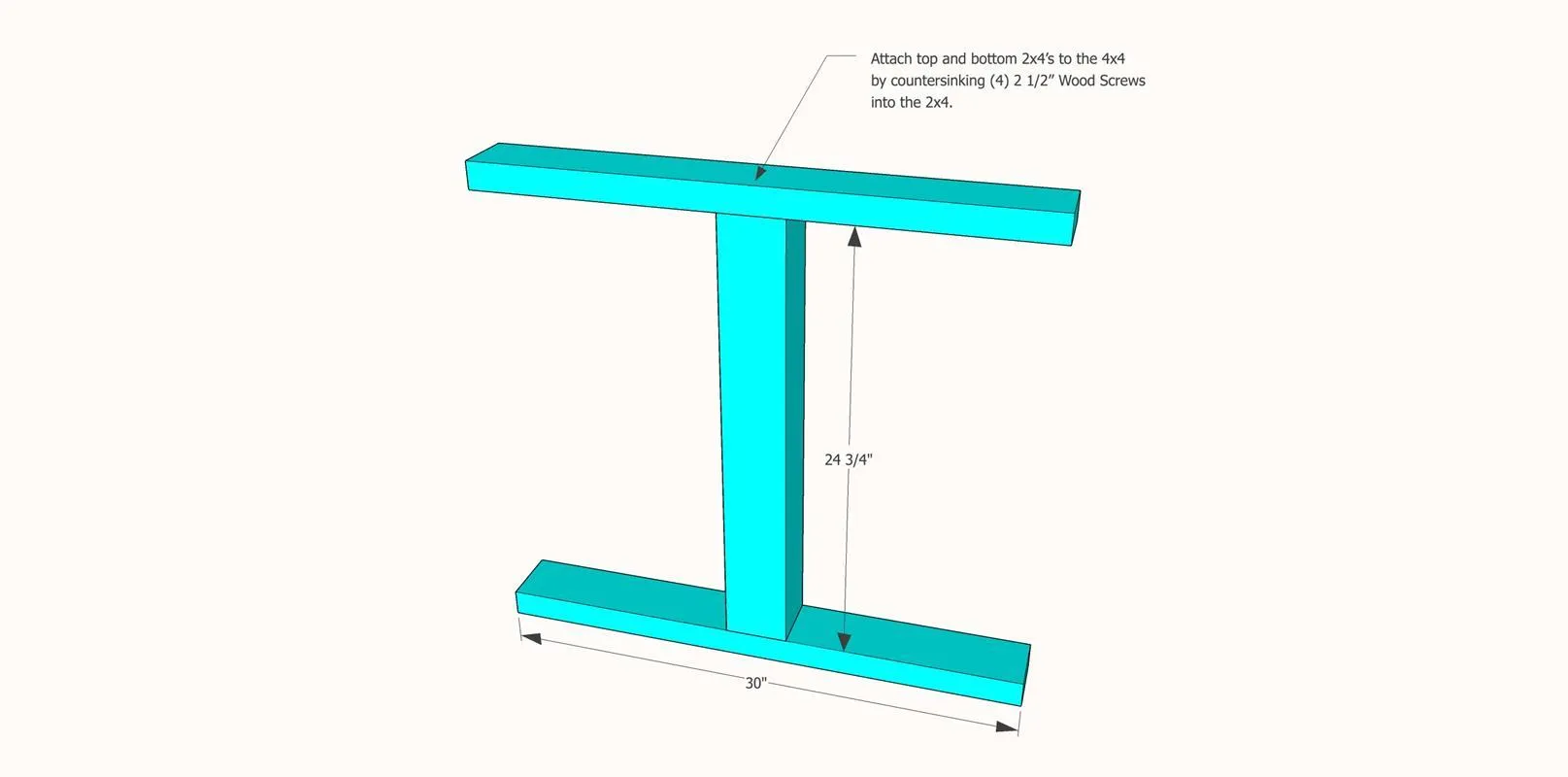

Assemble the main structure of the legs by attaching the 2x4's to the 4x4's using wood glue and 2 1/2" wood screws (countersunk). Make two legs.

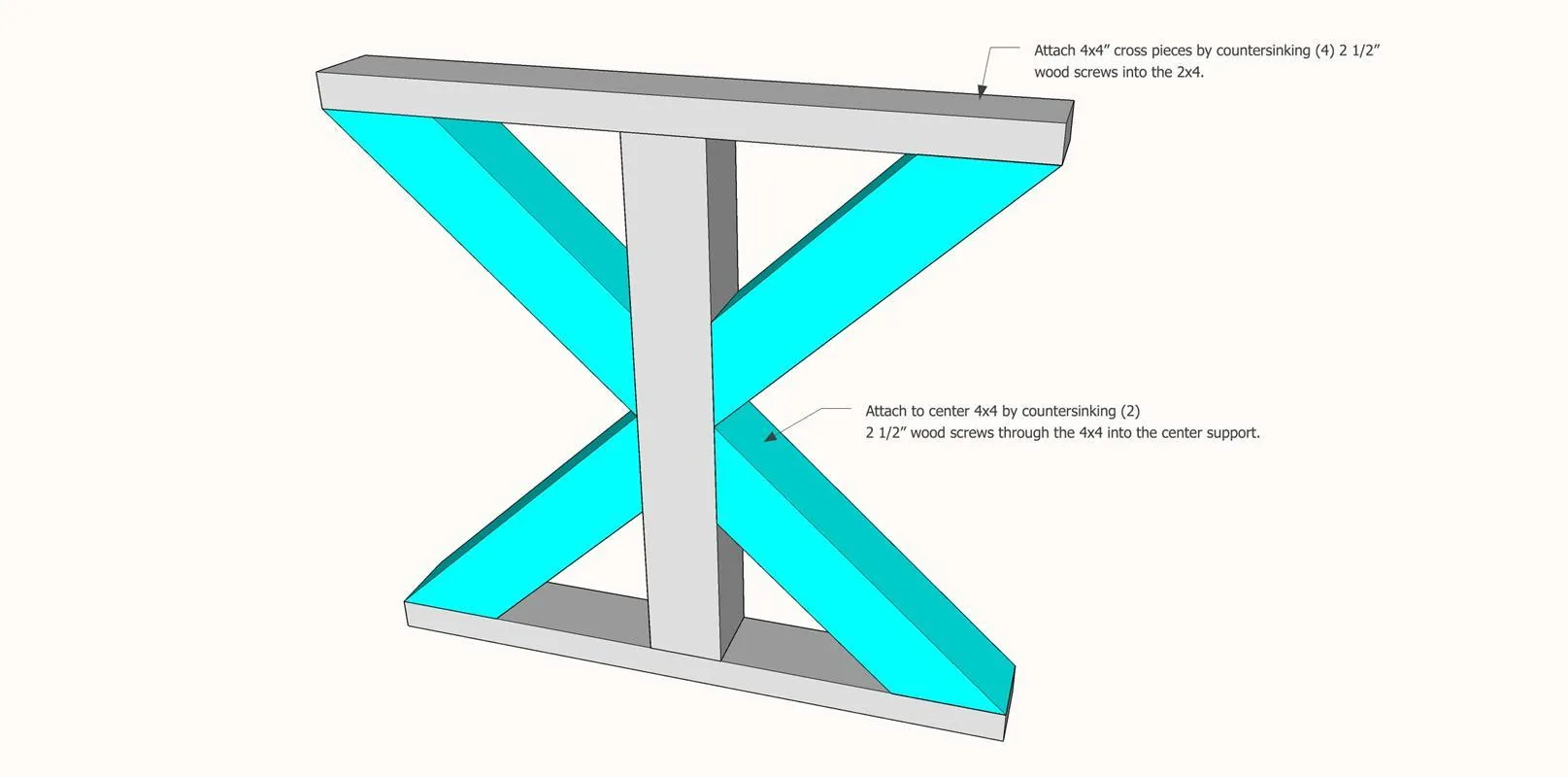

Attach the X supports (4x4's) to the main structure of the legs with wood glue and countersinking (4) 2 1/2" wood screws through the bottom of the leg, and attach the center of the 4x4 to the main leg structure by countersinking 2 1/2" wood screws into the vertical support. The 47 degree angle rests against the 2x4, and the 43 degree angle rests against the 4x4. X Supports should be cut with one side at a 43 degree angle, and the other at a 47 degree angle. The longest side should measure 18 1/8"

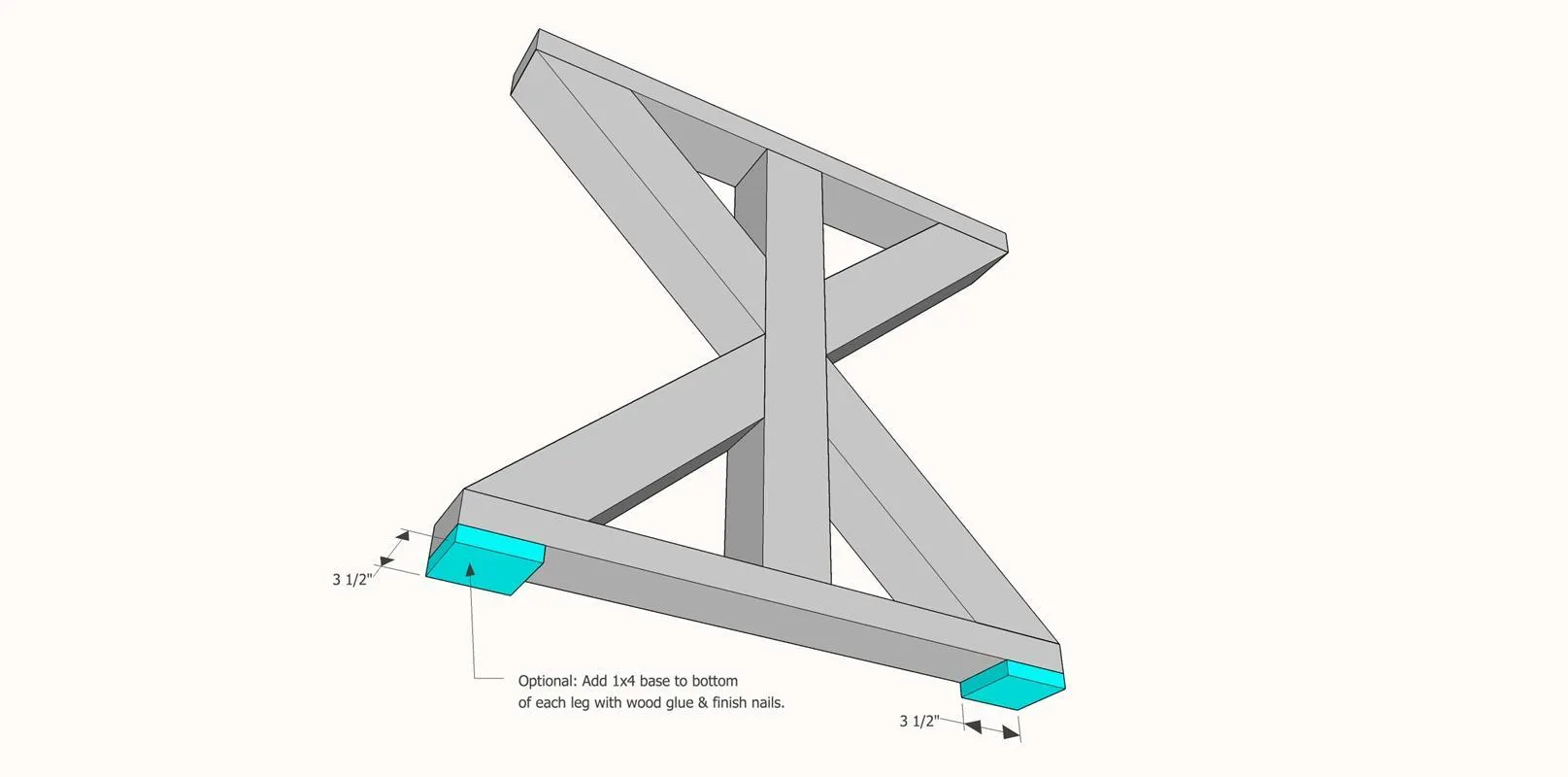

Attach the feet to the bottom of the leg base using wood glue and finish nails.

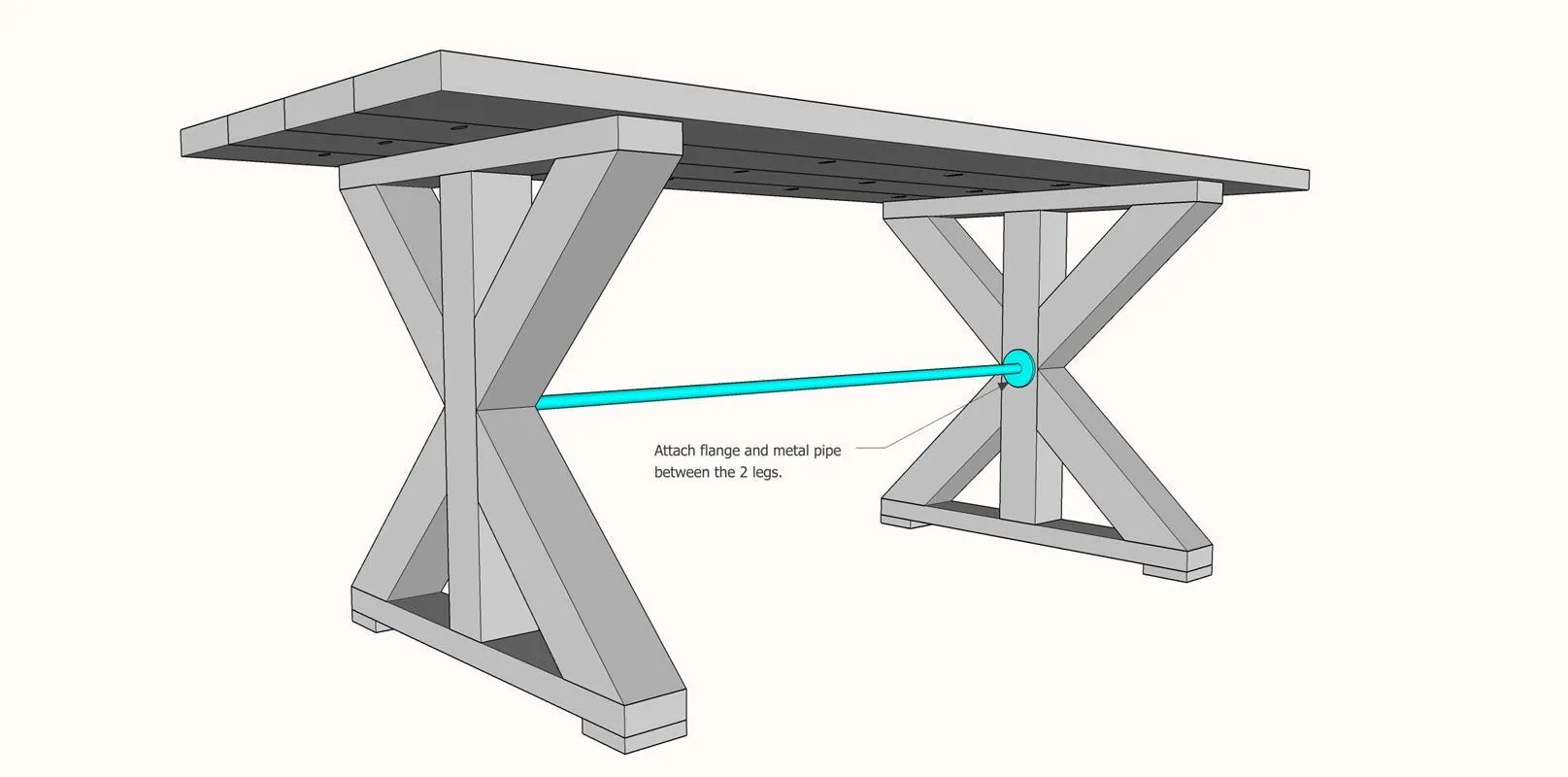

Attach the flanges and metal pipe to the inside of the legs, making sure to keep level.
Finish the table by filling all holes with wood filler and painting or staining in the color of your choice. Make sure to add a protective coat to the entire table in order to keep it safe from food and spills.
