A 2 drawer night stand with simple farmhouse style and long legs.
| Part | Qty | T × W × L | Material | ✓ |
|---|---|---|---|---|
| Legs | 4 | 1" × 1" × 27" | — | ☐ |
| Side panels | 2 | 3/4" × 11" × 19" | — | ☐ |
| Back panel | 1 | 3/4" × 19" × 23" | — | ☐ |
| Drawer dividers | 3 | 3/4" × 1" × 23" | — | ☐ |
| Arched Apron | 1 | 3/4" × 2" × 23" | — | ☐ |
| Side Trim pieces | 4 | 3/4" × 2" × 11" | — | ☐ |
| Top | 1 | 3/4" × 15" × 26" | — | ☐ |
| Drawer face | 2 | 3/4" × 7" × 22" | — | ☐ |
| Drawer sides | 4 | 1/2" × 6" × 12" | — | ☐ |
| Drawer front and back sides | 4 | 1/2" × 6" × 21" | — | ☐ |
| Drawer bottom | 2 | 1/2" × 12" × 21" | — | ☐ |
| Item | Qty | ✓ |
|---|---|---|
| Board, 2x2 120" | 1 board | ☐ |
| Board, 1x2 96" | 1 board | ☐ |
| Board, 1x3 96" | 1 board | ☐ |
| Board, 1x8 72" | 1 board | ☐ |
| Board, Edge Glued Finger-Joint Pine Board 16 in x 3 ft | 1 board | ☐ |
| Plywood, 3/4" Thick Half Sheet | 1 board | ☐ |
| Plywood, 1/2" Thick Half Sheet | 1 board | ☐ |
| 1 1/4" pocket hole screws | 24 each | ☐ |
| 1" pocket hole screws | 16 each | ☐ |
| 1 1/4" nails, 18 gauge | 10 each | ☐ |
| Drawer pulls | 4 each | ☐ |
| 2" wood screws | 4 each | ☐ |
| Wood glue | 1 each | ☐ |
| Wood filler | 1 each | ☐ |
| 220 grit sandpaper | 1 each | ☐ |
| Bottom mount drawer slides | 2 each | ☐ |
| Satin-finish latex paint | 1 each | ☐ |
| 1" nails, 18 gauge | 15 each | ☐ |
Overall cost: $$$. Lumber varies by region, species, and season, so we give a band rather than a figure.

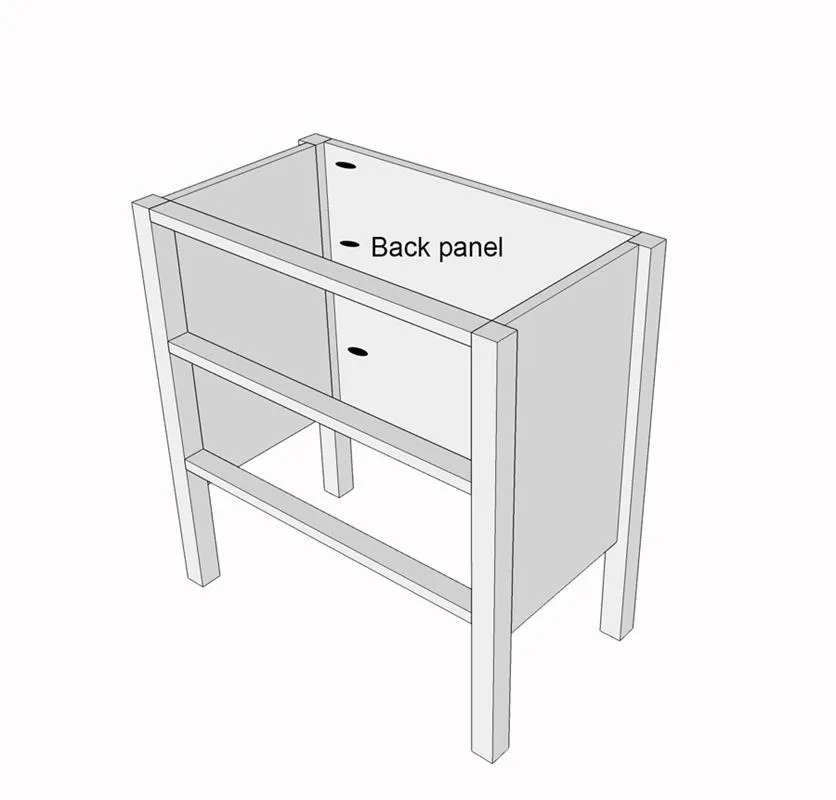

Drill 4- 3/4" pocket holes on both 19 1/2" sides of the back panel. Attach the back legs flush to the back panel using 1 1/4" pocket hole screws and wood glue.

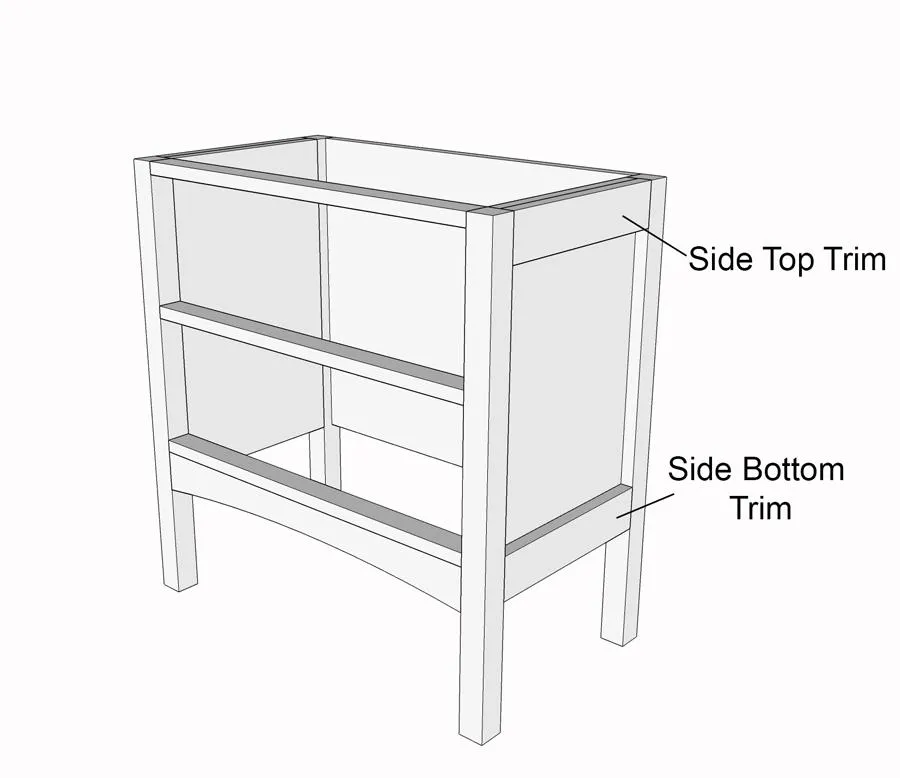

Position the side trim 1x3s pieces flush with the top and bottom of the side panels and attach them using wood glue and 1 1/4" nails with a nail gun.

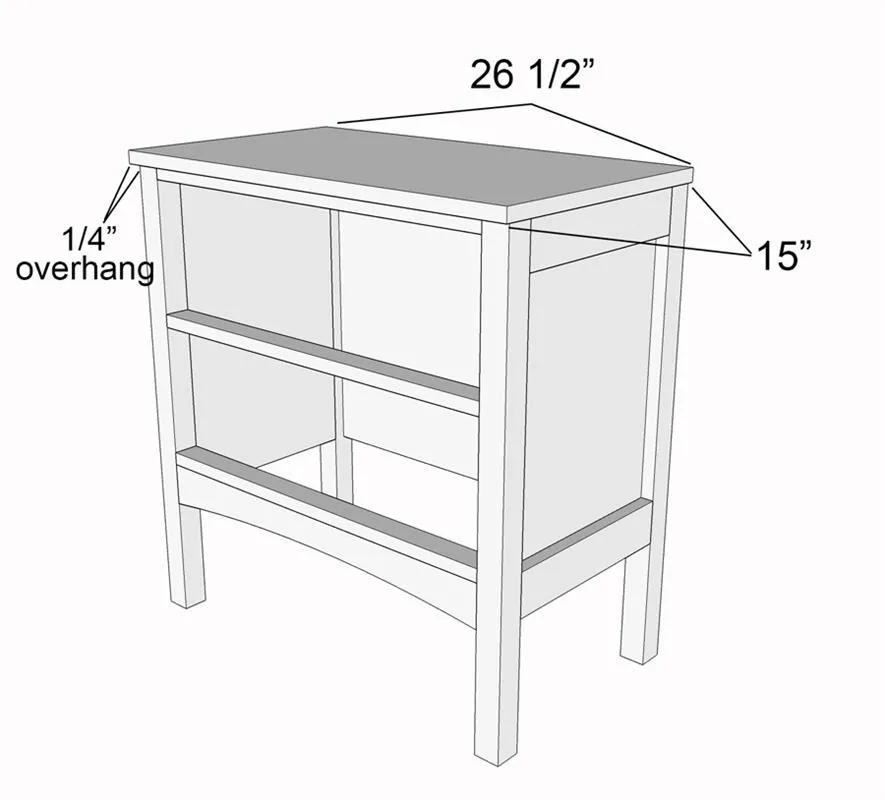

Using a 5/8" chamfer bit, route both sides of the top piece on 3 edges. Make sure the router fence is set 1/4" back from 0. Position the top on the dresser so that there is a 1/4" lip on both sides and 1/2" lip on the front. Pre-drill holes on all 4 corners into the legs. Using wood glue and 2" wood screws attach the top to all 4 legs.

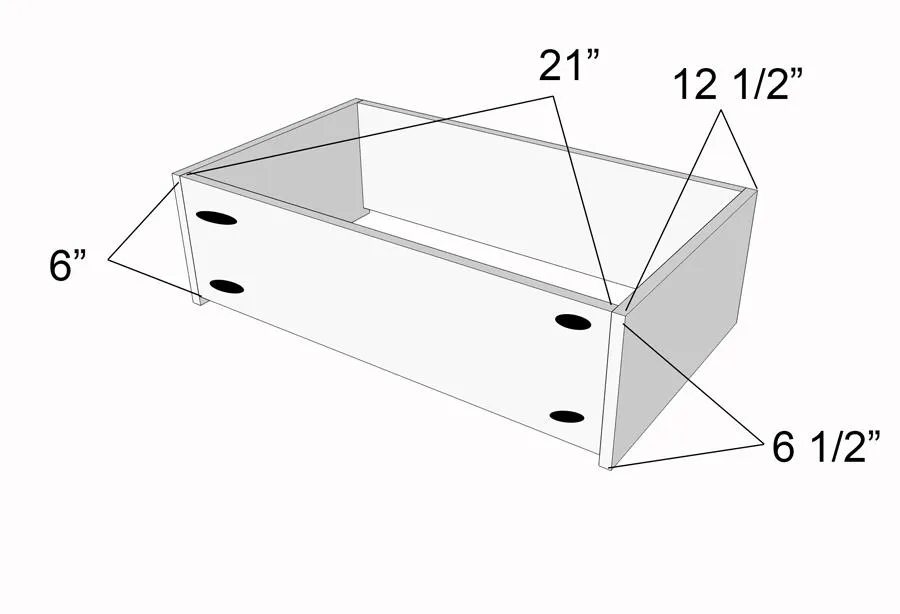

Drill 2- 1/2" pocket holes on both ends of the 6" wide drawer fronts and backs. Attach them flush with the ends of both drawer sides so the pocket holes are facing out, using 1" pocket hole screws and wood glue.

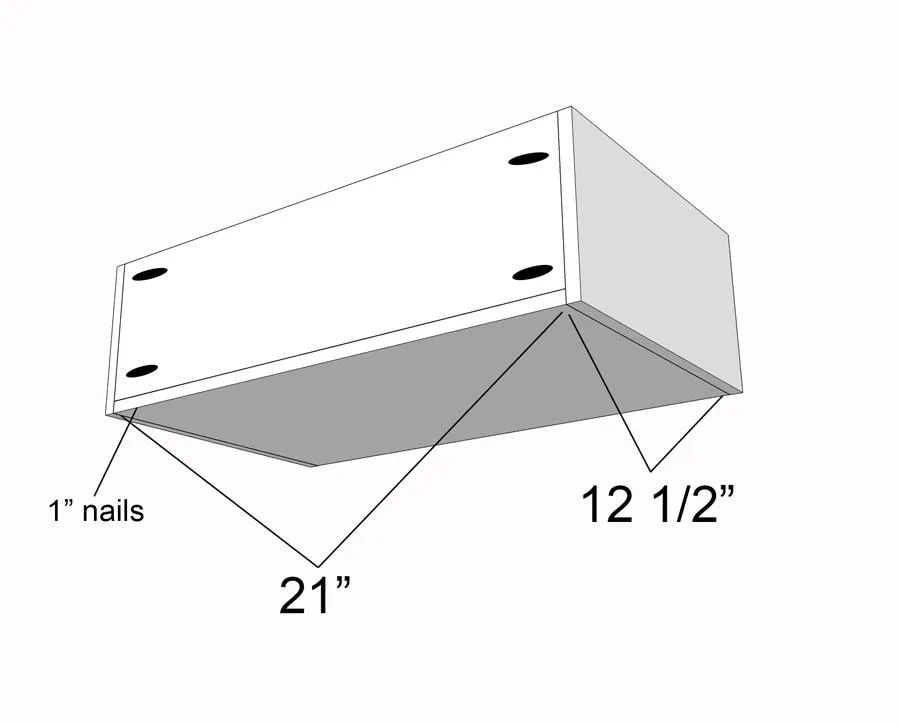

Using 1" nails and wood glue, attach drawer bottom to both drawer carcasses.

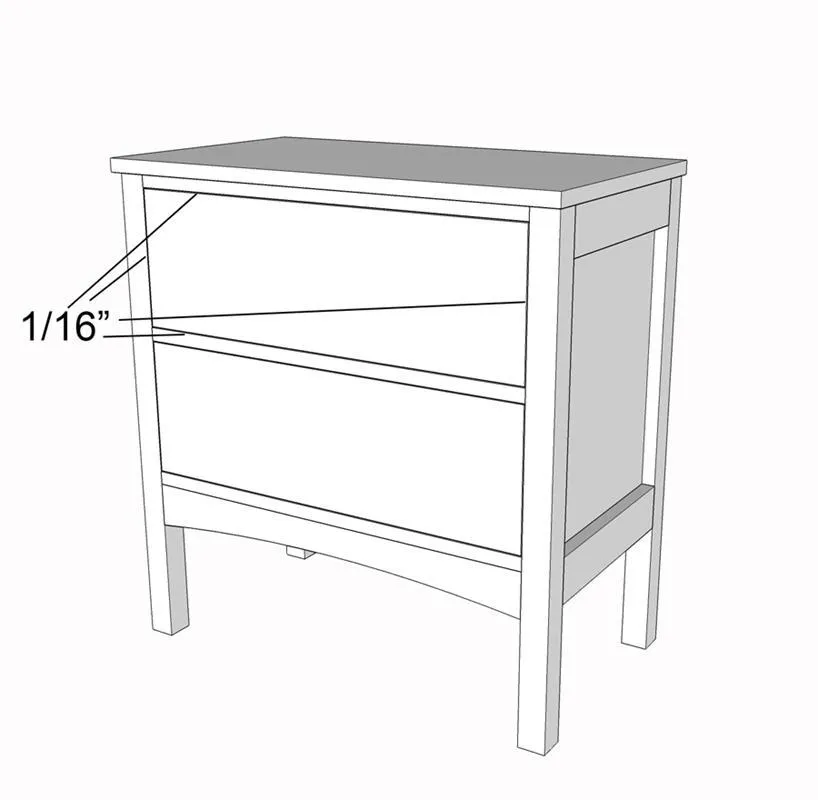

Following the instructions, install bottom drawer slides by attaching them to the sides of the drawer carcass first then measuring and attaching the inside track to the side panel with the screws provided and a level. Make sure there is 1/16" space on all 4 sides of the drawer space from the legs and drawer dividers.
