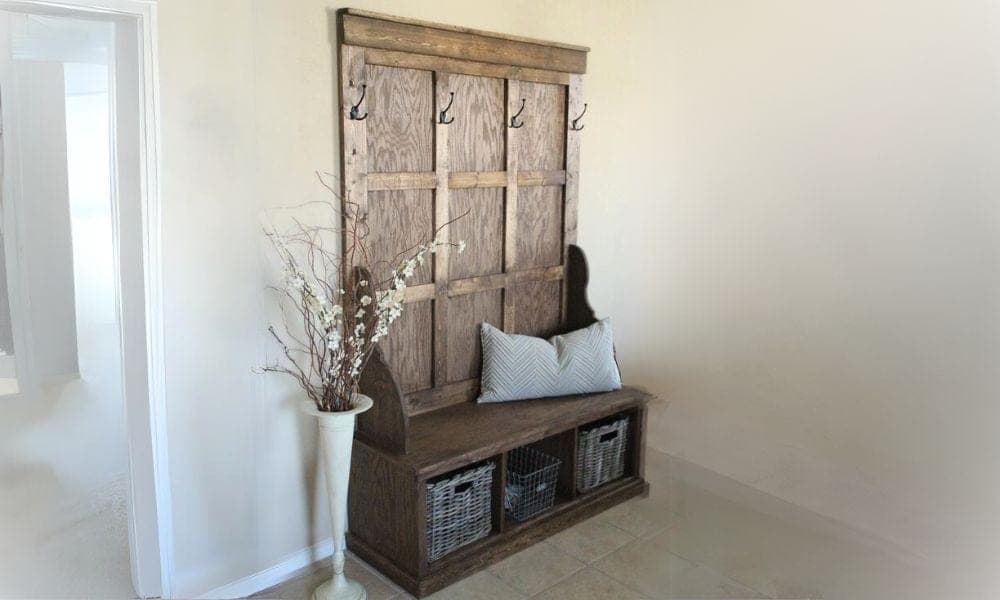

This hall tree is a genuinely two-part build: a bench-height storage cubby section on plywood, topped by a tall jigsaw-shaped hook panel that rises well above seat height — combining what this catalog's other entryway benches keep as separate pieces (a bench and a wall-mounted hook rail) into one continuous unit. Build the bench storage area first from ripped plywood, following the cubby layout, then add bottom supports that transfer a sitter's weight straight down to the floor rather than through the cubby dividers alone.
The face frame comes next, built with pocket holes and attached with finish nails and glue — this is what gives the piece its finished furniture look rather than exposed plywood edges. Base moulding wraps the bottom of the bench section, and the plan notes a genuine option here: raise the bottom 1" and use a wider 3-1/4" moulding instead of the standard 2-1/4" if you want a chunkier base profile.
The hook panel's shape is cut from a 1x12 with a jigsaw — clamp the two panel pieces together and sand until they match exactly, the same matching technique this catalog uses for other paired jigsaw cuts, since a hand-shaped profile that doesn't mirror cleanly is immediately visible on a piece this prominent. The back panel goes on last, shown split into three separate boards specifically so the whole assembly can still fit through a car trunk or door if you're transporting it after building.
| Item | Qty |
|---|---|
| 3/4" plywood, ripped to 15-3/4" strips, full sheet | 1 each |
| 1x4, 8 ft | 2 each |
| 1x2, 8 ft | 2 each |
| 1x3, 8 ft | 3 each |
| 1x6, 4 ft | 1 each |
| 1x12, 4 ft | 1 each |
| 1/2" plywood, full sheet | 1 each |
| Base moulding, 2-1/4 in, 8 ft | 1 each |
| Pocket hole screws, 1-1/4" | 100 each |
| Finish nails, 1-1/4" | 100 each |
| Wood glue | 6 oz |
| Coat hooks | 5 each |
| Primer and paint, or stain and poly | 1 set |
Overall cost: $$$$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Bench top3/4" plywood, ripped to 15-3/4" strips, full sheet | 1 | 3/4" × 15 3/4" × 49 1/2" |
| Bench bottom3/4" plywood, ripped to 15-3/4" strips, full sheet | 1 | 3/4" × 15 3/4" × 46 1/2" |
| Cubby dividers3/4" plywood, ripped to 15-3/4" strips, full sheet | 2 | 3/4" × 15 3/4" × 14" |
| Bench end panels3/4" plywood, ripped to 15-3/4" strips, full sheet | 2 | 3/4" × 15 3/4" × 17 1/4" |
| Bottom support rails1x3, 8 ft | 2 | 3/4" × 2 1/2" × 46 1/2" |
| Face frame top rail1x2, 8 ft | 1 | 3/4" × 1 1/2" × 49 1/2" |
| Face frame front rail1x2, 8 ft | 1 | 3/4" × 1 1/2" × 48" |
| Face frame stiles1x2, 8 ft | 2 | 3/4" × 1 1/2" × 15 3/4" |
| Face frame mid rail1x3, 8 ft | 1 | 3/4" × 2 1/2" × 45" |
| Hook panel back frame sides1x4, 8 ft | 2 | 3/4" × 3 1/2" × 56" |
| Hook panel back frame rails1x3, 8 ft | 2 | 3/4" × 2 1/2" × 47" |
| Hook panel back frame mid rails1x3, 8 ft | 6 | 3/4" × 2 1/2" × 12" |
| Hook rail top trim1x4, 8 ft | 1 | 3/4" × 3 1/2" × 41" |
| Hook rail top cap1x6, 4 ft | 1 | 3/4" × 5 1/2" × 41" |
| Hook panel shaped sides1x12, 4 ftShaped with a jigsaw; clamp together and sand to match. | 2 | 3/4" × 11 1/4" × 24" |
| Back panel (3 sections)1/2" plywood, full sheetSplit into three boards for transport; combined width covers 48". | 3 | 1/2" × 16" × 74" |
| Base mouldingBase moulding, 2-1/4 in, 8 ftCut to fit around the bench base. | 1 | 3/4" × 2 1/4" × 96" |
Some parts are longer than a 8 ft board, so there is no honest board count to show here. Open the board plan to pick a longer stock length — it names every part that does not fit.
2 boards
1 board
1 board
Build the bench box from the ripped plywood pieces (top, bottom, dividers, end panels), following the cubby layout, using 3/4" pocket holes and 1-1/4" pocket hole screws.
Attach the bottom support rails under the bench so a sitter's weight transfers directly to the floor.
Build the face frame with 3/4" pocket holes and 1-1/4" pocket hole screws, and attach to the bench box with 1-1/4" finish nails and glue.
Wrap the base moulding around the bottom of the bench section, mitering corners as needed.
Build the vertical back frame for the hook panel from the 1x4 sides and 1x3 rails with pocket holes, attaching it above the bench section.
Attach the top trim and top cap across the top of the hook panel frame.
Mark the shaped profile on the 1x12 hook panel side pieces and cut out with a jigsaw. Clamp the two pieces together and sand until they match exactly. Attach in place.
Attach the three back panel sections, then attach coat hooks. Sand all surfaces and apply primer and paint, or stain and poly.
