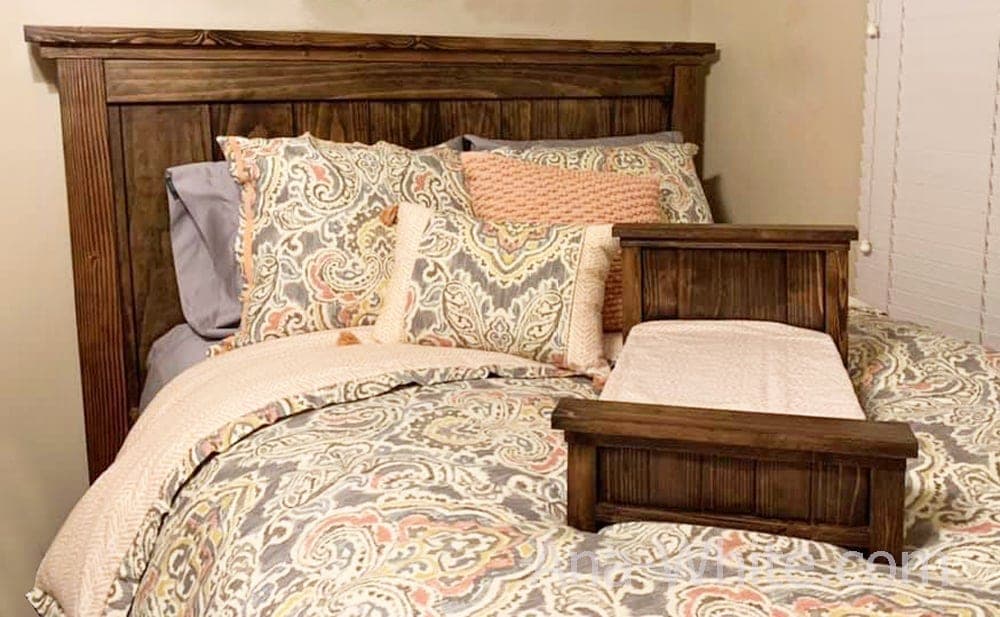

This is the full-size farmhouse bed's construction shrunk down rather than simplified: a slatted panel gets its bottom board centered and screwed on first, then the legs, then a top board — the same sequence, just at doll scale, right down to countersinking every screw before driving it. Resting the panel boards on a scrap of thin plywood while lining up the bottom board is what keeps that centering step accurate at a size where a 1/16" error is actually visible.
A third siderail support down the center is worth adding for any child who plays rough with dolls, and more supports still if the platform is cut from something flimsier than plywood — advice worth taking literally, since a doll bed sees more enthusiastic handling per square inch than most furniture in the house.
| Item | Qty |
|---|
| Pine, 2x2, 3 ft | 1 each |
| Pine, 1x3, 10 ft total | 2 each |
| Pine, 1x2, 8 ft | 1 each |
| Plywood scrap, 1/4"Sturdy cardboard also works for the platform. | 1 each |
| Wood screws, 1-1/4", self-tapping or brad nails | 1 box |
| Wood screws, 2", self-tapping or brad nails | 1 box |
| Wood glue | 1 oz |
| Paint or finish | 1 can |
Overall cost: $. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Headboard panelPine 1x3 | 5 | 3/4" × 2 1/2" × 6" |
| Footboard panelPine 1x3 | 5 | 3/4" × 2 1/2" × 3" |
| Footboard legsPine 2x2 | 2 | 1 1/2" × 1 1/2" × 4 1/4" |
| Headboard legsPine 2x2 | 2 | 1 1/2" × 1 1/2" × 11" |
| Bottom of panelsPine 1x2 | 2 | 3/4" × 1 1/2" × 12 1/2" |
| Top of panelsPine 1x2 | 2 | 3/4" × 1 1/2" × 15 1/2" |
| Top of headboard and footboardPine 1x3 | 2 | 3/4" × 2 1/2" × 16 1/2" |
| SiderailsPine 1x3 | 2 | 3/4" × 2 1/2" × 19" |
| Bed framePine 1x2 | 2 | 3/4" × 1 1/2" × 14" |
Buy 4 boards at 8 ft.
1 board
2 boards
1 board
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Rest the headboard panel boards on a scrap of thin plywood so you can line up the bottom board on center. Mark and predrill with a countersink bit.
Screw the bottom panel board to the headboard panel with 1-1/4" screws and glue.
Attach the headboard legs to the panel with 2" screws and glue, screwing carefully into both the panel boards and the bottom board.
Attach the top panel board with the shorter screws or nails and glue.
Screw the top of the headboard piece to the headboard, centering it, with two screws and glue.
Build the footboard the same way as the headboard, using the footboard panel boards and footboard legs.
Screw the siderails to the bed frame pieces. Add a third center support if the doll bed will see rough play, or if using a flimsier platform material.
Predrill and screw the frame assembly to the headboard and footboard. Lay the plywood platform on top. Sand and paint or finish as desired.
