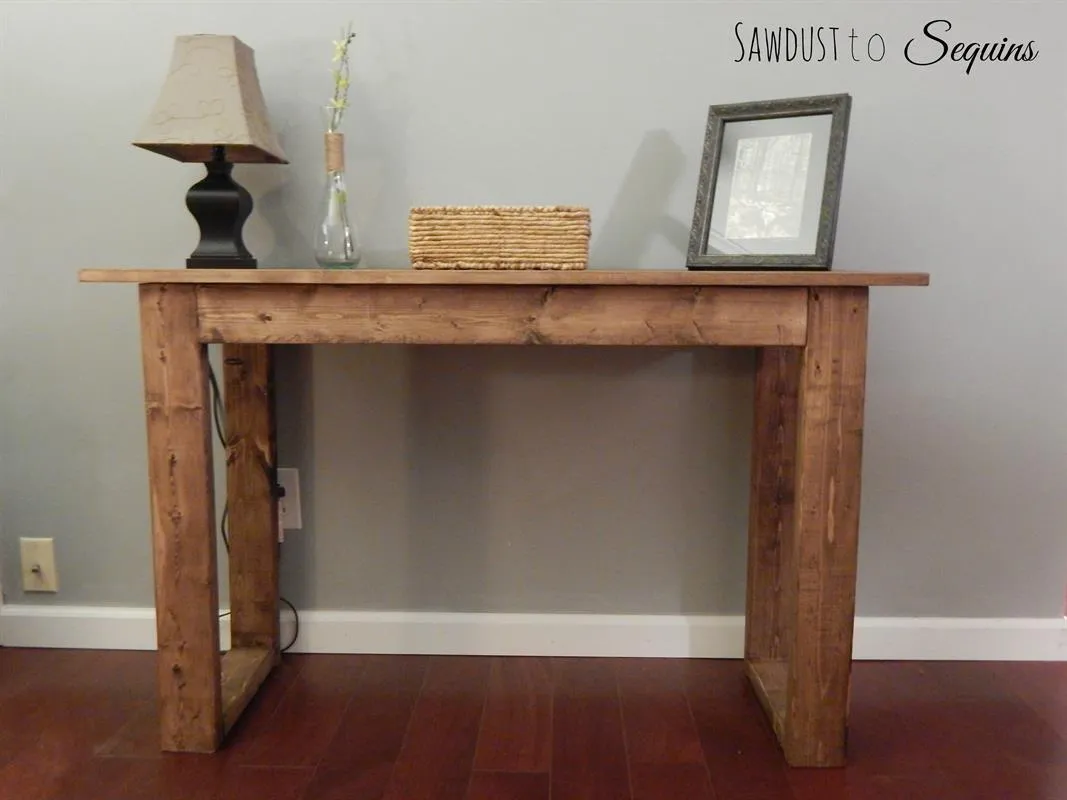

Having a beautiful and functional console table does not have to be difficult or pricey. This table is constructed of pine 2x4 and 1x6 boards and held together with pocket hole joinery.
| Item | Qty |
|---|---|
| Board, 2x4 96" | 3 board |
| Board, 1x6 72" | 2 board |
| 2 1/2" Pocket Hole Screws | 24 each |
| 1 1/4" Pocket Hole Screws | 9 each |
| 2" Wood Screws | 4 each |
Overall cost: . Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Middle Table Top Braces | 2 | 2" × 4" × 35" |
| Side Table Top Pieces | 4 | 2" × 4" × 11 1/2" |
| Table Leg Side Pieces | 4 | 2" × 4" × 29" |
| Table Top Boards | 3 | 1" × 6" × 48" |
Buy 6 boards at 8 ft.
3 boards
3 boards
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →

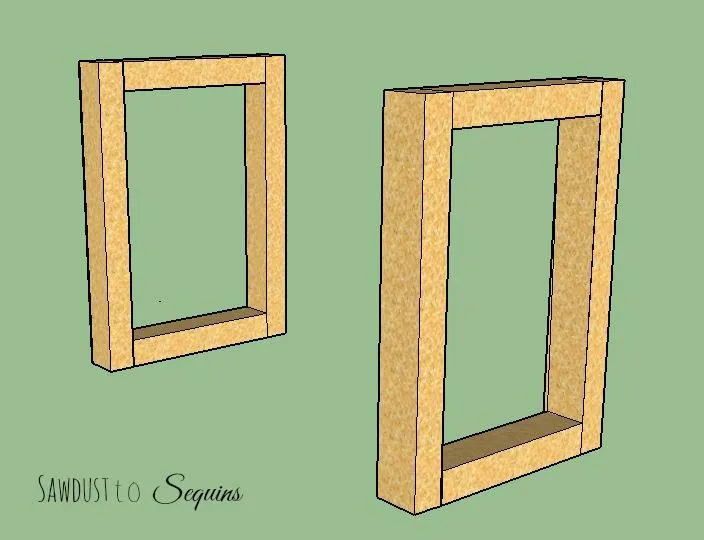

Attach the 11.5” pieces to the 29” pieces to form a box. (11.5”pieces go inside of 29” pieces. Repeat for both legs of the table.

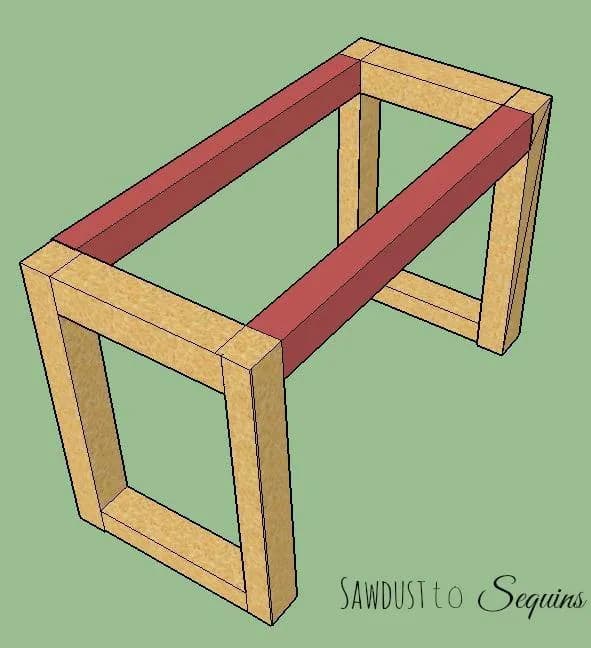

With legs facing each other, attach middle 35” braces to the tops of the front and back (braces are placed Inside of table legs components).

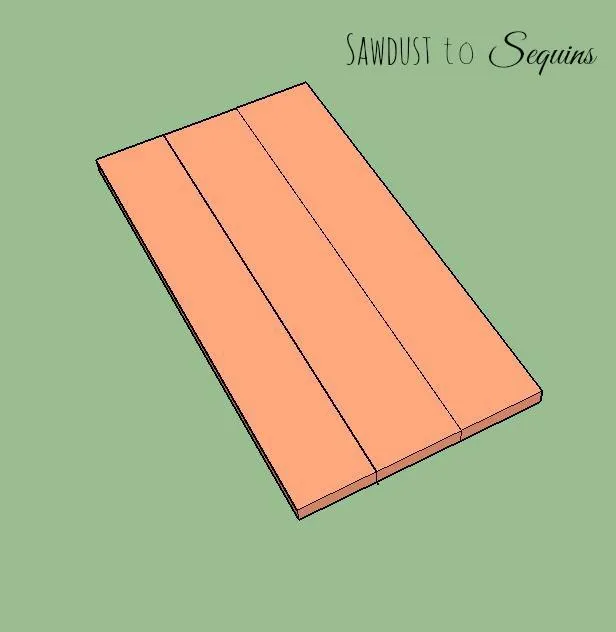

With pocket hole screws, screw the 3 1x6x4 boards together to form the top of the table.

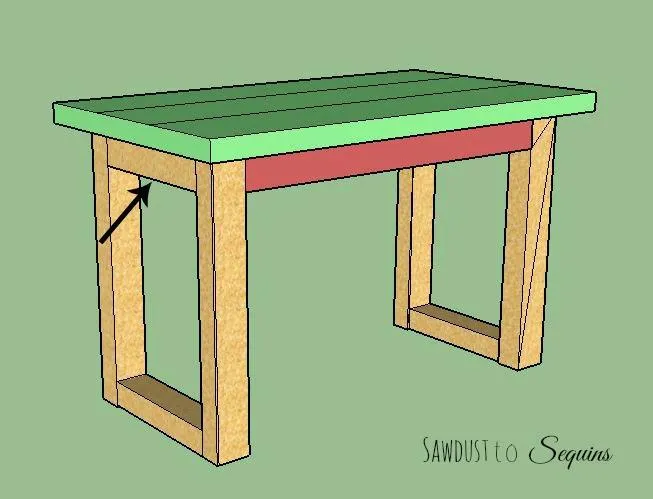

Attach the top to the table legs with 2” wood screws through the bottom of the leg assembly.

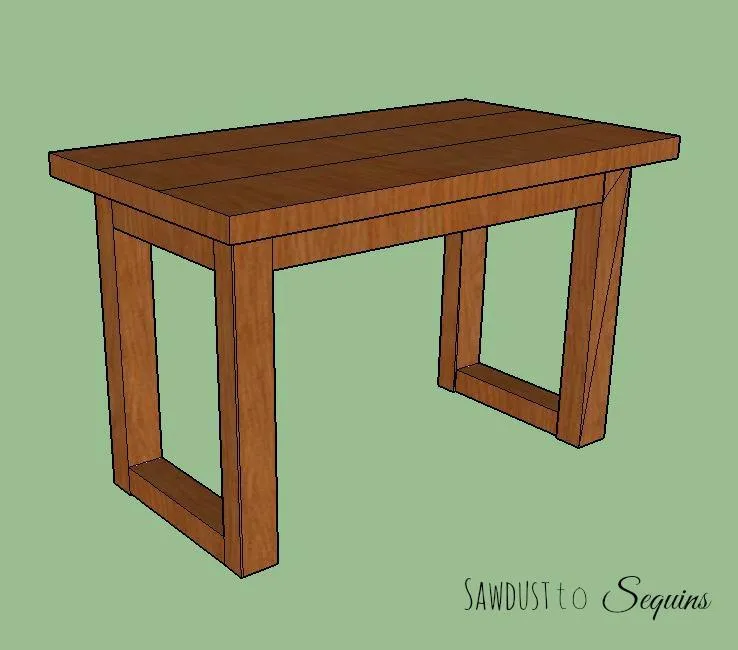

Sand your table, stain with color of choice, and enjoy your build!
