About this build

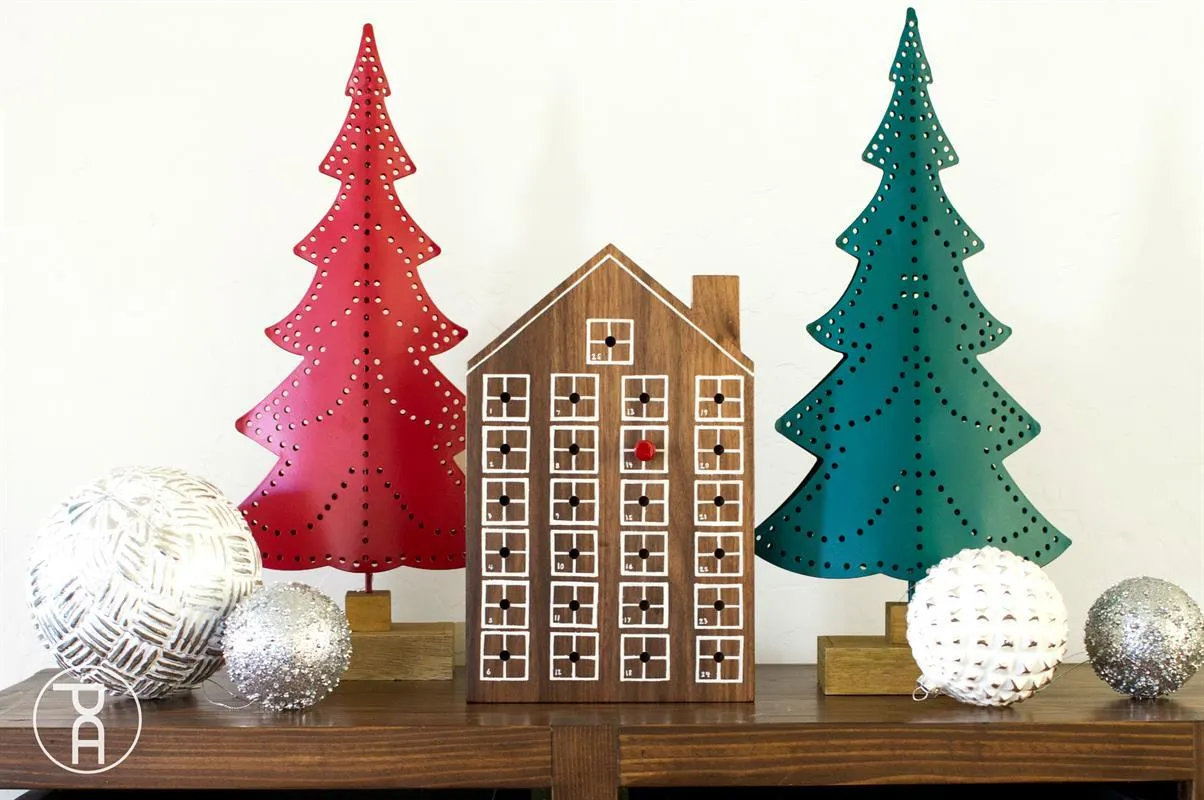

Create fun holiday memories with a simple Christmas countdown, advent calendar. Everyday in December leading up to the 25th, you get to move the colorful pin to the next dated window. This is a simple project that can be made in just a few hours. Great for beginners!
Tools
Essential
- Drill / Driver
- Miter Saw
- Pocket Hole Jig
- Random Orbit Sander
Optional / nice to have
- Combination Square
- Tape Measure
Materials
| Item | Qty |
|---|---|
| Board, 1x8 12" | 1 board |
| Round dowel, 1/4" Thick 12" | 1 board |
| Round dowel (optional), 1/2" Thick 12" | 1 board |
| Sawtooth hanger | 1 each |
| Narrow tip paint pen | 1 each |
| Ruler | 1 each |
| 1/4" drill bit | 1 each |
Overall cost: $. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
Cut list
| Part | Qty | T × W × L |
|---|---|---|
| Board | 1 | 3/4" × 7 1/4" × 11" |
| Chimney (optional) | 1 | 3/4" × 1" × 1 1/2" |
What to buy
Buy 2 boards at 8 ft.
3/4" × 7 1/4"
1 board
3/4" × 1"
1 board
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Instructions
1Cut Board
Cut a 1 x 8 board to 11" in length.

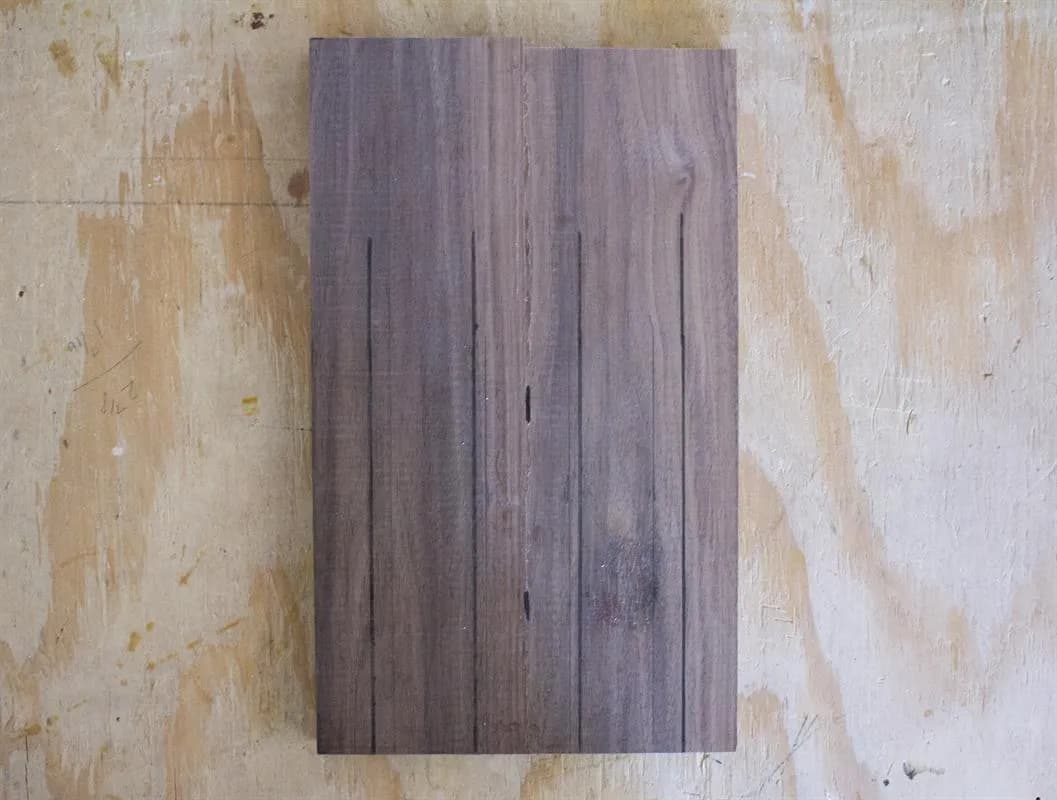

2Layout Grid

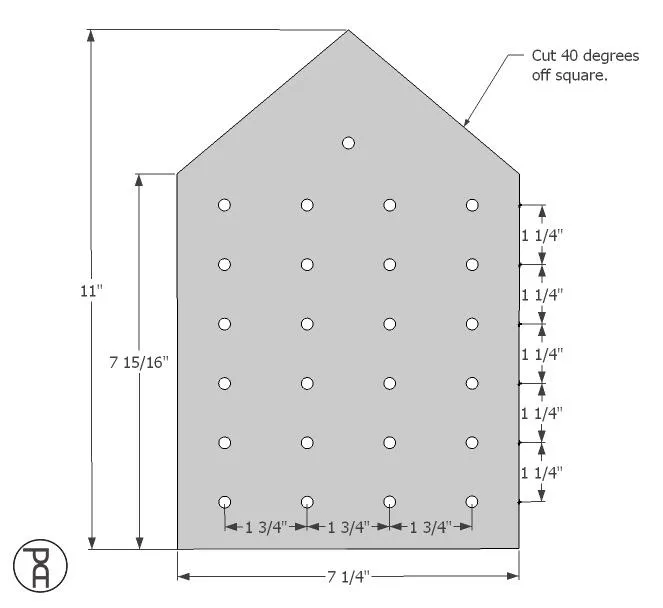

Divide the width of the board, creating 4 evenly spaced, vertical lines.
3Align Jig

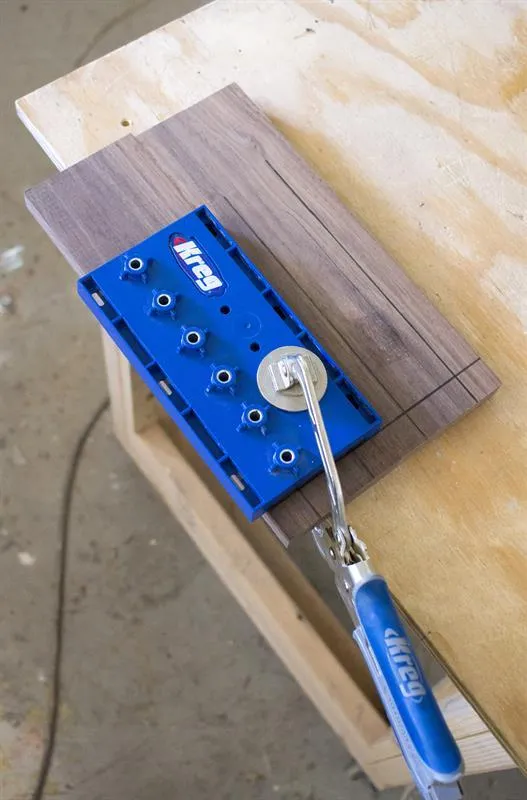

Align a Kreg Shelf Pin Jig so the holes are centered on each vertical line. Use a 3" Wood Project clamp to hold the board and jig securely to your work surface.
4Drill Holes
Set a depth-stop collar on a 1/4" drill bit. Using the Kreg Shelf Pin Jig, drill six, 1/2" deep holes, vertically along each of the lines drawn. Create a total of 24 holes.
5Add Top Hole
- Use a Multi-Mark™ multi-purpose measuring tool to find the vertical center, of the board.
- Measure 1-5/16" from the top row of holes.
- Drill a 1/4" x 12" hole (creating 25 holes in total).
6Cut Angled Roof

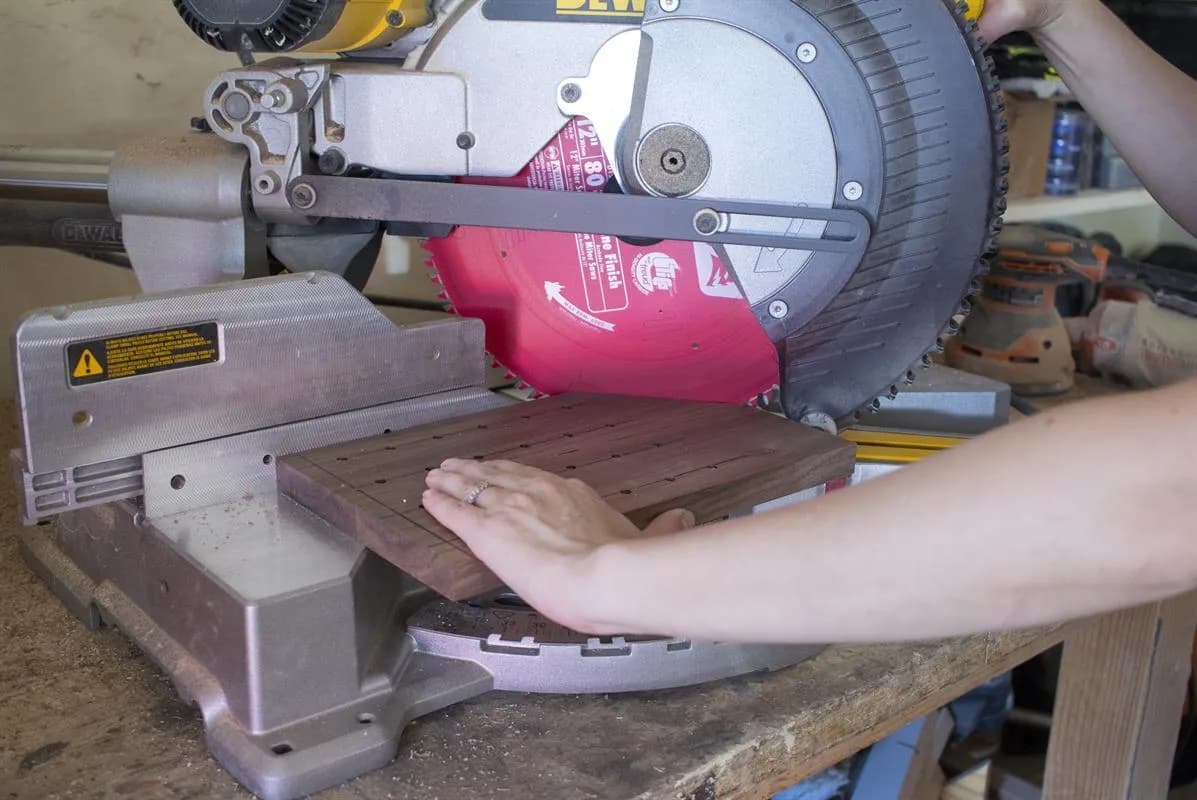

Use a miter saw to cut an angled roof line. Cut each side of the angle, 40 degrees off of square.

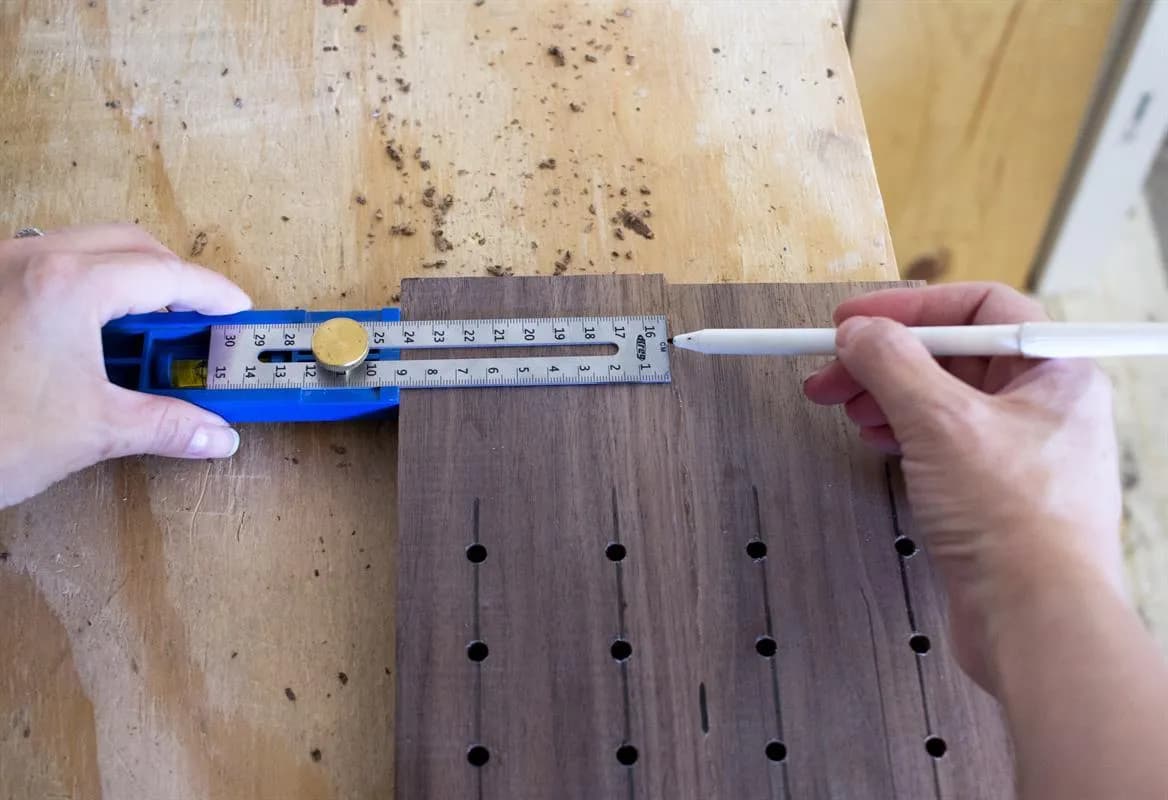

7Draw Windows

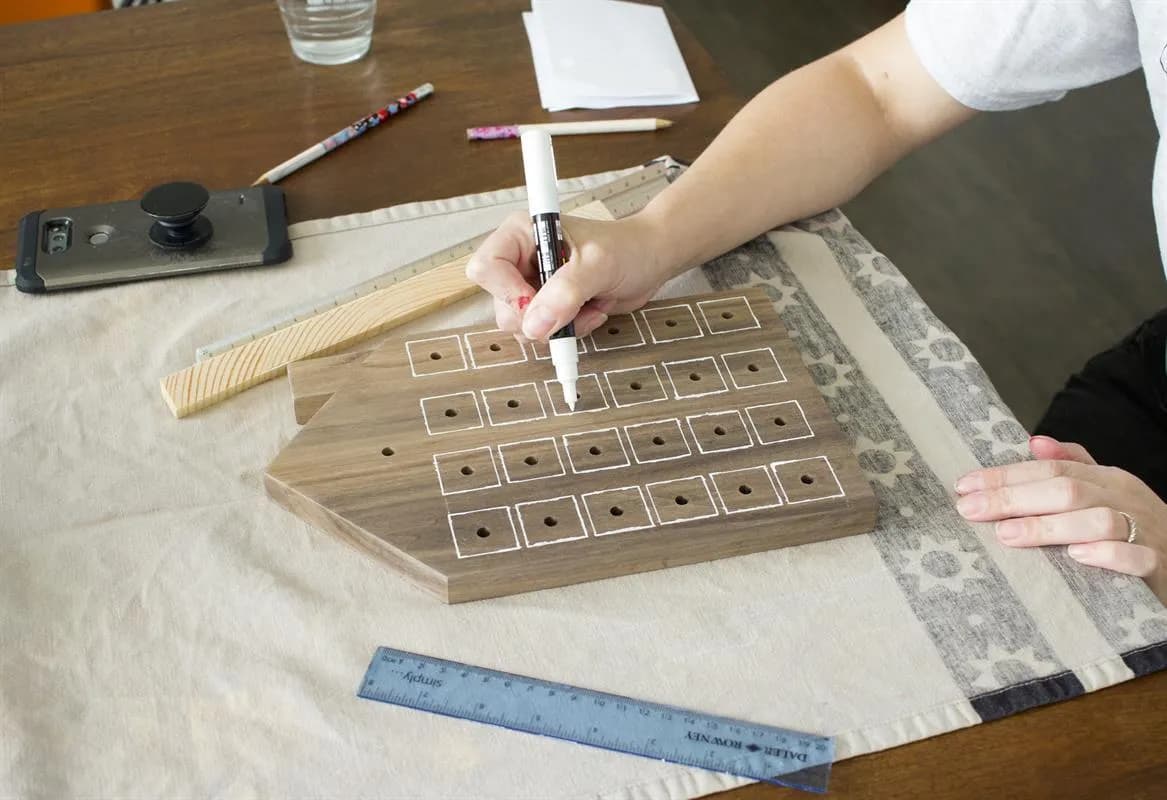

Use a ruler and narrow paint pen to draw windows around each hole and create a straight roof line.
8Add Numbers

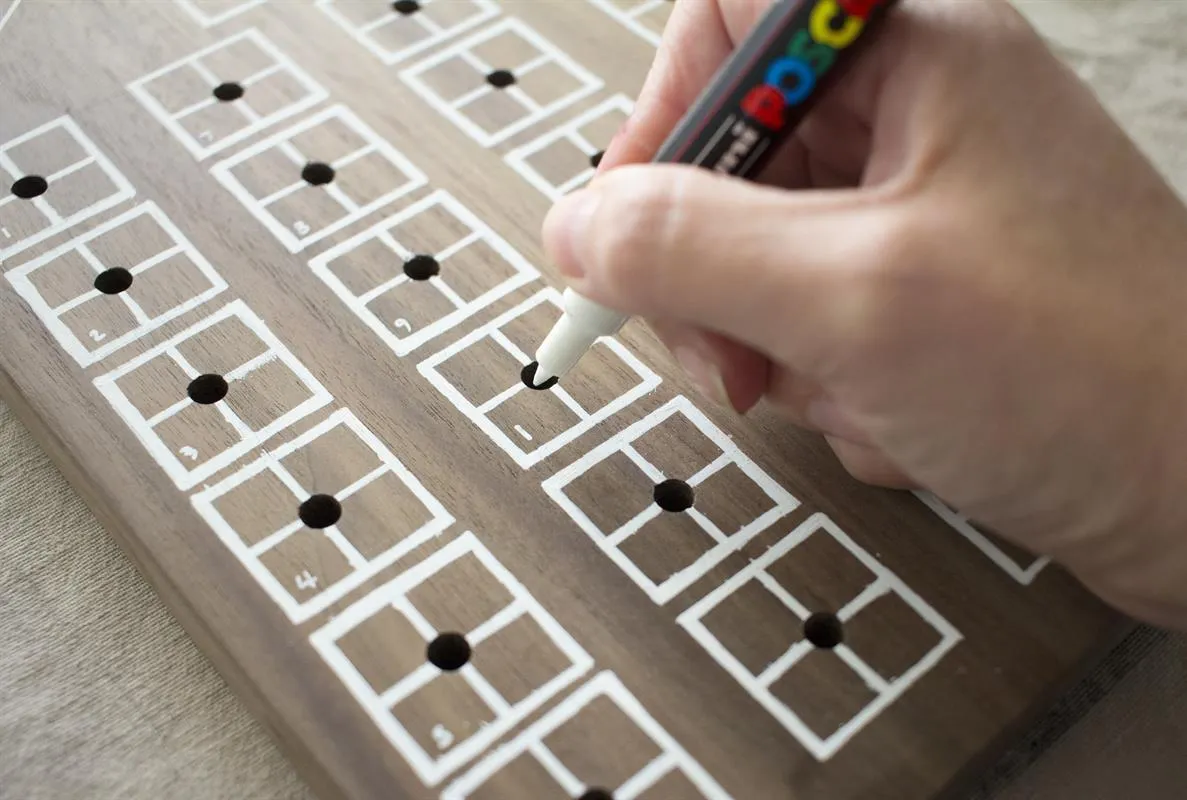

Write a small number (1-25) in the lower corner of each window.

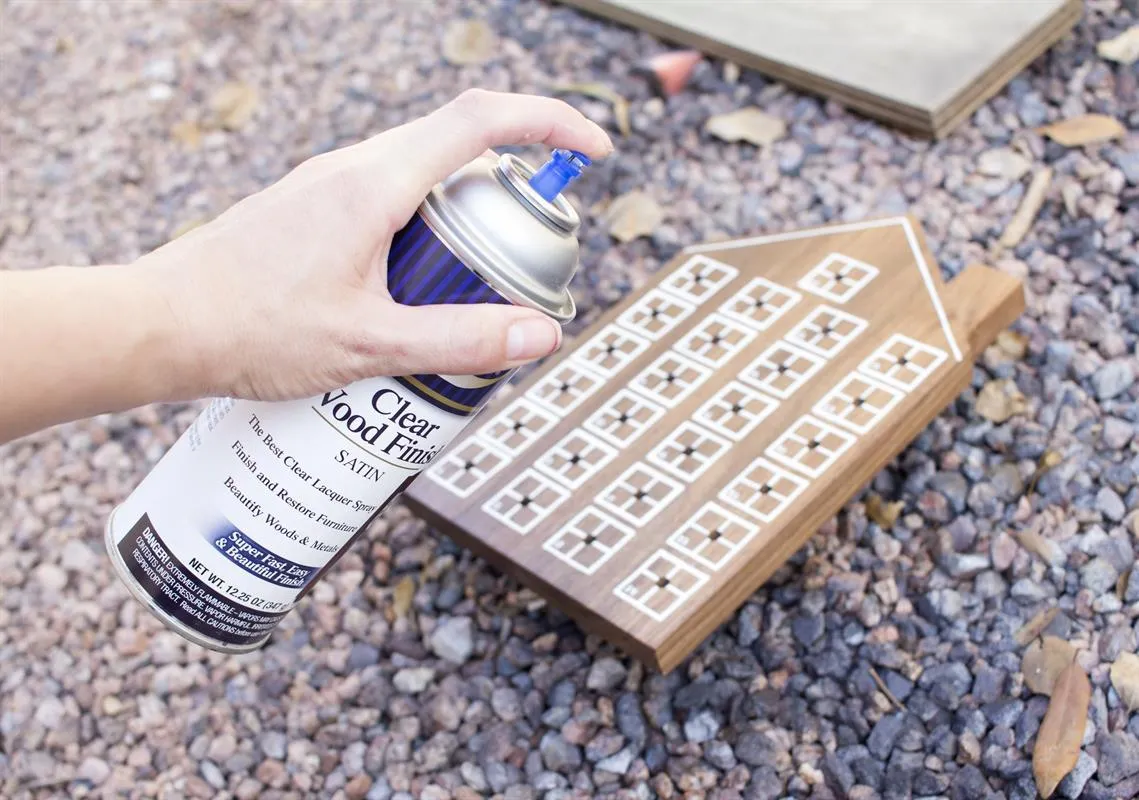

9Clear Coat
Apply 2-3 coats of a clear finish to protect your design.
10Sawtooth Hanger

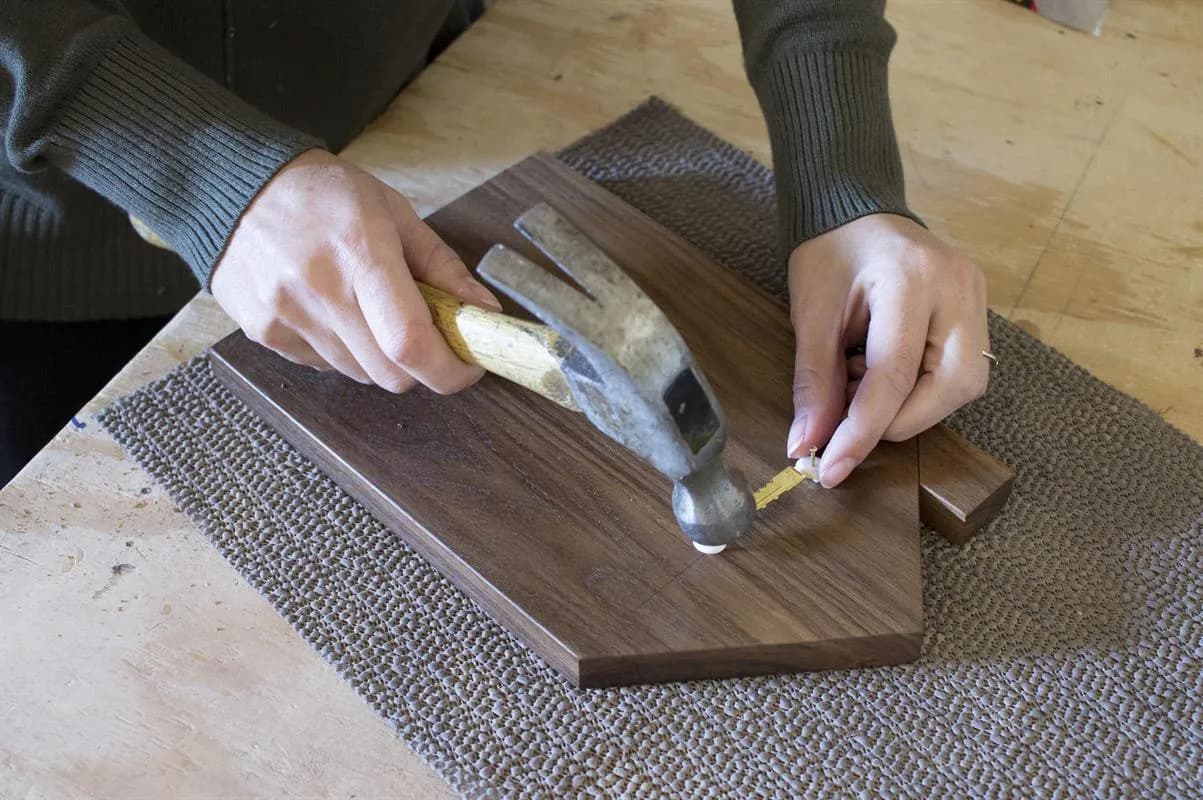

Once dry, flip the board over, face-down onto your work surface. Carefully attach a sawtooth hanger to give yourself the option to hang the calendar on the wall.
11Create Pin

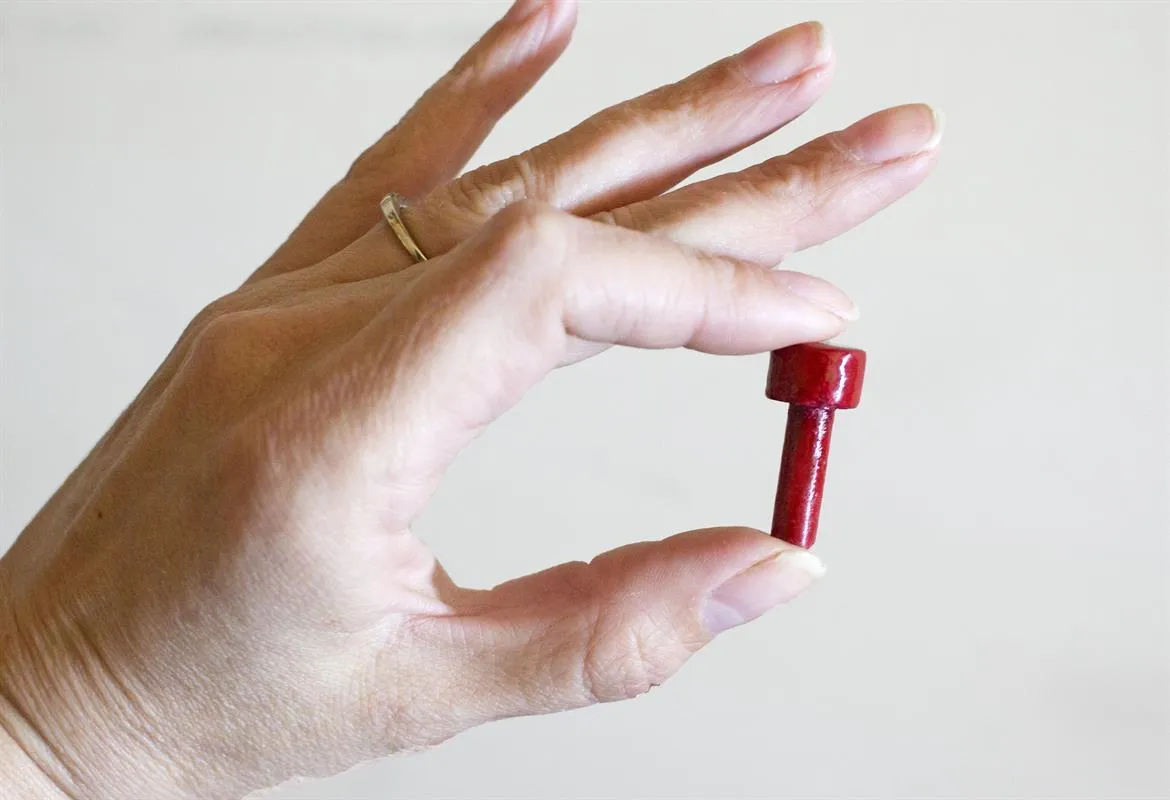

- Cut a 1" length of 1/4" round wood dowel. To make the pin easier to pull, glue a 1/2" length of 1/2" round wood dowel (or whatever shape you prefer) to the end of the 1/4" dowel.
- Paint or finish however you'd like.

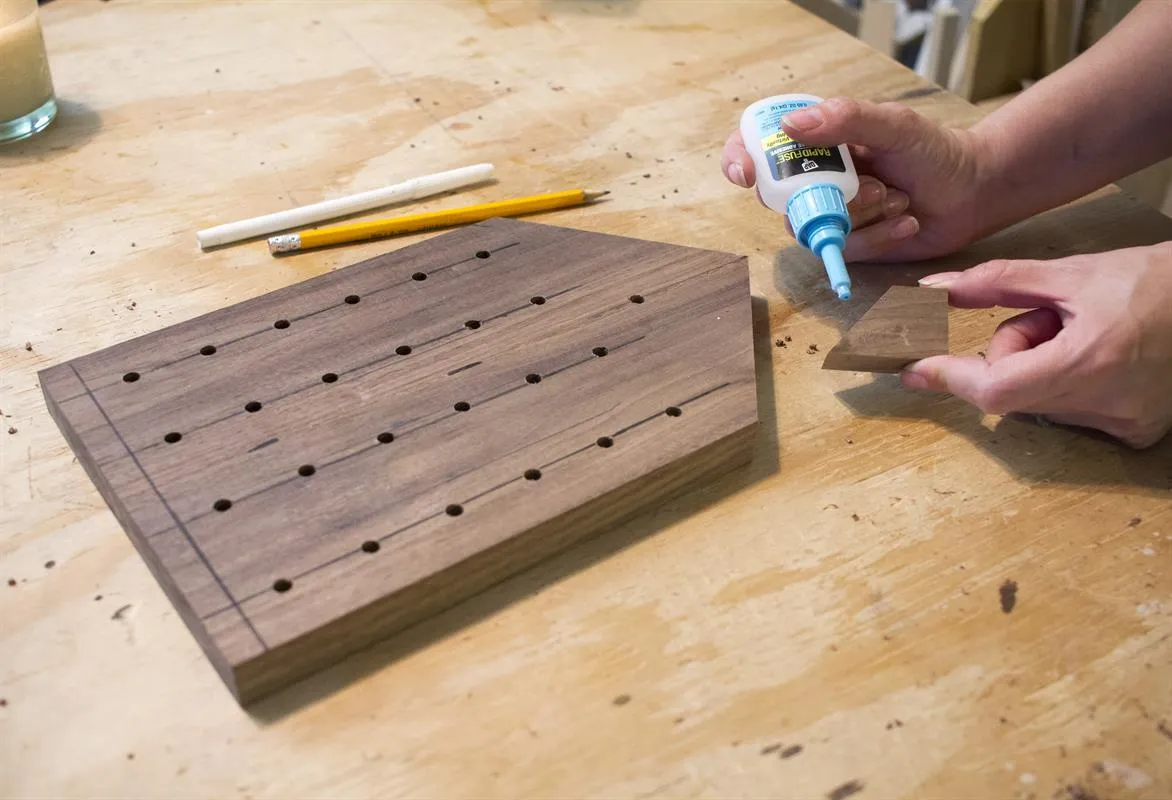

12Add Chimney
Carefully, cut a 1" x 1-1/2" x 3/4" chimney from the scraps created when the roof was angled. (When cutting such a small piece of material, make sure to secure the material to a sacrificial board and keep your fingers a safe distance from the saw blade). Attach the chimney to the roof of the board, using a fast setting glue.

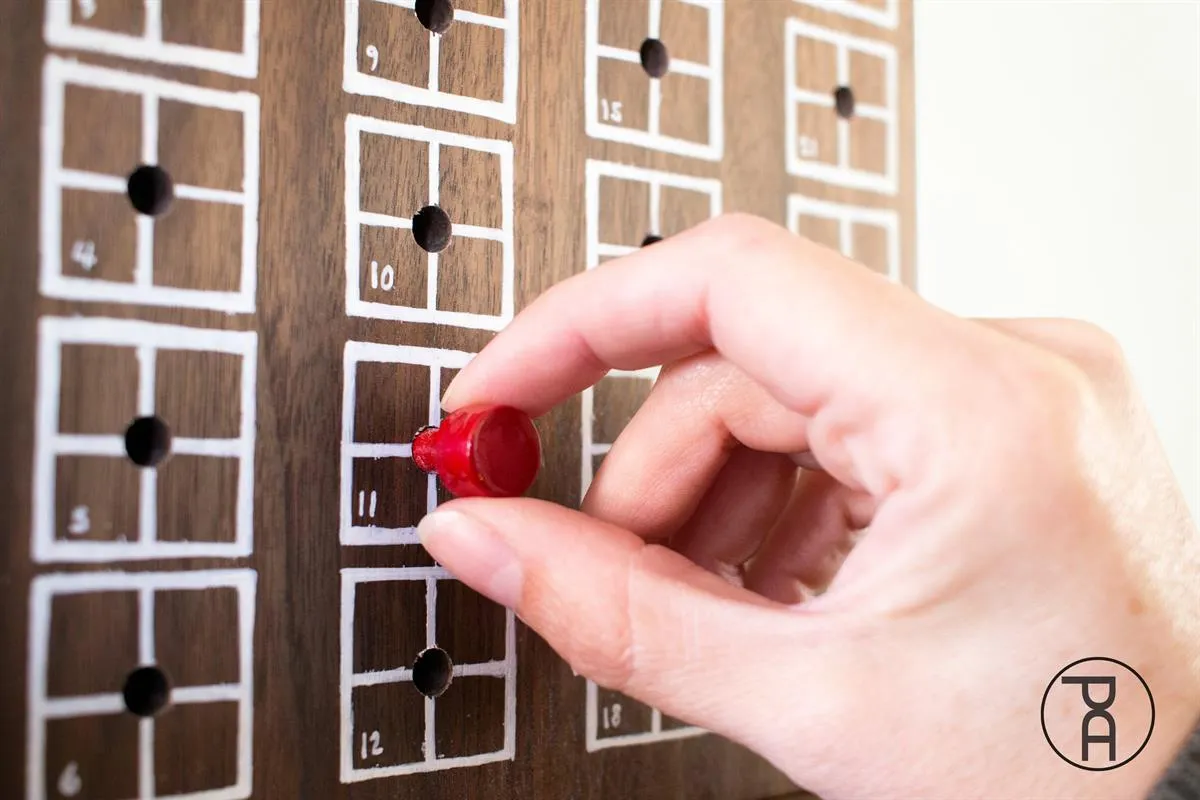

13Start the Countdown
Starting on the 1st of December, place the pin in the corresponding date on the calendar.
14More Tips and Ideas
Head to www.PneumaticAddict.com for more DIY tips and ideas.
