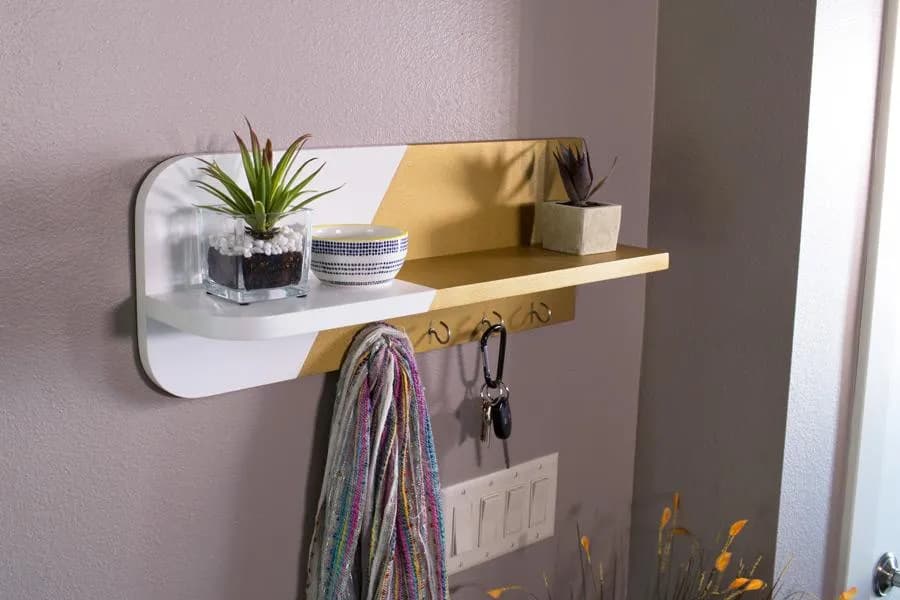

Drop-Zone Shelf

Instructions

1. 1Cut the Parts

   Cut one Back to length from a 1x10 and one shelf to length from 1x6, as shown in the cutting diagram.

2. 2Shape the Back

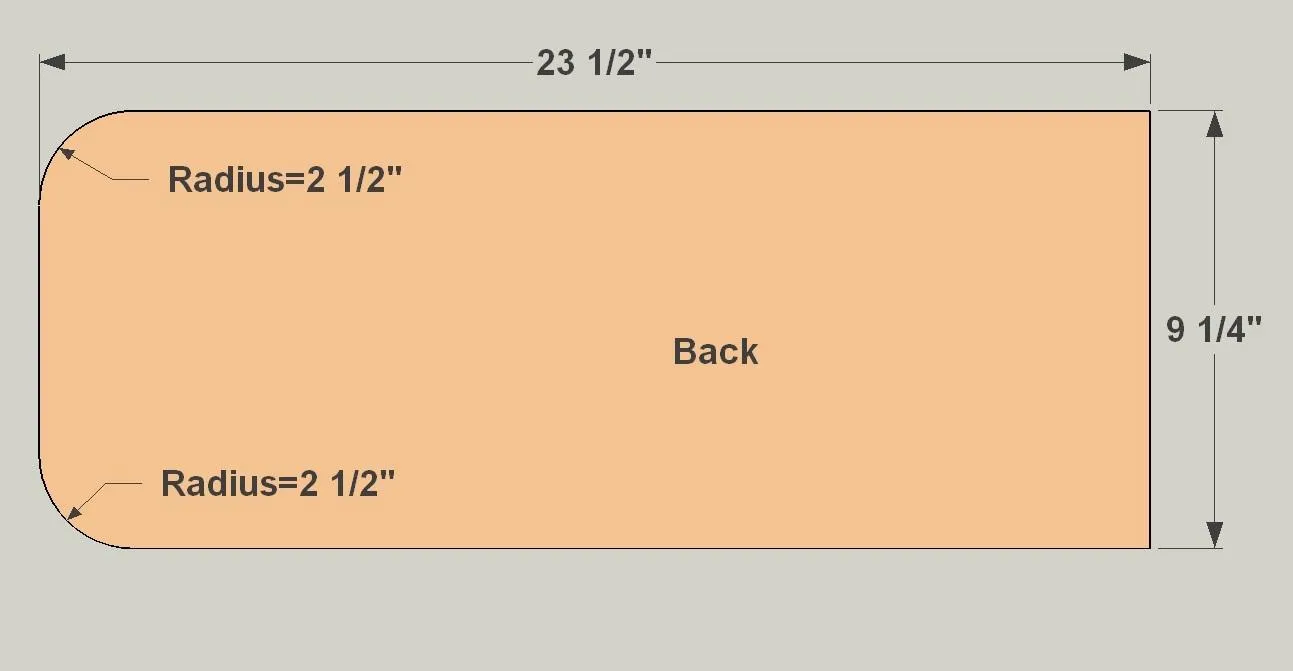

   Using a compass, lay out a 2 1/2" radius on two corners of the Back, and cut arcs using a jigsaw.

   Tip: Sand to Perfect the Shape When cutting with a jigsaw, don’t try to cut exactly on the line. Cut just outside the line—on the “waste” side—and then sand to get the exact shape. You’ll get better, smoother results.

3. 3Wrap Up the Shelf

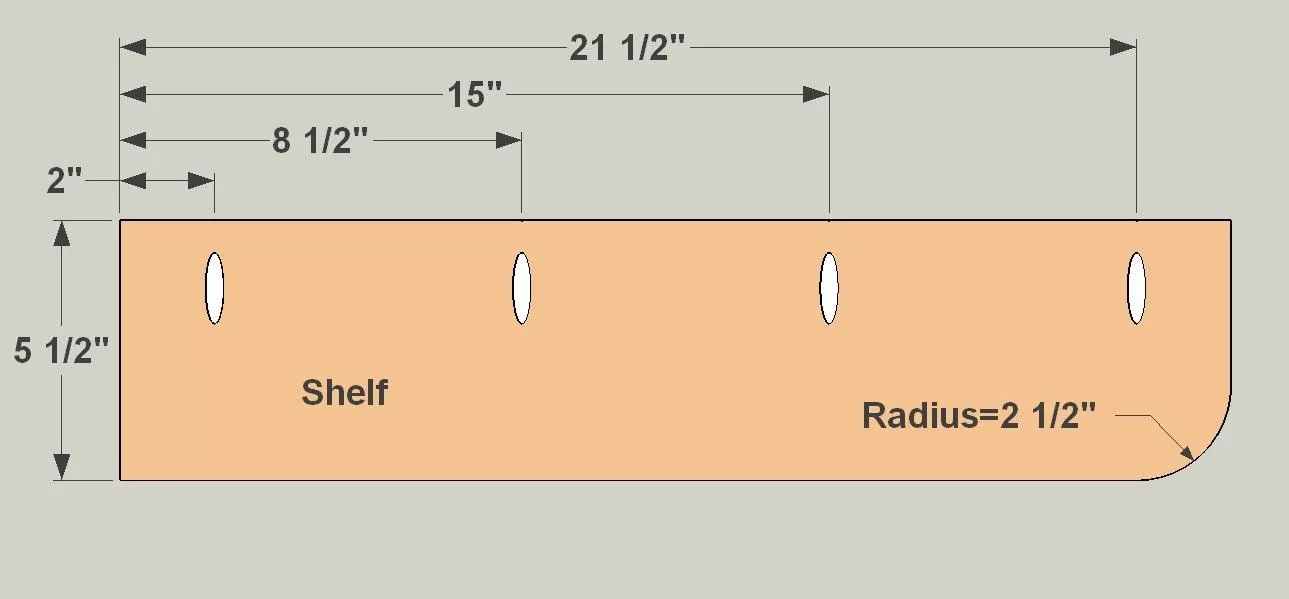

   Lay out a 2 1/2" radius on one corner of the Shelf, and cut the arc using a jigsaw. Then, with your pocket-hole jig, set up for 3/4" material and drill four pocket holes along the back edge of the shelf.

4. 4Attach the Shelf

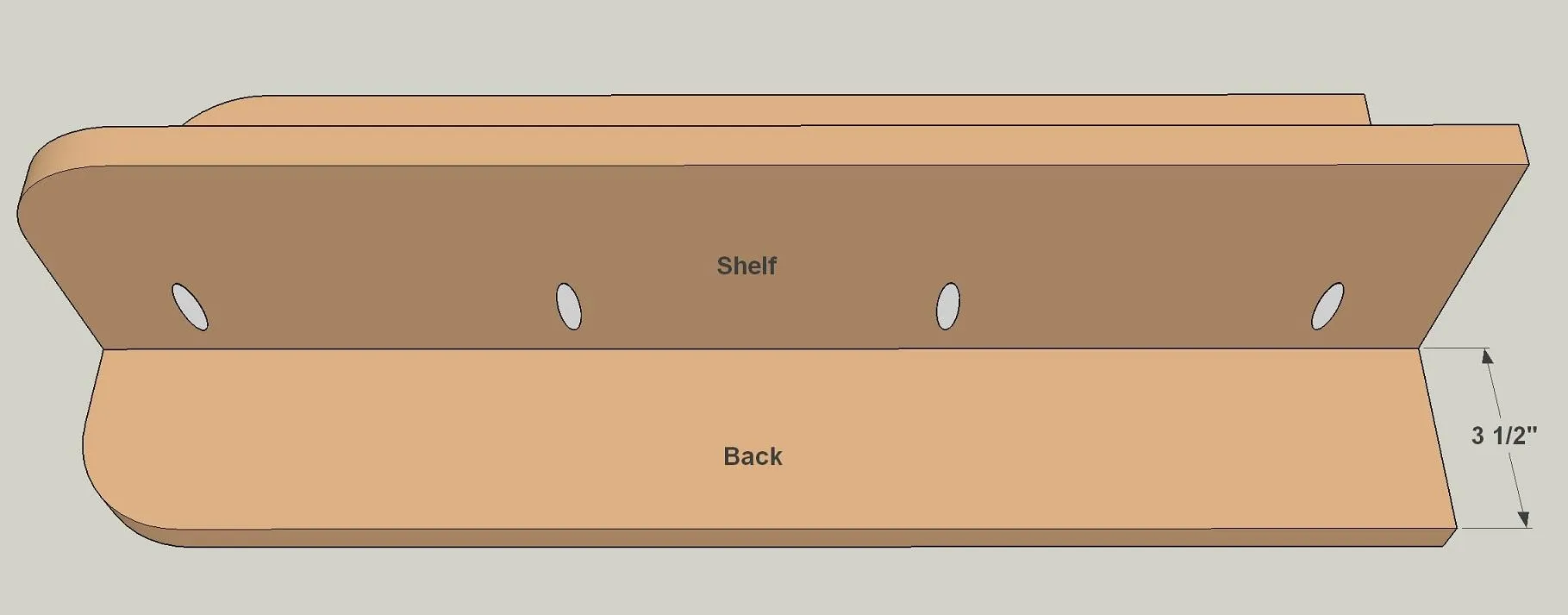

   Mark the location on the Shelf on the Back and secure it with four 1 1/4" coarse-thread pocket-hole screws.

5. 5Paint on a Pattern

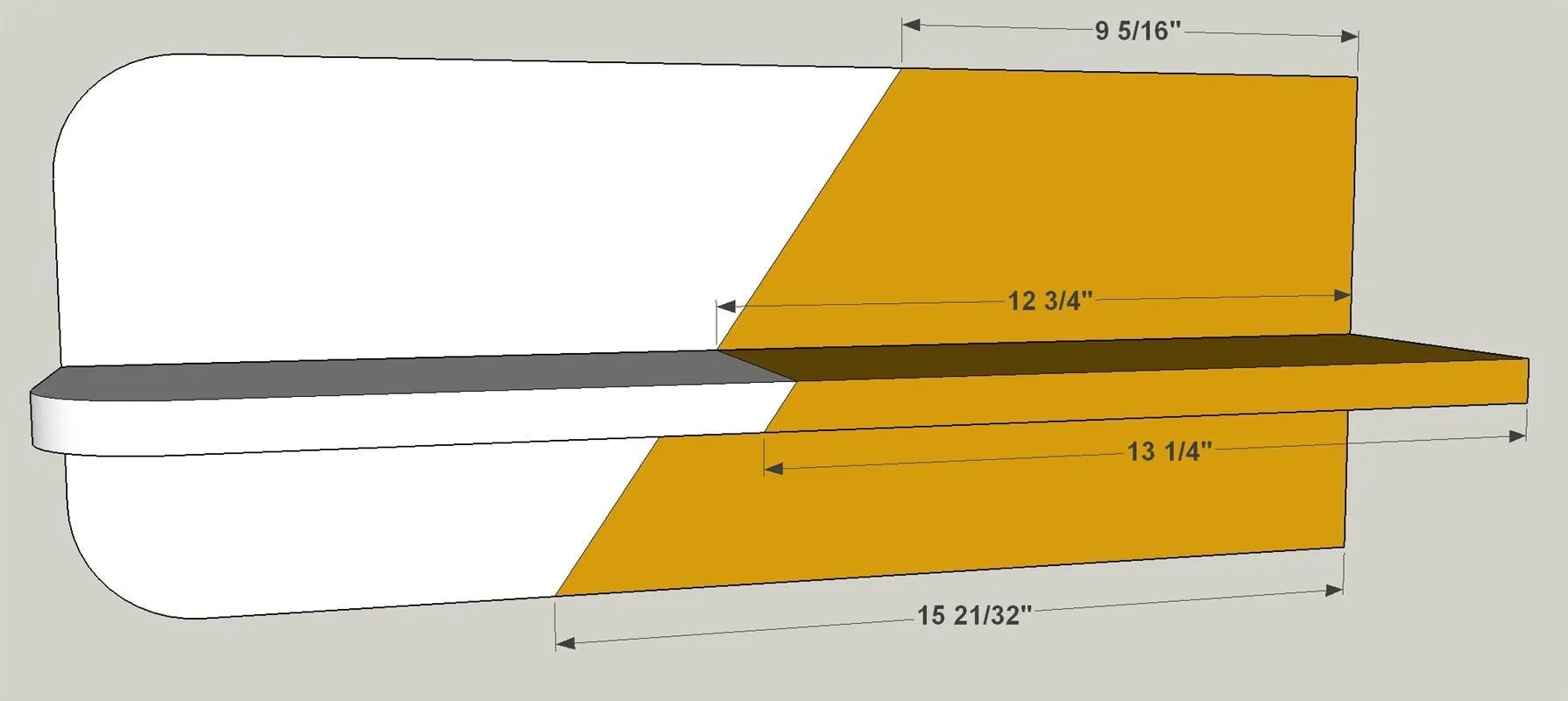

   After a final sanding, paint or finish the shelf. To create the pattern shown here, first paint the entire shelf assembly white. Once that coat dries, measure over from the square end of the Back, and then draw a line (at approximately a 55° angle). Mask along the line, and then paint on the gold color.

6. 6Hang the Hooks

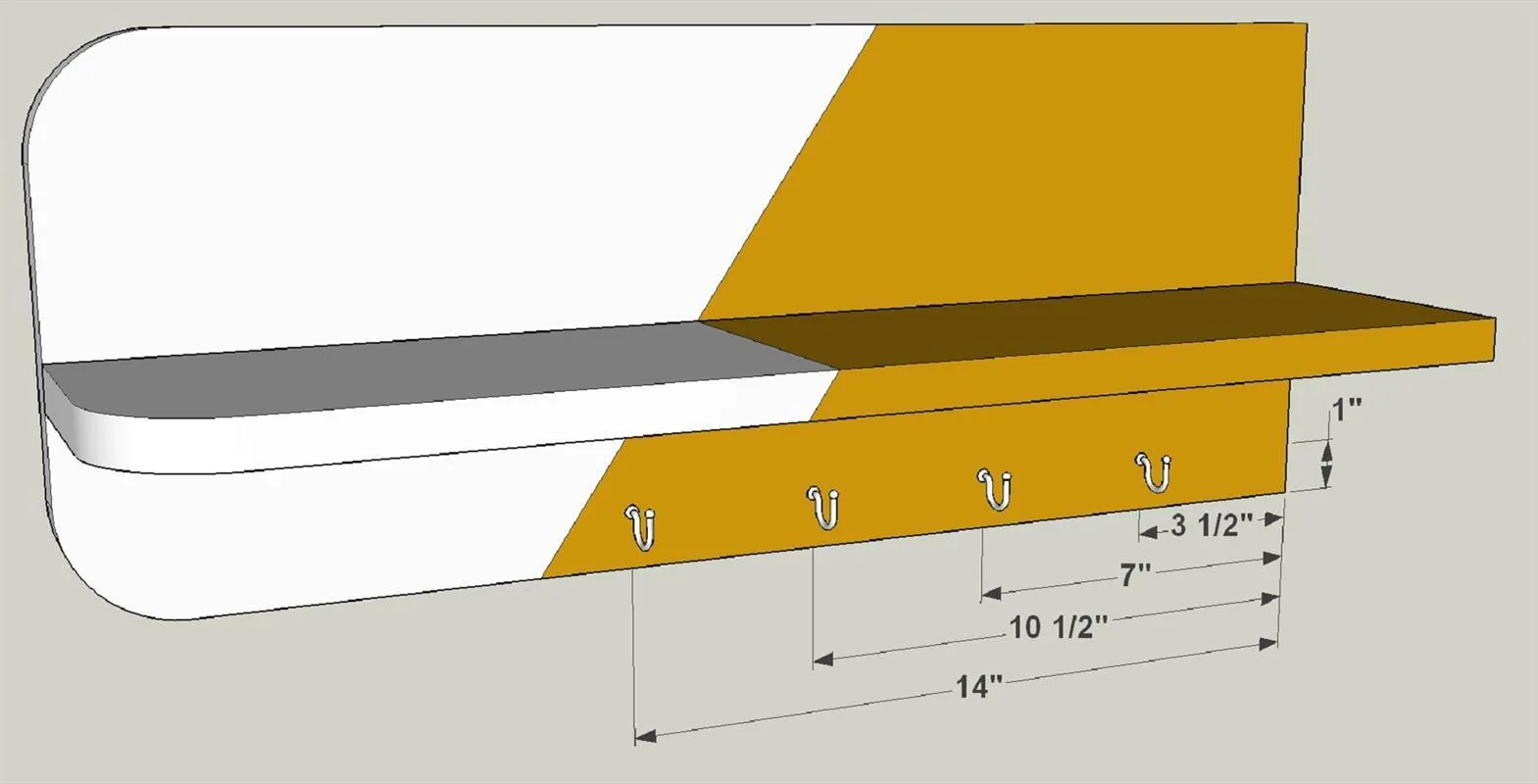

   • Add 1" cup hooks below the shelf for hanging keys, etc.
   • Measure to get the spacing even.
   • Then drill pilot holes to fit the threaded ends of your hooks, and screw in the hooks.
