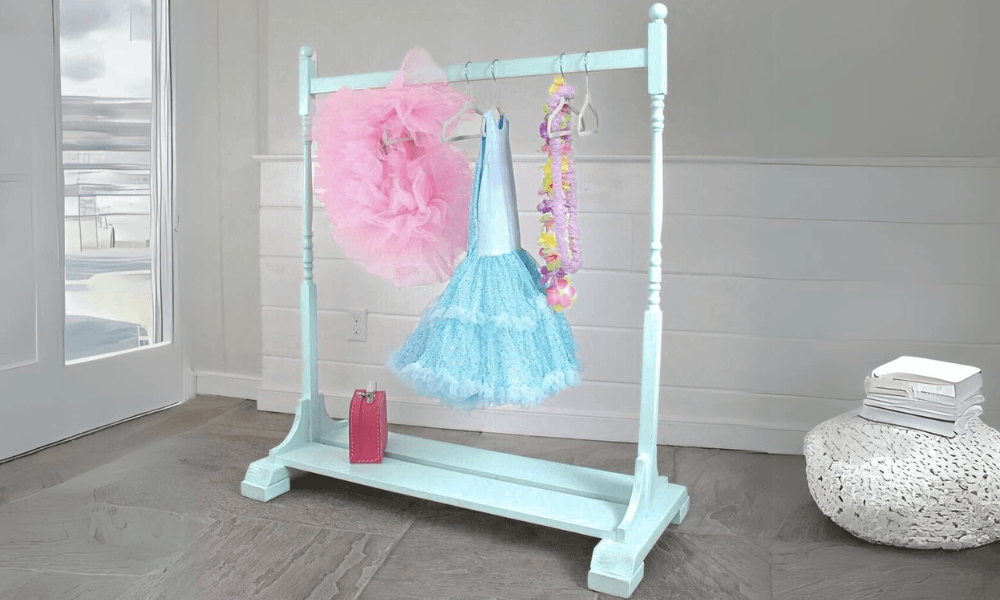

The whole personality of this build comes from repurposing stock stair spindles as the vertical posts instead of milling or turning your own — an easy way to get a decorative turned profile without a lathe. Curtain rod finials cap the tops for the same reason: real turned hardware, bought rather than made, standing in for a much harder woodworking operation.
The corbels are the one part that does need cutting from scratch, with a jigsaw, and they serve double duty — visually finishing the transition from post to shelf, and physically supporting the shelf boards along with the 2x4 base. Get the corbel shape roughed out and test-fit against the spindle before committing to the final cut; a corbel that doesn't sit flush against the post's turned profile is the one place a small gap will be obvious.
| Item | Qty |
|---|---|
| Turned stair spindles, 41", block ends | 2 each |
| Curtain rod finials | 2 each |
| Pine, 1x6, 8 ft | 1 each |
| Pine, 1x2 or closet rod pole, 3 ft | 1 each |
| Pine, 2x4, 4 ft | 1 each |
| Wood screws, 2-1/2" to 2-3/4" | 1 box |
| Self-tapping screws, 2" | 1 box |
| Pocket hole screws, 1-1/4" | 1 box |
| Wood glue | 2 oz |
Overall cost: $$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Base cross piecesPineBoth ends cut at 30°, ends not parallel — long point to long point. | 2 | 1 1/2" × 3 1/2" × 17" |
| Base blocksPine | 4 | 1 1/2" × 3 1/2" × 3 1/2" |
| CorbelsPine | 4 | 3/4" × 5 1/2" × 5 1/2" |
| Shelf boardsPine | 2 | 3/4" × 5 1/2" × 36" |
Buy 2 boards at 8 ft.
1 board
1 board
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Attach the 2x4 base pieces together using a fastener between 2-1/2" and 2-3/4" long. If nailing, use glue as well.
Drill 3/4" pocket holes to attach each stair spindle to the base, one on each side. Attach with 1-1/4" pocket hole screws.
Cut the corbel shapes from the 1x6 with a jigsaw, test-fitting against the spindle's turned profile before finalizing the cut — a corbel that doesn't sit flush leaves a visible gap. Attach with 3/4" pocket holes to both the spindle and the 2x4 base.
Drill out the top of each spindle for the curtain rod finials and attach.
Attach the shelf boards between the corbels with screws into the 2x4 base and corbels. Measure the distance between the two spindles at the top and cut the closet rod (or 1x2) to fit. Attach with 3/4" pocket holes, 1-1/4" pocket hole screws, and glue.
