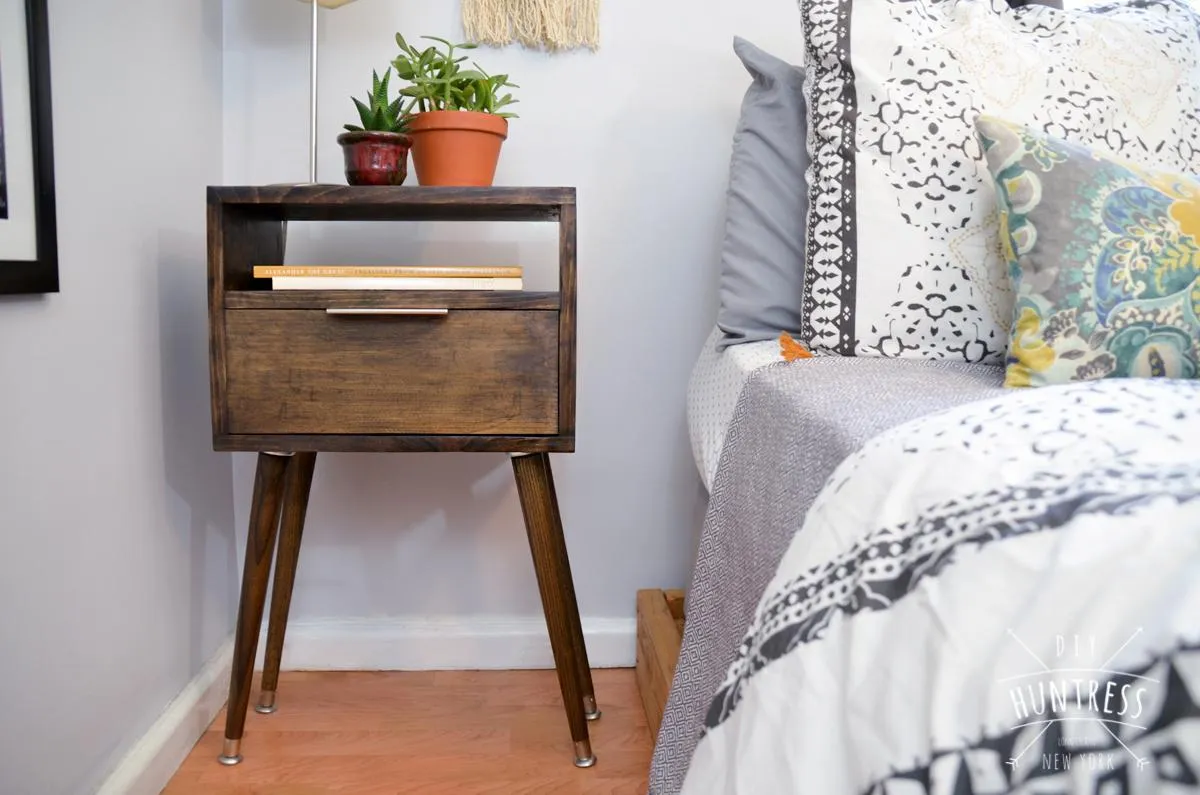

Retro Mid Century Modern Decor is coming back in style. Get ahead of the old-times and build your own stylish retro side table with a storage drawer! A great, easy build for anyone who wants great style on a tight budget!
| Item | Qty |
|---|---|
| Board, 1x10 72" | 1 board |
| Board, 1x6 96" | 1 board |
| 1 1/4" Kreg Pocket Hole Screws | 50 each |
| 1 1/4" Brad Nails (optional) | 10 each |
| 6" Set Drawer Slides | 1 each |
| Drawer Pull | 1 each |
| Wood Filler | 1 each |
| Wood Stain & Sealer | 1 each |
| Tapered Table Legs (link for product on blog) | 4 each |
| Angled Plates for Legs (link for product on blog) | 4 each |
Overall cost: $$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Top Piece | 1 | 1" × 10" × 16" |
| Bottom Piece | 1 | 1" × 10" × 16" |
| Side Pieces | 2 | 1" × 10" × 10" |
| Shelf | 1 | 1" × 10" × 14" |
| Back Panel | 1 | 1" × 6" × 14" |
| Drawer Sides | 2 | 1" × 4" × 6" |
| Drawer Sides | 2 | 1" × 4" × 11" |
| Drawer Bottom | 1 | 1" × 4" × 11" |
| Drawer Front | 1 | 1" × 6" × 14" |
Buy 3 boards at 8 ft.
1 board
1 board
1 board
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →

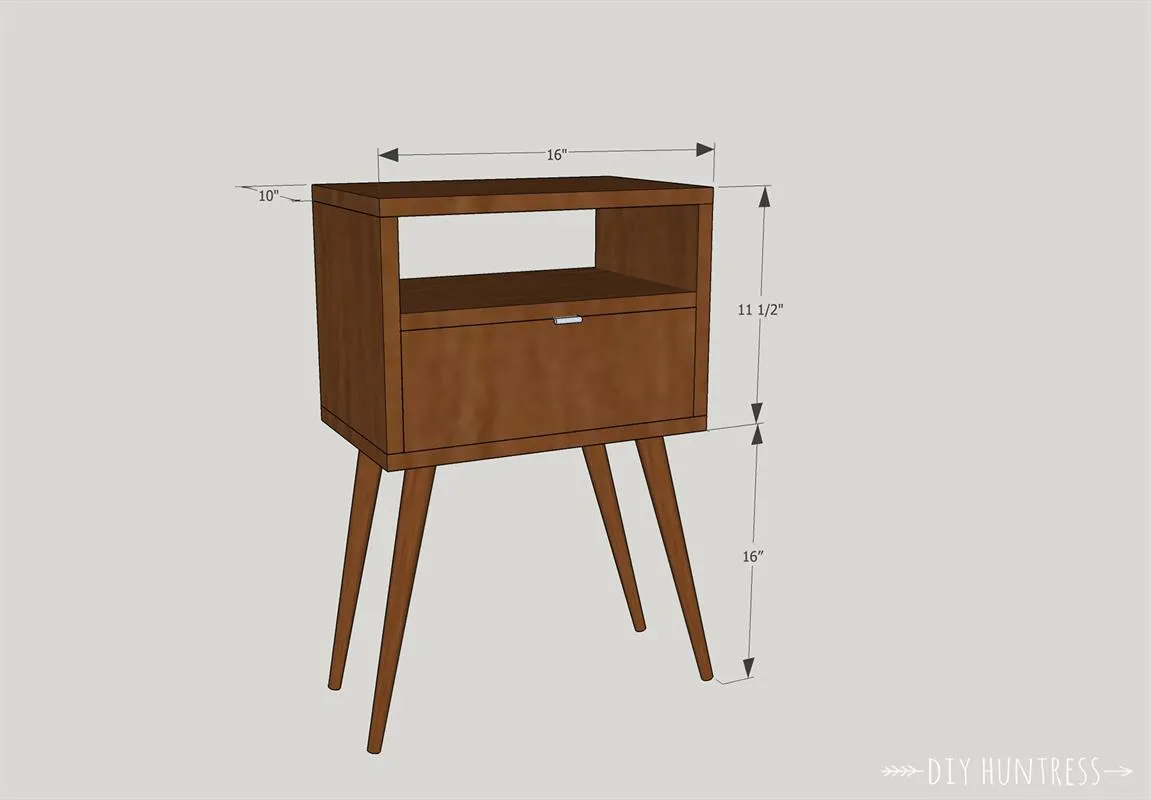

Prior to starting this project, check the dimensions and cut list.

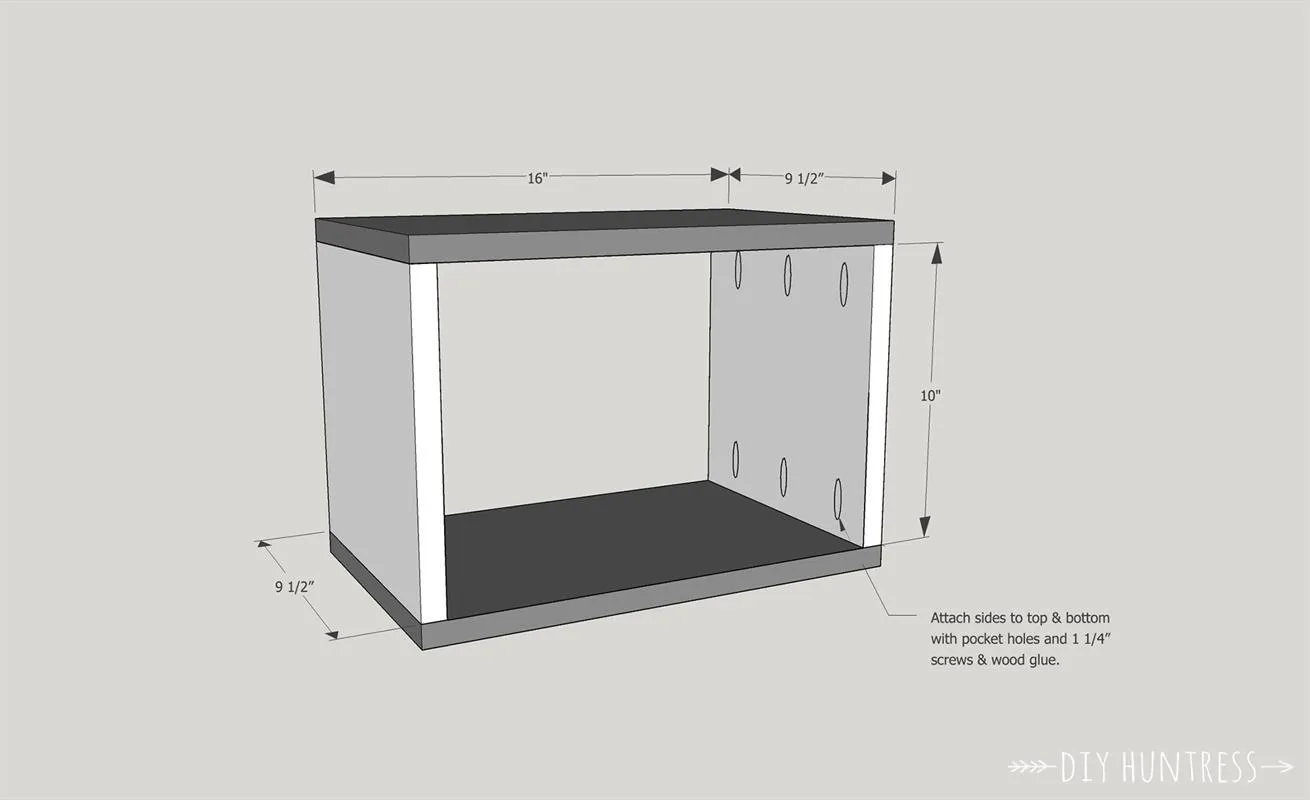

Once your frame pieces are cut, attach the top & bottom panels to the side panels using wood glue and 1 1/4" pocket hole screws.
Add the shelf to the frame by using wood glue and pocket hole screws. You will need a compact drill here in order to get the screws in. If you do not have a compact drill, you can also use brad nails and wood glue to attach the shelf from the sides. Make sure to attach the frame 5 1/2" up to make room for the drawer.
Attach the back panel of the table to the frame underneath the shelf. You can attach this piece with pocket holes in the back. Use wood glue and 1 1/4" screws to adhere.
Install the drawer by adding 6" long drawer slides to the frame. Follow the directions provided with your drawer slides for installation.

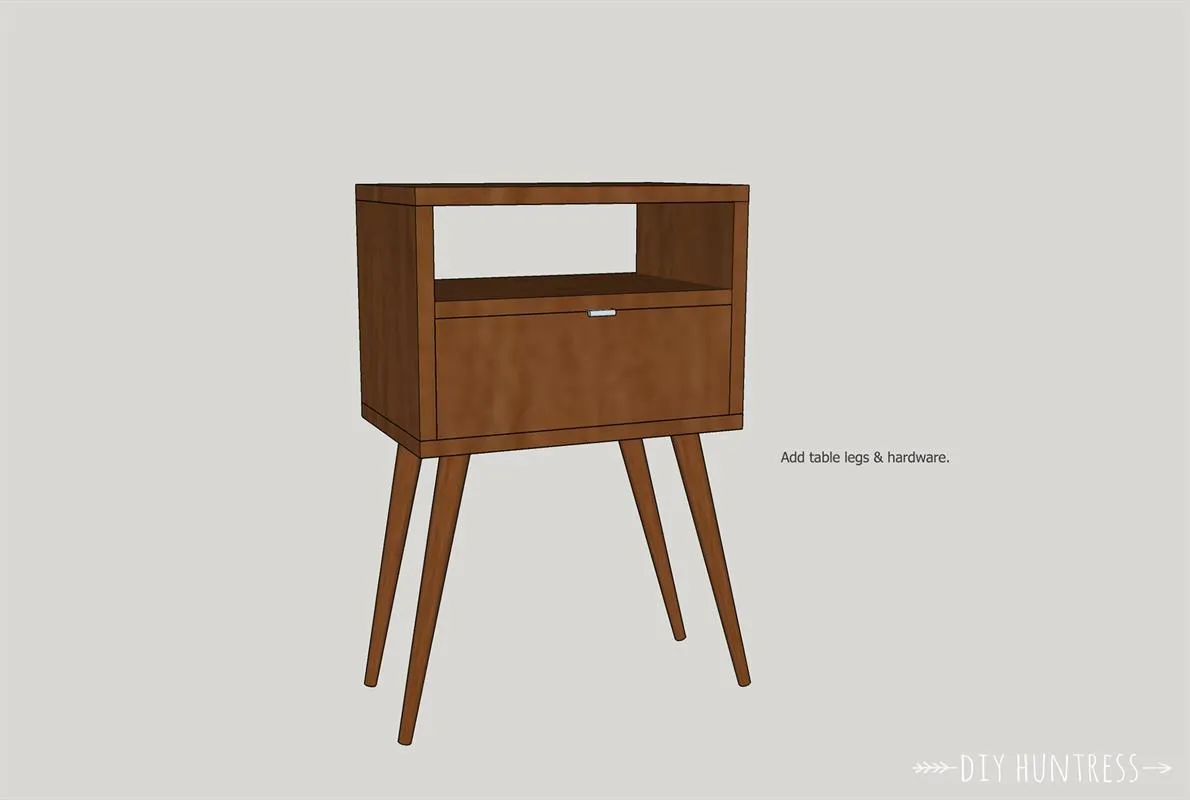

Fill all pocket holes and sand down the table. Once sanded, stain the piece and add hardware and legs (you can find links for the products I used on my blog).
