Notch- Difficulty
- Easy
- Time
- 3.3–6 hours
- Cost
- $$
About this build

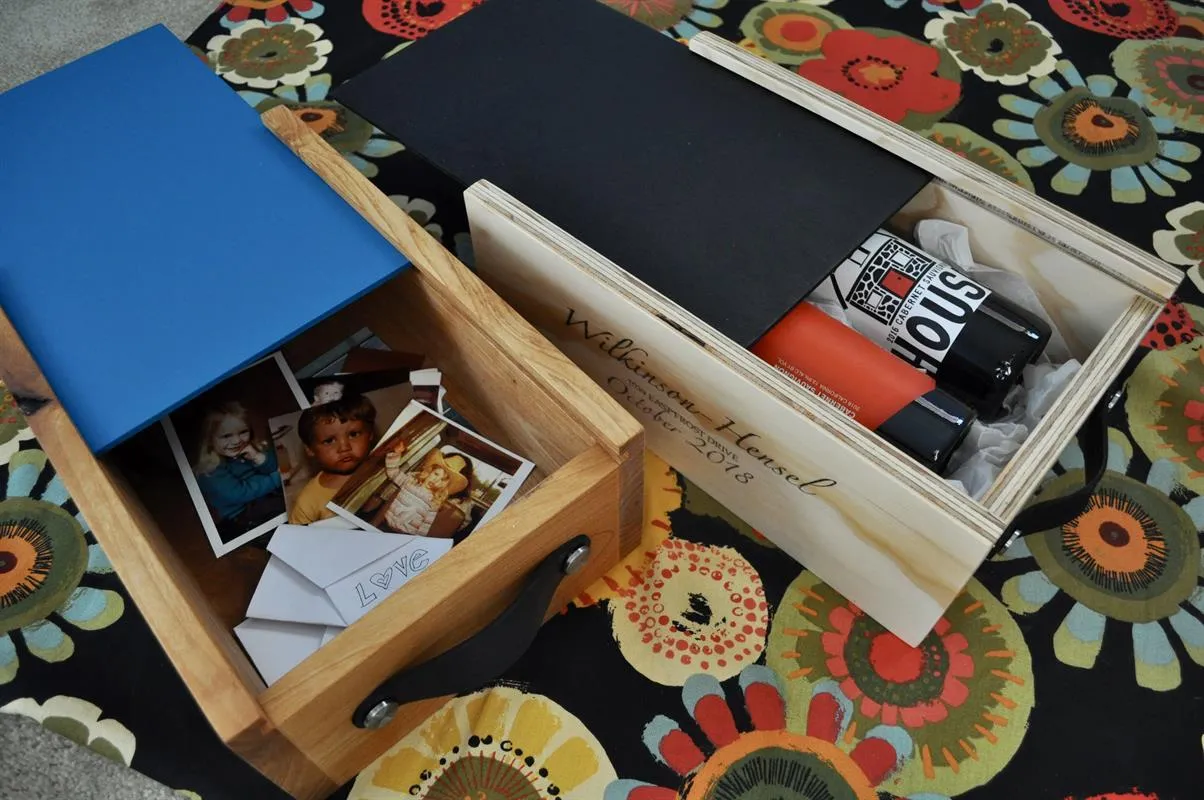

A handmade gift that will last. Fill this DIY Keepsake Gift Box with wine, chocolates, or socks! And once those are gone that special someone can use it to store special memories… pictures, handwritten notes, or trinkets. Add your own embellishments to truly make it a special one-of-a-kind piece.
Tools
Essential
- Brad Nailer
- Miter Saw
- Pocket Hole Jig
- Random Orbit Sander
- Table Saw
Optional / nice to have
- Tape Measure
Materials
| Item | Qty |
|---|---|
| Board, 1x6 96" | 1 board |
| Plywood, 1/4" Thick Scrap 8.5" x 14.5" | 1 board |
| Pulls | 2 each |
| 60 Grit Sandpaper | 1 each |
| 120 Grit Sandpaper | 1 each |
| Finish of Your Choice | 1 each |
| Pack of 23ga Pin Nails | 1 each |
Overall cost: $$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
Cut list
| Part | Qty | T × W × L |
|---|---|---|
| Side Pieces | 2 | 3/4" × 5" × 14" |
| End Pieces | 2 | 3/4" × 4" × 8" |
| Lid | 1 | 1/4" × 8" × 14" |
| Bottom | 1 | 3/4" × 8" × 13" |
What to buy
Buy 4 boards at 8 ft.
3/4" × 8"
1 board
3/4" × 5"
1 board
3/4" × 4"
1 board
1/4" × 8"
1 board
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Instructions

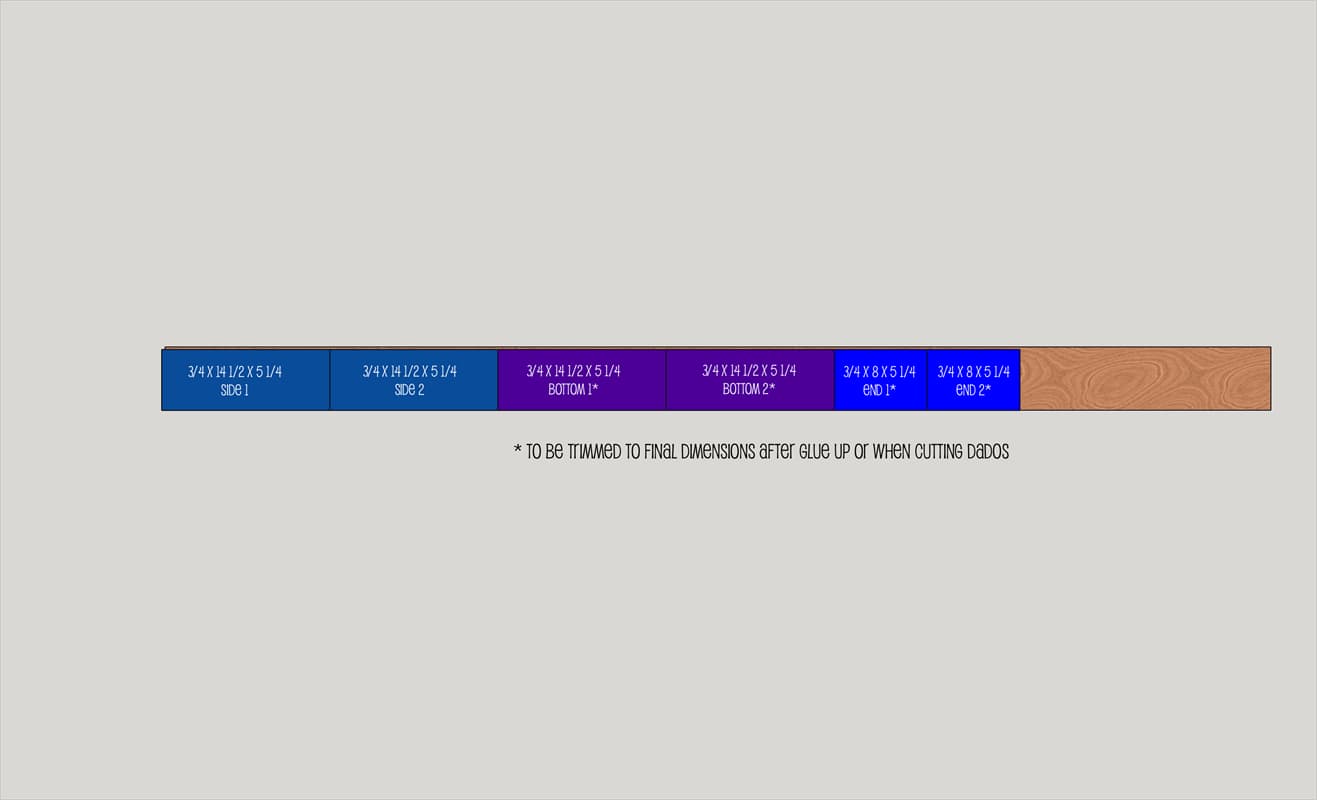

1Cut & Rip Boards
Cut board to final pieces sizes using miter saw - SEE CUT LIST. Then rip ALL boards to 5 1/4" Wide. ***NOTE: Cut the top/lid at the same time as side pieces to ensure they are the same length - 14.5"

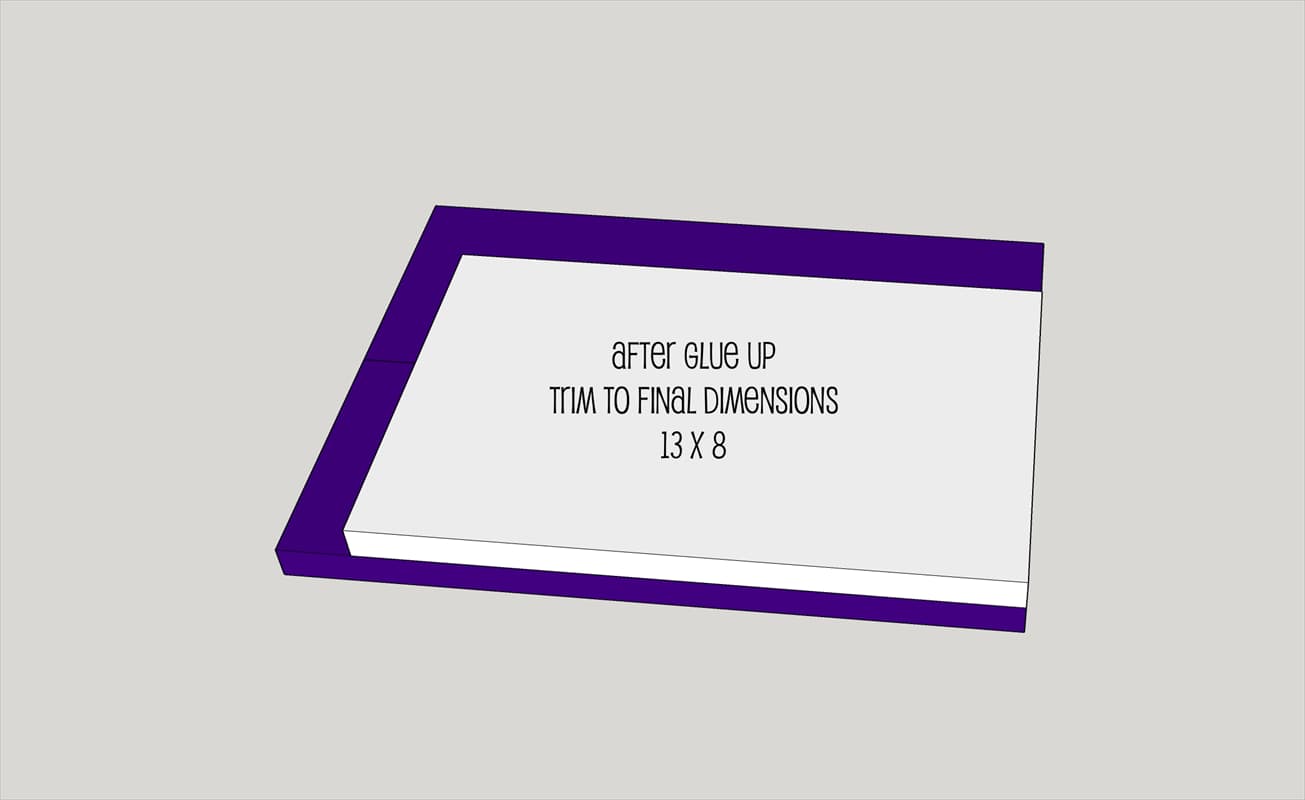

2Glue Bottom Pieces Together
Glue and clamp two (2) of the 14.5" pieces together for the bottom. Set aside til dry. ***NOTE: This step is not necessary if making box out of plywood.

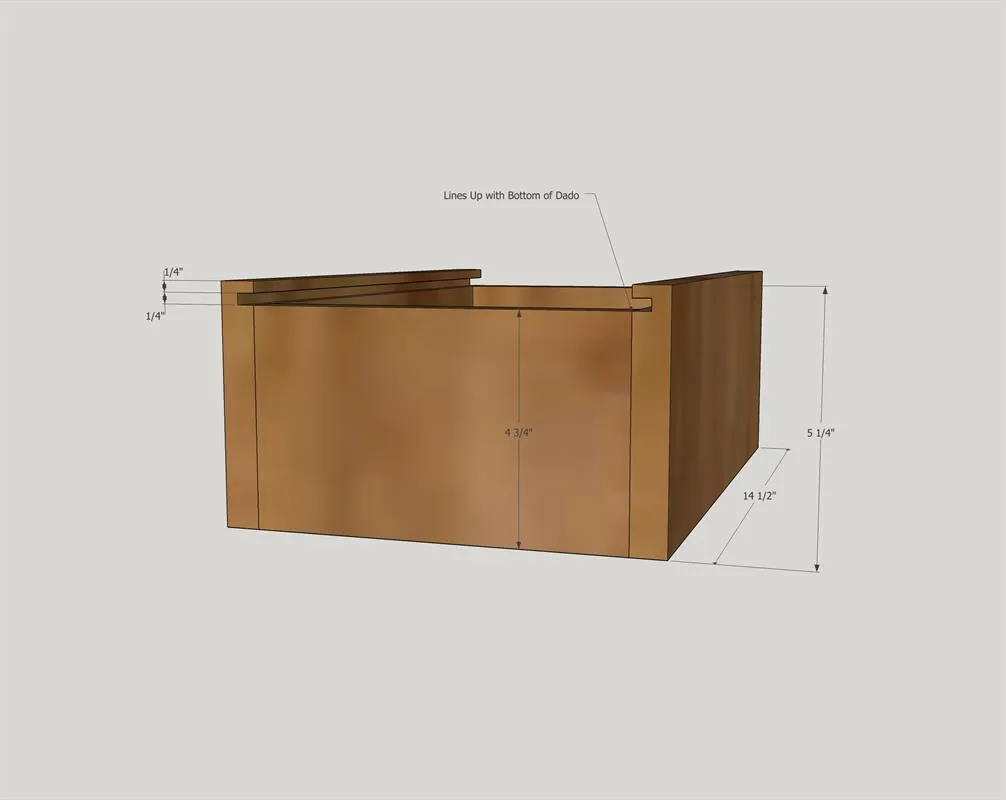

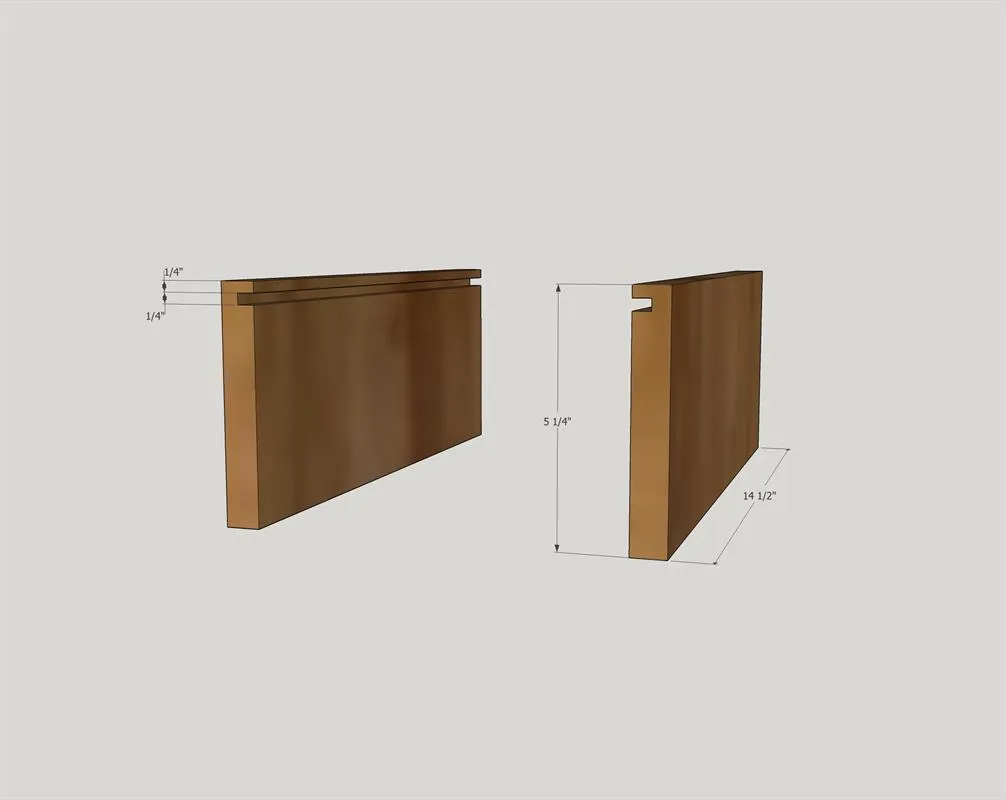

3Rip Dado for Lid
- Set table saw blade to 1/4" in height and set fence at 1/4". Run all four (4) side pieces thru.
- Then adjust fence to 3/8" and run the two (2) long (14.5") side pieces thru. This should give you a 1/4" dado for the lid to slide thru - verify it slides easily before moving on. Make any adjustments as necessary.
4Trim End Pieces
Raise table saw blade up to just cut thru the 3/4" material and then run the (2) end pieces thru. Be sure to use a push block or a micro jig to safely cut these pieces.

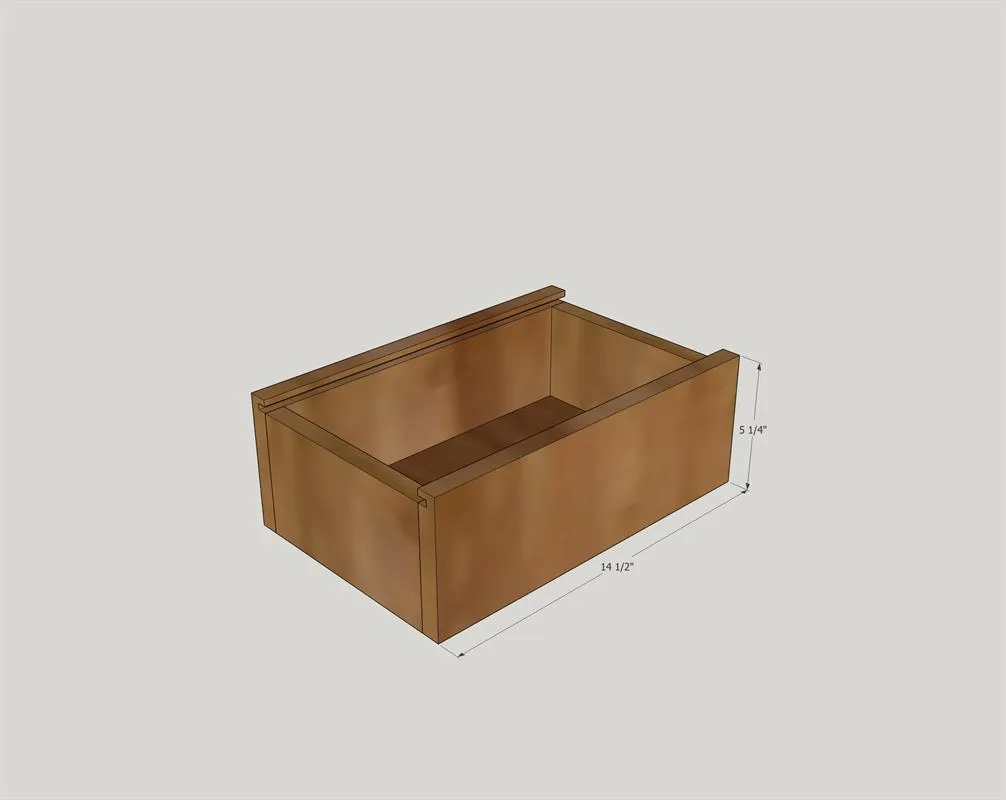

5Assemble Box
Assemble box using wood glue and 23 ga pin nails 1 1/4" long. Use clamps if necessary to hold pieces together during assembly.

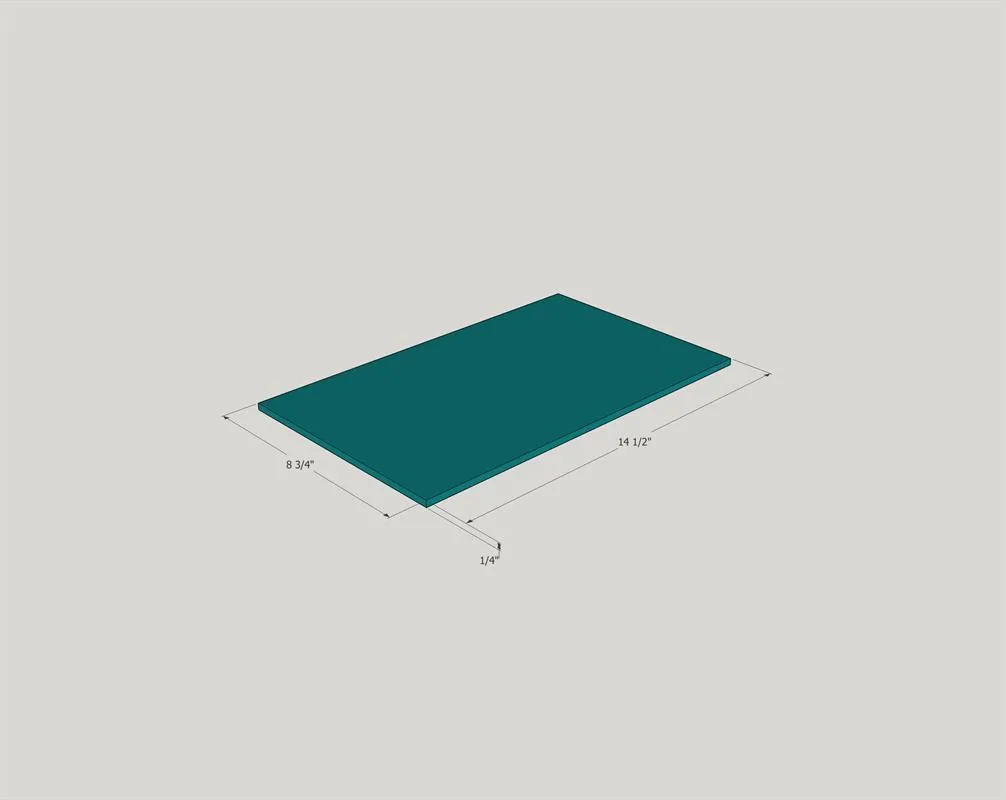

6Rip Lid
Rip lid to its final width. Should be approximately 8.5" Wide, but be sure to measure your box for exact measurements. ***Note: length of lid should have been cut at same time as the long side pieces to ensure same length.
7Fill, Sand & Finish
Fill any gaps with wood filler, sand to desired grit, and finish with you desired finish.

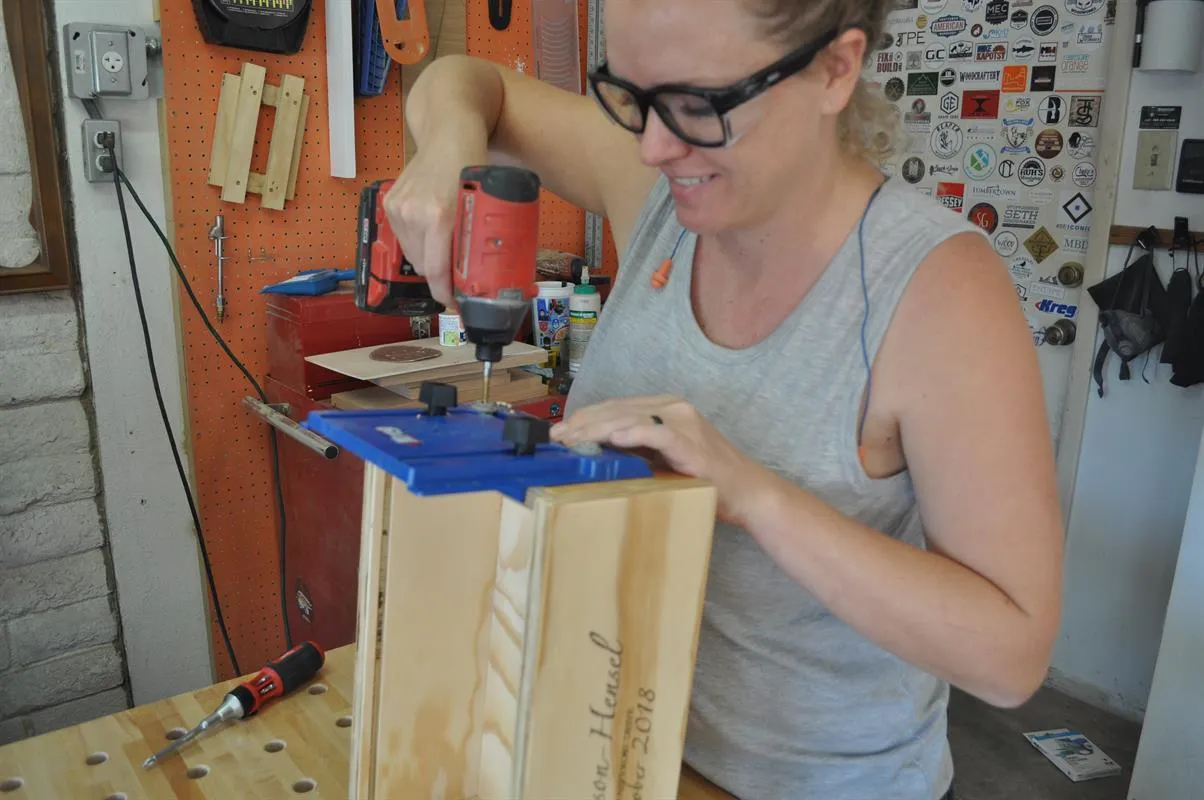

8Install Hardware
Using the Kreg Cabinet Hardware Jig drill holes for your desired pulls and install.

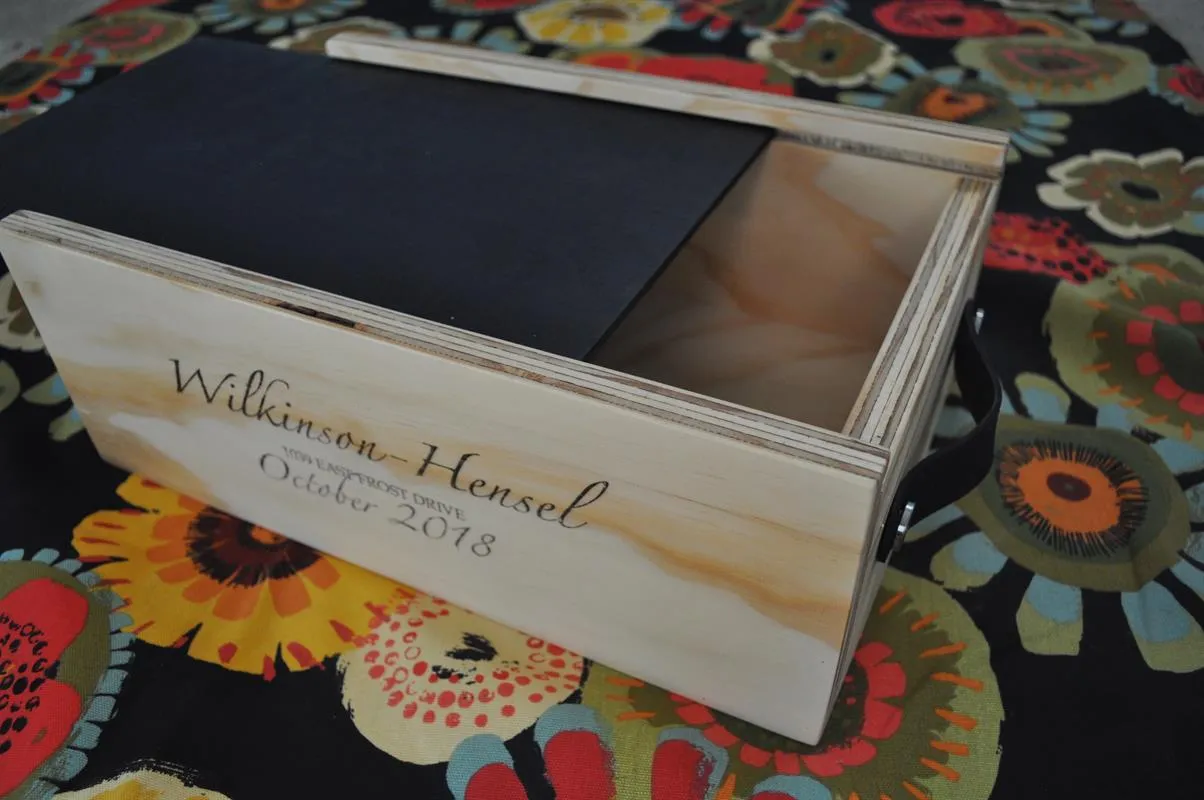

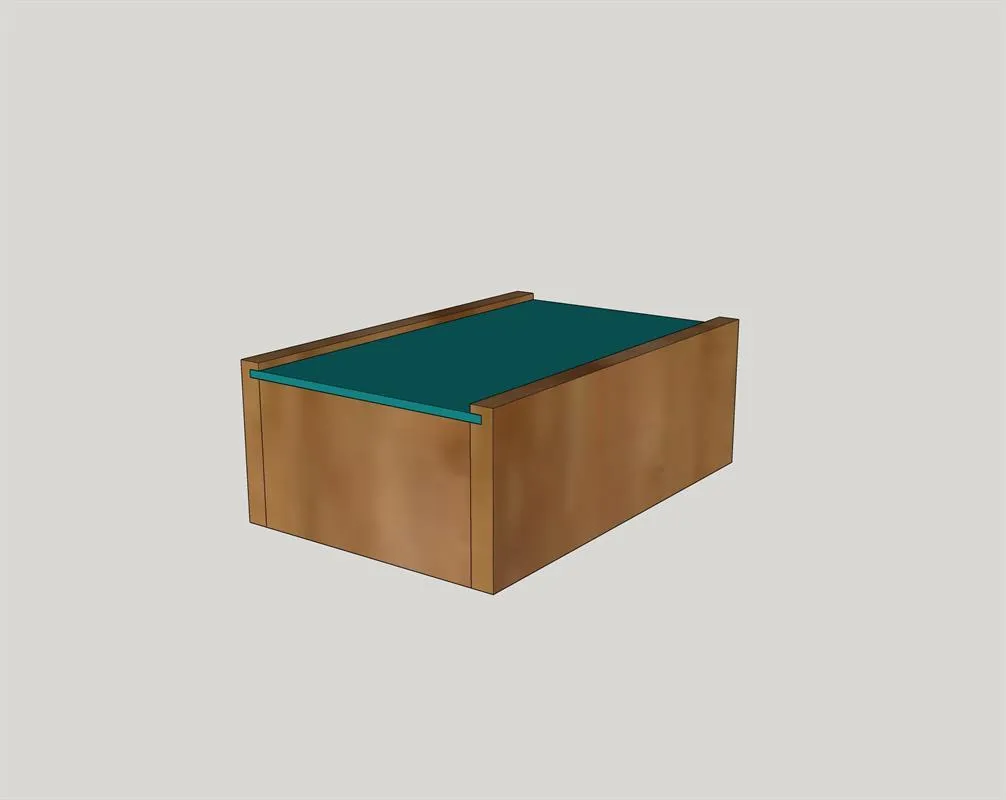

9Add Lid & Embellish
Insert lid and you have a finished DIY Keepsake Gift Box. You can engrave the box with a meaningful message, embellish with decorative details, or hand paint a message to make it extra special. Oh and the last step is to fill it with something special, like two bottles of wine, and give it to a loved one.
10Visit www.theAwesomeOrange.com
Visit www.theAwesomeOrange.com for more pictures of this build and more ideas on how to embellish your DIY Keepsake Gift Box for your loved one!
