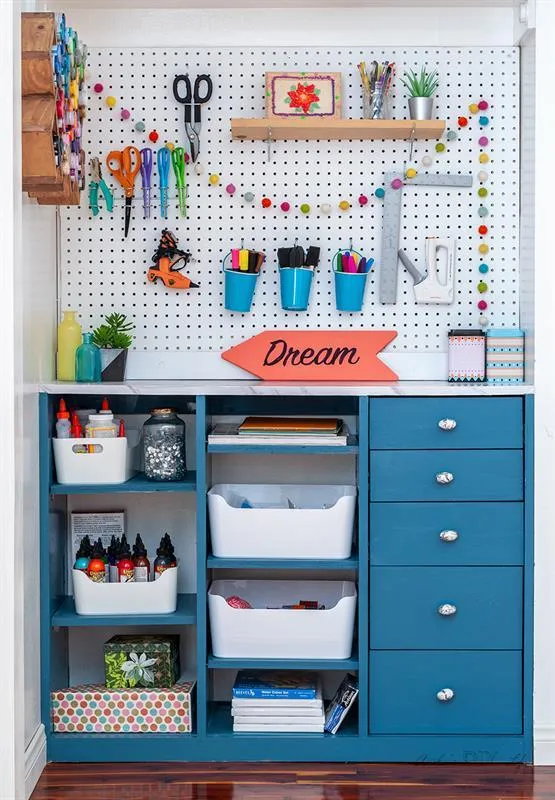

Turn any closet into the craft closet of your dreams with this easy DIY custom craft closet. With multiple drawers and adjustable shelving, it keeps all the craft supplies organized.
| Item | Qty |
|---|---|
| Plywood, 3/4" Thick Full Sheet | 1 board |
| Plywood, 1/4" Thick Quarter Sheet | 1 board |
| Board, 1x3 96" | 2 board |
| Board, 1x6 96" |
| 1 board |
| Board, 1x5 96" | 1 board |
| Board, 1x8 48" | 1 board |
| Board, 3/4" x 3/4" 48" | 5 board |
| 1 1/4" pocket hole screws | 50 each |
| 10" drawer slides | 5 each |
| Sets of shelf pins | 5 each |
| Drawer knobs/pulls | 5 each |
Overall cost: $$$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Top | 1 | 3/4" × 13" × 42" |
| Sides | 4 | 3/4" × 12" × 32" |
| Base support 1 | 2 | 3/4" × 12" × 13" |
| Base Support 2 | 1 | 3/4" × 12" × 12" |
| Small drawer fronts | 3 | 3/4" × 4" × 12" |
| Large drawer fronts | 2 | 3/4" × 7" × 12" |
| Shelves | 5 | 3/4" × 12" × 13" |
| Small drawer side 1 | 6 | 3/4" × 2" × 10" |
| Small drawer side 2 | 6 | 3/4" × 2" × 11" |
| Large drawer side 1 | 4 | 3/4" × 5" × 10" |
| Large drawer side 2 | 4 | 3/4" × 5" × 11" |
Buy 9 boards at 8 ft.
1 board
3 boards
1 board
1 board
1 board
2 boards
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →

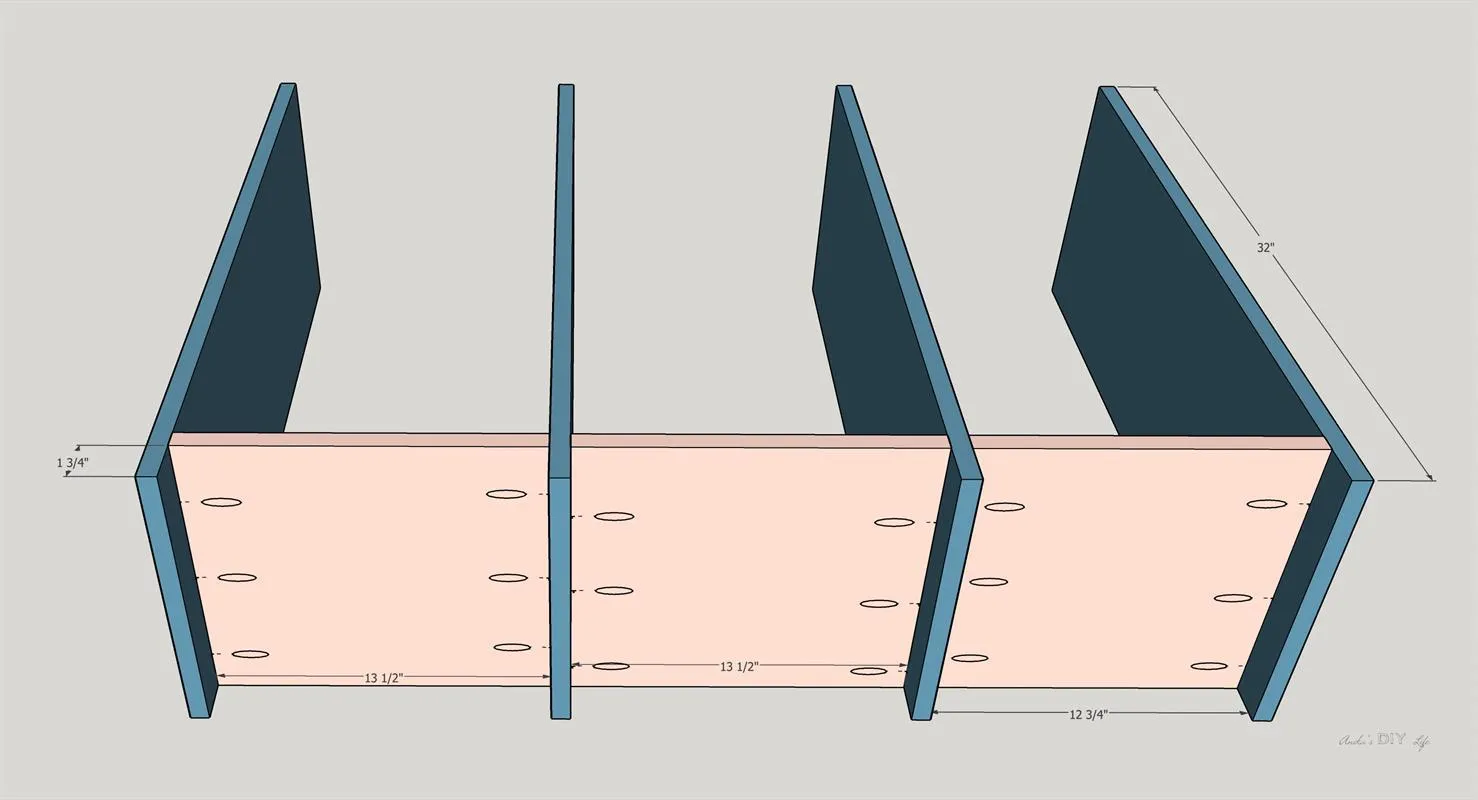

Build the basic frame by attaching base supports to the sides as shown in the figure. They are 1 3/4" off of the bottom. Note - I chose to make one of the three sections narrow than the others. But you can make them any width you like. Be sure to cut the base supports and back supports accordingly.

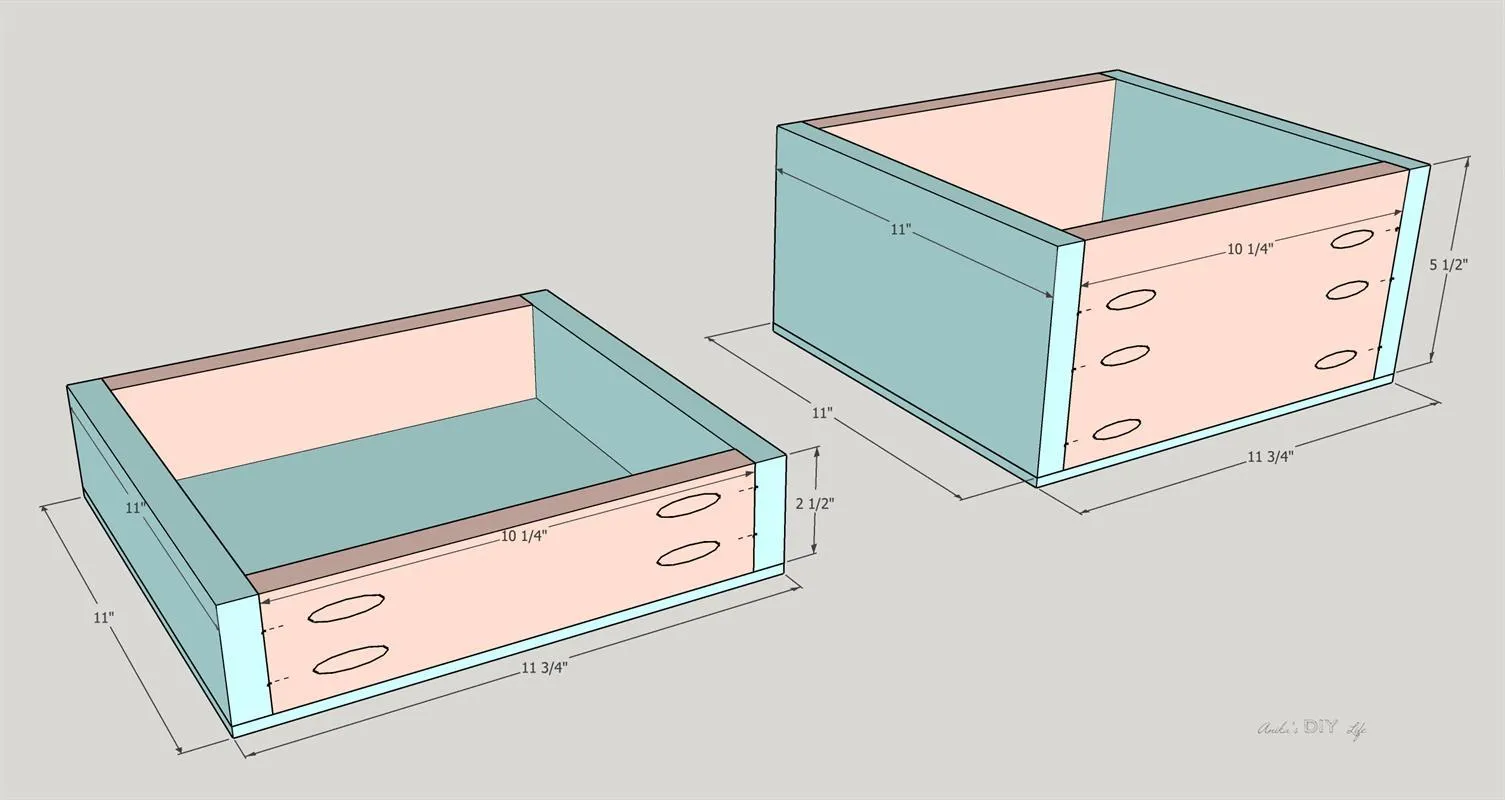

Build 5 drawers using pocket hole screws and wood glue - 3 using 1x3 boards and 2 using 1x6 boards as shown. The base is 1/4" plywood.
Before attaching to the closet, make shelf pin holes using the Shelf Pin Jig. Also, attach the drawer slides and test the drawers for fit. The Drawer Slide Jig makes this quick and easy. I did this before attaching to the wall because it is easier to clamp jigs and reach in behing the shelves.

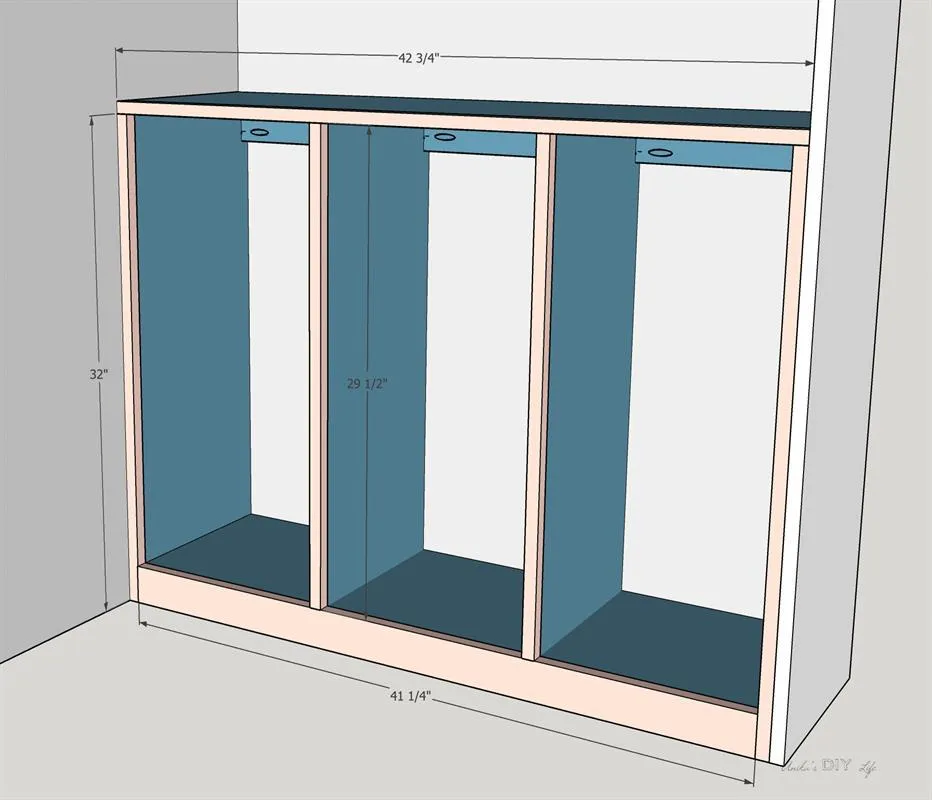

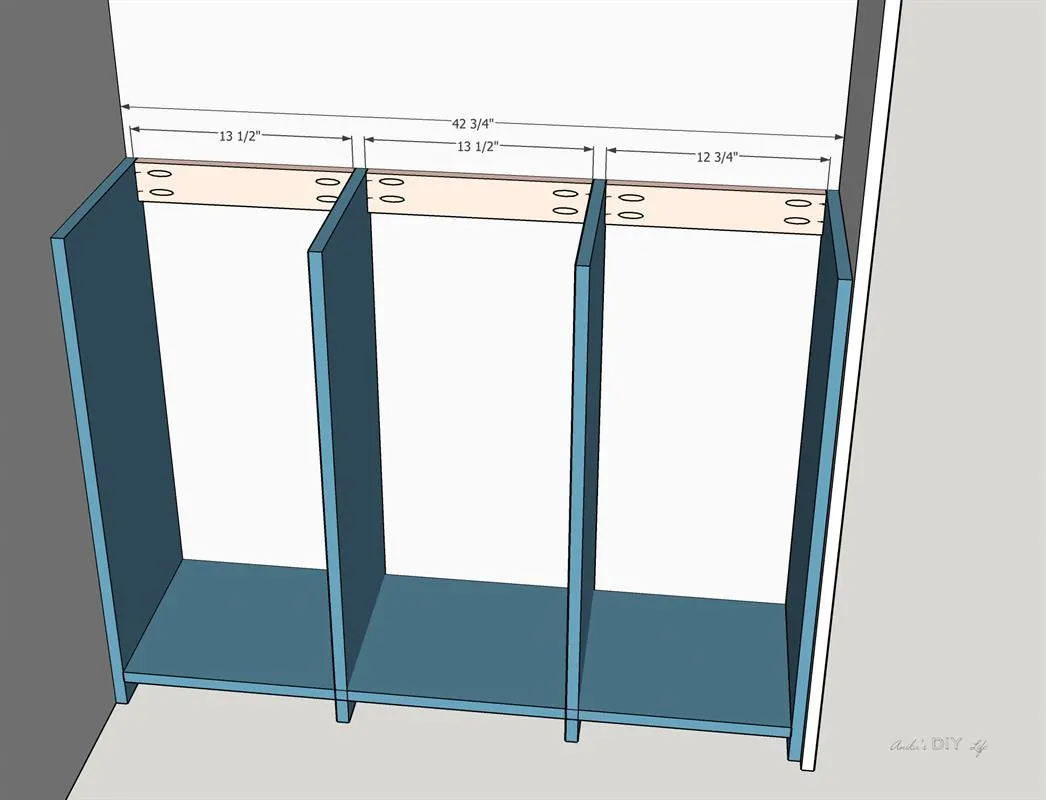

Attach the organizer to the wall using 1x3 back supports. These supports are attached using 1 1/4" pocket hole screws to the sides. Use 3" screws to attach the back supports to the studs in the wall.

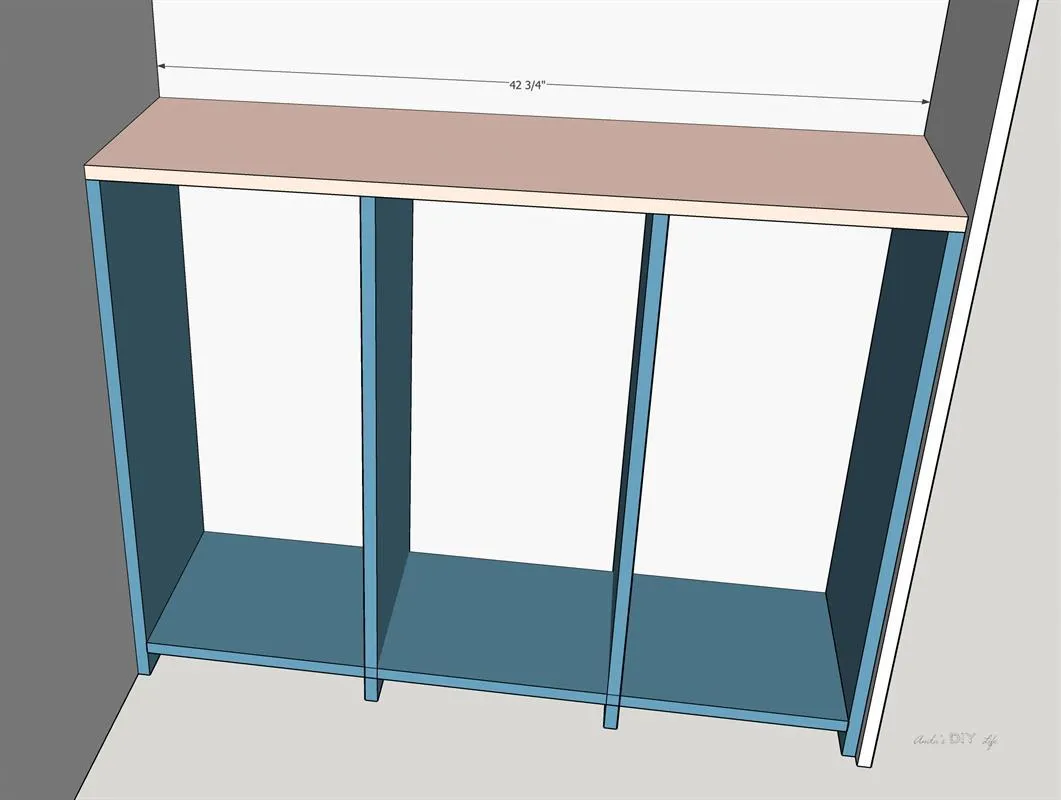

Now add the top and attach using wood glue and 1-1/4" finish nails to the base.
Attach 3/4" square dowels as trim along the sides and the top to cover the plywood edges using wood glue and 1-1/4" finish nails. For the toe kick, attach a 1x3 board using wood glue and 1-1/4" finish nails.

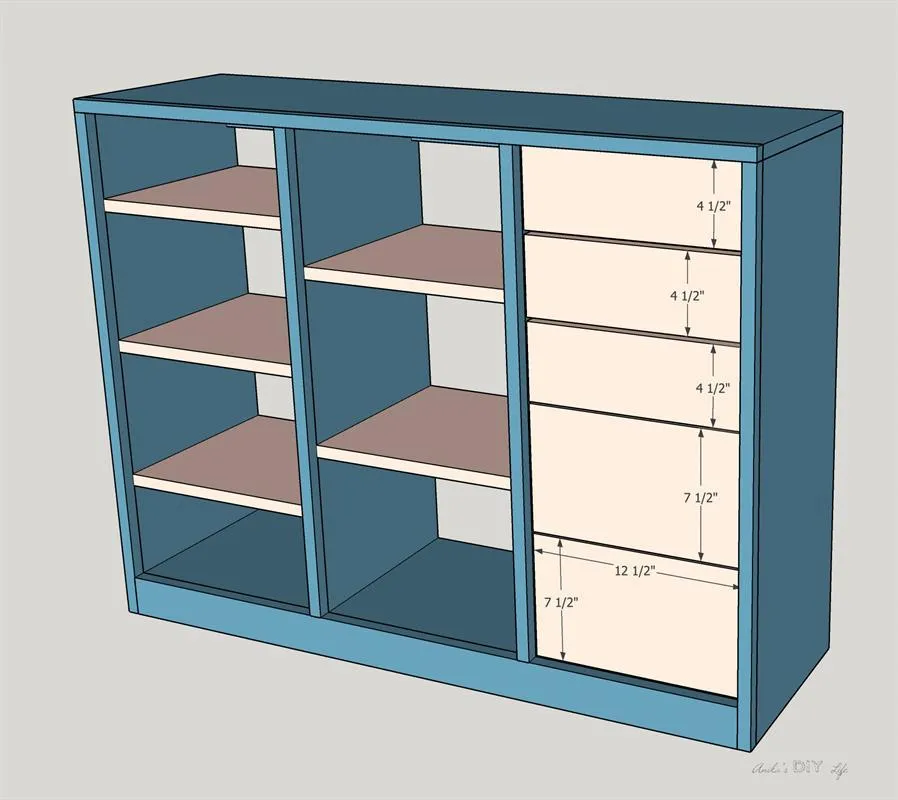

Finally, attach drawer fronts to the drawers leaving 1/8" gap on all sides. Also, add the shelves.

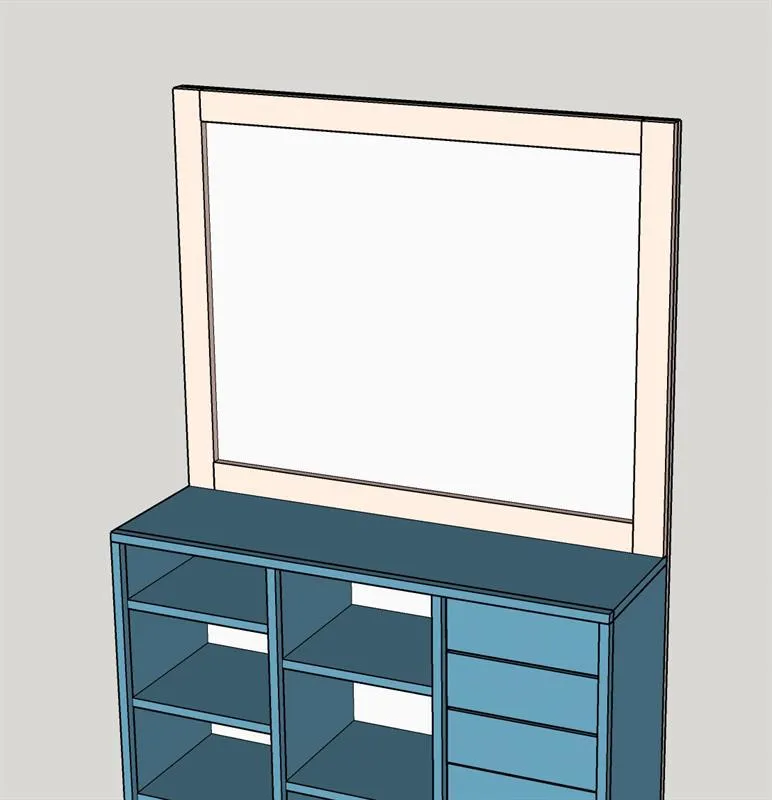

If you would like to add a pegboard, mark the studs and attach 1x3 boards using 3" screws into the studs. Attach pegboard to the 1x3 boards using 1 1/4" screws.
Check out more details and pictures of the process at - https://www.anikasdiylife.com/diy-craft-closet-organizer-plans/
