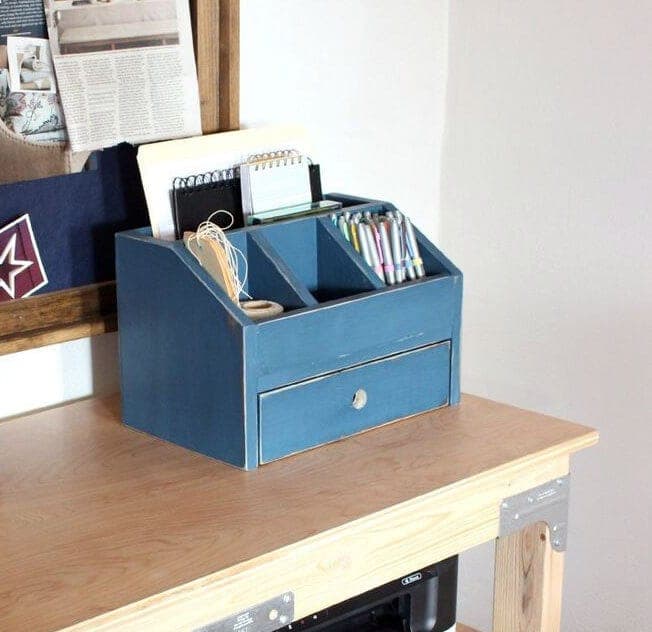

The angled dividers are the one part of this build that takes real care: they start as square 1x6 blocks and get an angle cut off after being roughly positioned, rather than being pre-cut to a fixed angle and hoping they fit. Clamp each divider to the bench before cutting its angle — a small piece like this is genuinely dangerous to cut freehand, and clamping is what keeps the cut accurate anyway.
Everything here is nailed and glued, no pocket holes needed, which makes it a good small project to practice clean nail placement and tight glue joints on before committing to a bigger piece.
| Item | Qty |
|---|---|
| Pine, 1x10, 3 ft | 1 each |
| Pine, 1x3, 4 ft | 1 each |
| Pine, 1x6, 2 ft | 1 each |
| Pine, 1x4, 2 ft | 1 each |
| 1/4" plywood scrapsBack panel and drawer bottom. | 1 each |
| Brad nails, 1-1/4" and 3/4" | 1 box |
| Wood glue | 3 oz |
Overall cost: $. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Middle shelfPine 1x10 | 1 | 3/4" × 9 1/4" × 13 1/2" |
| Front trimPine 1x3 | 1 | 3/4" × 2 1/2" × 13 1/2" |
| Center dividerPine 1x6 | 1 | 3/4" × 5 1/2" × 13 1/2" |
| SidesPine 1x10 | 2 | 3/4" × 9 1/4" × 10" |
| Angled dividersPine 1x6Cut to a matching angle after rough positioning. | 2 | 3/4" × 5 1/2" × 4 1/4" |
| Back1/4" plywood | 1 | 1/4" × 10" × 15" |
| Drawer sidesPine 1x3 | 2 | 3/4" × 2 1/2" × 8 1/2" |
| Drawer backPine 1x3 | 1 | 3/4" × 2 1/2" × 11 3/4" |
| Drawer bottom1/4" plywood | 1 | 1/4" × 8 1/2" × 13 1/4" |
| Drawer frontPine 1x4 | 1 | 3/4" × 3 1/2" × 13 1/4" |
Buy 6 boards at 8 ft.
1 board
1 board
1 board
1 board
1 board
1 board
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Use 1-1/4" nails and glue to attach the center divider and front trim to the middle shelf.
Trim the side pieces to match the depth of the center divider, then attach with 1-1/4" nails and glue.
Position the angled divider pieces roughly in place, mark the angle needed, then clamp each one securely to the bench and cut carefully — these pieces are too small to cut safely freehand. Attach with 1-1/4" nails and glue.
Attach the plywood back with 3/4" nails and glue.
Assemble the drawer box from the sides and back, nail on the plywood bottom, then attach the drawer face to the drawer sides with 1-1/4" nails.
Sand all edges smooth and finish as desired.
