Use your browser's Print (Ctrl/Cmd + P) and choose Save as PDF. This page works offline once you've opened it with a signal.
Go into the new year with a fresh workspace with this desk calendar hold to hang a 5x7 calendar combined with a pencil holder.
| Part | Qty | T × W × L | Material | ✓ |
|---|---|---|---|---|
| Side Panels | 2 | 3/4" × 4" × 5" | — | ☐ |
| Bottom Panel | 1 | 3/4" × 5" × 5" | — | ☐ |
| Front Panel | 1 | 3/4" × 7" × 9" | — | ☐ |
| Back Panel | 1 | 3/4" × 4" × 5" | — | ☐ |
| Item | Qty | ✓ |
|---|---|---|
| Board, 1x8 24" | 1 board | ☐ |
| 1 1/4" brad nails | 4 each | ☐ |
| 1 1/4" pocket hole screws | 4 each | ☐ |
| Wood Glue | 1 each | ☐ |
| Wood Stain | 1 each | ☐ |
| Polyurethane | 1 each | ☐ |
| Wood Filler | 1 each | ☐ |
| Sandpaper (80 and 150 grit) | 1 each | ☐ |
| Binder Clip | 1 each | ☐ |
Overall cost: $$. Lumber varies by region, species, and season, so we give a band rather than a figure.
Cut wood down to size according to the woodworking plans (available in the Extras tab below). You'll need to make a couple angled cuts. For those you can use a double bevel compound miter saw.

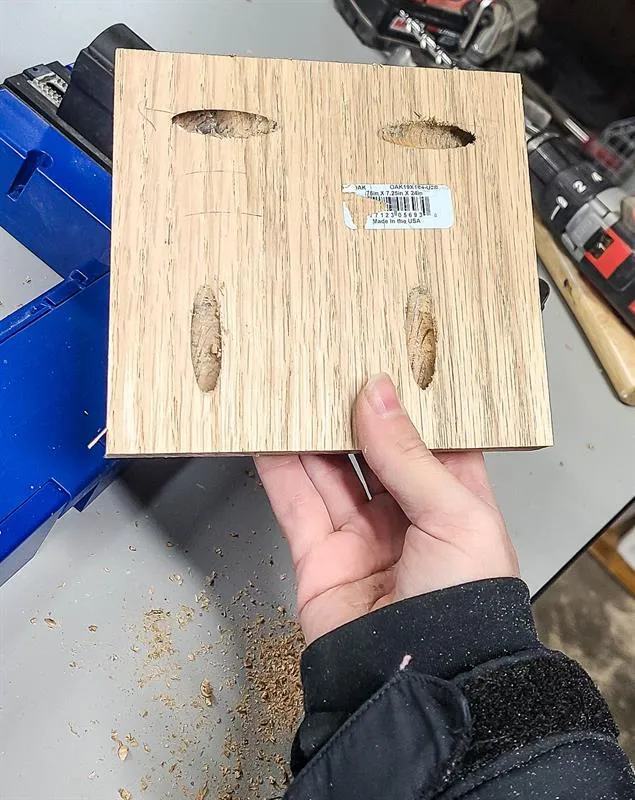

Drill 4 pocket holes on the bottom panel (as shown in woodworking plans) using your Kreg pocket hole jig. You'll drill 2 going towards the front and 1 on each side going towards the sides.

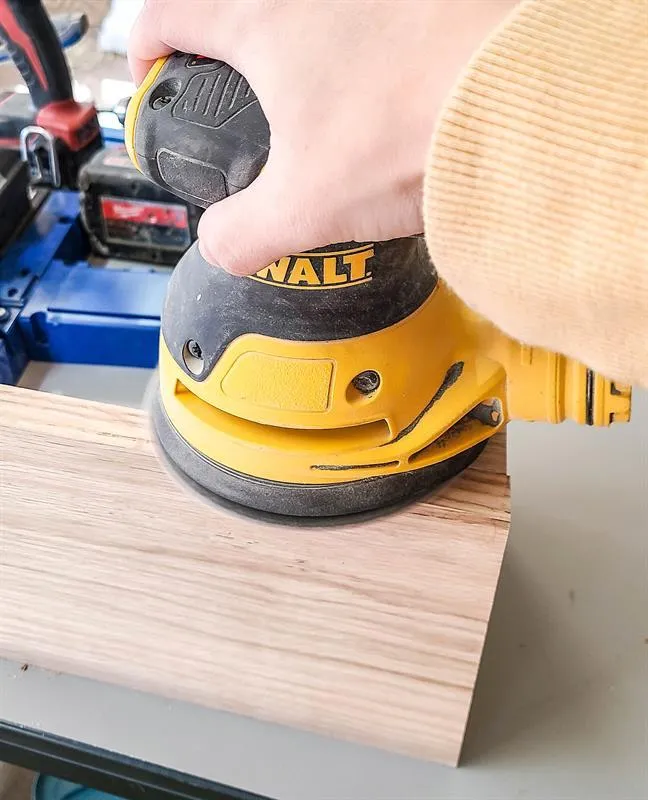

Sand everything thoroughly with an orbital sander. Start with 80 grit sandpaper and then move onto 150 grit sandpaper to smooth.

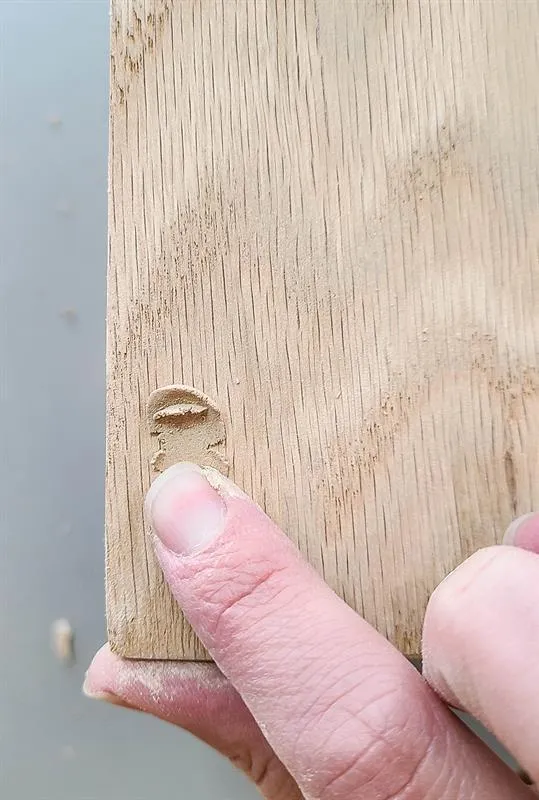

Fill nails holes and any gaps at the joints with wood filler or wood putty. Let dry and sand smooth with 150 grit sandpaper.

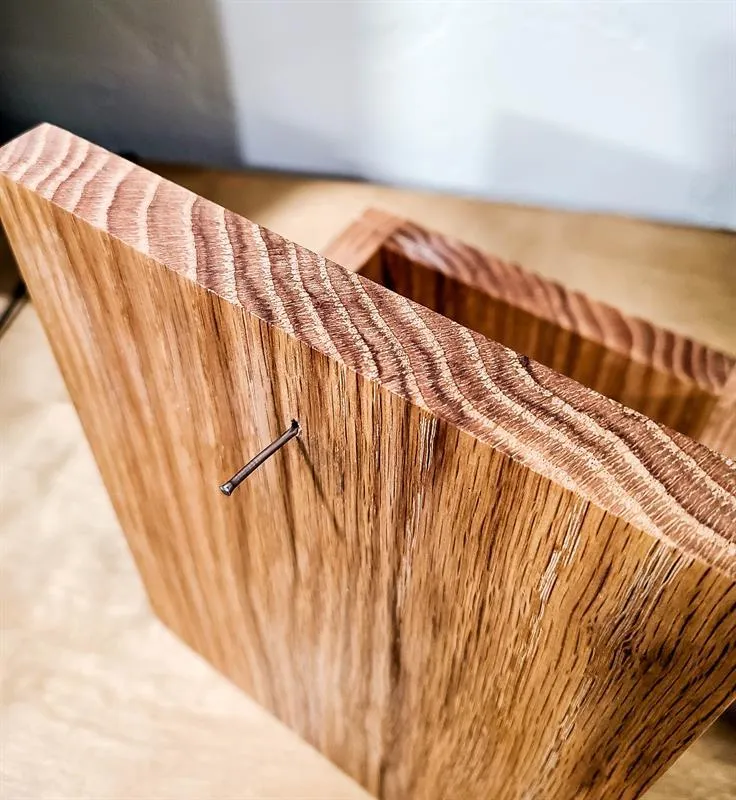

To finish things up, put in a small finish nail on the front to hang a binder clip to the front to hang your calendar.
