Craftsman Style Storage Bench

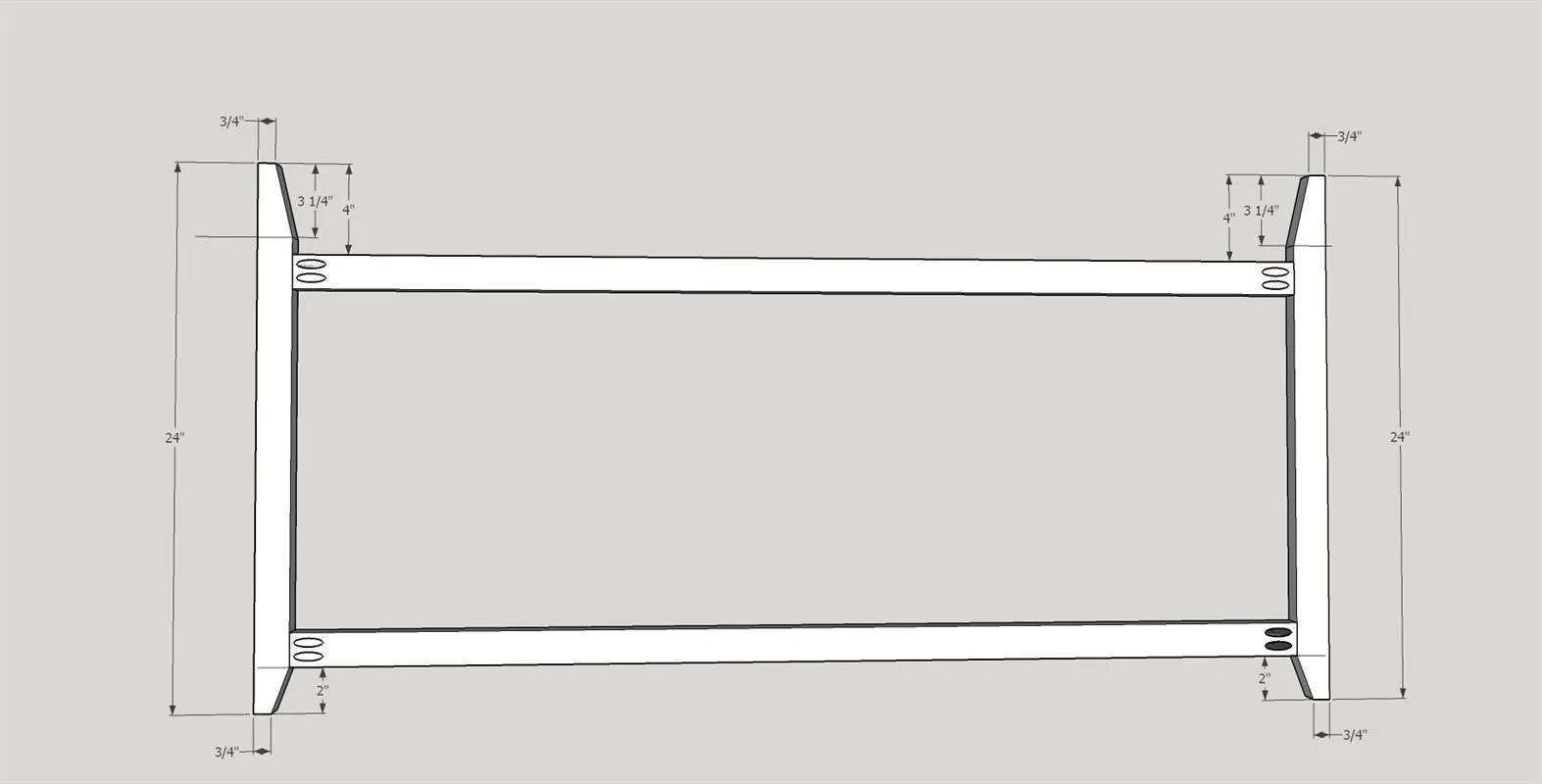

• Mark the top and leg cuts on the two outer front stiles. Use a band saw or jig saw to make the cuts. Keep in mind that you will be cutting a left and right side...so keep the best looking side out on both. Using a Kreg Pocket Hole Jig, set to 3/4" for this project, drill holes in both ends of the front rails.
• Assemble using 1 1/4" Kreg fine pocket screws and glue.

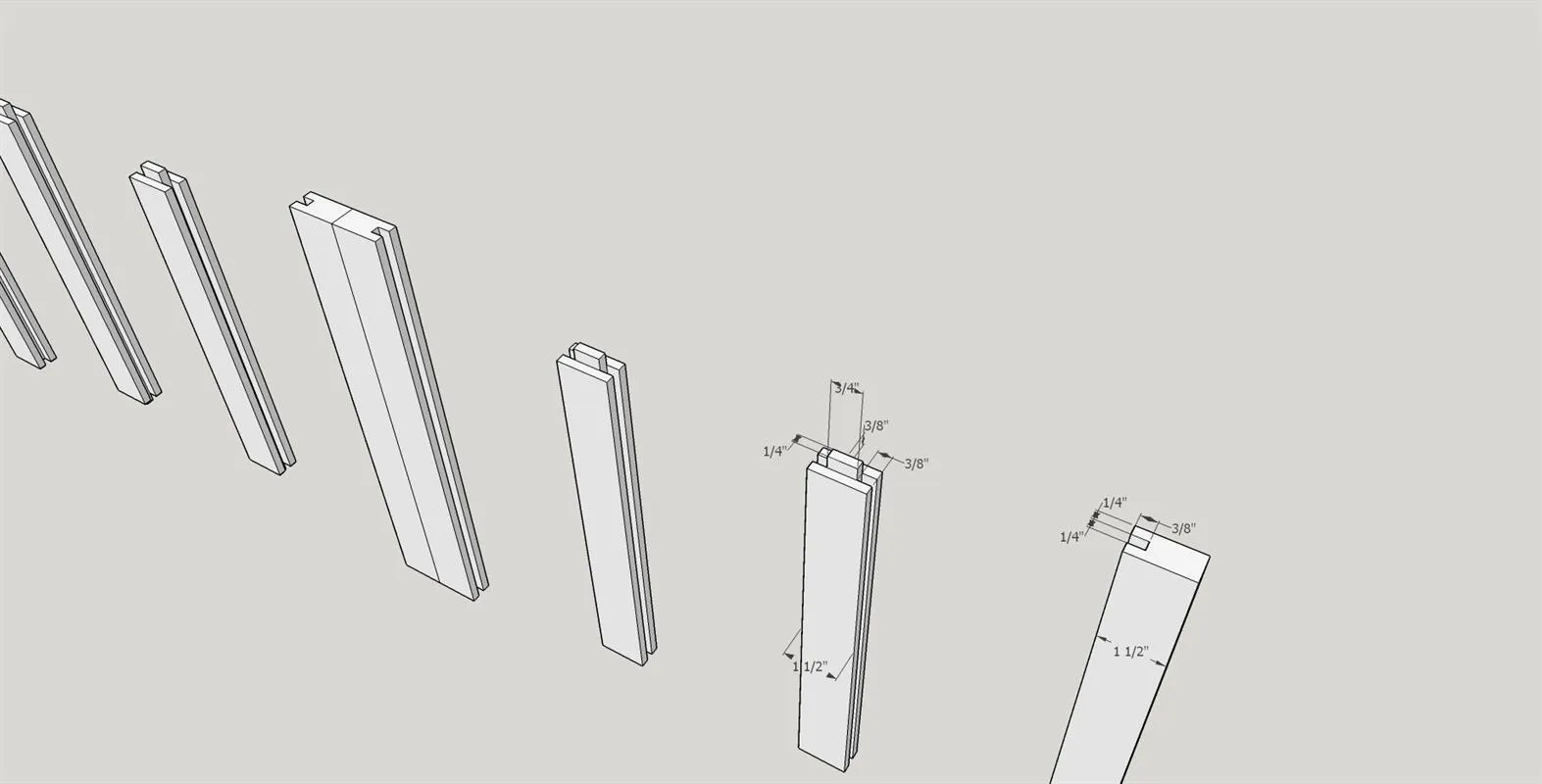

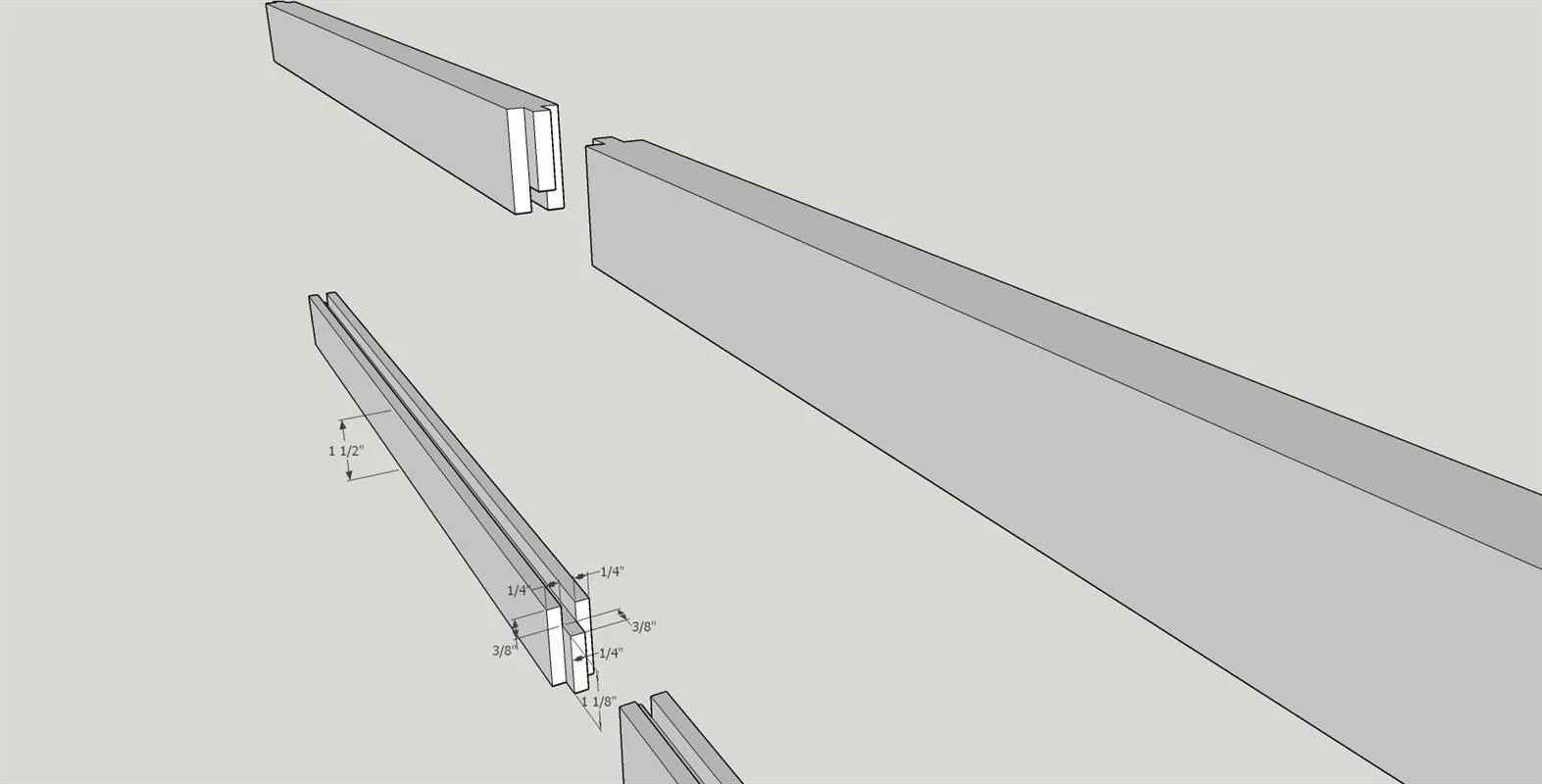

Use a Freud (99-036) Adjustable Tongue and Groove Bit set mounted in a Kreg router table to cut the tongues and grooves. The groove cutter bit is adjusted to cut 1/4" X 3/8" grooves in the center of the inside edges of the outer door stiles as well as in both edges of the inner stiles. Then use the tongue cutter bit adjusted to cut 1/4" X 3/8" tongues on both ends of the inner stiles. Alternatively the grooves and tongues can be cut on a table saw.

Use a Freud (99-036) Adjustable Tongue and Groove Bit set mounted in a Kreg router table to cut the tongues and grooves in the four rails. Use the groove cutter bit adjusted to cut 1/4" X 3/8" grooves in the center of the rails inside edges. Then use the tongue cutter bit adjusted to cut 1/4" X 3/8" tongues on both ends of the rails. Alternatively the grooves and tongues can be cut on a table saw.

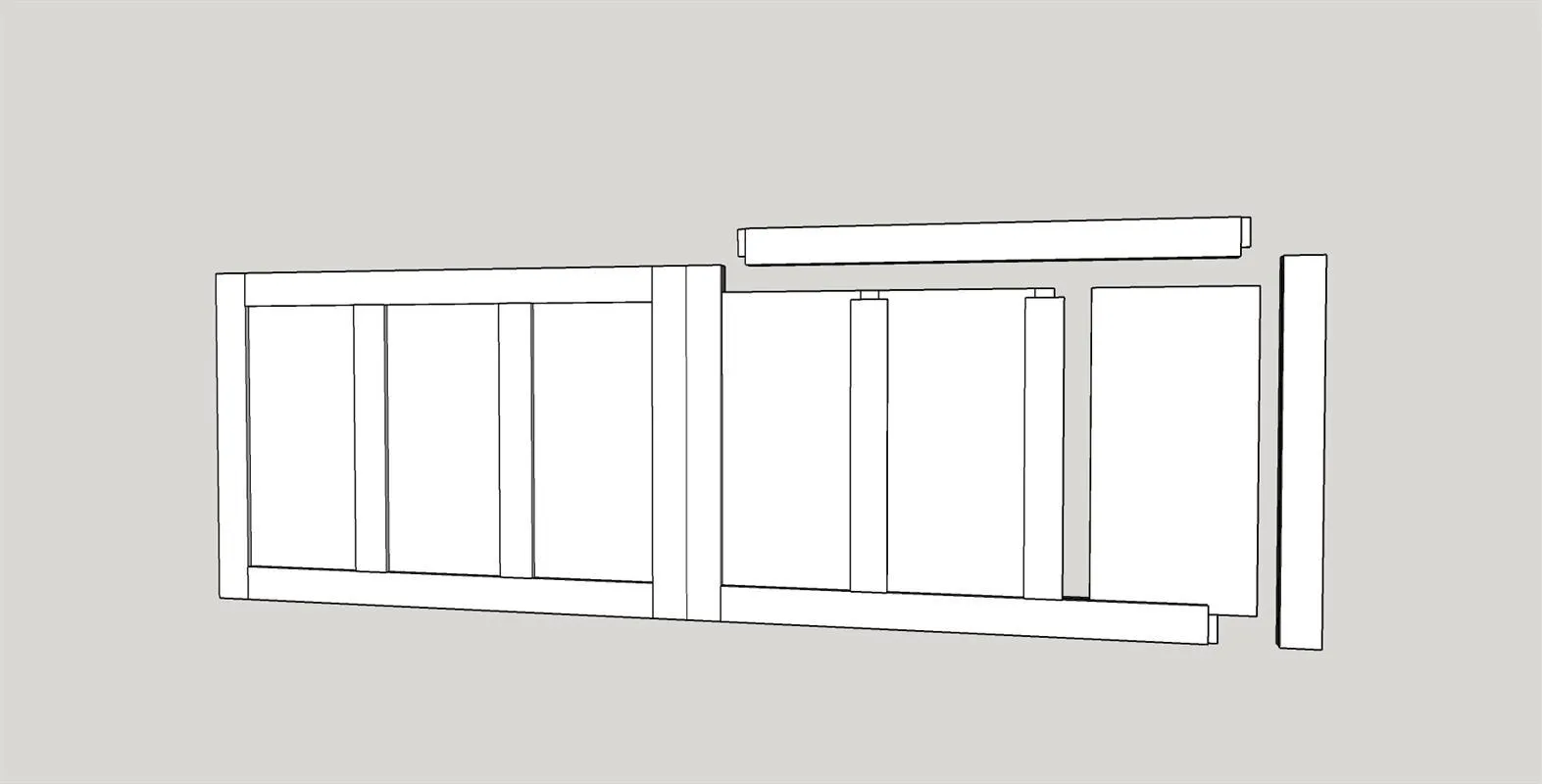

• Using two door rails, two outer door stiles, two inner door stiles and three door panels assemble the door.
• Place wood glue at each corner where the door rail tongues meet the door stiles, on the inner door stile tongues and along the outer edge of the door panels.

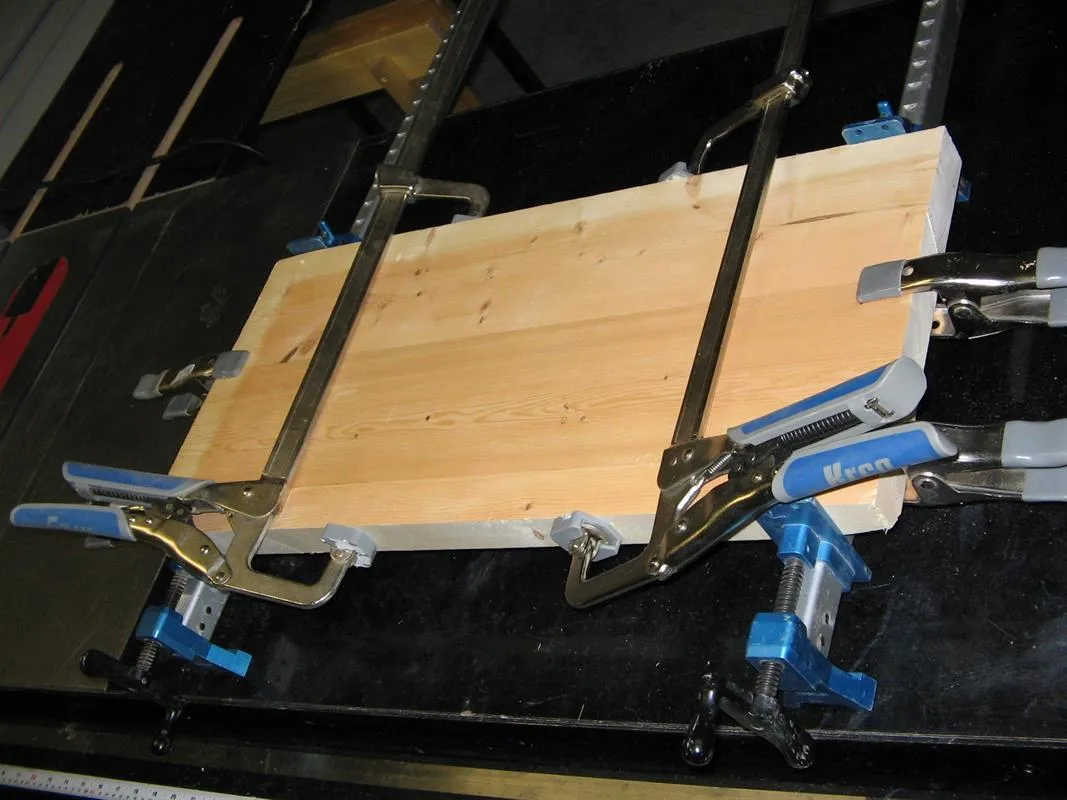

• Clamp in place ...make sure the doors are square and if necessary readjust and re-clamp.
• Repeat this process for the second door.

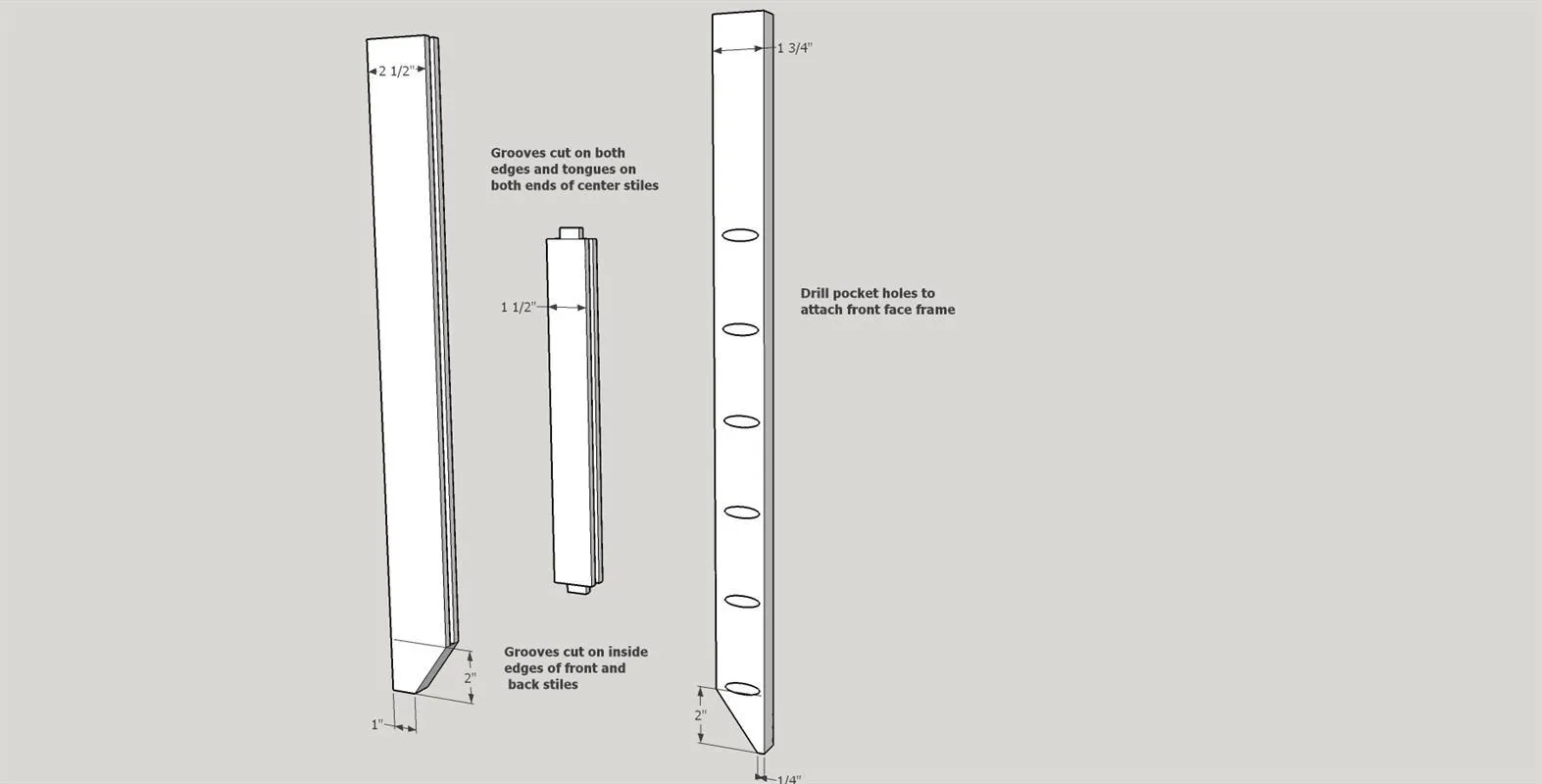

Use a Freud (99-036) Adjustable Tongue and Groove Bit set mounted in a Kreg router table to cut the tongues and grooves. The groove cutter bit is adjusted to cut 1/4" X 3/8" grooves in the center of the inside edges of the front and rear stiles as well as in both edges of the center stile. Use the tongue cutter bit adjusted to cut 1/4" X 3/8" tongues on both ends of the center stiles. Alternatively the grooves and tongues can be cut on a table saw. Now mark the legs on the front and back stiles. Using a band saw or jig saw cut the legs. Use Kreg Pocket Hole Jig to drill holes in the front rails as shown. Be careful there is a left and right side.

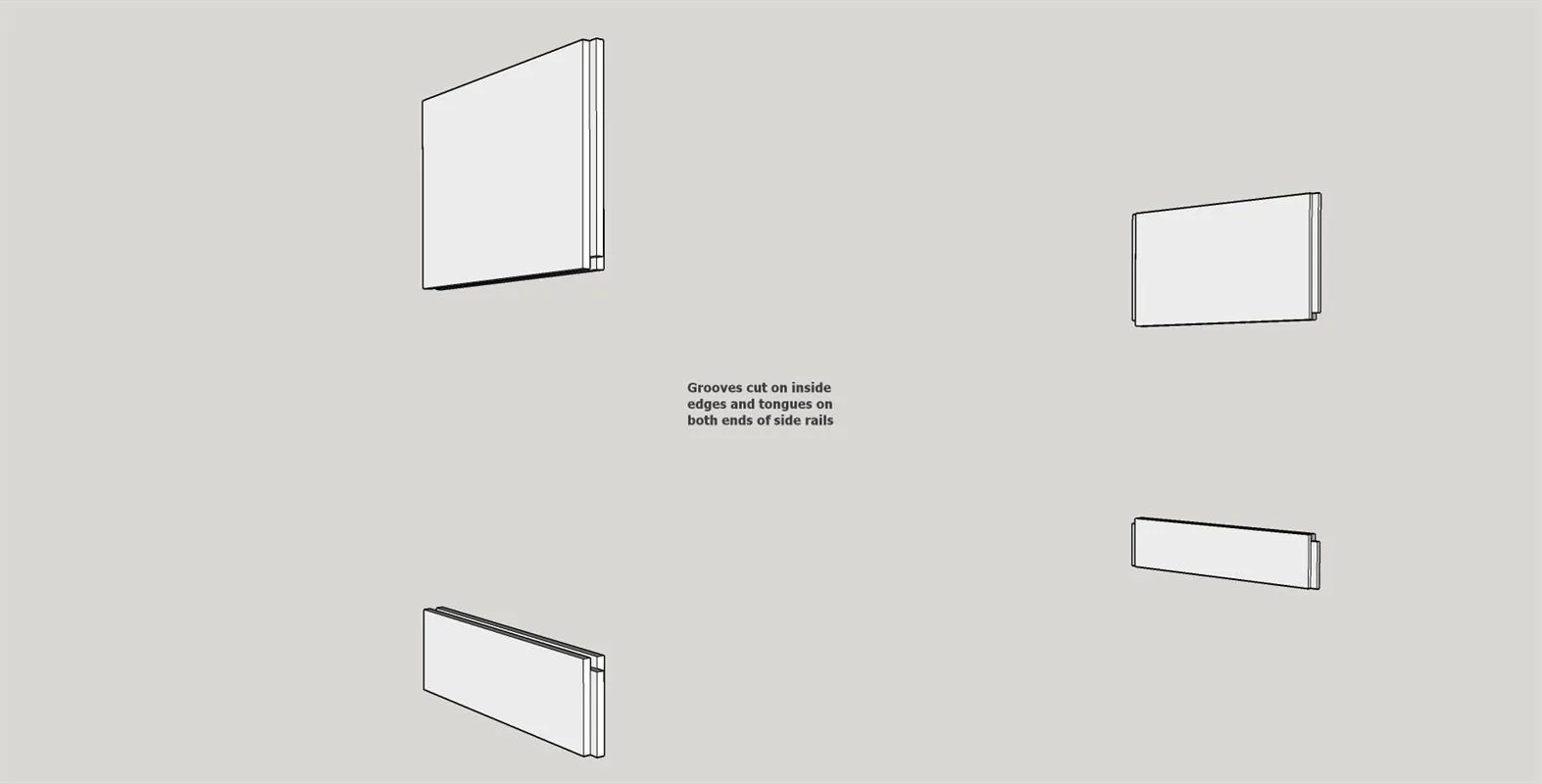

Use a Freud (99-036) Adjustable Tongue and Groove Bit set mounted in a Kreg router table to cut the tongues and grooves in the four rails. Use the groove cutter bit adjusted to cut 1/4" X 3/8" grooves in the center of the rails inside edges. Then use the tongue cutter bit adjusted to cut 1/4" X 3/8" tongues on both ends of the rails. Alternatively the grooves and tongues can be cut on a table saw.

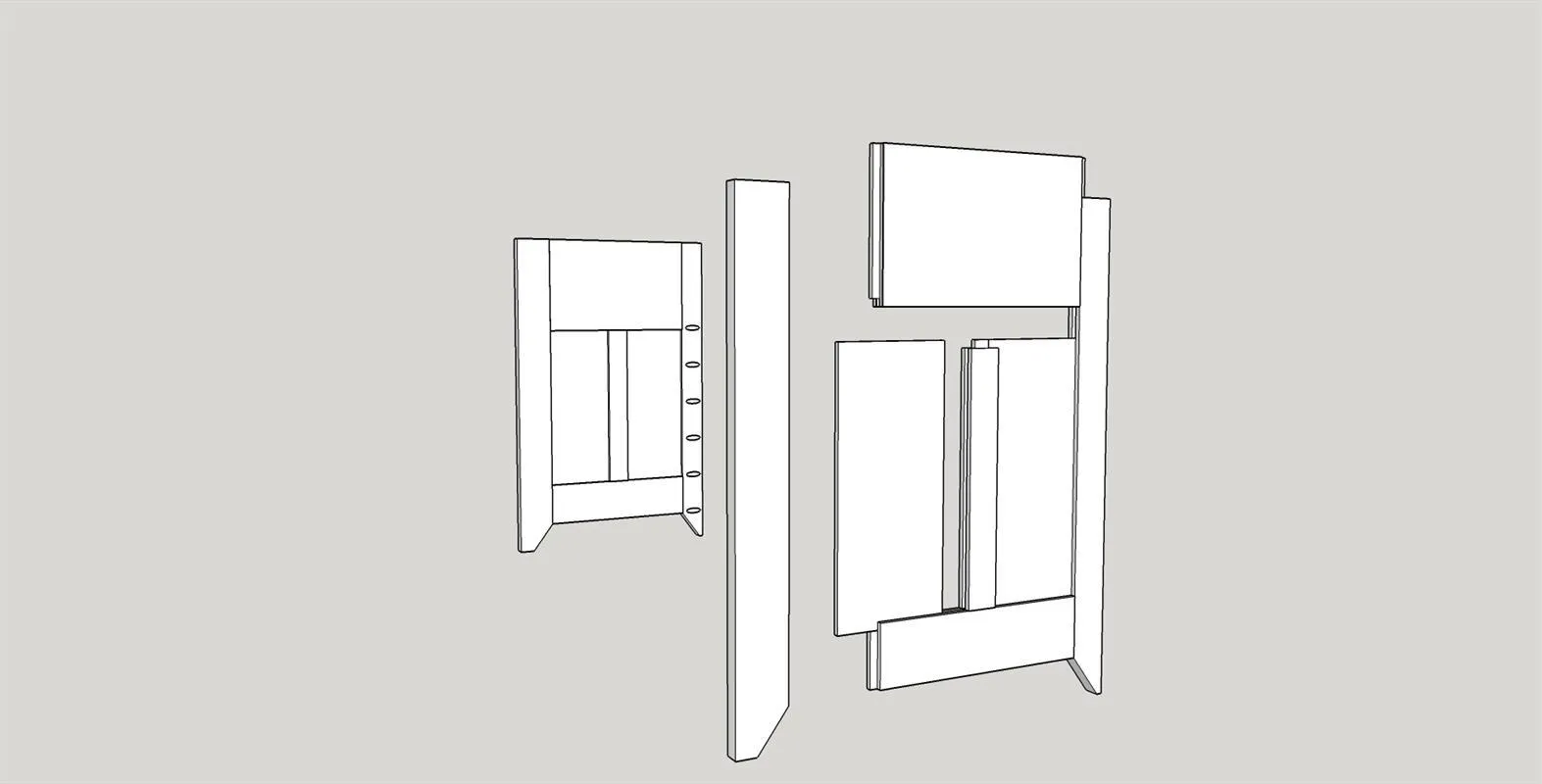

• Using a side rear stile, a side center stile, a side front stile, two side rails and two side panels - assemble a side. Use wood glue on the ends of the rails, on the center stile tongues and along the edges of panels.
• Clean up any excess glue with a damp rag.
• Clamp snugly, check for square and readjust if needed.Repeat the process for the other side.

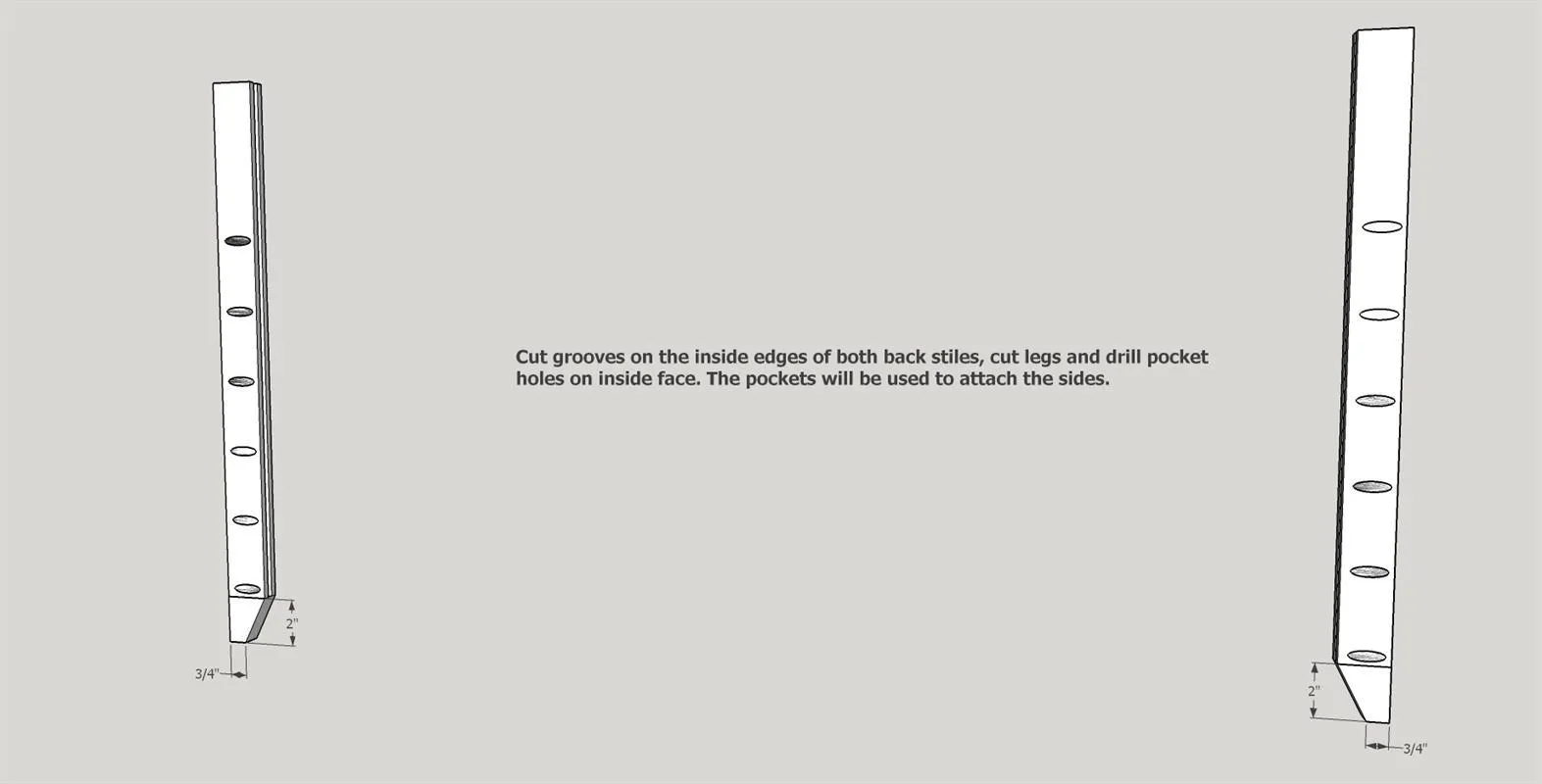

Use a Freud (99-036) Adjustable Tongue and Groove Bit set mounted in a Kreg router table to cut grooves. The groove cutter bit is adjusted to cut 1/4" X 3/8" grooves in the center of the inside edges of the back stiles. Mark the leg cuts on the two rear stiles. Using a band saw or jig saw cut the legs. Keep in mind that you will be cutting a left and right side...so keep the best looking side out on both. Use Kreg Pocket Hole Jig to drill holes in the back stiles as shown. Be careful there is a left and right side.

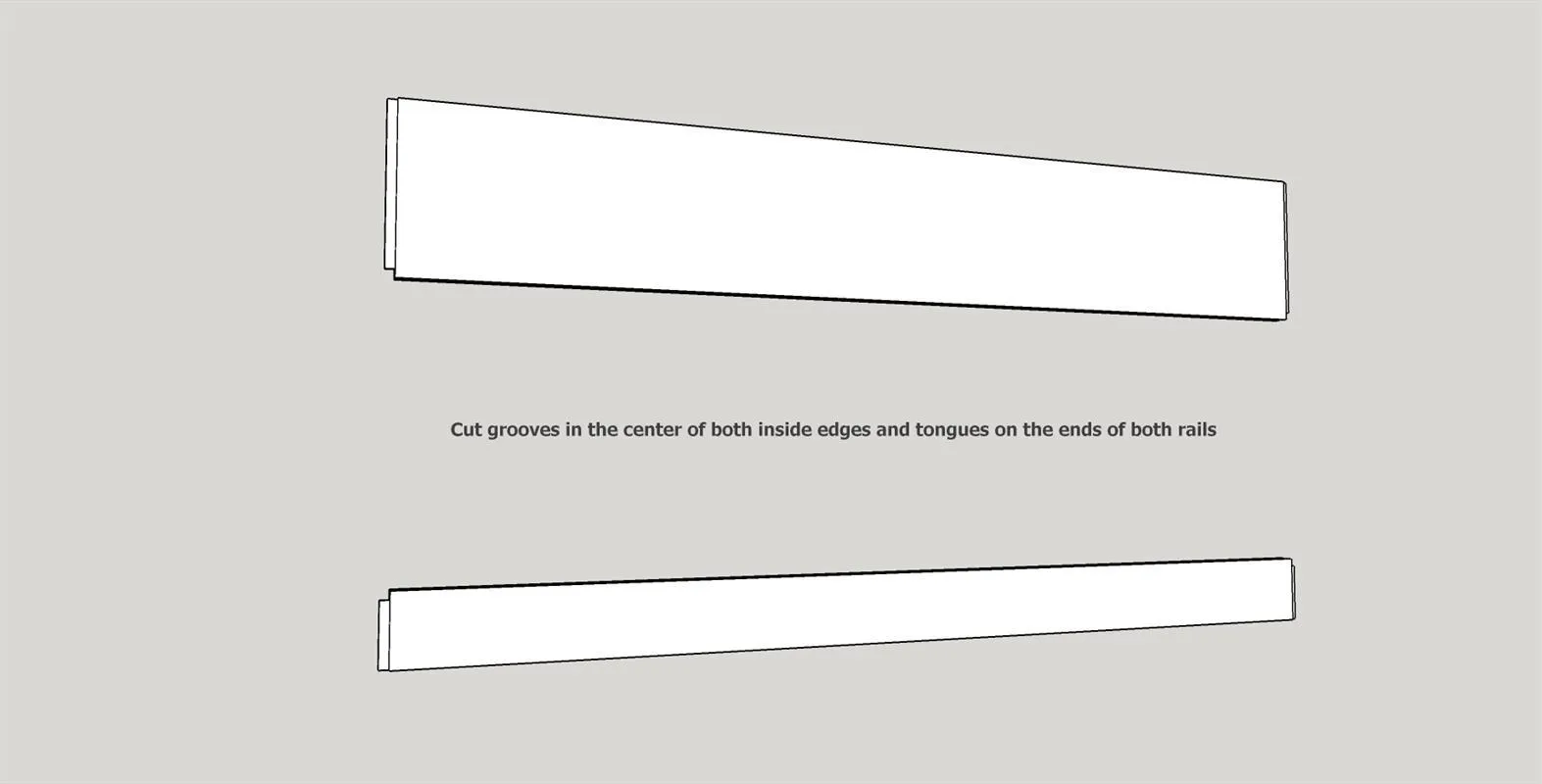

Use a Freud (99-036) Adjustable Tongue and Groove Bit set mounted in a Kreg router table to cut the tongues and grooves in the two rails. Use the groove cutter bit adjusted to cut 1/4" X 3/8" grooves in the center of the rails inside edges. Then use the tongue cutter bit adjusted to cut 1/4" X 3/8" tongues on both ends of the rails. Alternatively the grooves and tongues can be cut on a table saw.

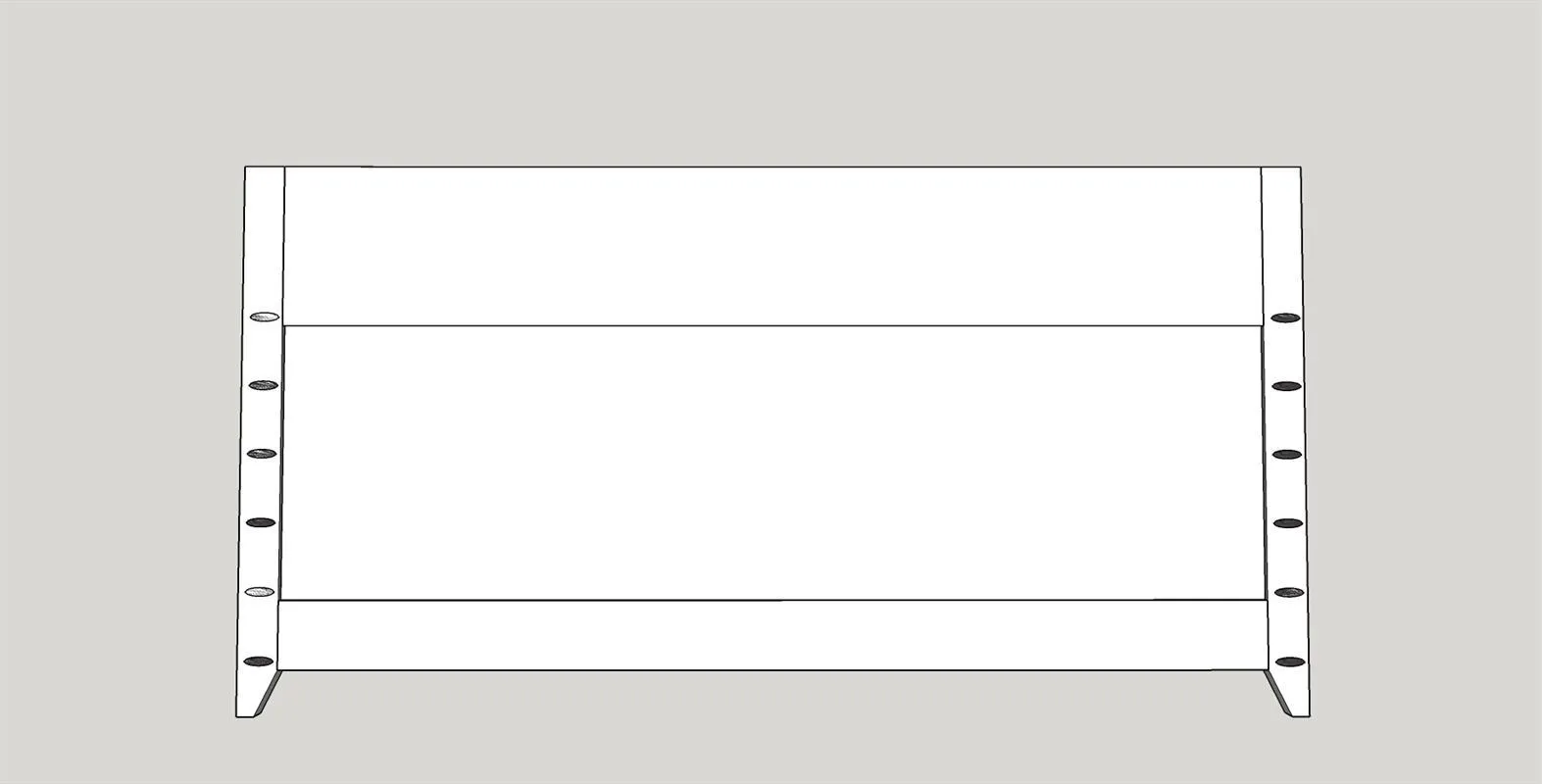

• Using two back stiles, two back rails and the back panel - assemble the back. Use wood glue on the ends of the rails and along the edges of panel.
• Clean up any excess glue with a damp rag.
• Clamp snugly, check for square and readjust if needed.

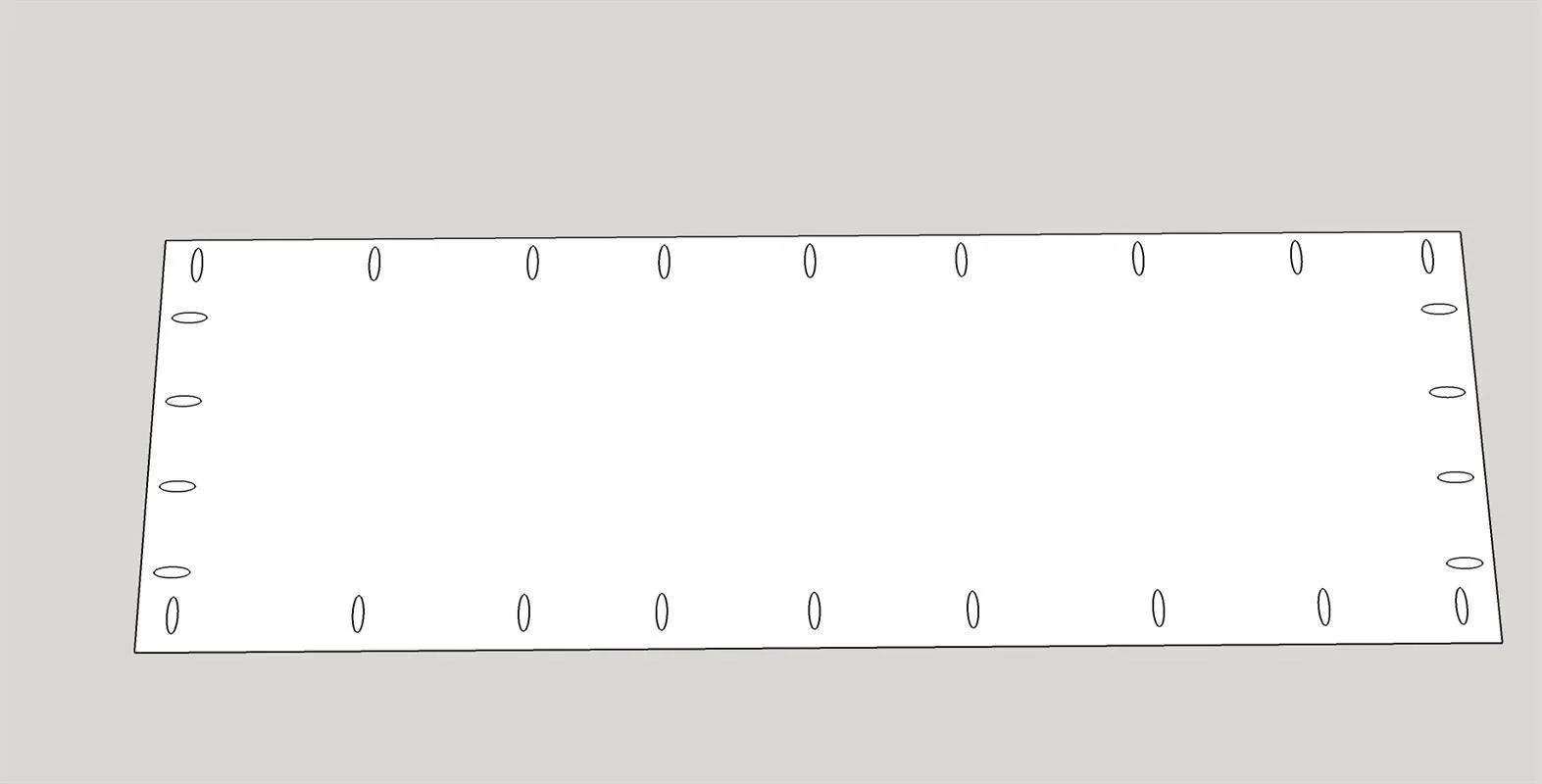

Using the Kreg pocket jig, drill pocket holes in the bottom as shown.

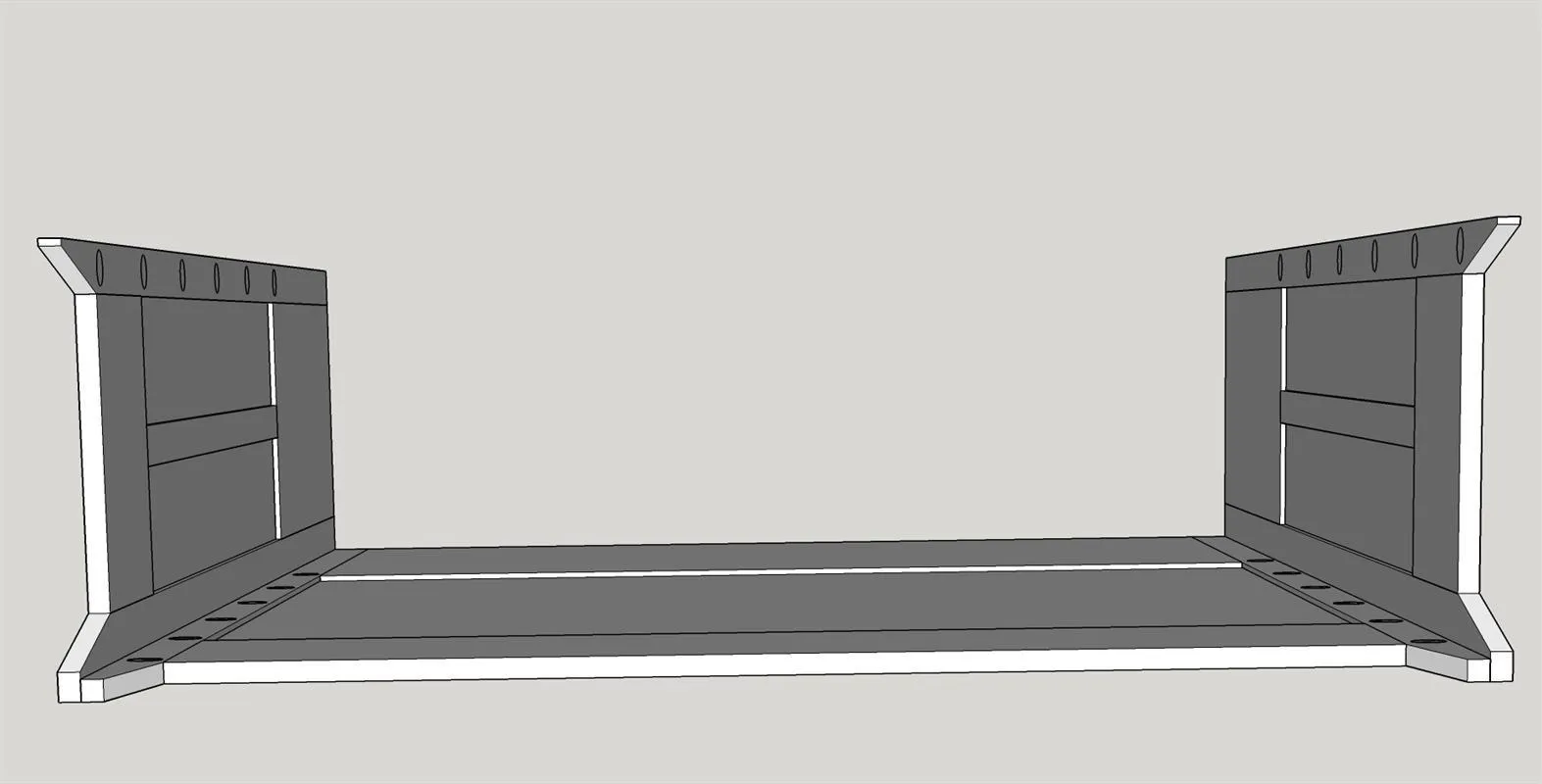

• Lay the back assembly (pocket holes up) on a large flat surface. I use my table saw.
• Attach the left and right sides using wood glue and 1 1/4" Kreg fine pocket screws. Be careful to align the tops and bottoms of the sides and back.

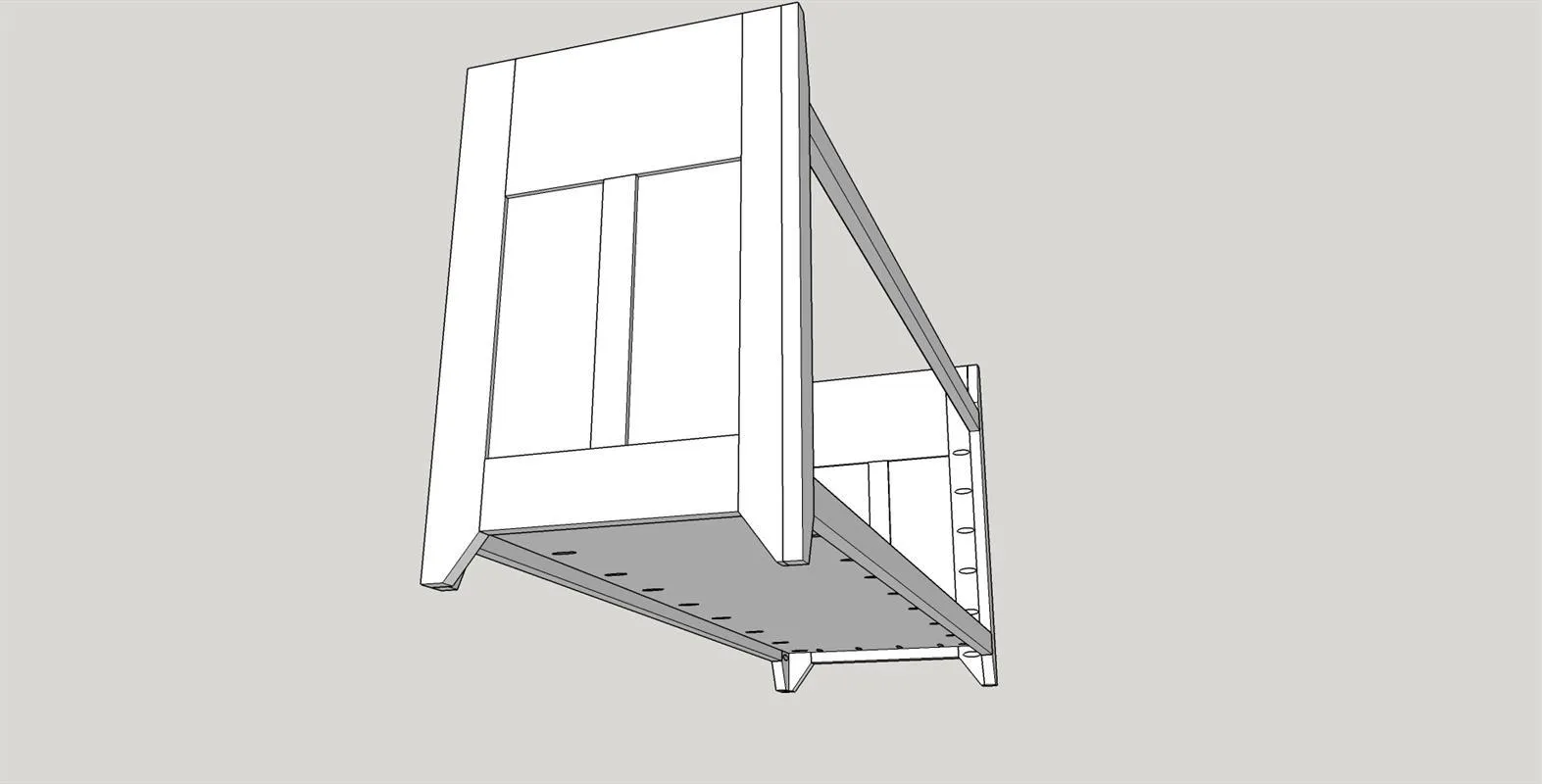

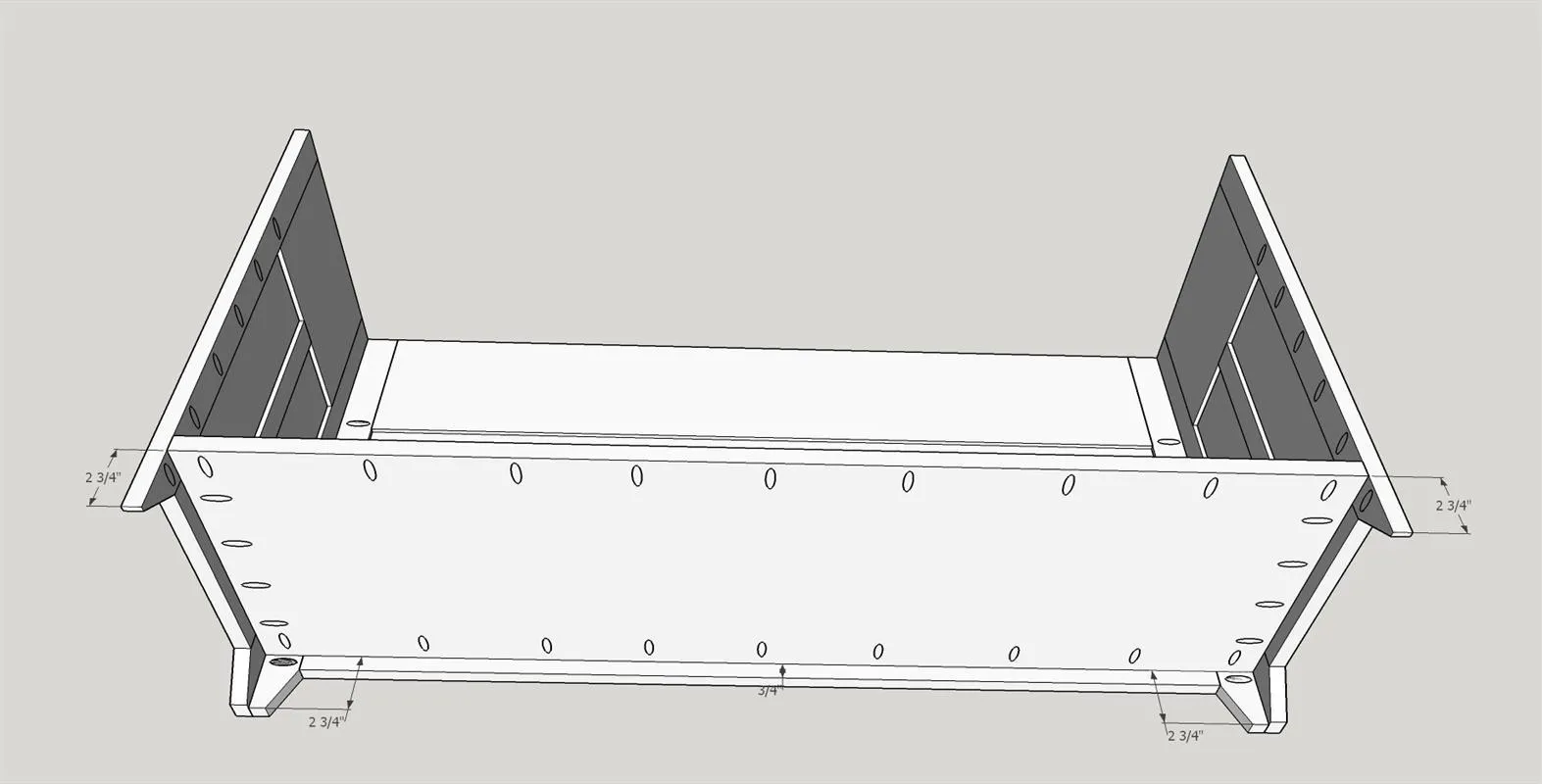

Carefully measure and mark the distance from the bottom of the leg to the lower edge of the bench bottom. Attach the bench bottom using wood glue and 1 1/4" Kreg fine pocket screws to the back and sides.

Using pocket screws and wood glue attach the front frame to the sides and bottom.

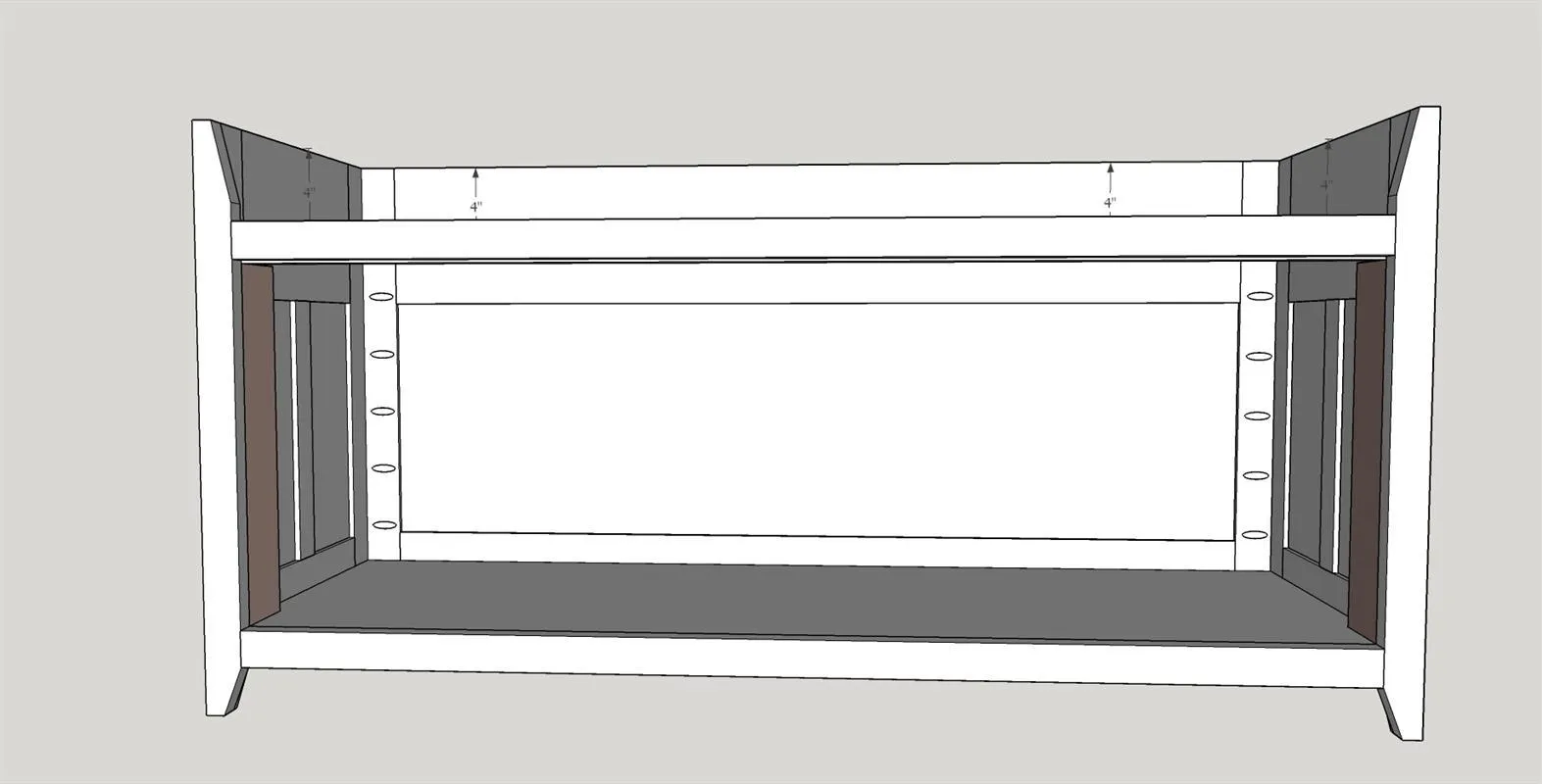

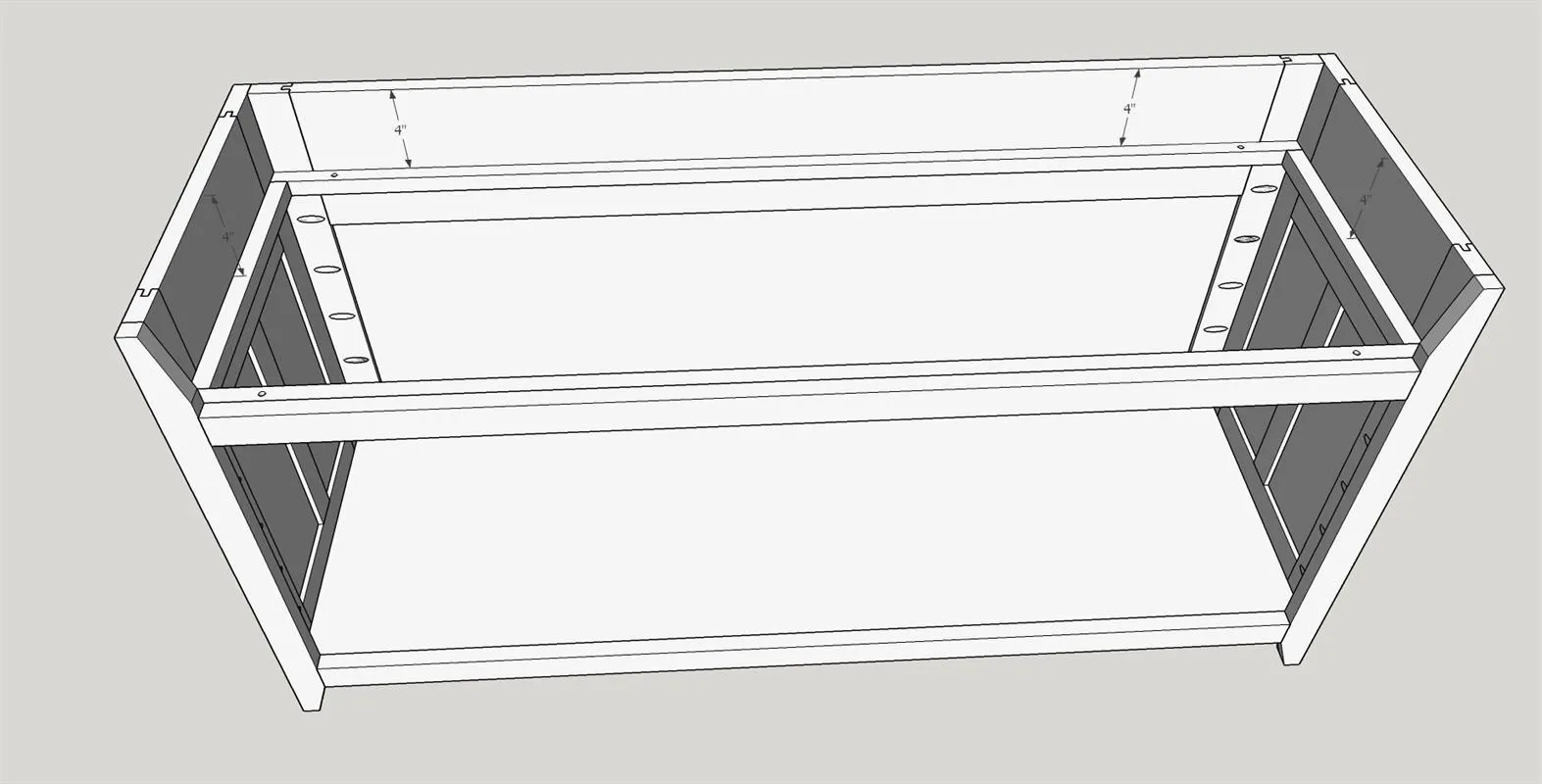

• Carefully measure and mark the position of the side and back supports. The front support is attached flush with the top of the front frame.
• Attach the front and back supports using wood glue and 1 1/4" brad nails.
• Then attach the side supports also using wood glue and 1 1/4" brad nails. Please note that the front support is 1/8" wider than the top front stile. The 1/8" overhang acts as a door stop to hold the doors in the proper position when closed.

Attach the two hinge supports to the left and right side front stiles. Use wood glue and 1 1/4" brad nails.

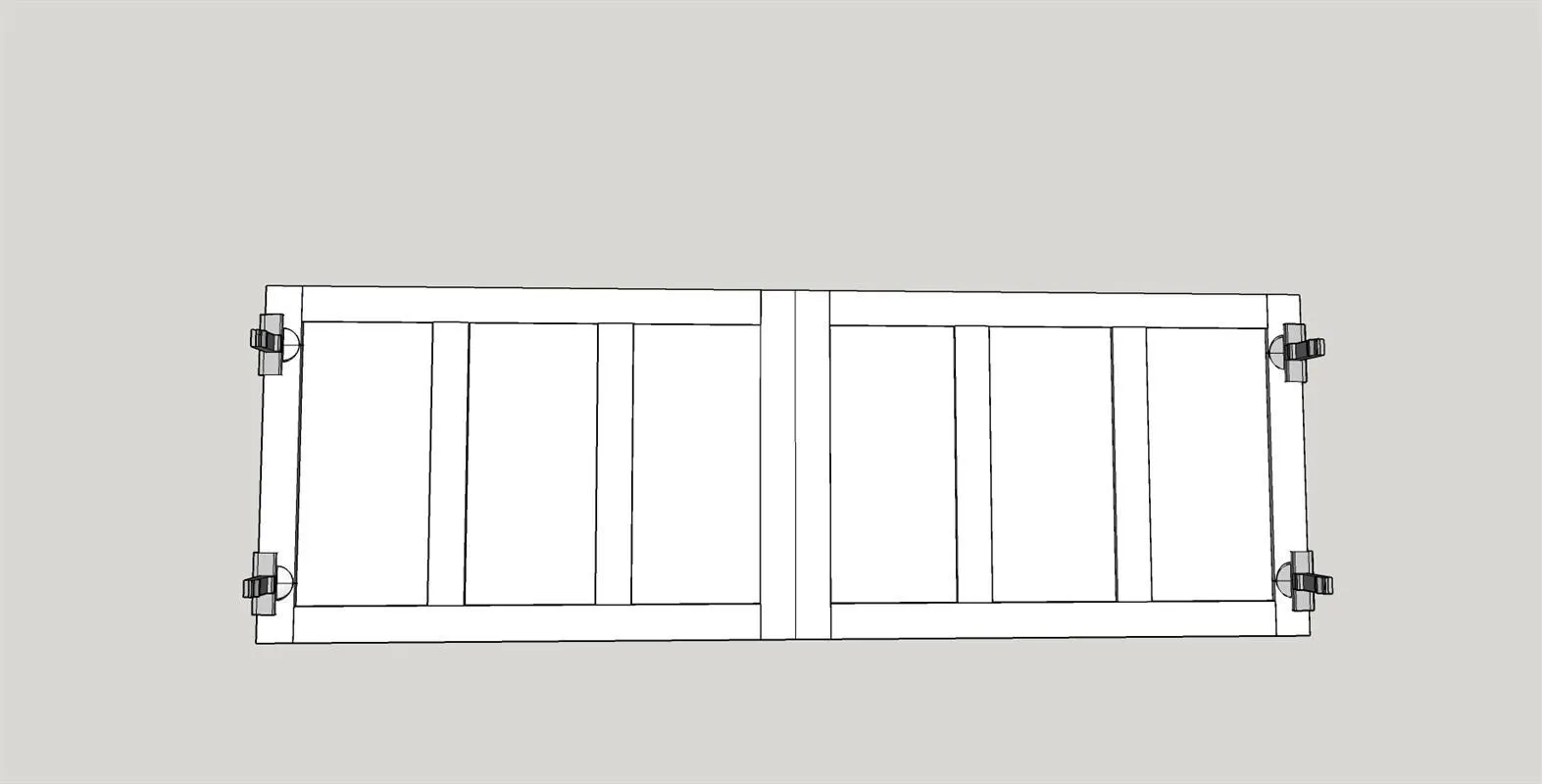

• Place the doors in the openings.
• Mark the position of the outside top corner of the left and right door. We will use this positioning to drill the holes for the Euro style hinges. If the fit is tight, set up the table saw and take 1/32" off of each side. Reassemble and make sure that the doors have adequate clearance to open. On the inside of each door mark the spots where each hinge will be positioned.
• Remove the doors and use drill press with a 1 3/8" forstner bit to drill the 4 hinge holes with the dimensions recommended by the manufacturer of the hinges.
• Drill all 4 holes, fasten the hinge cups in place. Reposition the doors.

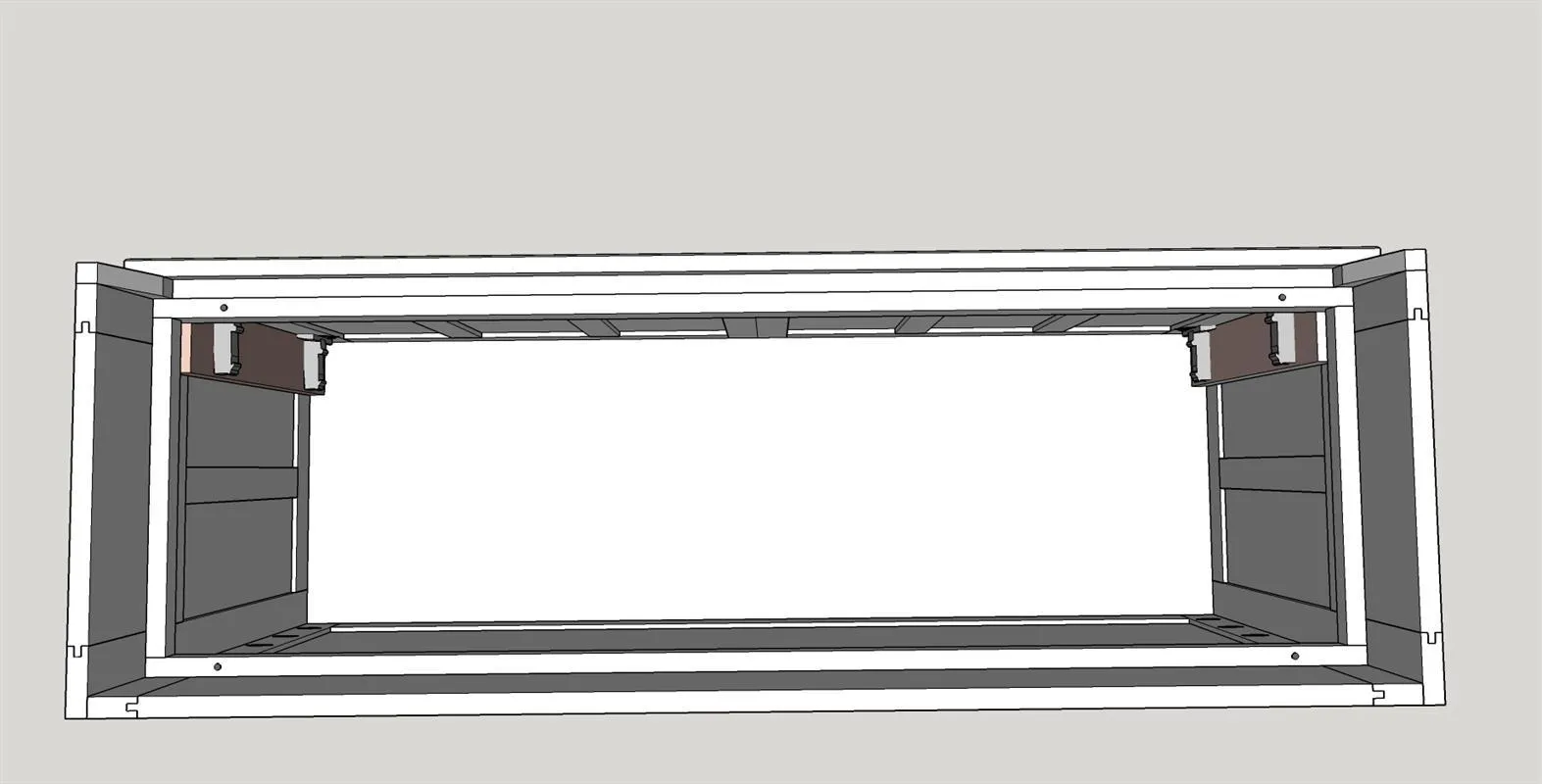

On the hinge supports inside the cabinet mark the position of the hinge mounting plates. Pre drill small holes for the screws that hold the mounting plates. Attach mounting plates per the hinge manufacturers instructions. After the doors are mounted use the various hinge adjustments to properly set the side to side and top to bottom clearances on the doors.

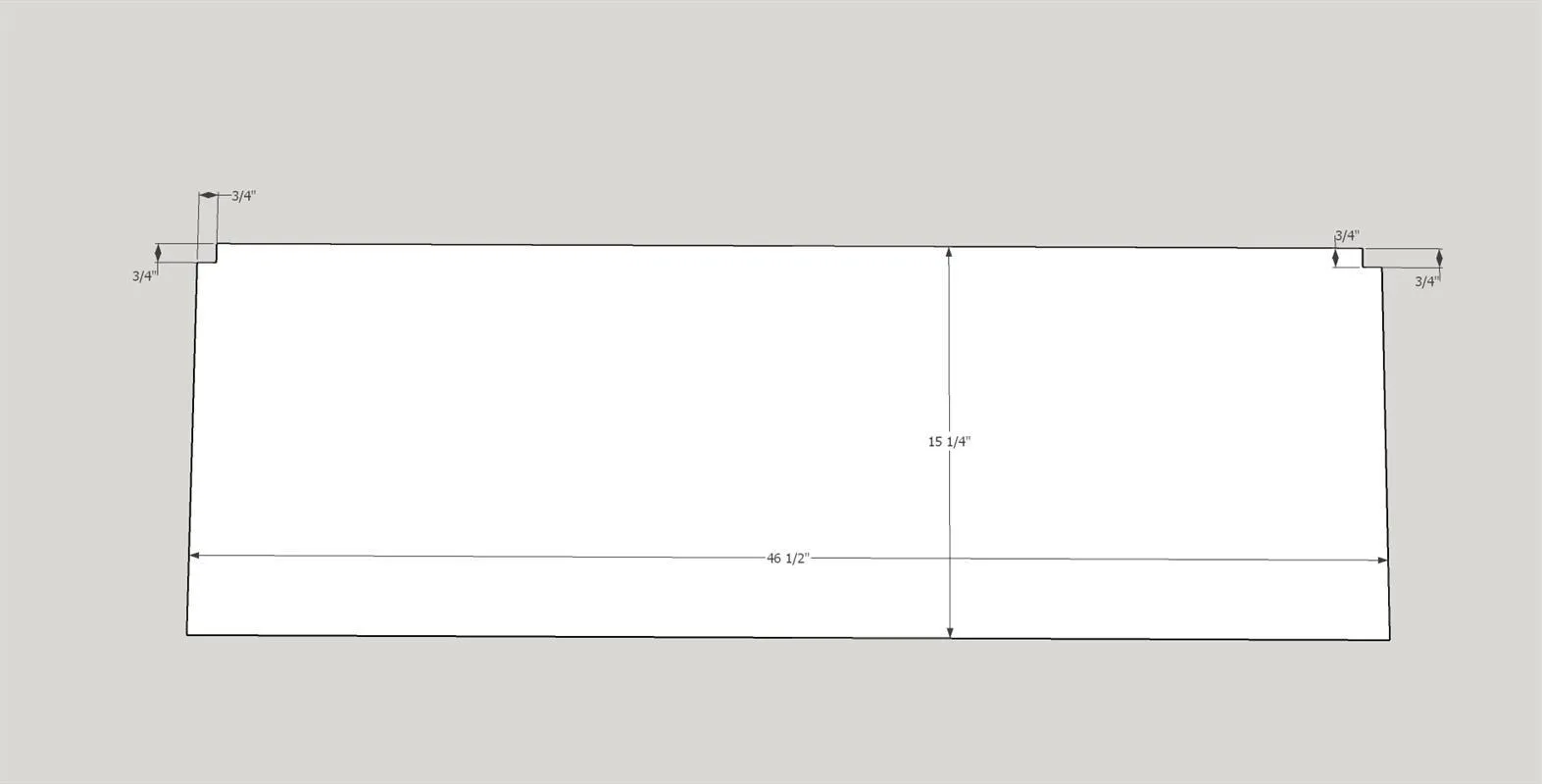

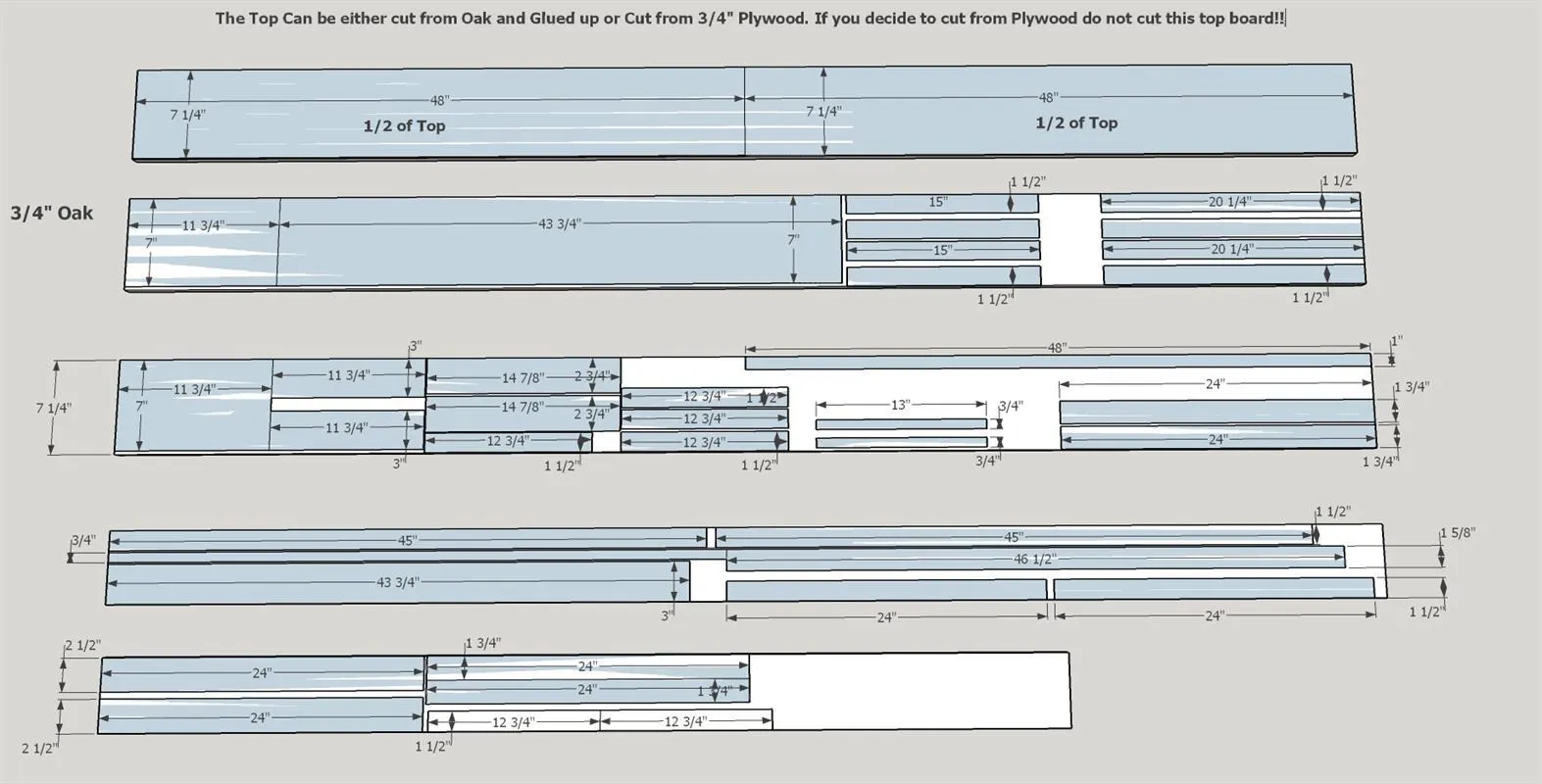

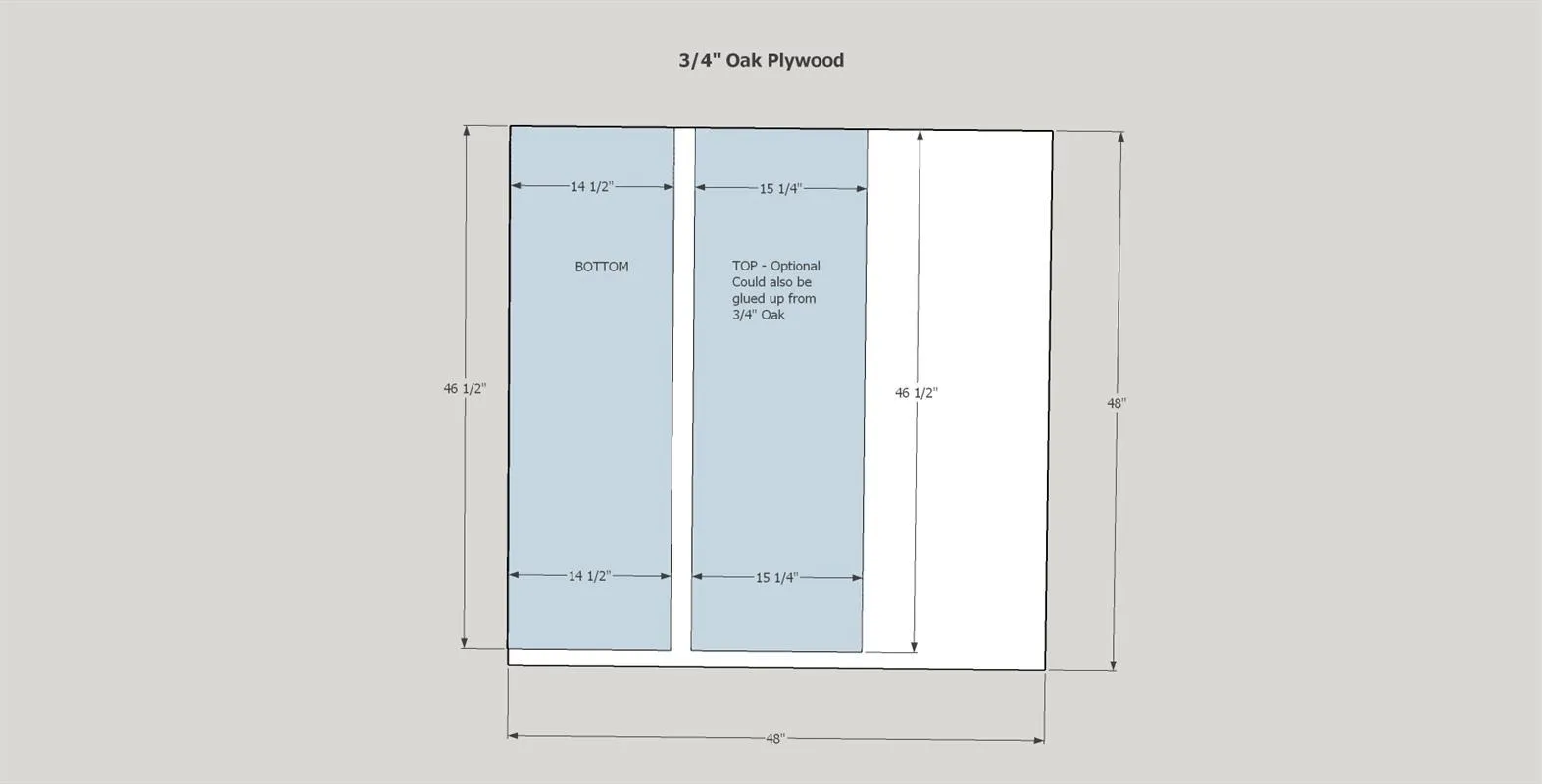

• Cut top to final dimensions (46 1/2" X 15 1/4 ").
• Measure and mark the 3/4" X 3/4" pieces of the top to be removed. Use jig saw or band saw to cut.

• Drill four 1/4" holes in the bench top supports.
• Place the top in position on the top supports. From the underside of the top supports use four self tapping screws with washers to attach the top. The screws should be drawn snug but not over tight. This should hold the top in place but allow for any expansion or contraction.

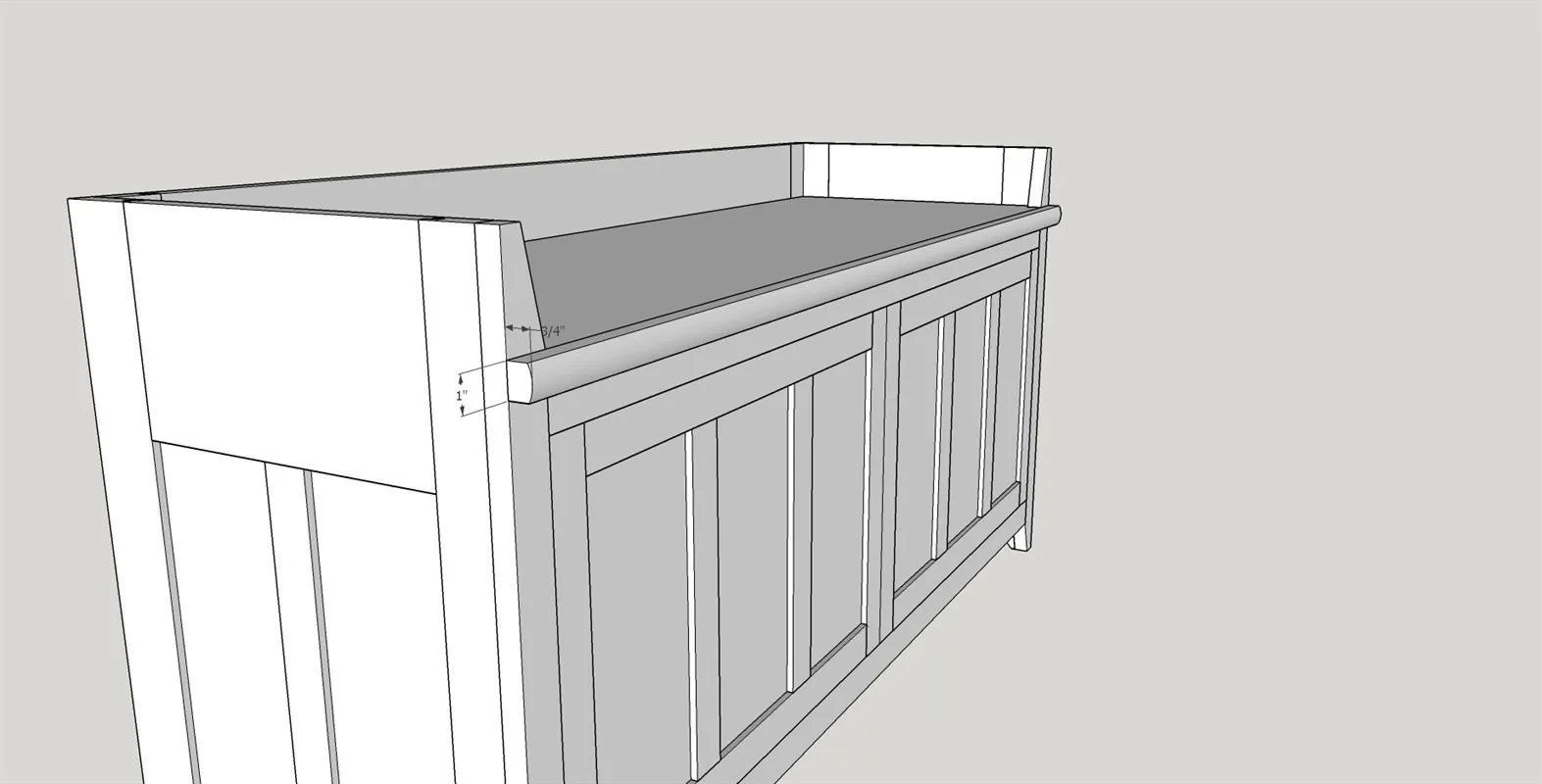

Use a round over bit mounted in a router table to round over the 1" front edge. Using wood glue and 1 1/4" brad nails attach the front edge to the bench top and front stiles. The front edge should be flush with the top and the left/right sides.

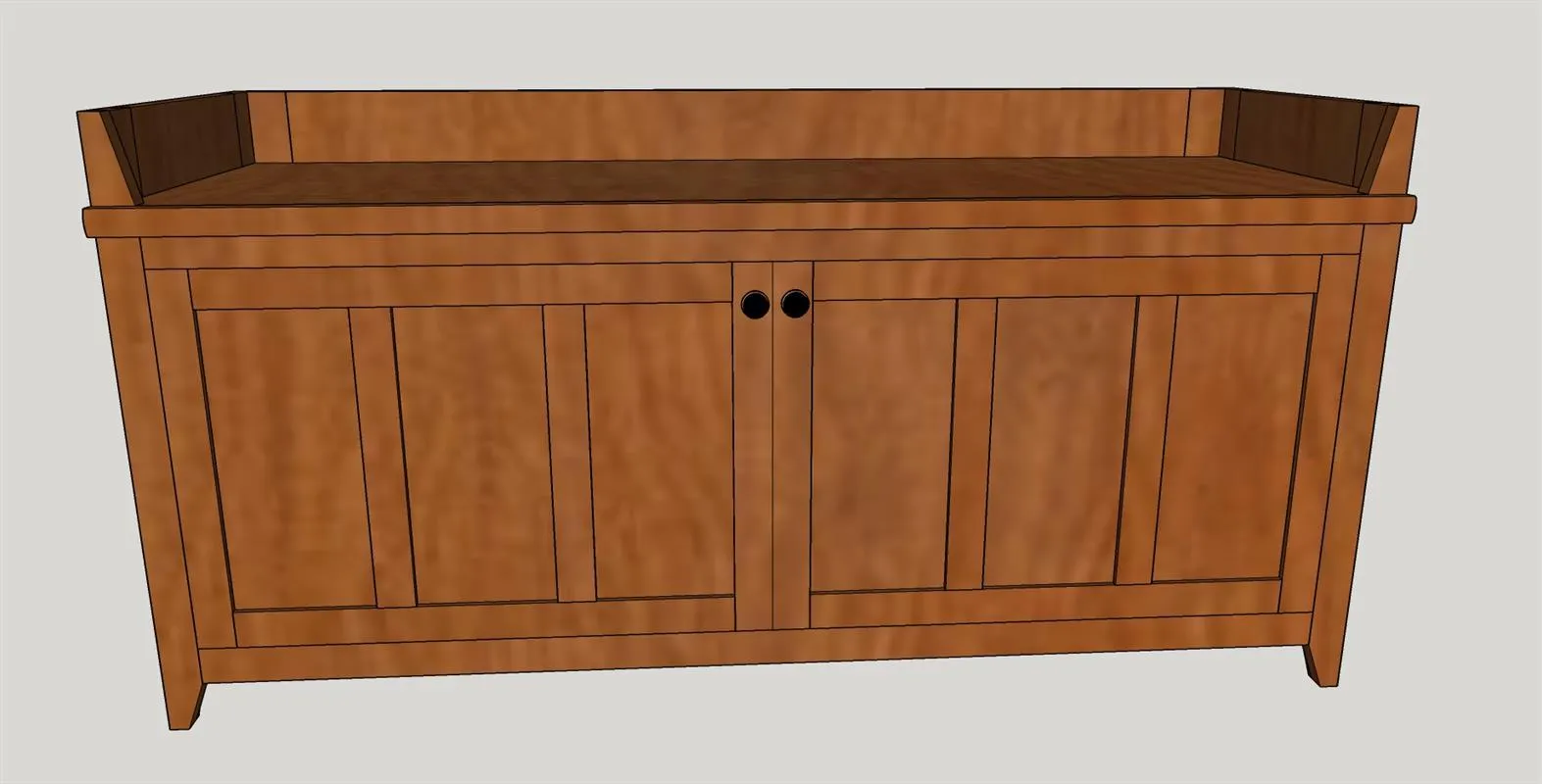

• Now that the build is complete fill all nail holes and other imperfections with wood putty, let dry.
• Then use 100 - 220 sandpaper to do a once over on all surfaces in preparation for the finish.
• Clean well to remove all dust. (I use compressed air and clean dry rags). To prevent any smell inside the storage bench use 2 or 3 coats of a water based sealant like Minwax Polycrylic Satin finish on them. As we live in an adobe style house, I chose to use Weathered Oak Minwax Stain. After the stain was dry I used Minwax Tung Oil finish. I gave the bench three coats following manufacturers instructions. After the finish dries add the door pulls.
