Craft Paint Wall Storage

Clean up your ever growing paint collection with this vertical wall hanger.

Cut list

Part	Qty	T × W × L	Material	✓
Plywood	1	1/2" × 18" × 40"	—	☐
Plywood	2	1/2" × 2" × 40"	—	☐
Plywood	13	1/2" × 2" × 17"	—	☐

Item	Qty	✓
Plywood, 5'x5'x1/2"	1 board	☐
Box of Kreg Pocket hole screws (see tools list)	1 each	☐
Golden oak stain	1 each	☐

Overall cost: $$. Lumber varies by region, species, and season, so we give a band rather than a figure.

1. Step one

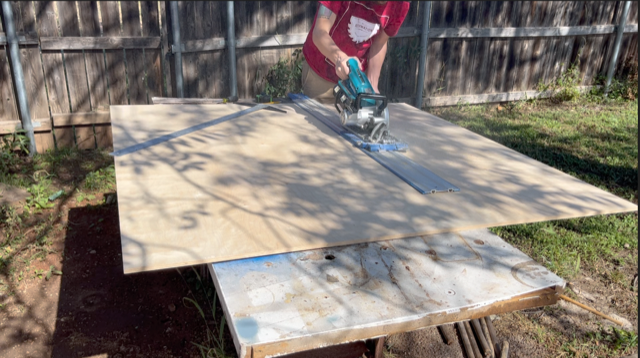

Cut your 1/2” material down to 18X40 inches.
2. Step two

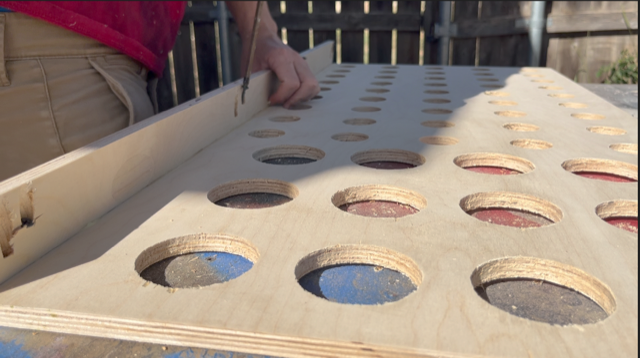

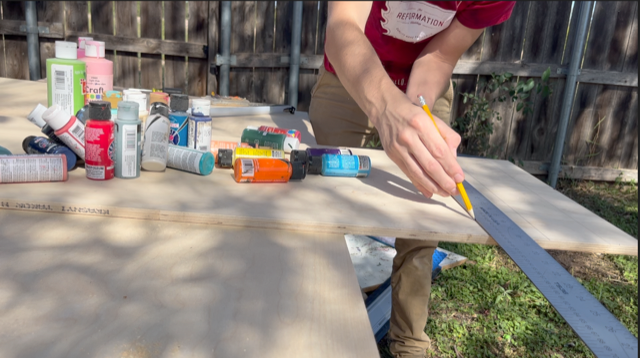

Make horizontal lines every 3”s starting 2”s from the top until you’ve made 12 lines. Then make vertical intersecting lines every 2”s.
3. Step three

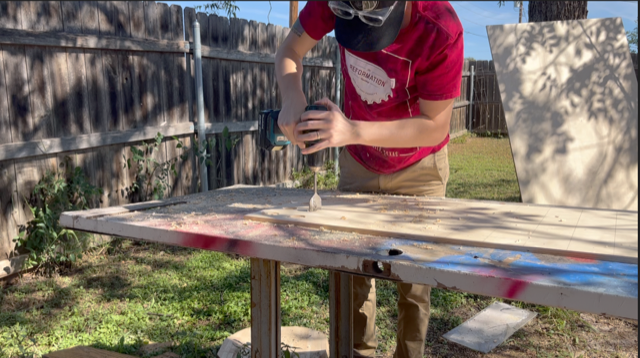

Drill 1 3/8” holes where your vertical and horizontal lines intersect.
4. Step four

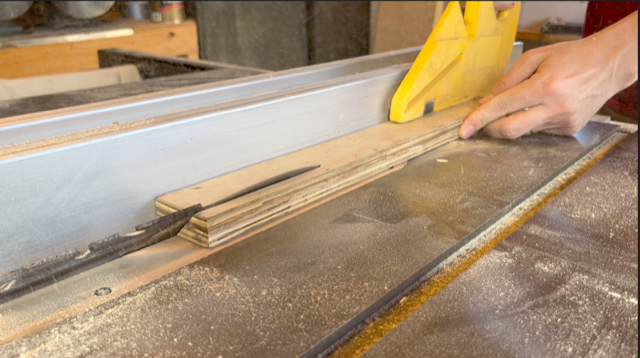

Cutout and then pocket hole 2”X40” body pieces to the back of your storage.
5. Step five
Cutout and then pocket hole 2”x17” shelf pieces to the back of your storage.
6. Step six

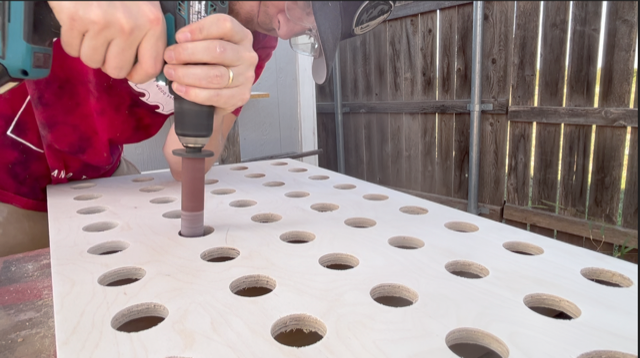

Sand holes and face of storage thoroughly.
7. Step seven

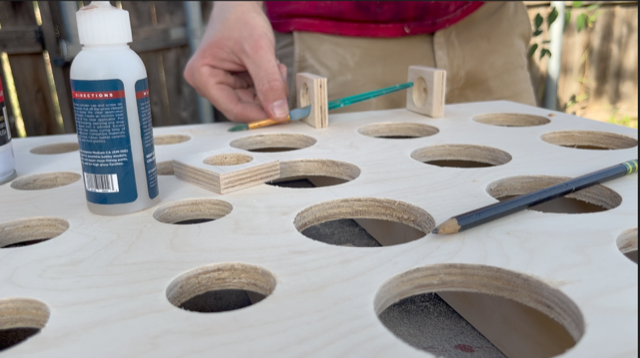

Cutout and attach 2”X2” pieces to the face of your storage. One with an 1 1/5” hole in it.
8. Step eight
Cut a 2” piece of 3/4” material in half at a 45 degree angle. Mount one piece into your storage and one piece onto the wall so that they match fit each other and the one on the wall holds the storage up.
9. Step nine

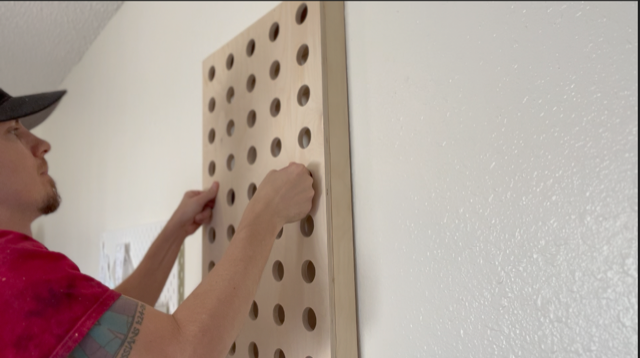

Hang your storage on the French cleat you made.
10. Step ten

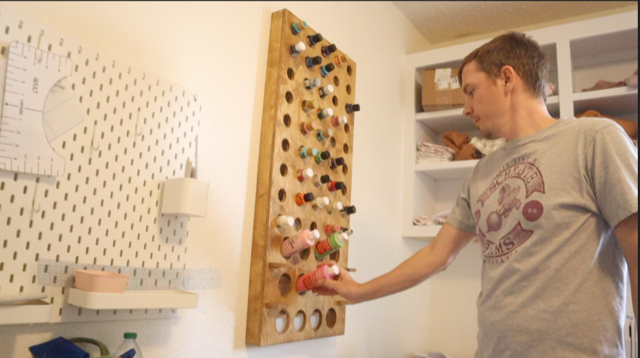

Fill your storage up with all of your paints and enjoy!
