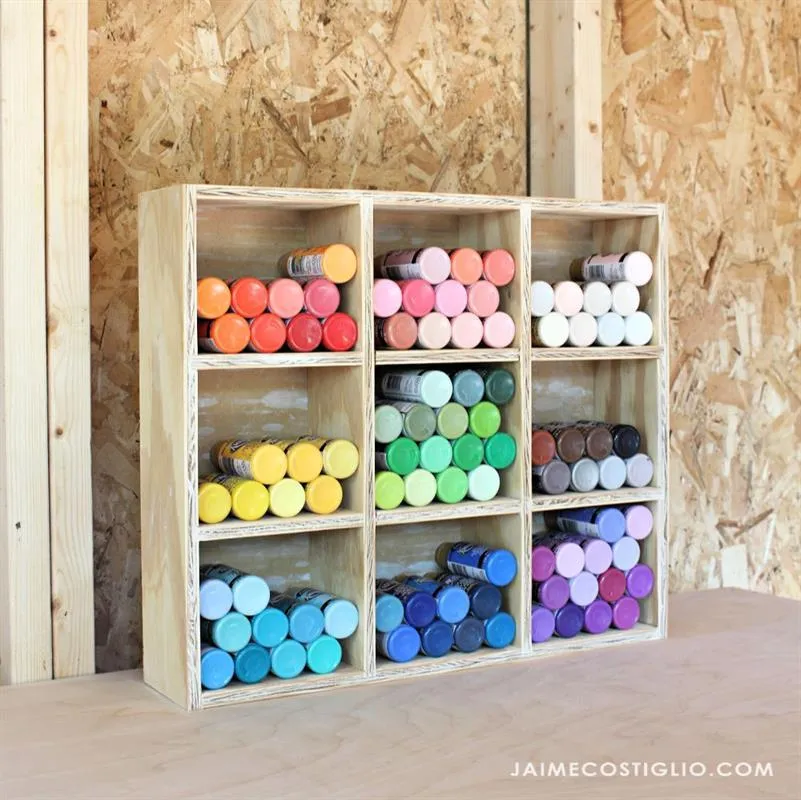

Make your craft paint visible and easily accessible with this craft paint storage box. Perfectly sized for standard craft paint bottles. Each compartment holds 16 bottles of craft paint for a total of 144 bottles. A great way to use up your scrap 1/2″ plywood pieces for organization and storage.
| Item | Qty |
|---|---|
| Plywood, 1/2" Thick Quarter Sheet | 1 board |
| Plywood, 1/4" Thick 20" x 17" | 1 board |
| 1 1/4" finish nails | 30 each |
| 3/4" finish nails | 12 each |
Overall cost: $$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Box top and bottom | 2 | 1/2" × 4" × 19" |
| Box sides | 2 | 1/2" × 4" × 17" |
| Horizontal dividers | 2 | 1/2" × 4" × 19" |
| Vertical dividers | 2 | 1/2" × 4" × 16" |
| Backing | 1 | 1/4" × 17" × 20" |
Buy 3 boards at 8 ft.
2 boards
1 board
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →

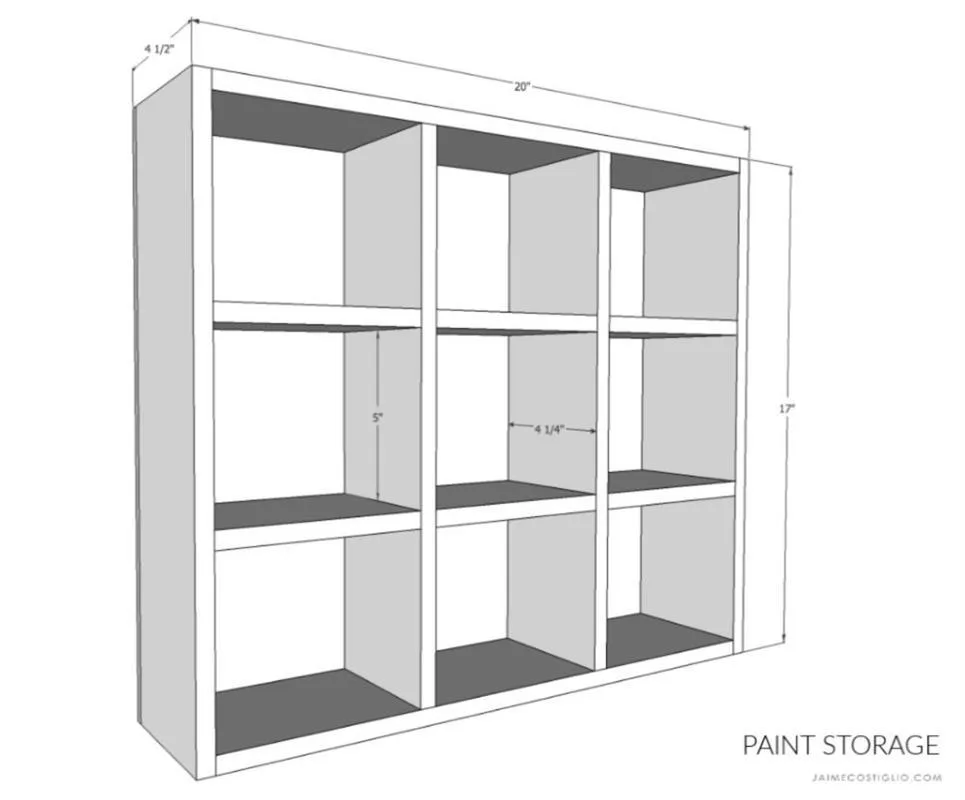

Overall dimensions: 20"w x 17"h x 4 1/2"d

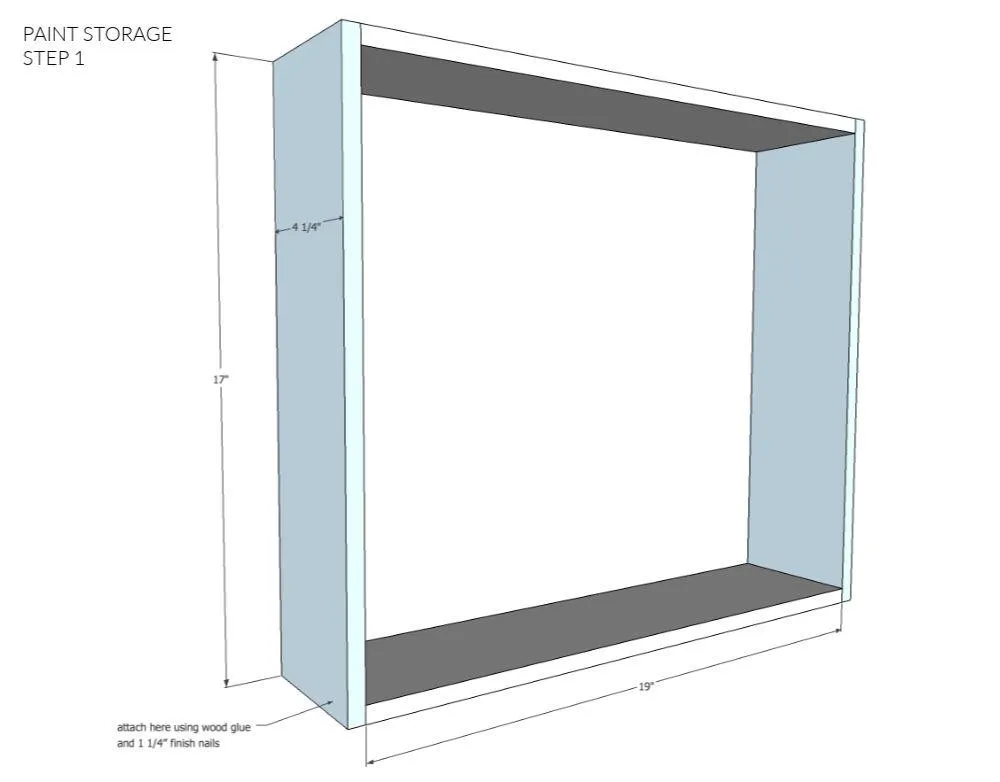

Attach box sides to top and bottom using wood glue and 1 ¼” finish nails.

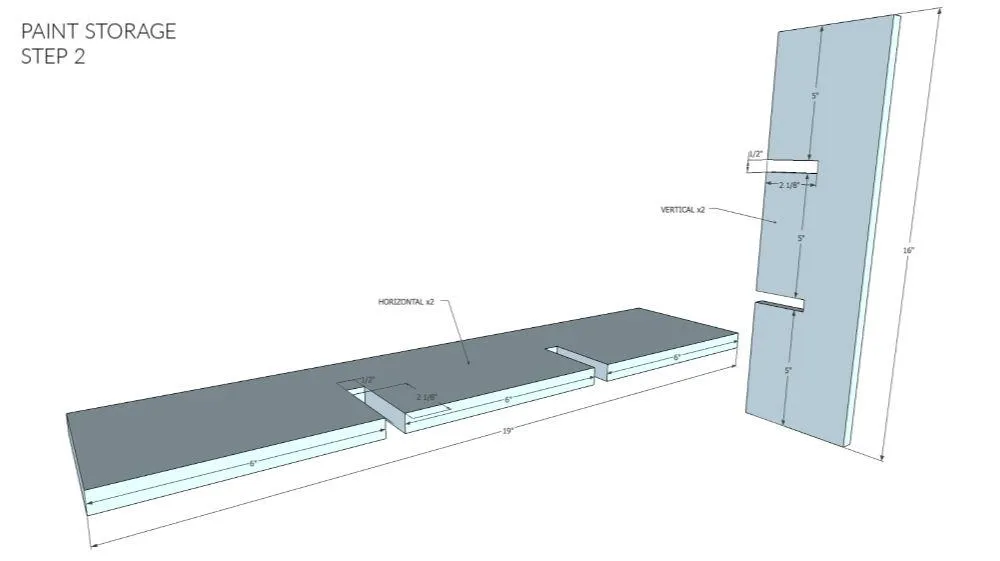

Make notches in the horizontal and vertical dividers as per the sketch above. Use a jigsaw to make notches.

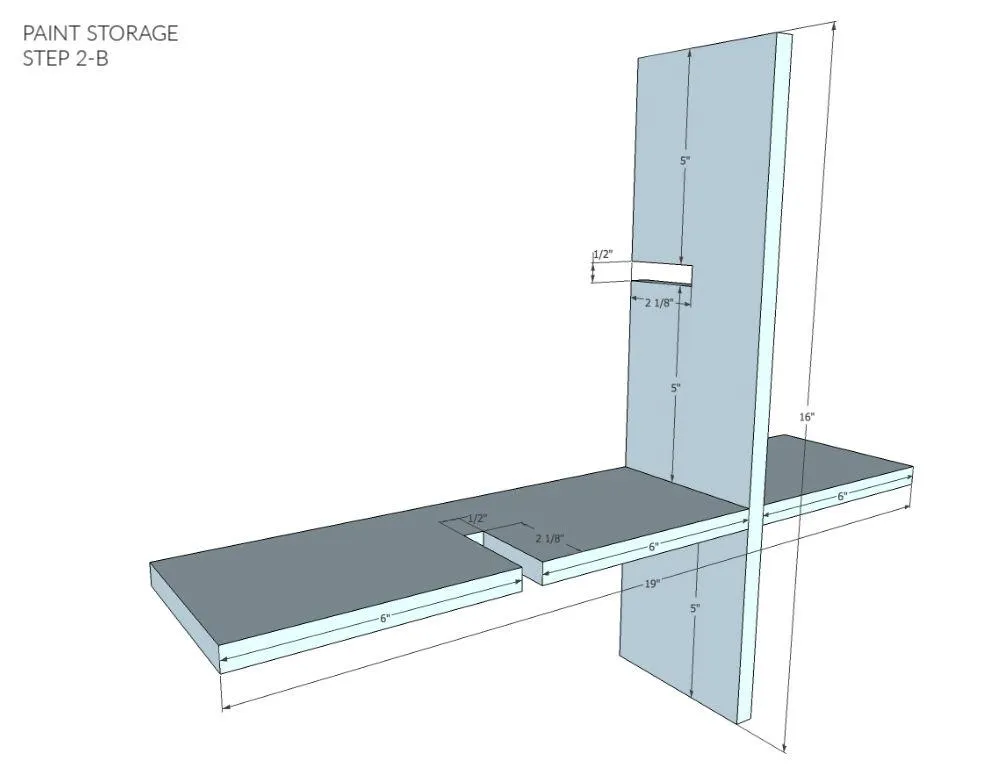

Dividers should fit together as per sketch.

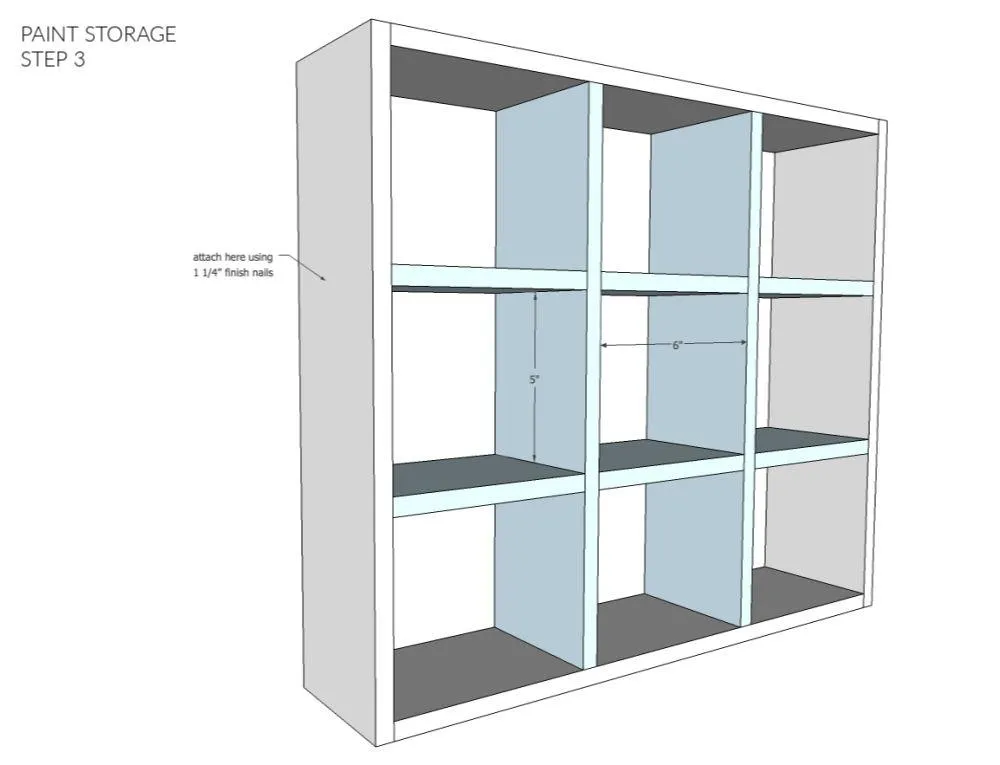

Insert dividers into box frame and attach to sides using 1 ¼” finish nails.

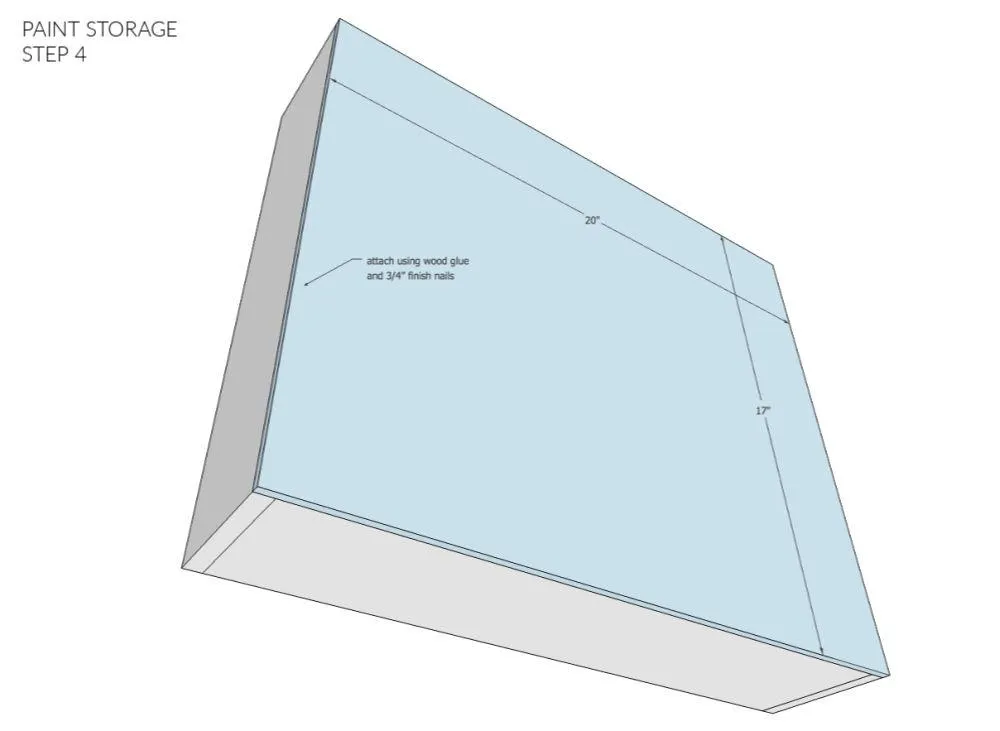

Attach backing to box and dividers using wood glue and ¾” finish nails.
