Notch- Difficulty
- Intermediate
- Time
- 3.8–7 hours
- Cost
- $$$
About this build

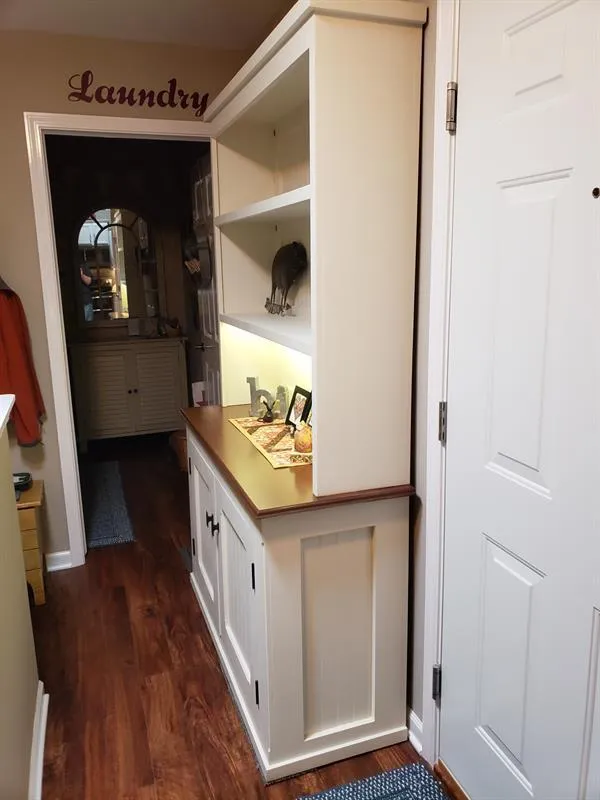

My wife needed a place to store her cookbooks so she could use them when we moved to a new home. Decided the best place was above the Cat Litter Box Cabinet that was constructed earlier this year.
Tools
Essential
- Brad Nailer
- Miter Saw
- Pocket Hole Jig
- Random Orbit Sander
- Router
- Table Saw
Optional / nice to have
- Tape Measure
Materials
| Item | Qty |
|---|---|
| Board, 1x12 48" | 5 board |
| Board, 1x4 48" | 7 board |
| Board, 1x2 72" | 1 board |
| Plywood, 1/4" Thick 48" | 1 board |
| Pocket hole screws | 50 each |
Overall cost: $$$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
Cut list
| Part | Qty | T × W × L |
|---|---|---|
| Sides and shelves | 5 | 3/4" × 11" × 48" |
| Back panel pieces | 6 | 3/4" × 3" × 48" |
| Top face frame piece | 1 | 3/4" × 3" × 48" |
What to buy
Buy 12 boards at 8 ft.
3/4" × 11"
5 boards
3/4" × 3"
7 boards
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Instructions

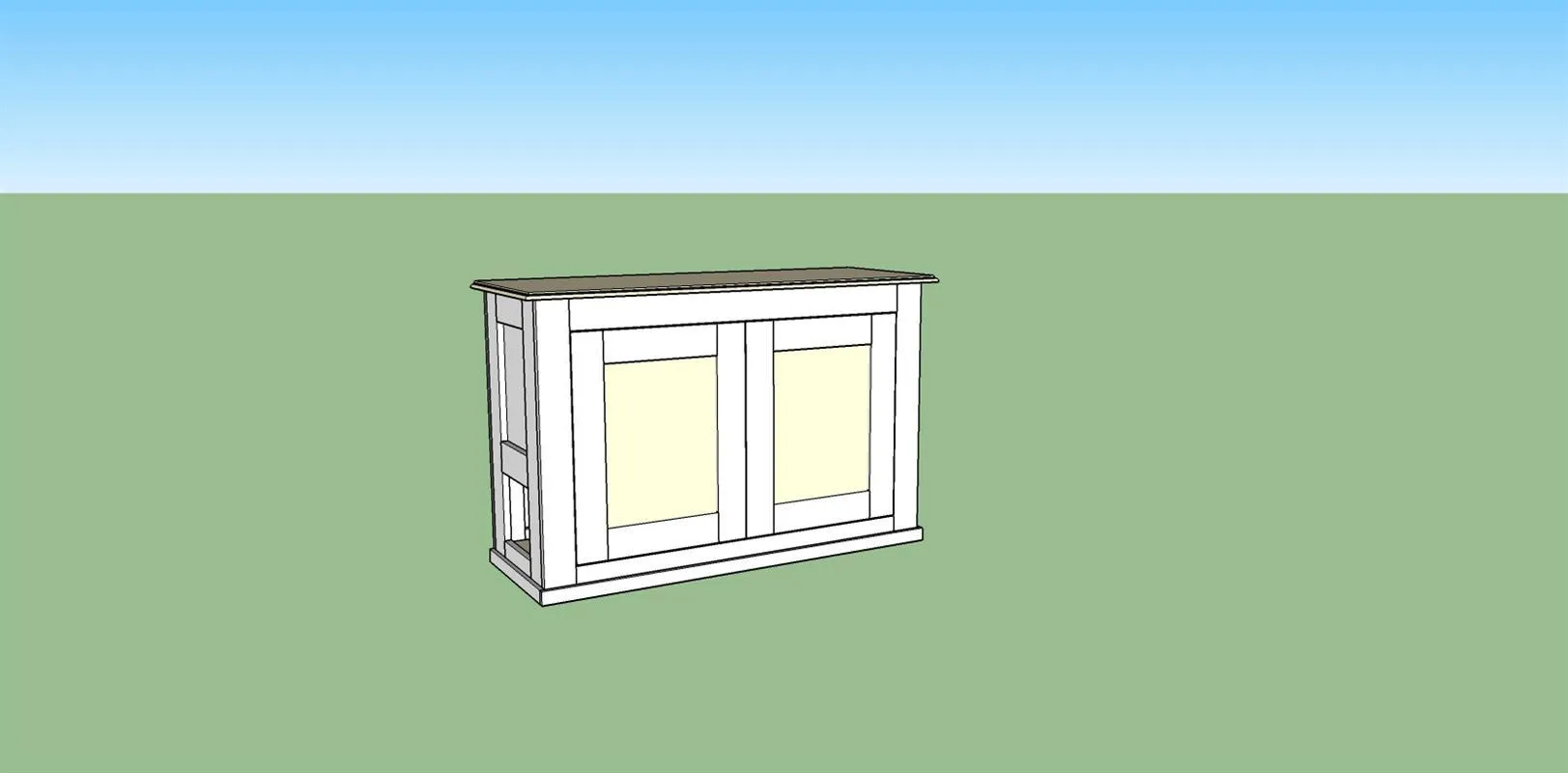

1Construct the base
If you have not already constructed the CAT LITTER BOX CABINET..... see plan and construct the base

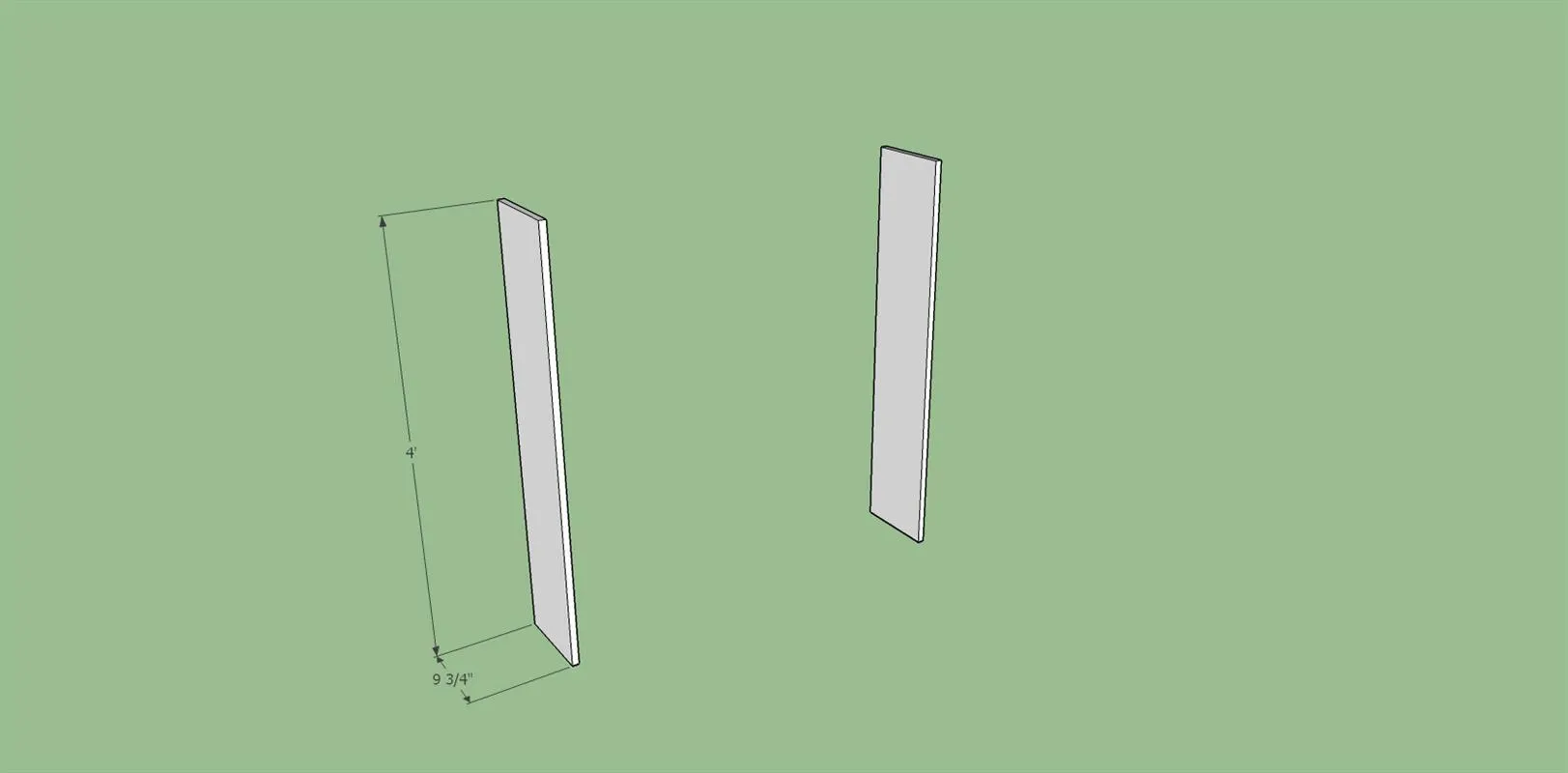

2Cut the side panels
Cut (2) side panels to the dimensions shown out of 1x12 material cut down to 9 3/4"

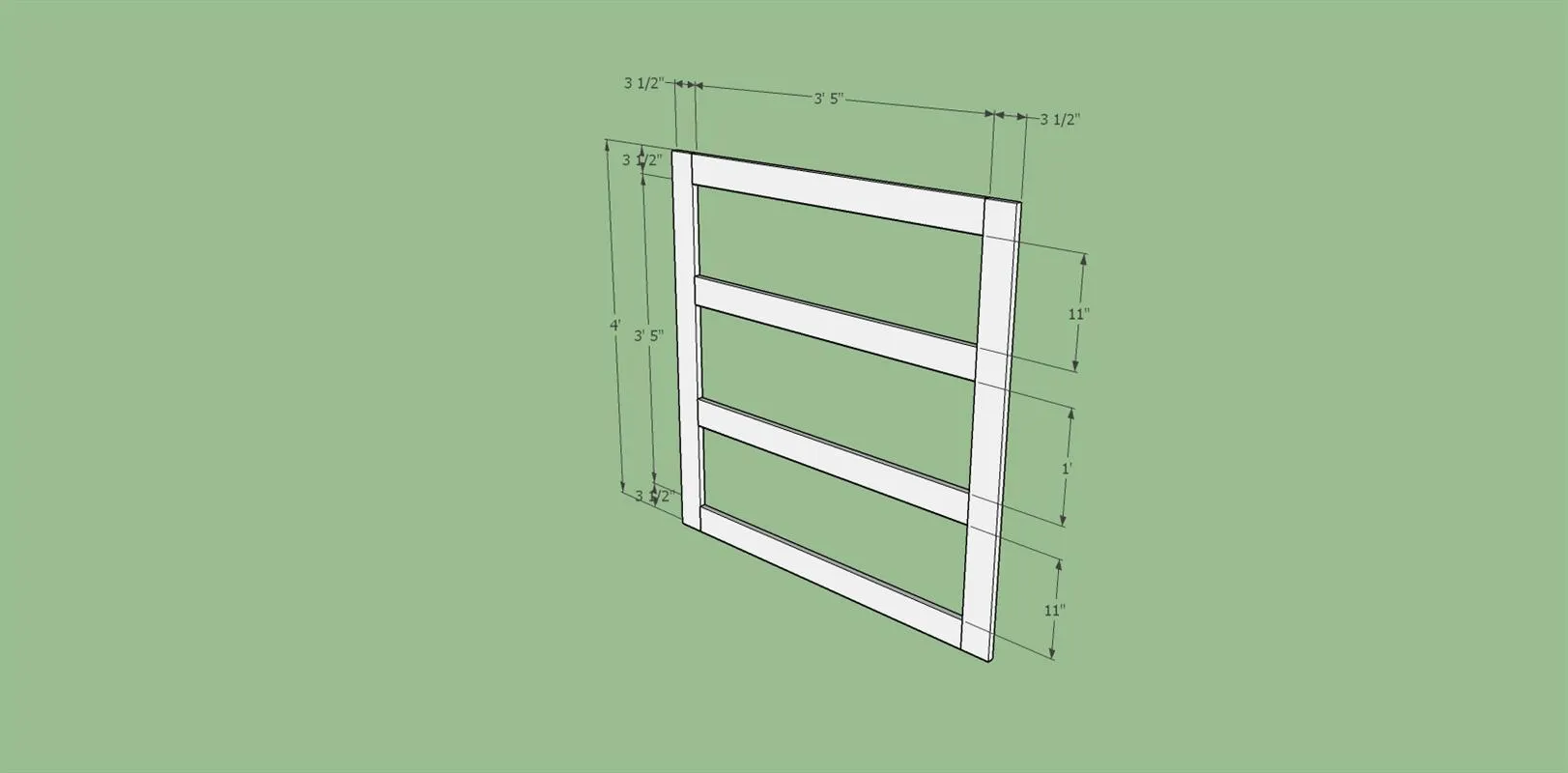

3Cut the back panel pieces
- Cut the back panel pieces from 1x4 material.
- Drill (2) pocket holes in each end of the horizontal pieces and join to the vertical pieces with 1 1/4" pocket hole screws.
- Also route a 1/4" rabbet along the inside edge of each piece to accept the plywood/beadboard in the next step

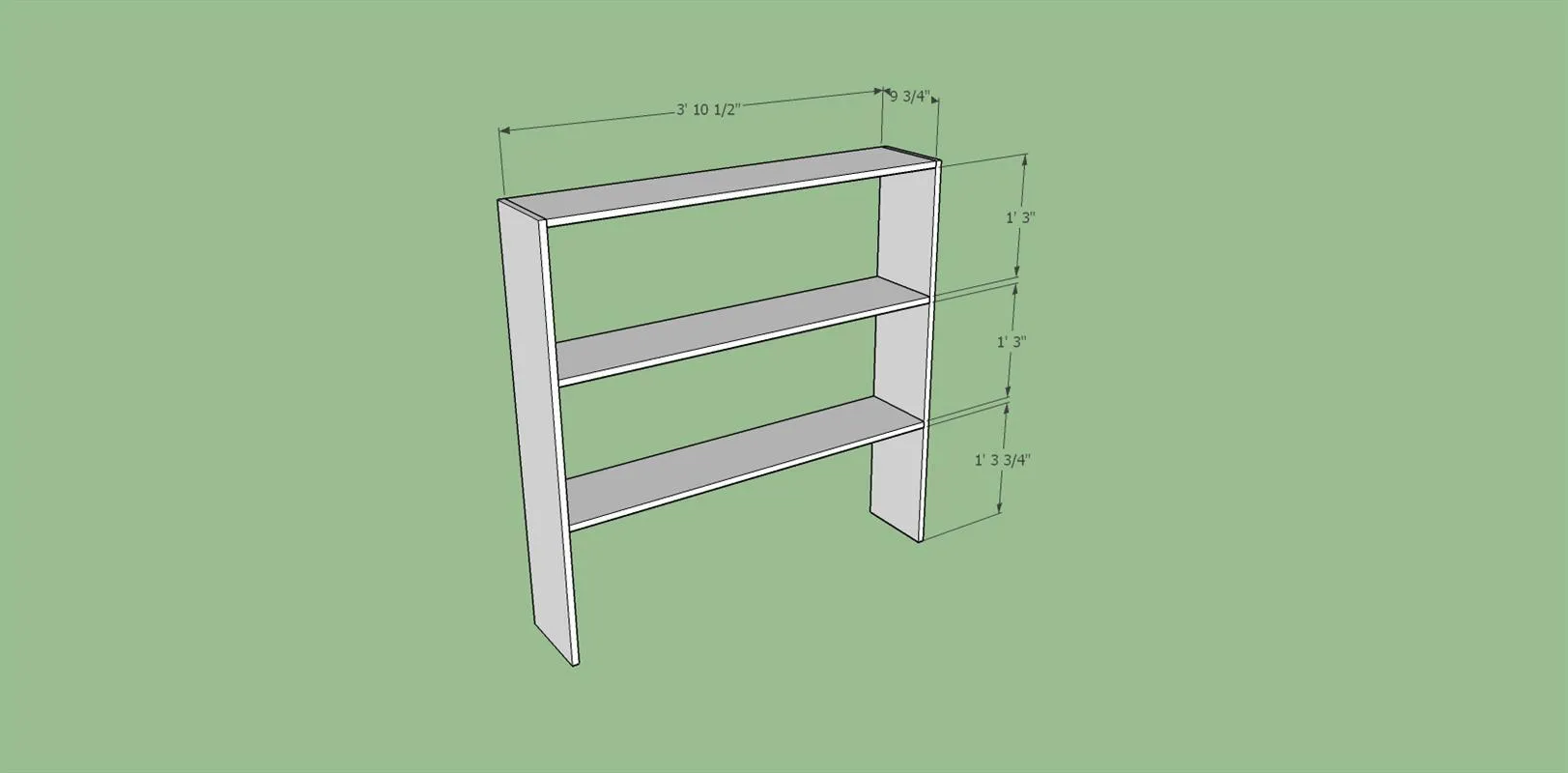

4Cut the shelves
Cut (3) shelves to the dimensions shown out of 1x12 material cut down to 9 3/4". Also drill three pocket holes on the bottom in each end of each shelf and connect to the side panels with two 1 1/4" pocket hole screws.
5Attach the back panel
Attach the back panel to the shelves and side panels by gluing and nailing with your nail gun

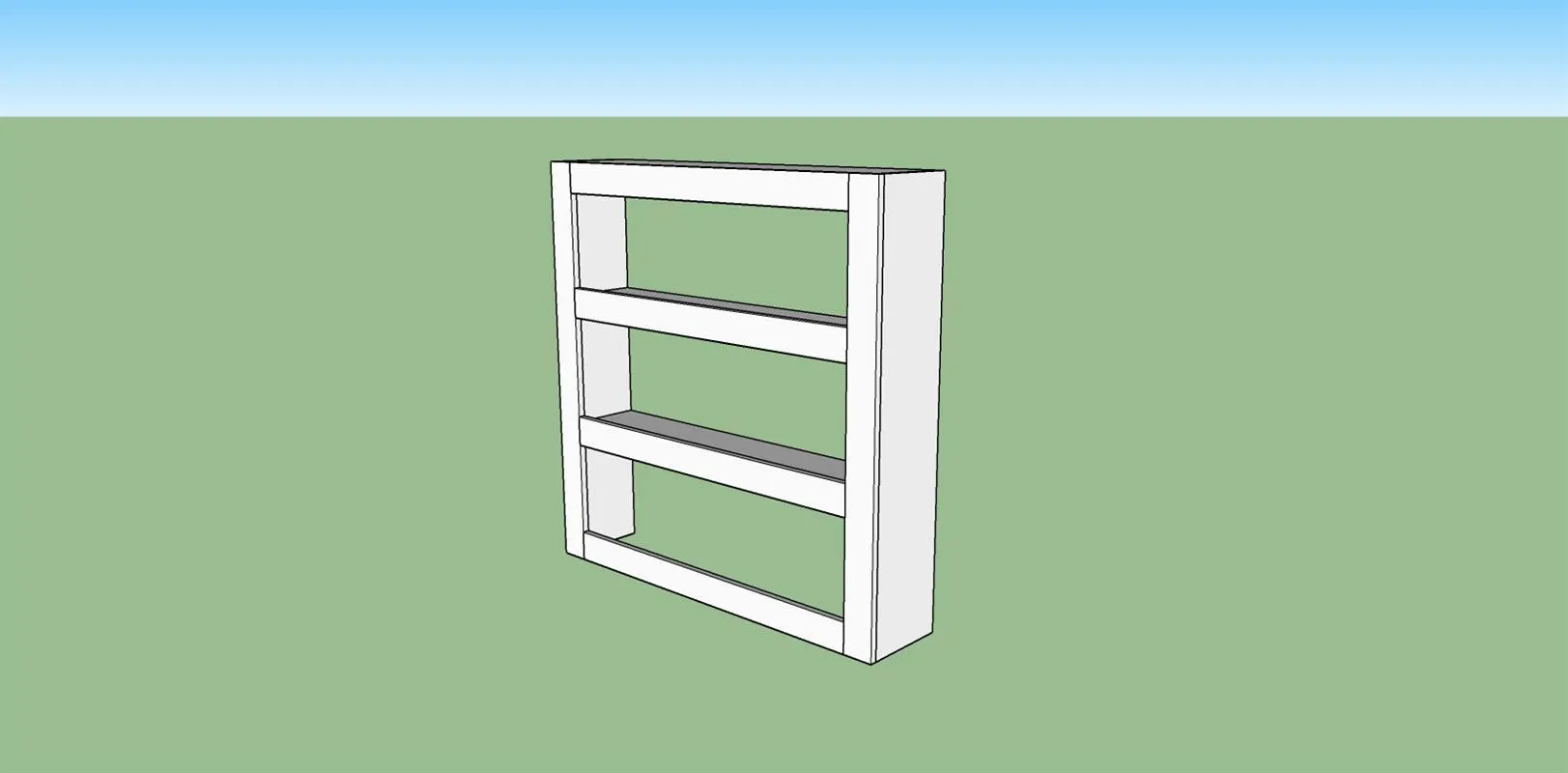

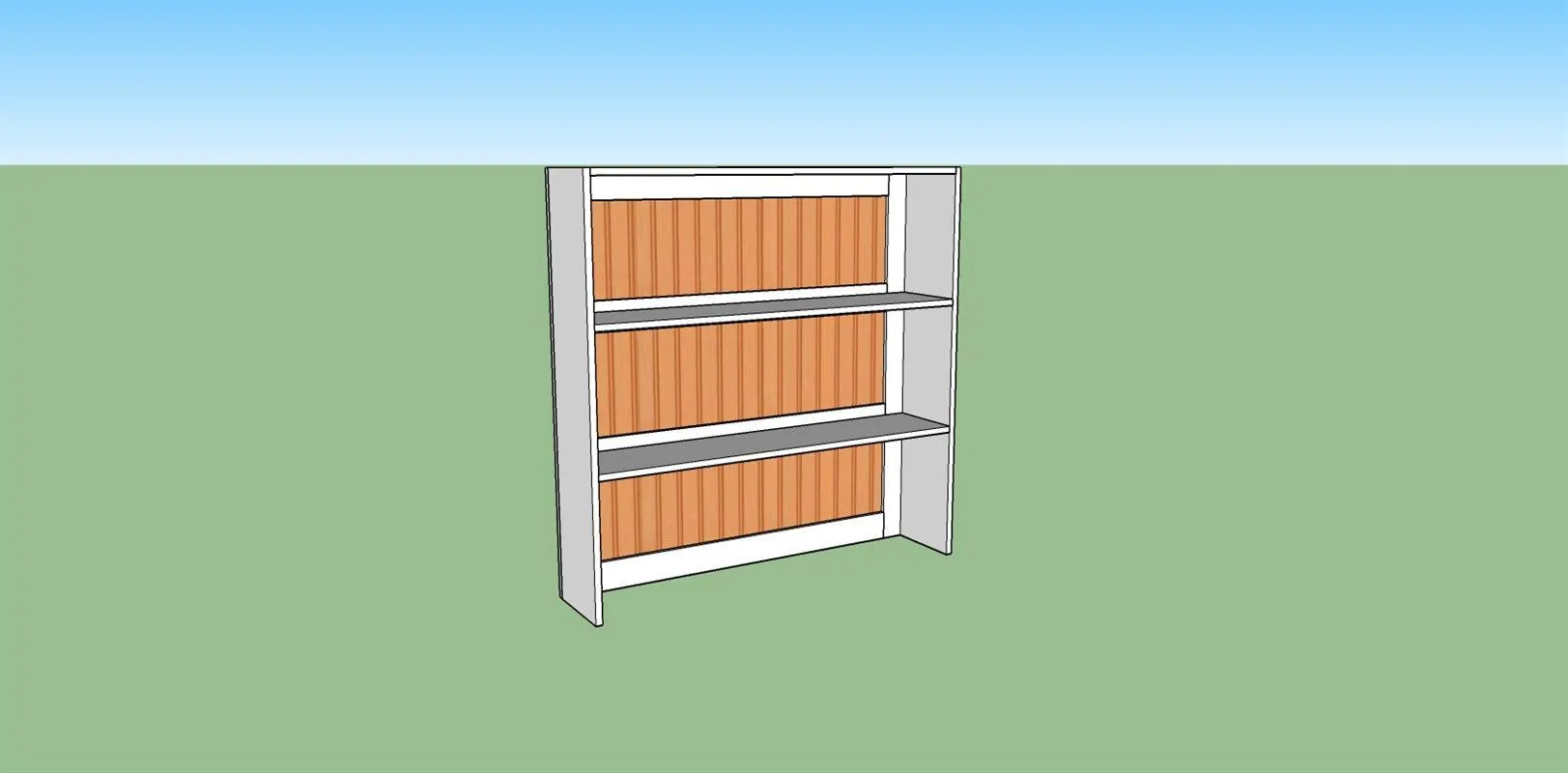

6View of assembly from the front
View of the assembly from the front

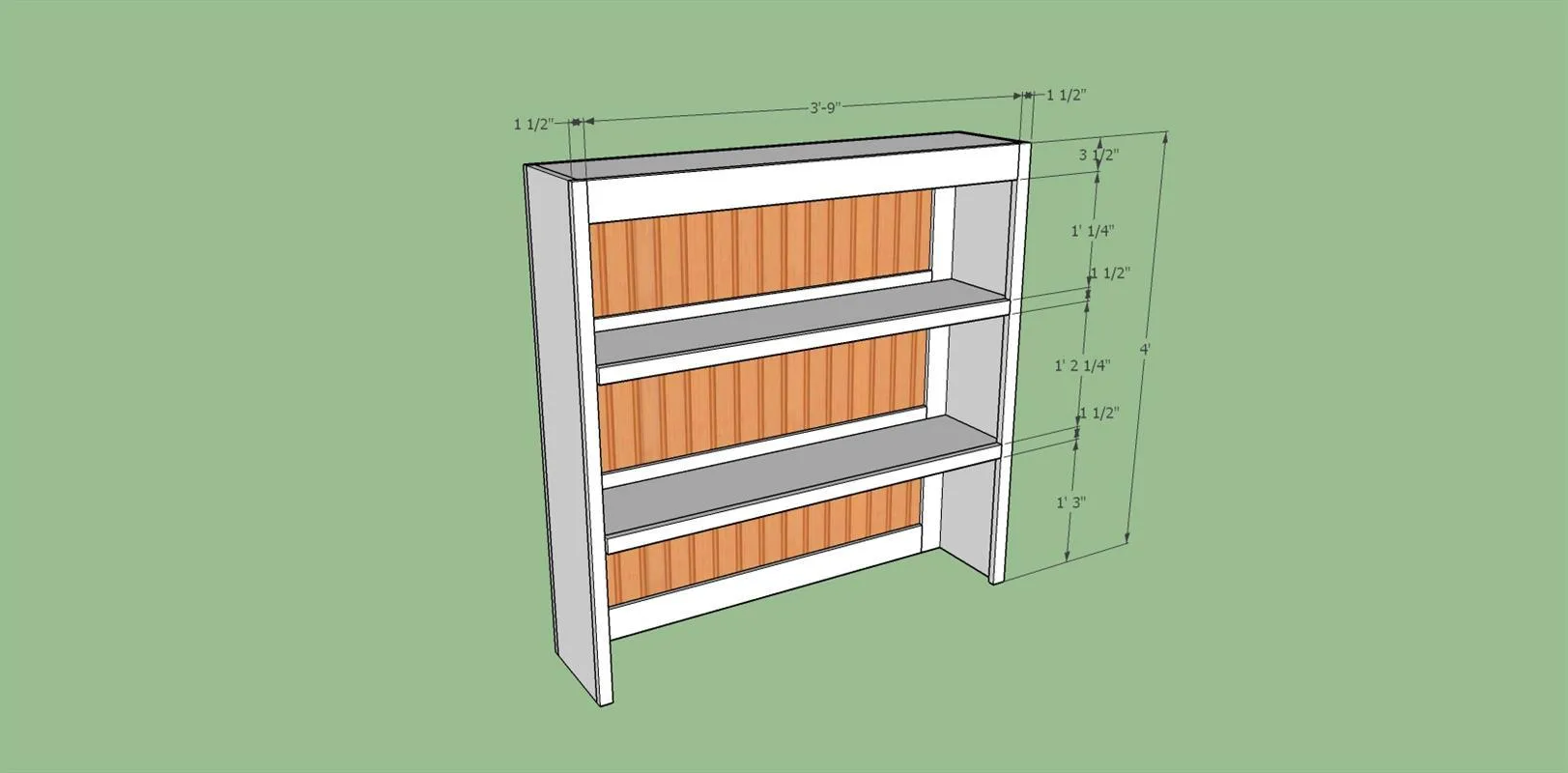

7Construct the face frame
Construct the face from following the dimensions shown using 1x2 material cut off of the 1x12's used for shelving and side panels. Join the parts by drilling pocket holes and using 1 1/4" pocket holes on the back side of the parts. Install the face frame to the shelf box by gluing and using your nail gun

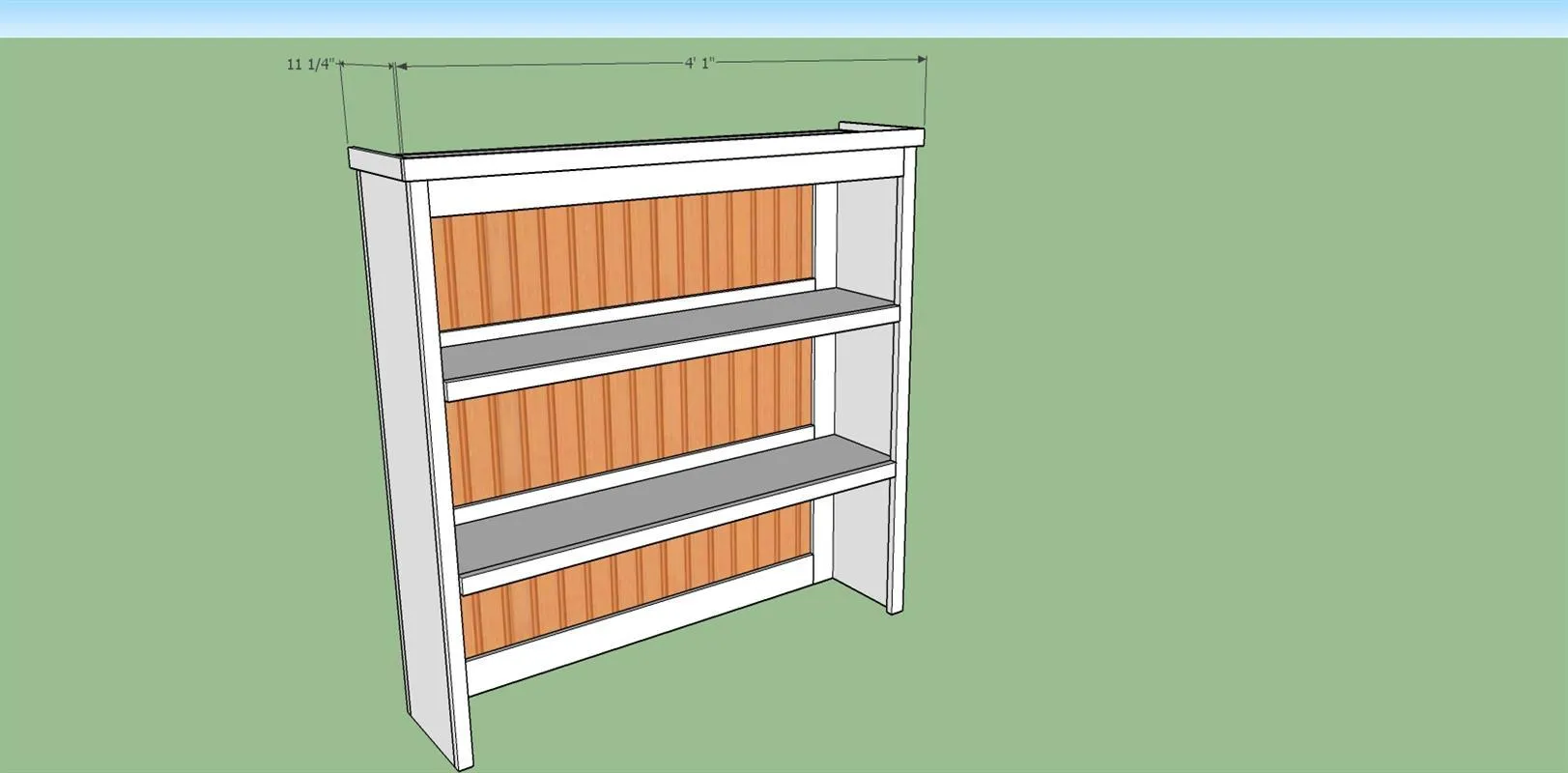

8Attach the crown
Cut crown trim pieces per dimensions shown out of 1x2 material. Add crown trim to the assembly using your nail gun.

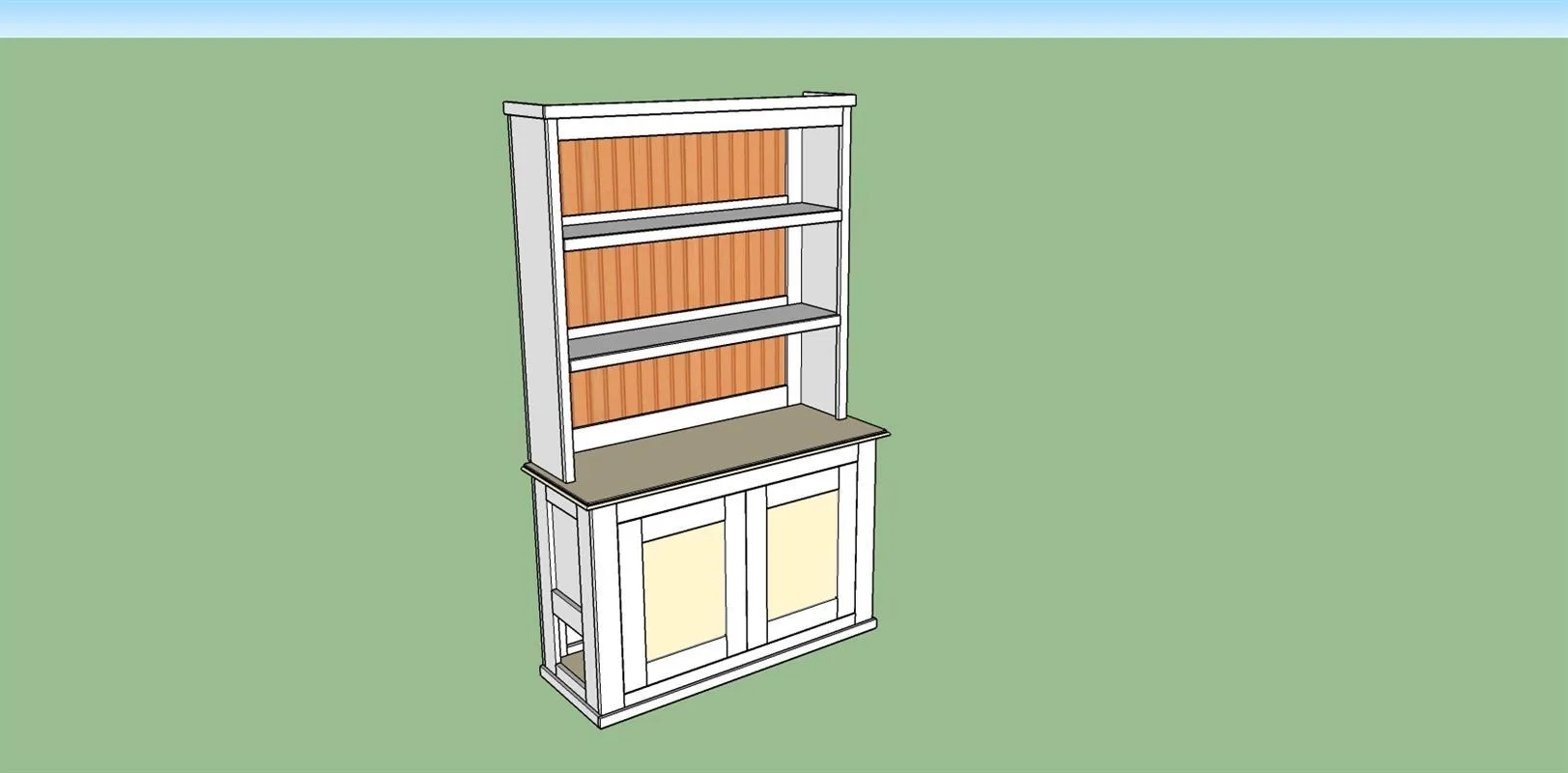

9Finish
Finish the book shelf by painting or staining based on the materials you used.

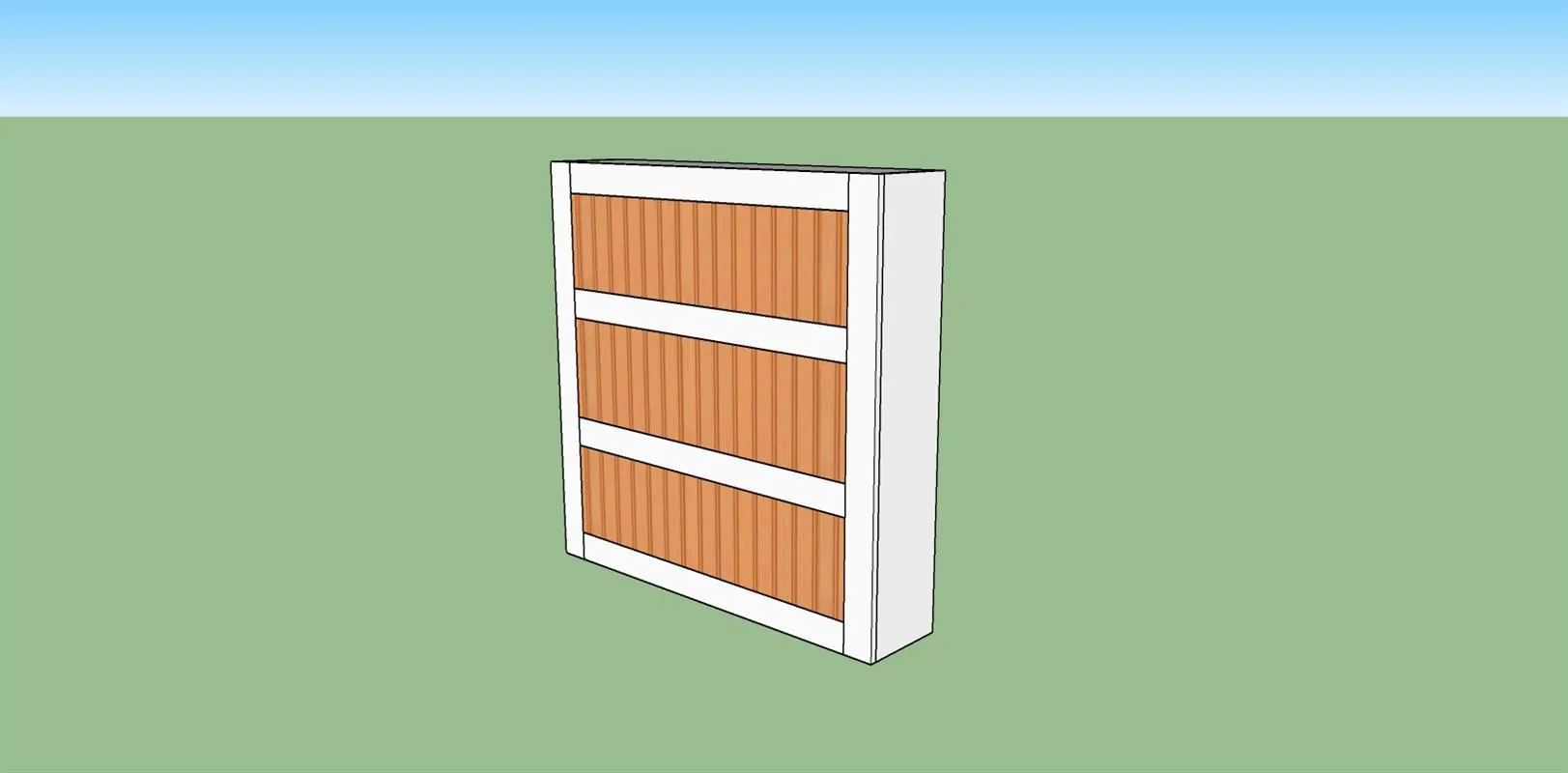

10Install the beadboad/plywood
Install beadboard or plywood into the back panel assembly
