Use your browser's Print (Ctrl/Cmd + P) and choose Save as PDF. This page works offline once you've opened it with a signal.
This is a dual purpose picnic table.
| Part | Qty | T × W × L | Material | ✓ |
|---|---|---|---|---|
| Wide top | 8 | 1" × 5" × 60" | — | ☐ |

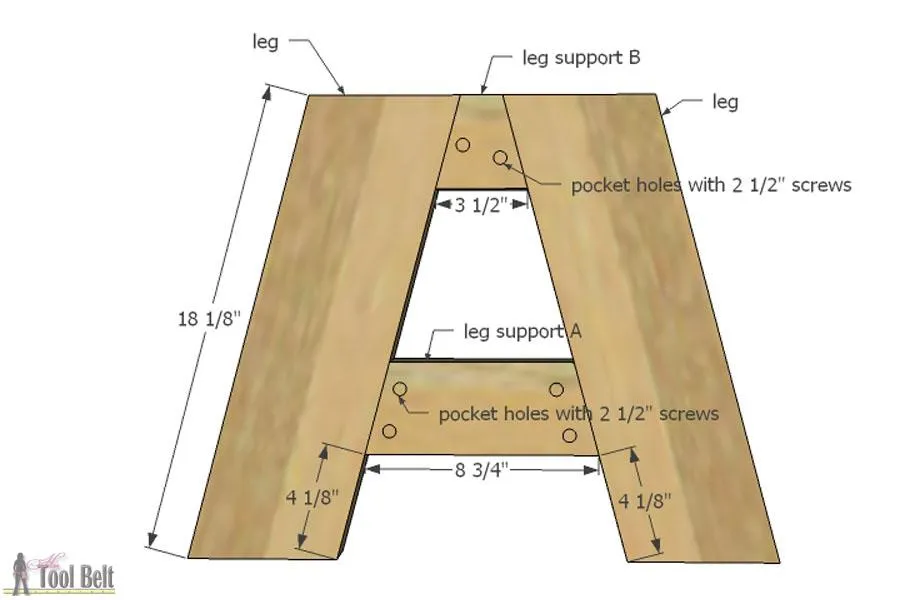

| Leg | 8 | 1" × 5" × 18" | — | ☐ |
| Narrow top | 4 | 1" × 3" × 60" | — | ☐ |

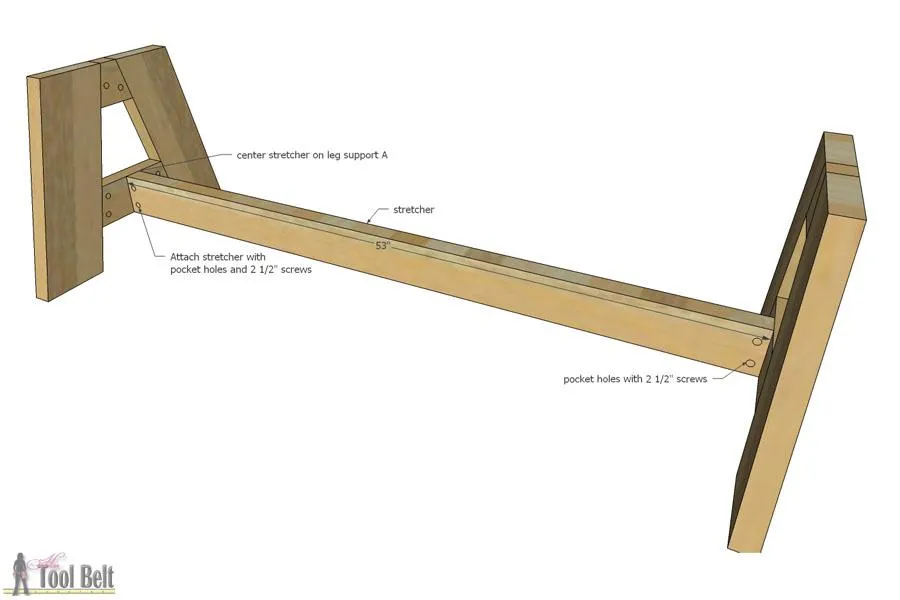

| Stretcher | 2 | 1" × 3" × 53" | — | ☐ |
| Table top support | 4 | 1" × 3" × 16" | — | ☐ |
| Arm rest | 4 | 1" × 3" × 12" | — | ☐ |

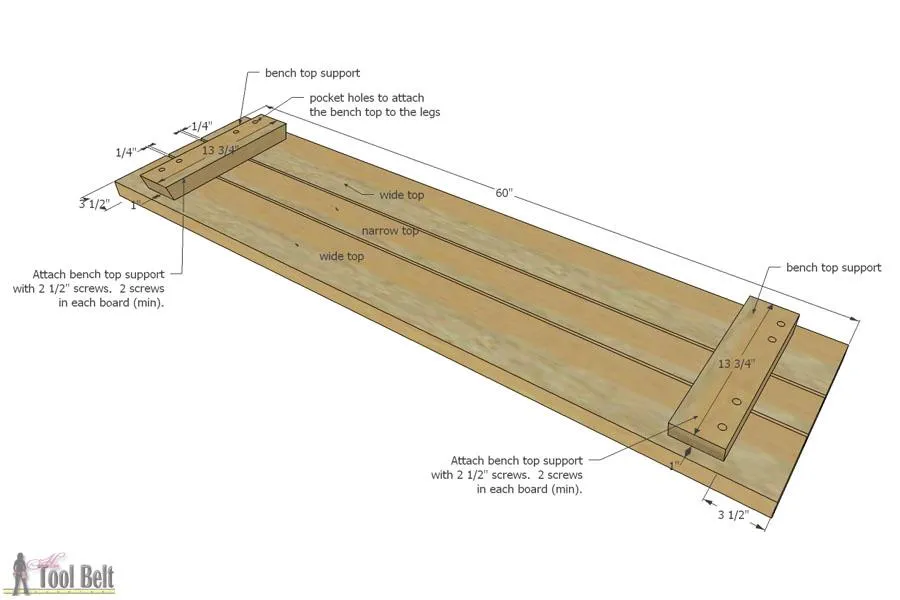

| Bench top support | 4 | 1" × 3" × 13" | — | ☐ |
| Riser | 4 | 1" × 3" × 6" | — | ☐ |
| Arm support | 4 | 1" × 3" × 6" | — | ☐ |
| Leg spacer A | 4 | 1" × 3" × 8" | — | ☐ |
| Leg spacer B | 4 | 1" × 3" × 3" | — | ☐ |
| Item | Qty | ✓ |
|---|---|---|
| Board, 2x6 120" | 4 board | ☐ |
| Board, 2x6 96" | 2 board | ☐ |
| Board, 2x4 120" | 3 board | ☐ |
| Board, 2x4 96" | 3 board | ☐ |

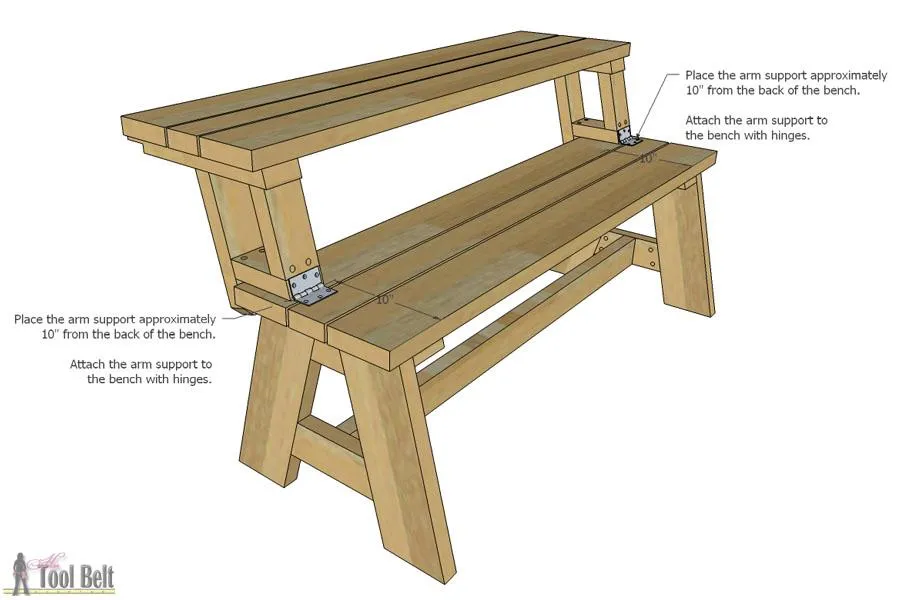

| 3" utility hinge | 4 each | ☐ |
| Wood glue | 1 each | ☐ |
| Sandpaper | 4 each | ☐ |
| Stain (Varathane Vintage Aqua) | 1 each | ☐ |
| Outdoor polyurethane | 1 each | ☐ |
| 2 1/2" exterior Kreg Pocket Hole Screws | 160 each | ☐ |
Overall cost: $$$. Lumber varies by region, species, and season, so we give a band rather than a figure.

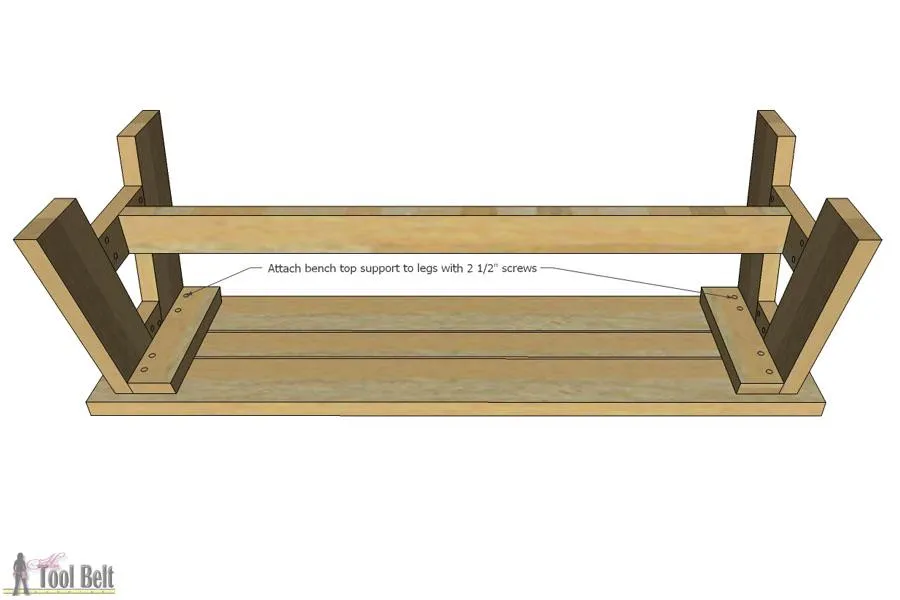

Turn the leg assembly upside down; use wood glue and 2 ½” screws to attach the bench top to the legs. Repeat for 2nd bench.

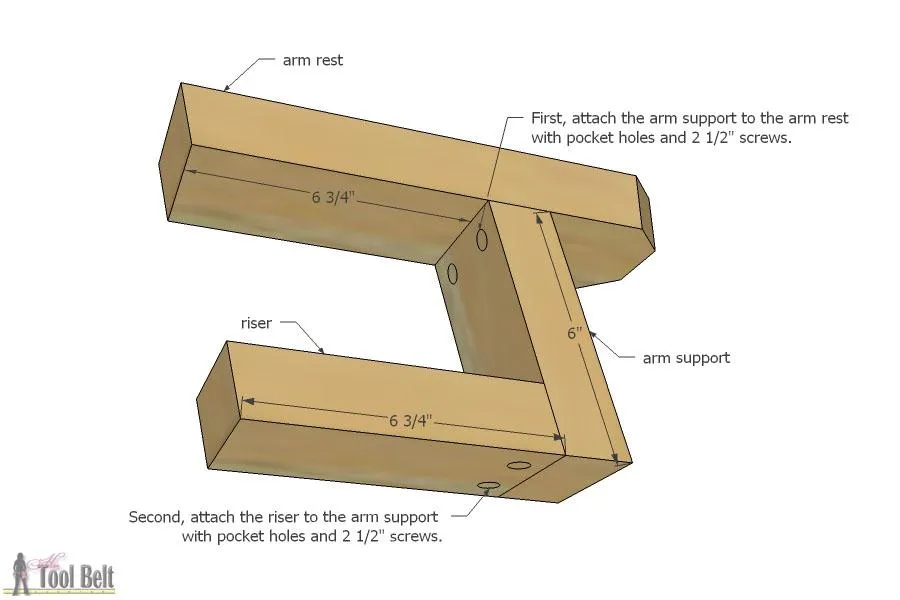

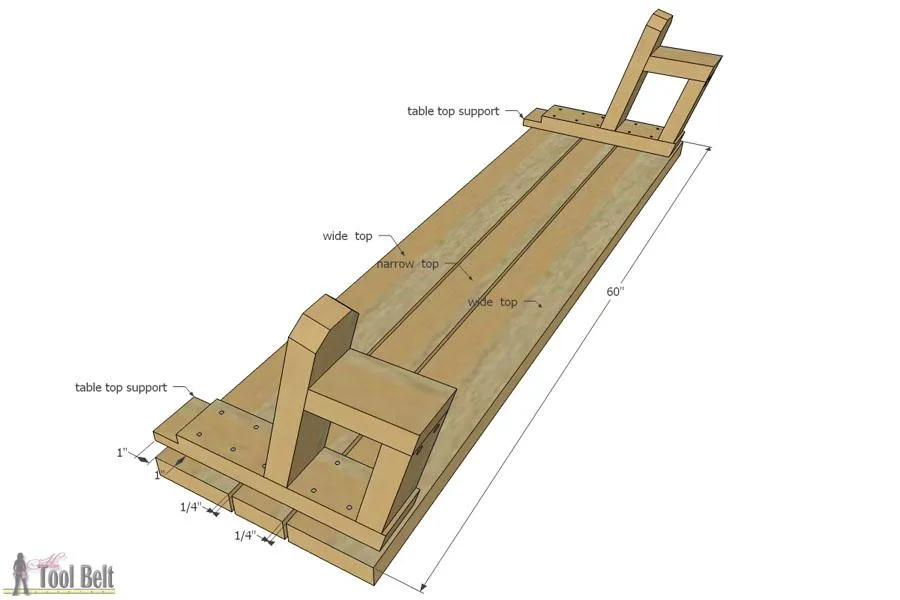

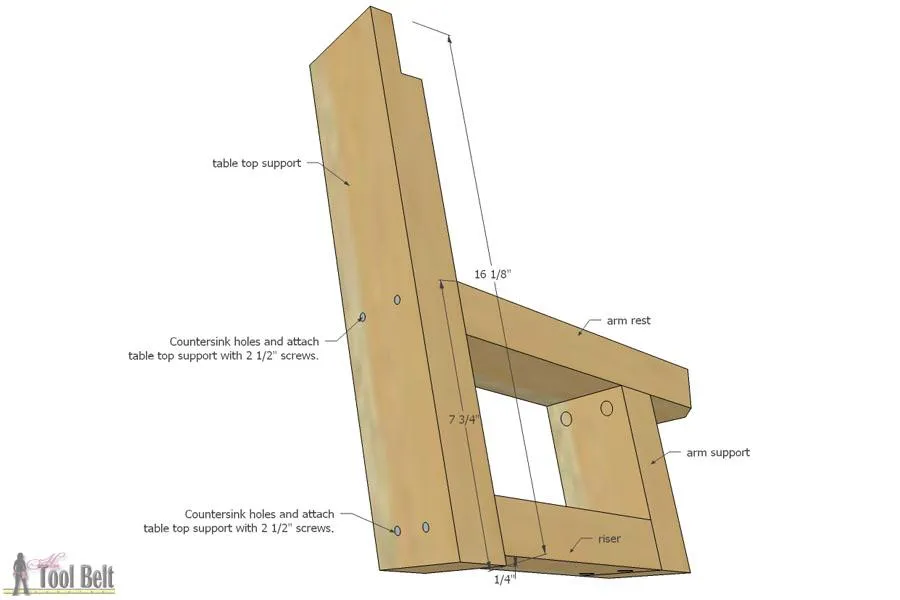

(Note: The cut list includes optional lap joints on the table top supports to keep the picnic table top together. If the lap joints are not desired, cut the table top supports down to 15 1/8" long instead of 16 1/8".) On the long side of the table support pieces, mark at ¼” and 7 ¾” up from the bottom. Pre-drill countersink holes in the narrow side of the table top support pieces to attach the riser and arm rest. Use wood glue and 2 ½” to attach the arm rest and riser through the table support pieces. Repeat for each arm assembly.
