Notch- Difficulty
- Easy
- Time
- 4–7.8 hours
- Cost
- $$$
About this build

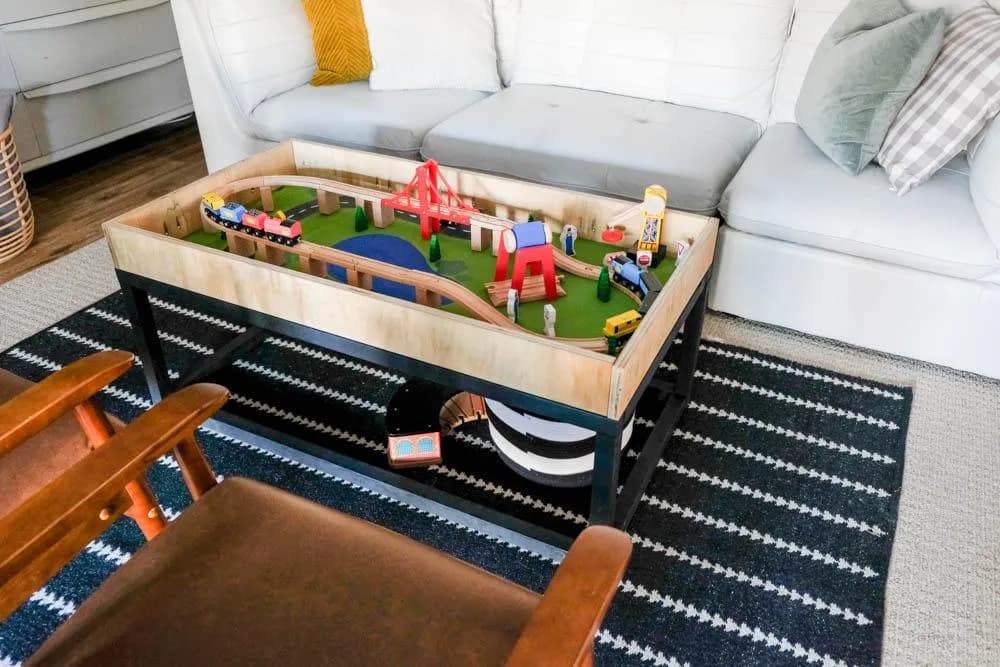

In this plan you’ll see how to build a coffee table with a simple, modern base and train table on top, which can also be used as storage. This can also be used without the storage above, but it makes a great place to store things like board games and other things not used daily.
Tools
Essential
- Impact Driver
- Miter Saw
- Pocket Hole Jig
- Table Saw
Optional / nice to have
- Bar / Pipe Clamps
- Tape Measure
Materials
| Item | Qty |
|---|---|
| Board, 2x2 96" | 4 board |
| Board, 1x2 96" | 2 board |
| Plywood, 3/4" Thick Full Sheet | 1 board |
| 1-1/4" Kreg Pocket Hole Screws | 30 each |
| 2-1/2" Kreg Pocket Hole Screws | 50 each |
| Black paint | 1 each |
| Sanding block - 60 grit | 1 each |
| Sanding block - 120 grit | 1 each |
| Wood stain in colour of choice | 1 each |
| 1-1/2" Kreg Pocket Hole Screws | 18 each |
| Small craft paintbrushes | 5 each |
| Variety of acrylic paints (I used light green, dark green, blue, charcoal, and white) | 1 each |
Overall cost: $$$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
Cut list
| Part | Qty | T × W × L |
|---|---|---|
| Base | 4 | 1 1/2" × 1 1/2" × 12" |
| Base | 4 | 1 1/2" × 1 1/2" × 45" |
| Base | 4 | 1 1/2" × 1 1/2" × 21" |
| Support | 3 | 1/2" × 1 1/2" × 21" |
| Lid stopper | 2 | 1/2" × 1 1/2" × 44" |
| Tabletop surround | 2 | 3/4" × 4" × 43 1/2" |
| Tabletop surround | 2 | 3/4" × 4" × 24" |
| Tabletop | 1 | 3/4" × 24" × 45" |
| Train table base | 1 | 3/4" × 21" × 42" |
What to buy
Buy 10 boards at 8 ft.
1 1/2" × 1 1/2"
4 boards
3/4" × 24"
1 board
3/4" × 21"
1 board
3/4" × 4"
2 boards
1/2" × 1 1/2"
2 boards
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Instructions

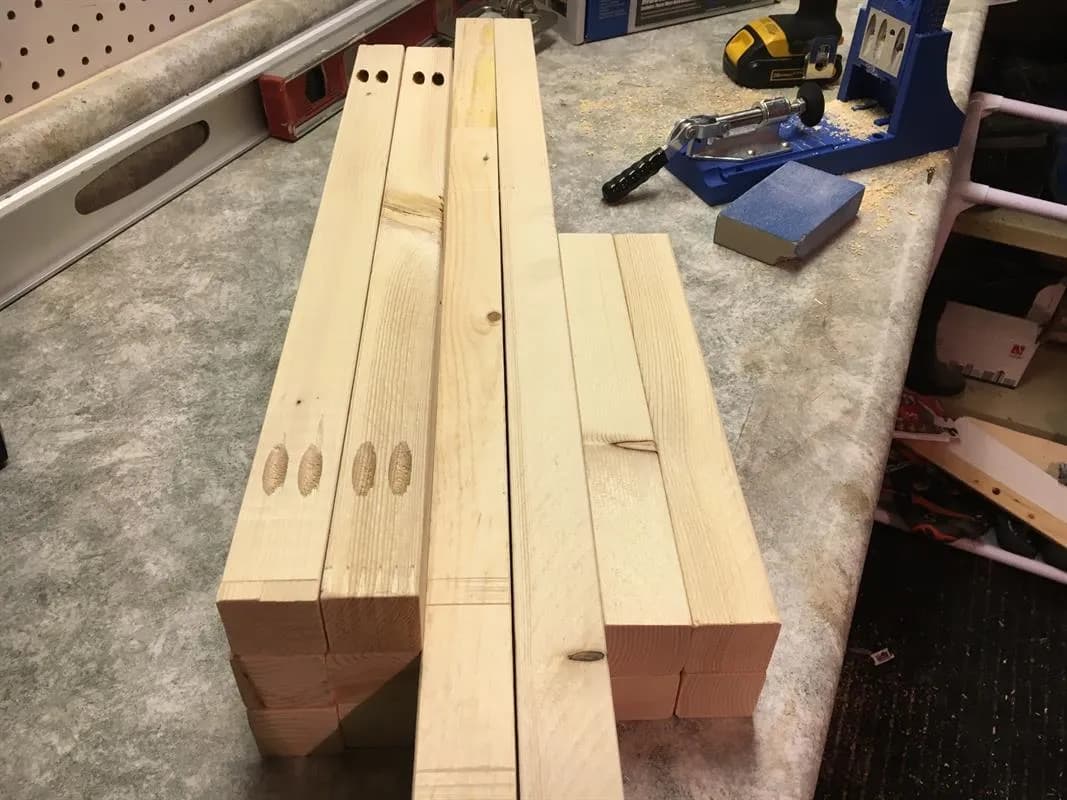

1Prepare base
Once pieces are cut to size according to cut list, drill pocket holes into all of the 1-1/2"x 1-1/2" pieces for the base, except the 12" ones. Sand all pieces.

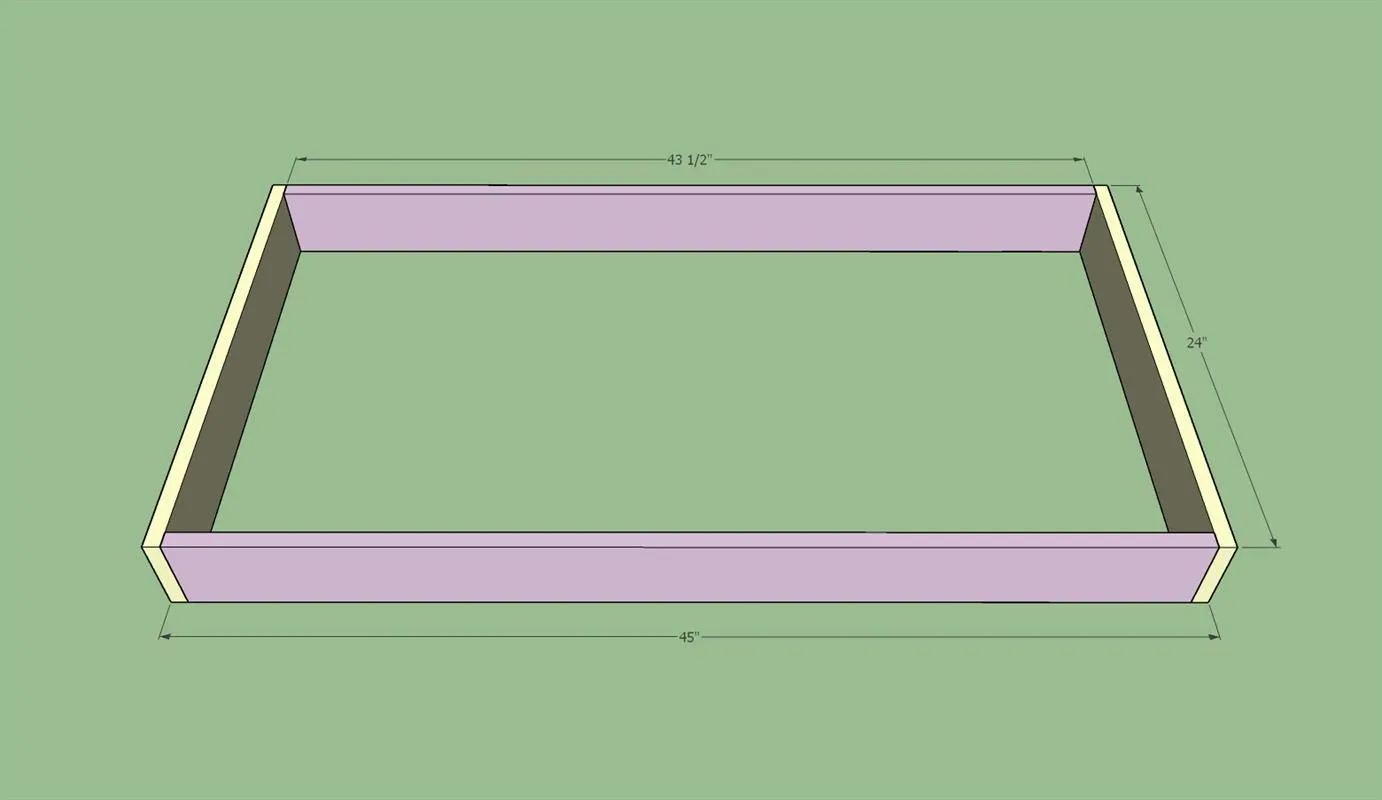

2Prepare tabletop surround
Drill pocket holes into all four pieces, plus an additional two holes on the sides of the longer pieces to create a "box." Attach all four pieces using 1-1/4" pocket screws. Sand all pieces smooth with 120 grit sandpaper.

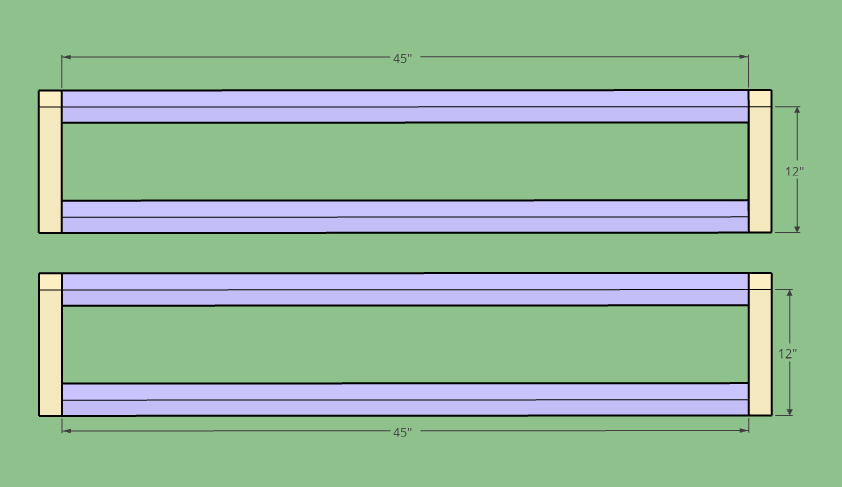

3Build frame base - part 1
Using 45" and 21" pieces of the 1-1/2"x1-1/2" boards, create two frames as illustrated in image using 2-1/2" pocket screws.

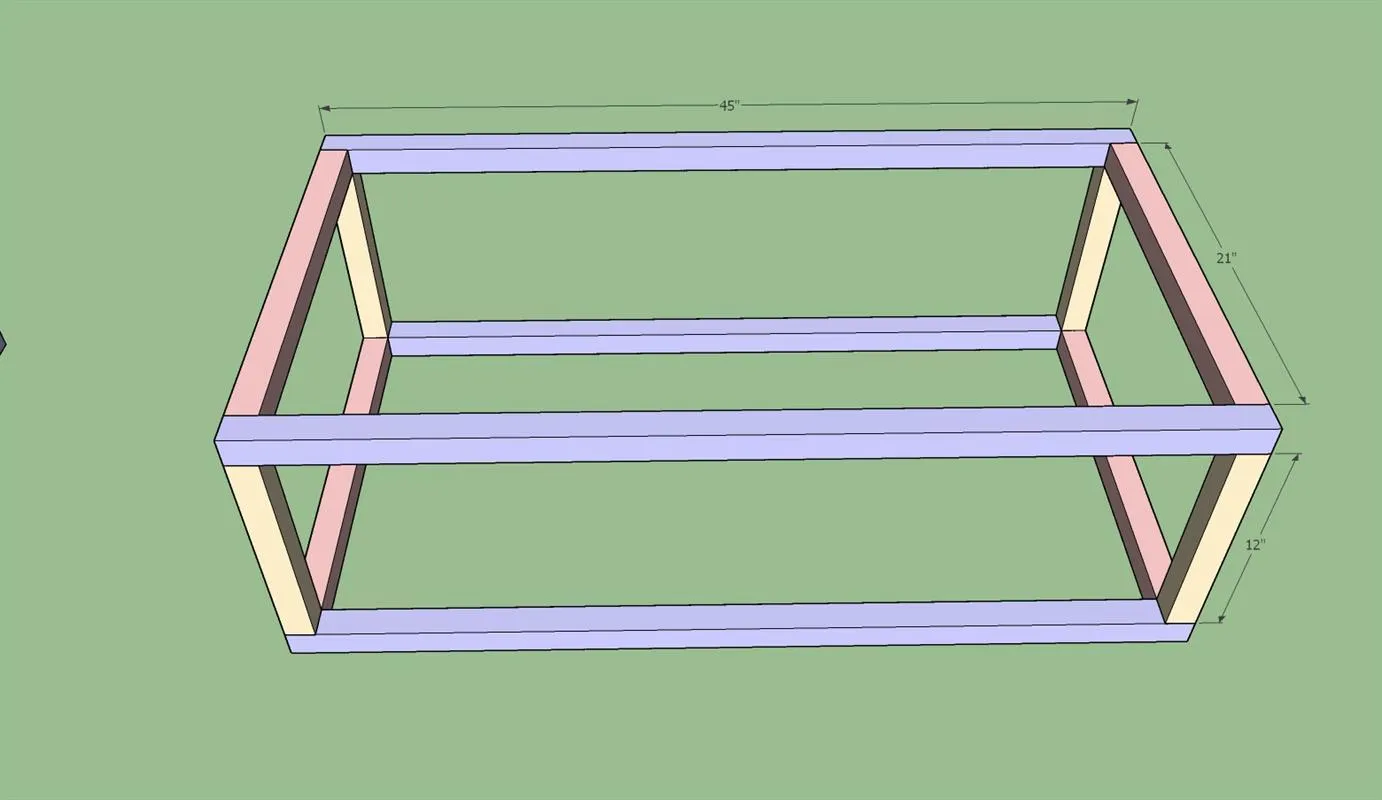

4Build frame base - part 2
Attach 1-1/2"x1-1/2"x21" pieces to the frames using 2-1/2" pocket screws.

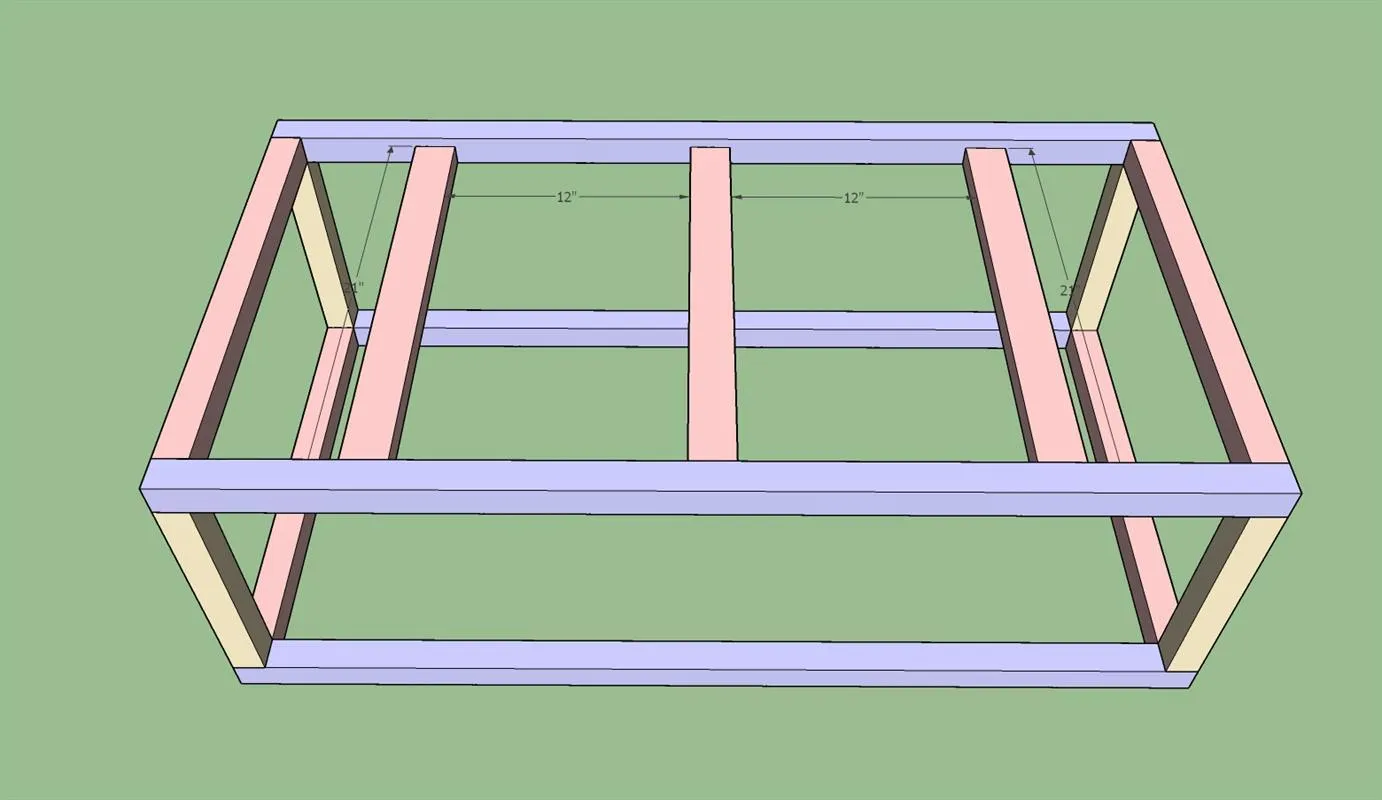

5Build bottom supports
Attach the 3/4"x1-1/2"x21" boards to the base frame to create a support for the bottom of the tabletop.

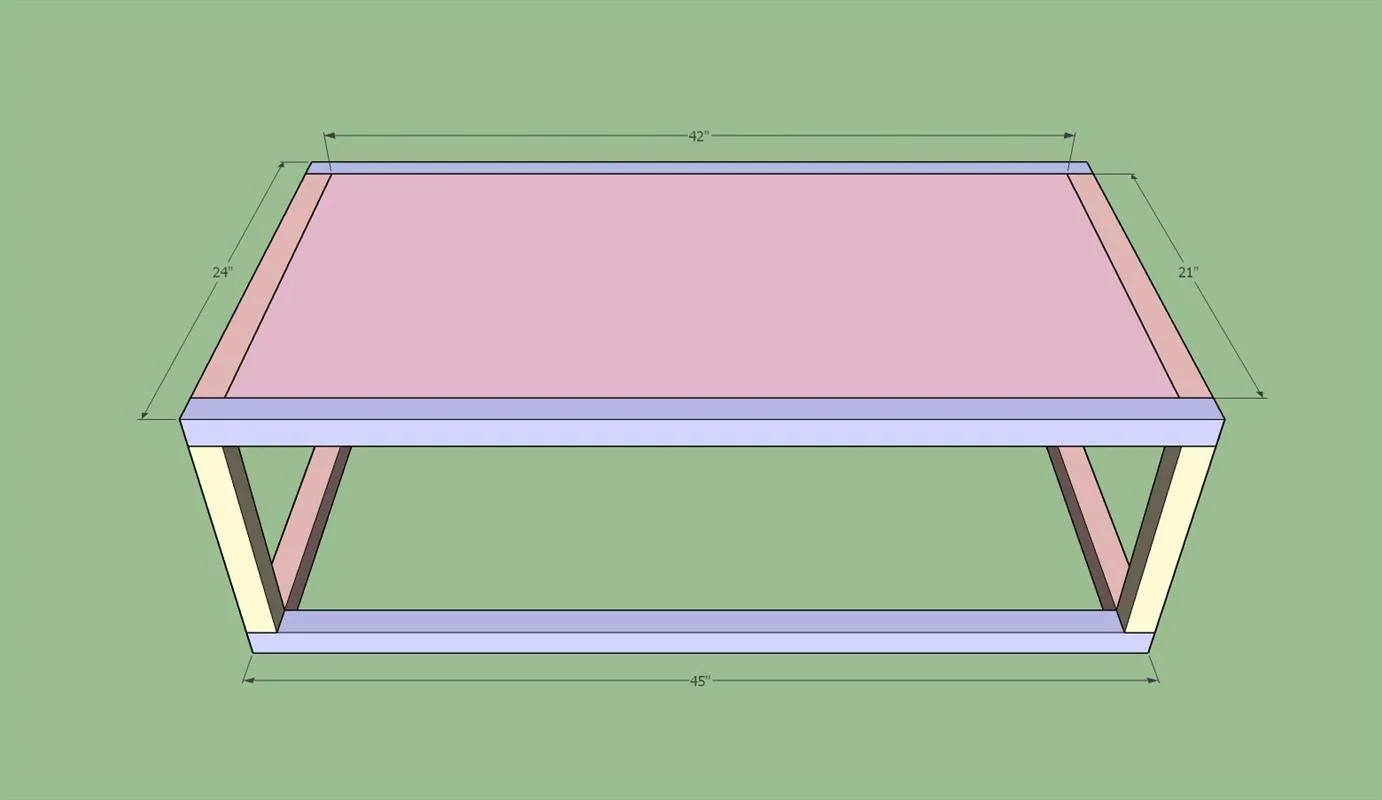

6Add plywood bottom
You can use screws for this, but it should be a tight enough fit that you don't need to.

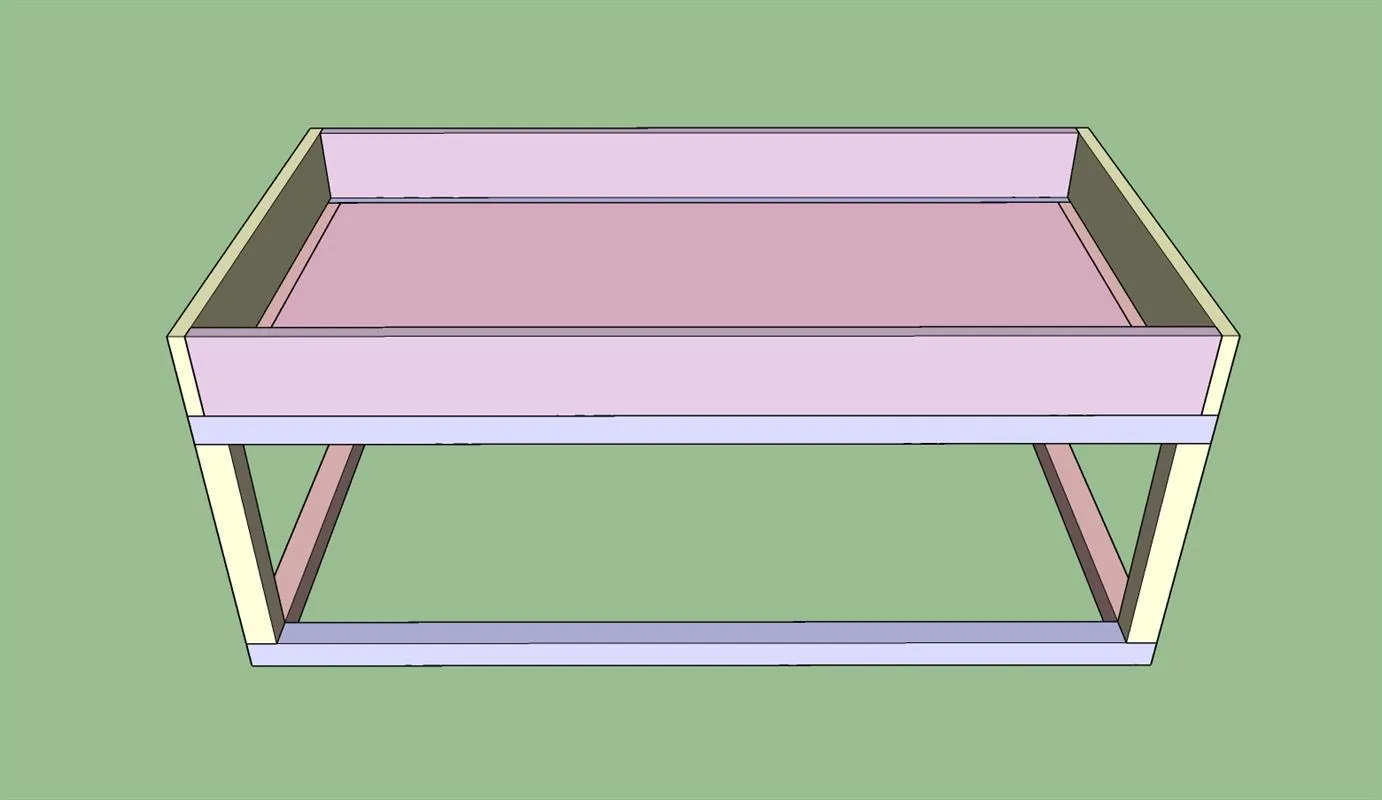

7Attach train table surround
Stain the entire thing in the colour of your choice, then, using 1-1/2" pocket screws, attach top piece.

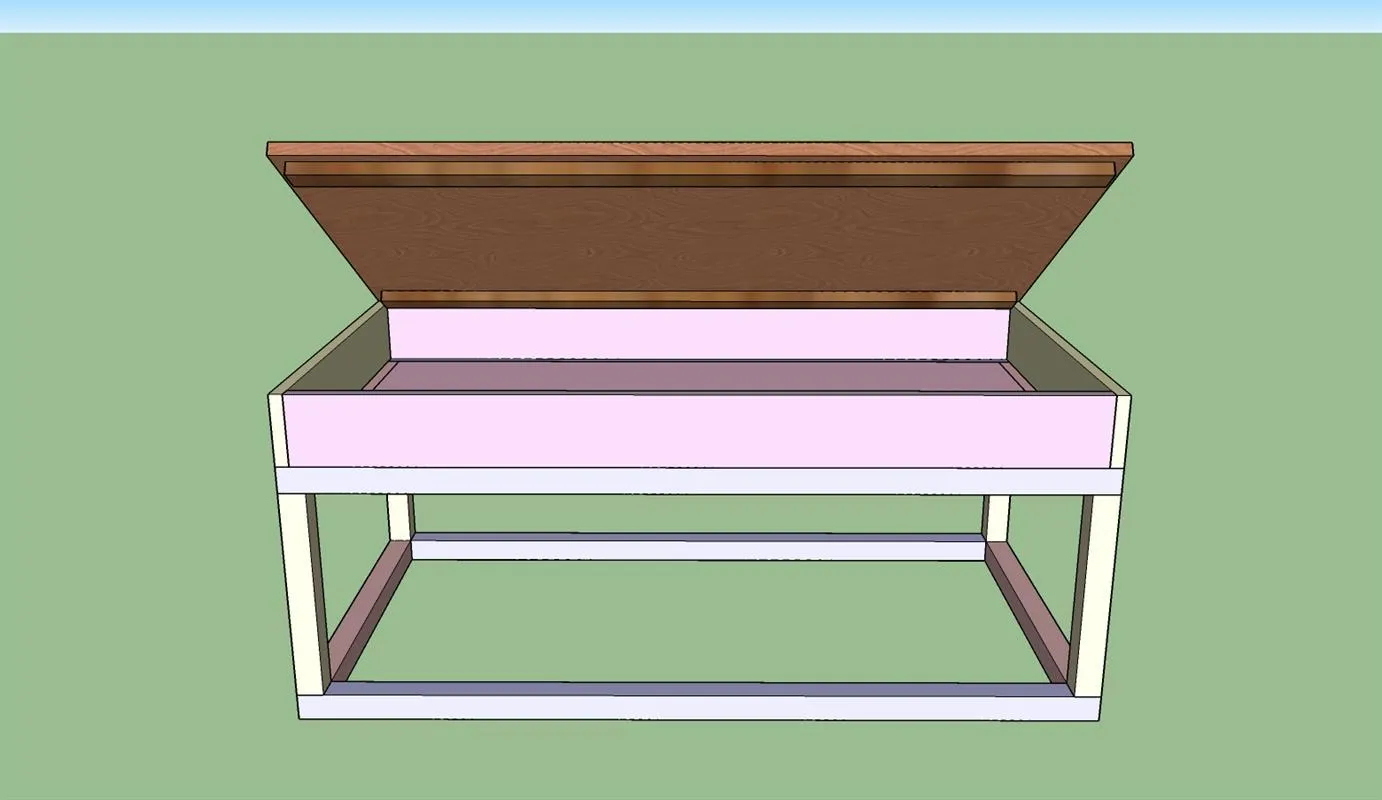

8Prepare tabletop
Add stoppers to the tabletop so that the top doesn't slide around. Stain in colour of choice.

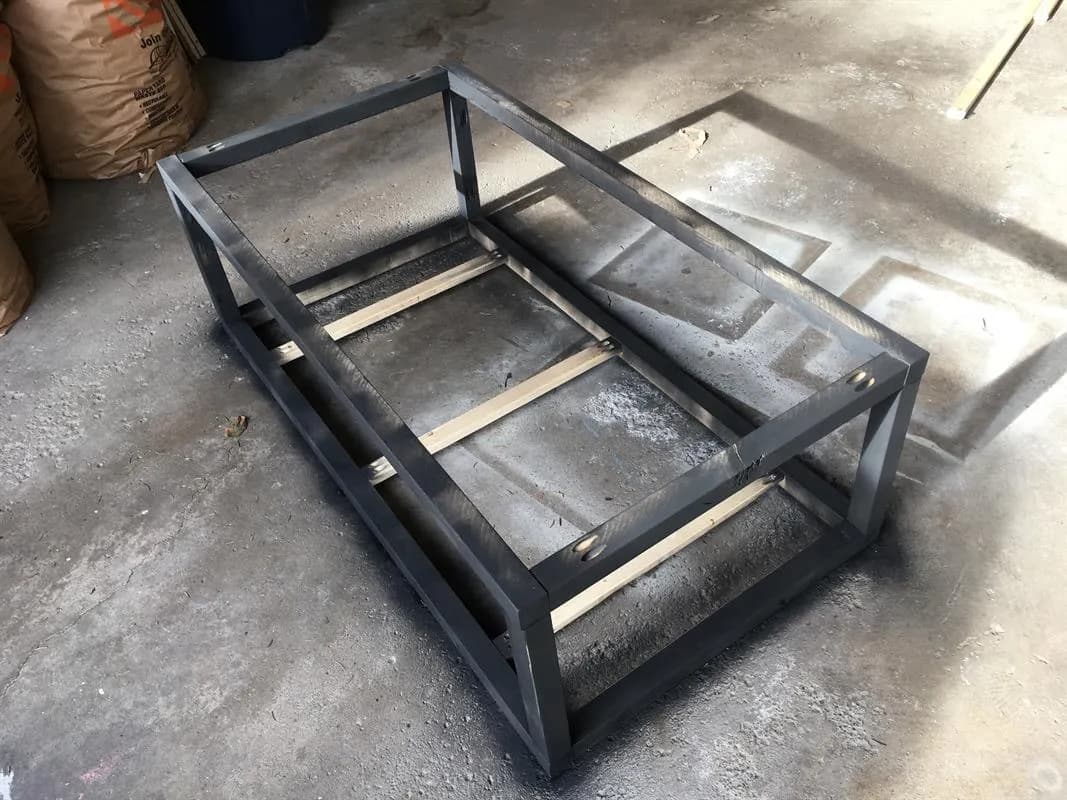

9Paint base
Using a matte black paint of your choice, paint the base.

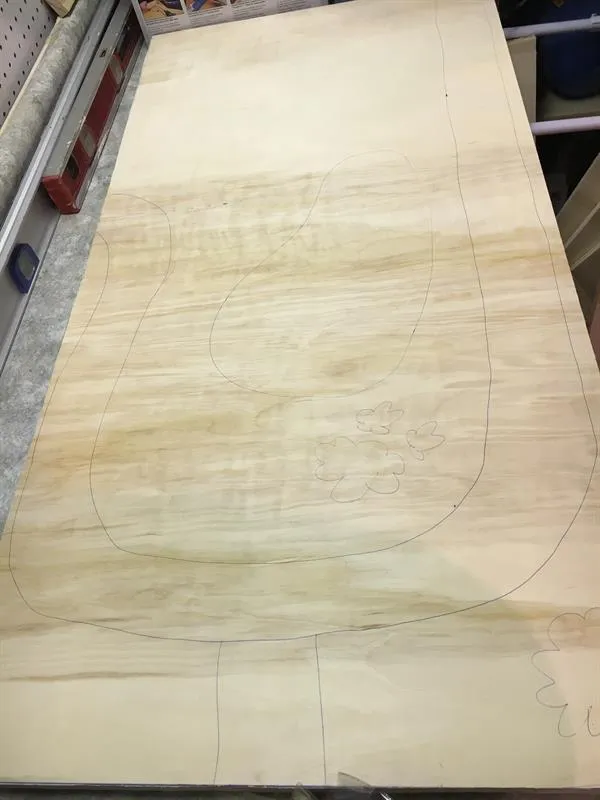

10Draw train table landscape
Using a pencil, draw a road, lake, trees, and whatever else you'd like as part of your train table landscape on the plywood base.

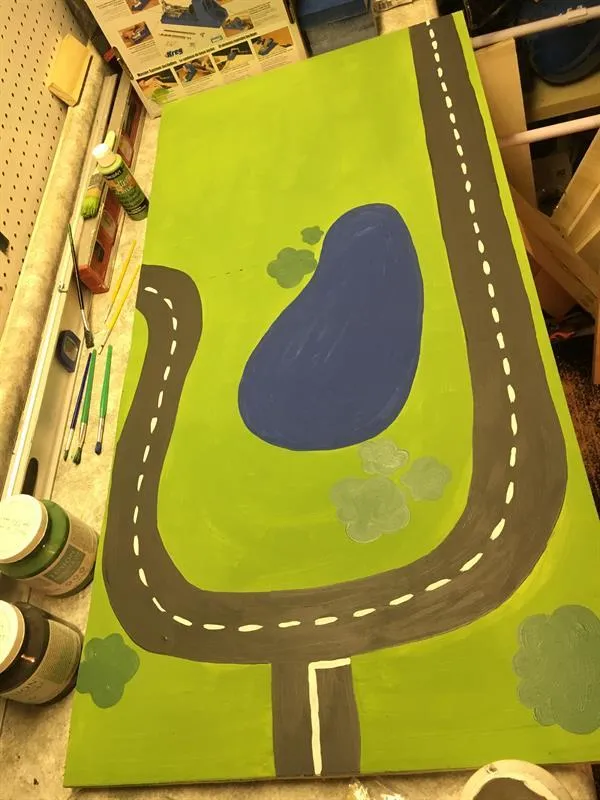

11Paint lansdcape
Using acrylic paint and small craft paintbrushes, paint the grass, water, road, etc.

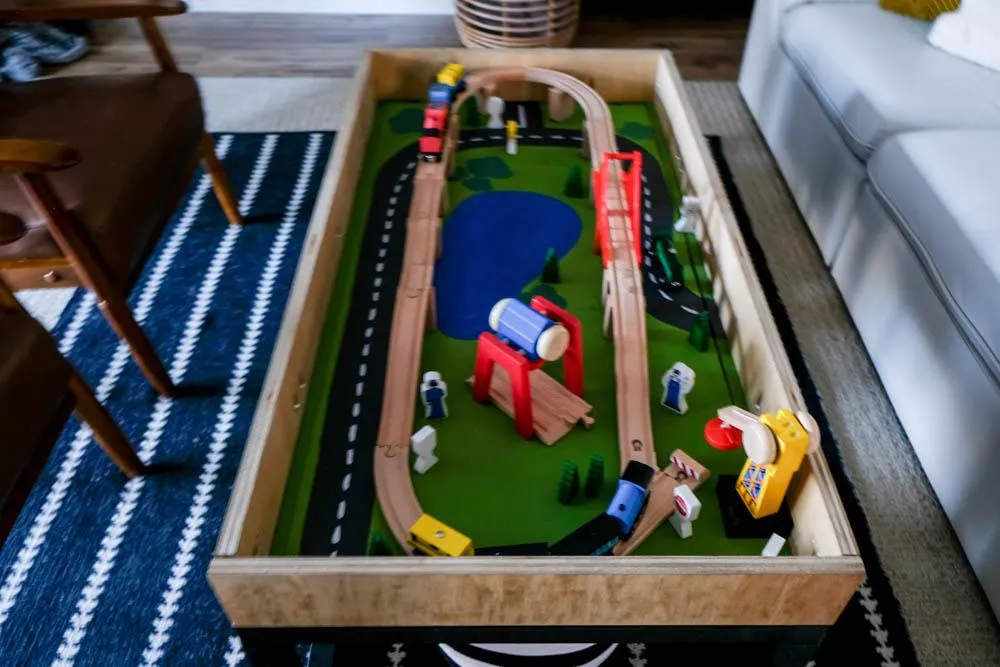

12Add trains!
Add in your trains and let the kiddos play! When they're done, just add the top back on!
