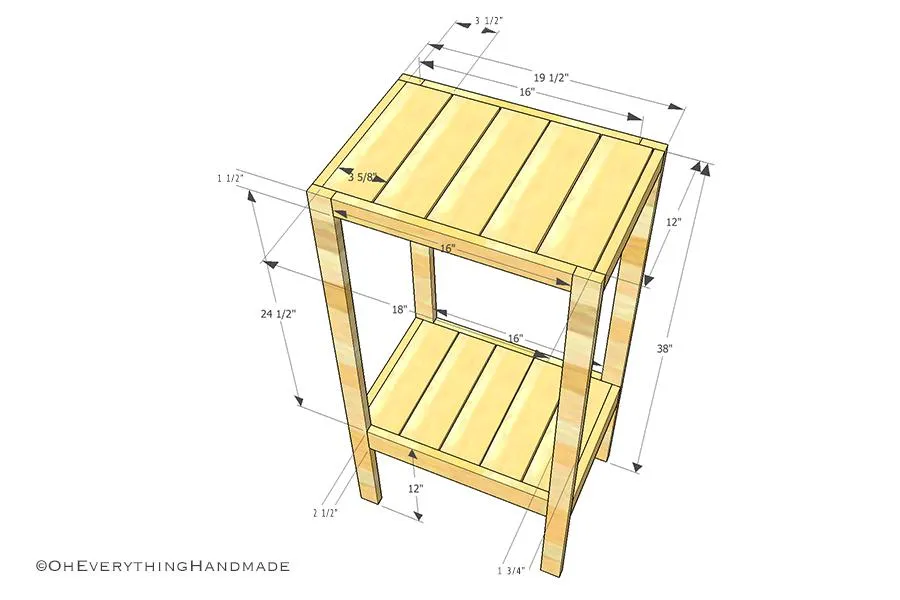

This shelf is 38″ high by 13″ wide and it’s multipurpose function allows you to use it as a coffee bar or kitchen island.
| Part | Qty | T × W × L | Material | ✓ |
|---|---|---|---|---|
| Legs | 4 | 3/4" × 1" × 38" | — | ☐ |
| Long Top Board | 2 | 3/4" × 1" × 16" | — | ☐ |
| Short Top Board | 2 | 3/4" × 1" × 12" | — | ☐ |
| Long Bottom Board | 2 | 3/4" × 2" × 16" | — | ☐ |
| Short Bottom Board | 2 | 3/4" × 2" × 12" | — | ☐ |
| Shelf boards top and bottom | 10 | 3/4" × 3" × 12" | — | ☐ |
| Item | Qty | ✓ |
|---|---|---|
| Board, 8ft 1x2" | 2 board | ☐ |
| Board, 6ft 1x1 1/2" | 1 board | ☐ |
| Board, 6ft 1x2 1/2" | 1 board | ☐ |
| Board, 12ft 1x3 1/2" | 1 board | ☐ |
| Wood Glue | 1 each | ☐ |
| 1 1/4" Pocket hole screws | 52 each | ☐ |

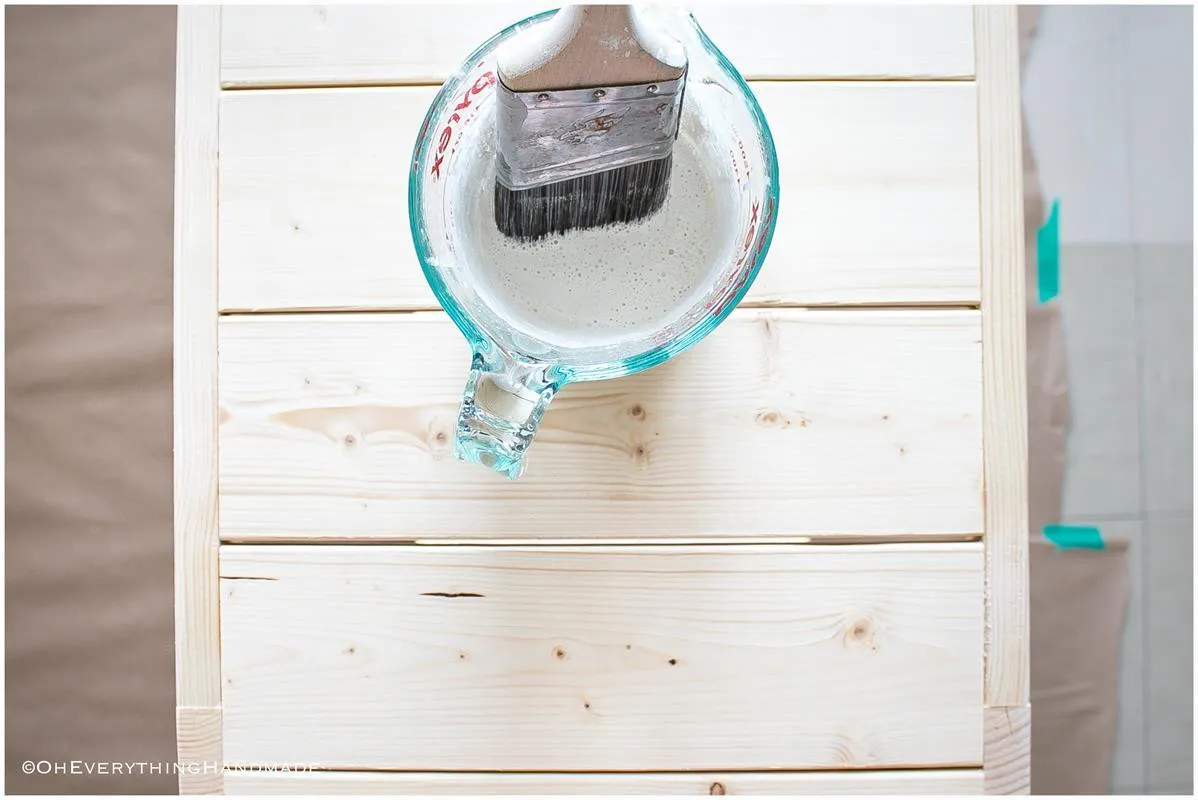

| 1 cup Miss Mustard Seed's Milk Paint (Ironstone) | 1 each | ☐ |
| Miss Mustard Seed - Clear Furniture Wax | 1 each | ☐ |
| Brush | 1 each | ☐ |
| Sandpaper (220 grit or higher) | 1 each | ☐ |
Overall cost: $$. Lumber varies by region, species, and season, so we give a band rather than a figure.

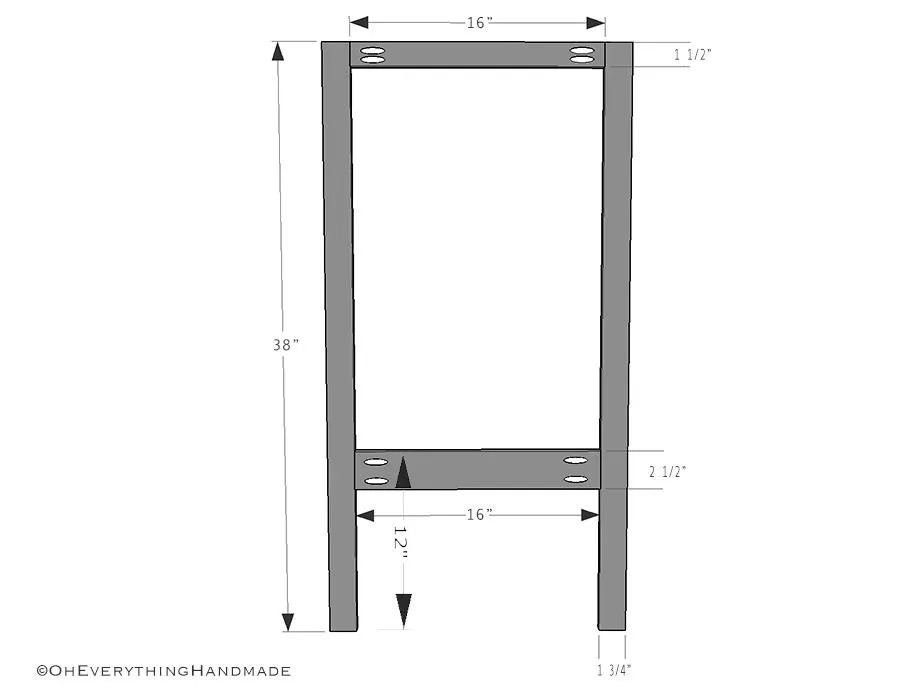

Make your cuts for the shelf: 2"x8' (4) @ 38" | 2.5"x6' (2) @ 16" and (2) @ 12" | 1.5"x6' (2) @ 16" and (2) @ 12" | 3.5"x12' (10) @ 12" *Tip: I trimmed the edges of both lumber pieces for the legs (1" x 2" x 8") to achive a crisp finish. NOTE: Please note that all 1" lumber measures 3/4".

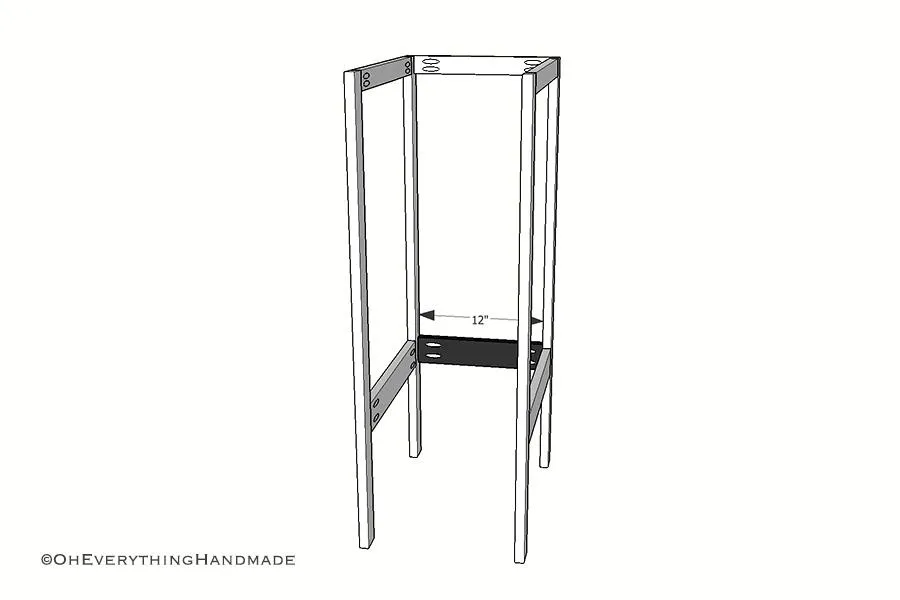

Pre-drill pocket holes with the Kreg Jig for 3/4" material into the ends of the 2 1/2 x 12" cuts. Attach 2 1/2 x 12"s to the leg frames using 1 1/4" pocket screws.

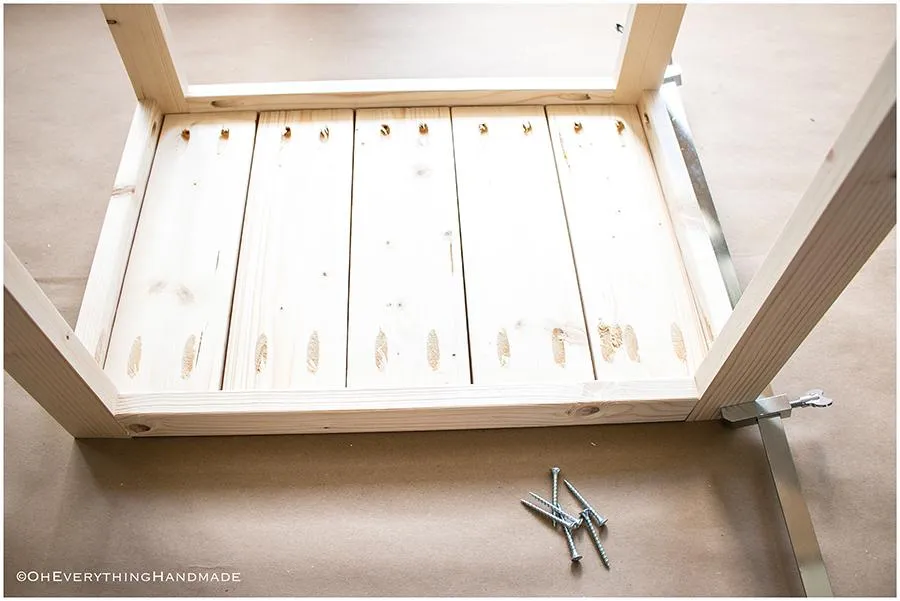

Drill pocket screw holes for 3/4" material with the Kreg Jig along the ends of the 3/4"x3 1/2"x12" boards. Attach the boards to the edge of the base with 1 1/4" pocket hole screws, leaving 1/4" gap between each board (see image for reference)
