This three drawer nightstand will add lots of convenient storage to your bedside.
| Part | Qty | T × W × L | Material | ✓ |
|---|---|---|---|---|
| Leg | 4 | 1" × 1" × 27" | — | ☐ |
| Front bottom rail | 1 | 1" × 1" × 19" | — | ☐ |
| Side rail | 2 | 1" × 1" × 14" | — | ☐ |
| Top side | 2 | 3/4" × 1" × 18" | — | ☐ |
| Top front | 1 | 3/4" × 1" × 24" | — | ☐ |
| Front rail | 3 | 3/4" × 1" × 19" | — | ☐ |
| Drawer front stile | 6 | 3/4" × 1" × 3" | — | ☐ |
| Drawer front rail | 6 | 3/4" × 1" × 19" | — | ☐ |
| Back rail | 2 | 3/4" × 1" × 19" | — | ☐ |
| Side panel | 2 | 3/4" × 14" × 23" | — | ☐ |
| Drawer bottom | 3 | 3/4" × 14" × 17" | — | ☐ |
| Top | 1 | 3/4" × 16" × 21" | — | ☐ |
| Drawer B/F | 6 | 3/4" × 5" × 17" | — | ☐ |
| Drawer sides | 6 | 3/4" × 5" × 16" | — | ☐ |
| Bottom | 1 | 3/4" × 14" × 19" | — | ☐ |
| Back | 1 | 1/4" × 19" × 24" | — | ☐ |
| Drawer front plywood | 3 | 1/2" × 3" × 16" | — | ☐ |
| Item | Qty | ✓ |
|---|---|---|
| Plywood, 3/4" Thick Full Sheet | 1 board | ☐ |
| Plywood, 1/2" Thick Quarter Sheet | 1 board | ☐ |
| Plywood, 1/4" Thick Quarter Sheet | 1 board | ☐ |
| Board, 2x2 96" | 2 board | ☐ |
| Board, 1x2 96" | 4 board | ☐ |
| Square dowel, 3/8" x 3/8" 36" | 2 board | ☐ |
| Cup pulls | 3 each | ☐ |
| 16" drawer runners | 3 each | ☐ |
| 1 1/4" pocket hole screws | 140 each | ☐ |
| 2 1/2" pocket hole screws | 12 each | ☐ |
| Sandpaper | 1 each | ☐ |
| Wood glue | 1 each | ☐ |
| Wood filler | 1 each | ☐ |
| Stain/paint | 1 each | ☐ |
| 1" brad nails | 20 each | ☐ |
| 1" pocket hole screws | 30 each | ☐ |
Overall cost: $$$. Lumber varies by region, species, and season, so we give a band rather than a figure.

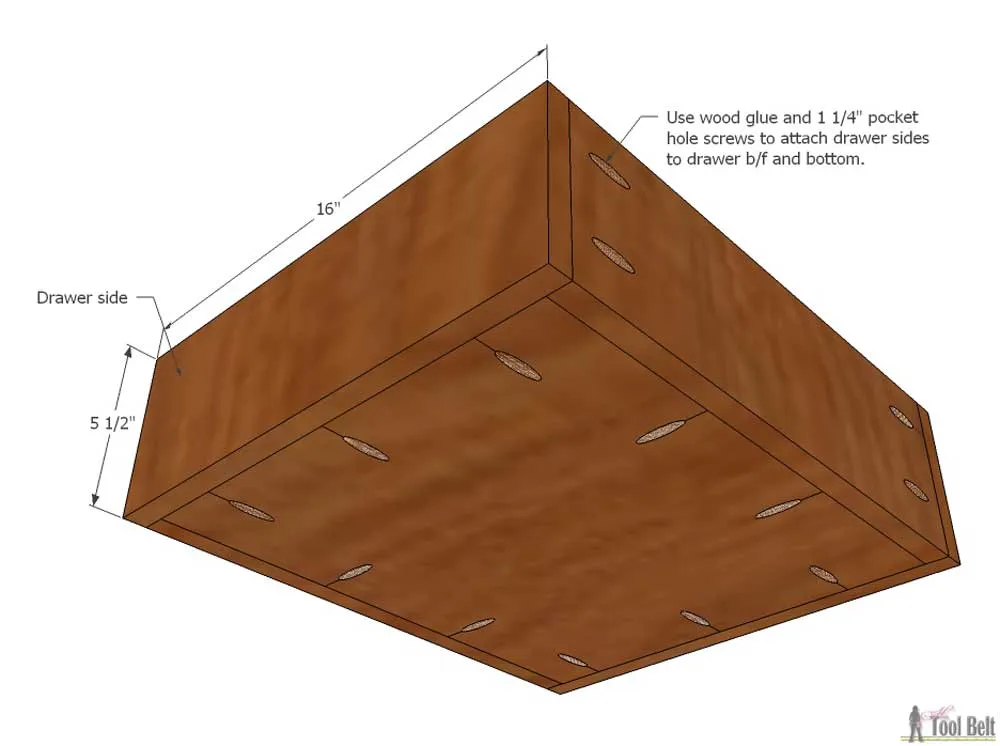

Attach drawer sides to the drawer bottom and drawer b/f with wood glue and 1 1/4" pocket hole screws. Repeat for 3 drawers.

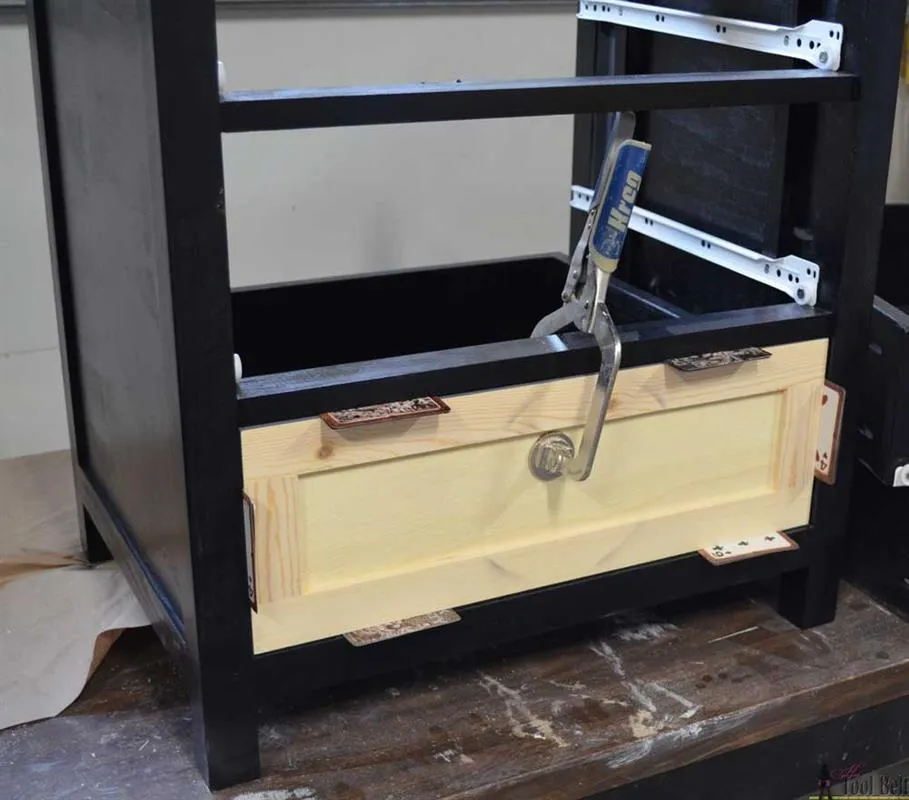

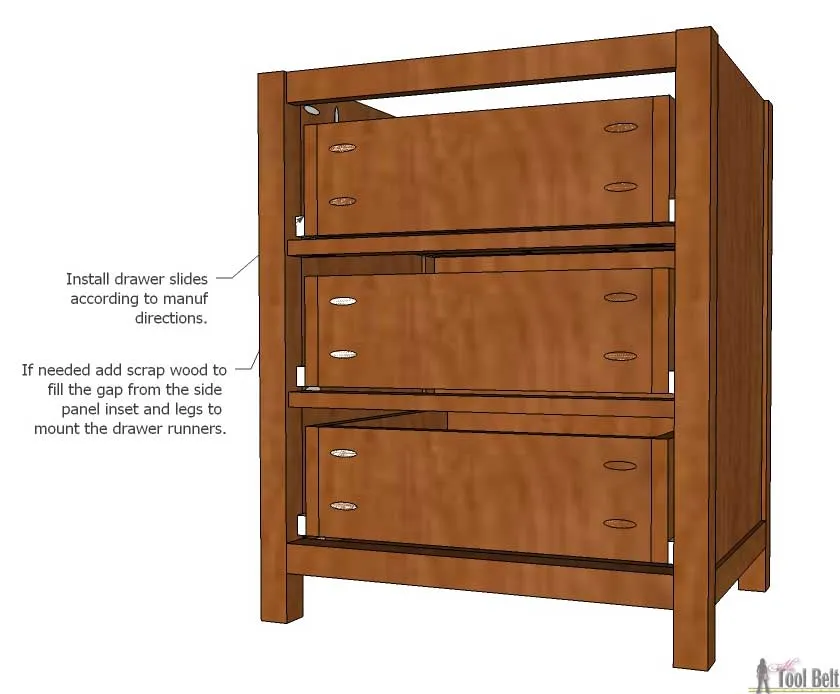

Install the 3 drawer runner sets on the nightstand according to manufactures directions. The drawer runners need to start about 1" in from the nightstand front (3/4" for the drawer front and 1/4" inset drawers). If needed add scrap wood (shims) to fill the gap from the side panel inset and legs to mount the drawer runners. Also if your plywood isn't 3/4" thick, you may also need to add shims to make up the difference.
