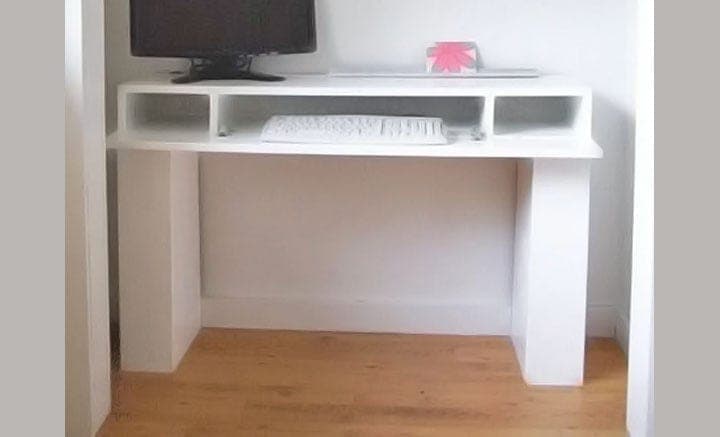

This is a console table with a secret: it works as a slim desk. The front-facing 1x6 panels aren't fixed — they're hung on frameless Euro hinges so they flip down. The center panel becomes a keyboard tray, and the two leg panels swing open to reveal hidden storage in the thick legs. Closed, it reads as a solid chunky console; open, it's a workstation.
The whole thing is 1x12 and 1x6, and the plan is refreshingly relaxed about fasteners — brad nails (cheapest, easiest to hide), 2" self-tapping screws, or pocket holes, in any combination. Pocket holes make the strongest joints where it counts; brads are fine where they don't. The one piece of real hardware is the six Euro hinges, and installing them early is the key insight: once the box is assembled it's very hard to get a drill inside, so hang the hinges before you close things in.
A nice touch: the 4" divider pieces double as spacers to set your shelf height during assembly. The dividers inside are positioned to hold 8-1/2" x 11" paper, but they're not structural, so you can move them. If the flip-down keyboard tray needs more support, the plan suggests a hidden chain or hinge support on the dividers, and enclosing the back with 1x6s adds overall rigidity at a little extra cost.
| Item | Qty |
|---|---|
| 1x12, 8 ftTop and shelf. | 1 each |
| 1x12, 10 ftLegs and dividers. | 1 each |
| 1x6, 8 ftKeyboard fold-down and leg storage doors. | 1 each |
| Frameless full-overlay Euro hinges | 6 each |
| Brad nails, 1-1/4 in and 2 in | 1 box |
| Self-tapping screws, 2 in | 1 box |
| Wood glue | 1 bottle |
| Finish or paint | 1 quart |
Overall cost: $$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Outer legs1x12 | 2 | 3/4" × 11 1/4" × 29 1/4" |
| Shelf1x12 | 1 | 3/4" × 11 1/4" × 46 1/2" |
| Inner legs1x12 | 2 | 3/4" × 11 1/4" × 24 1/2" |
| Top1x12 | 1 | 3/4" × 11 1/4" × 48" |
| Dividers1x12Doubles as a shelf-height spacer during assembly. | 6 | 3/4" × 11 1/4" × 4" |
| Keyboard fold-down1x6 | 1 | 3/4" × 5 1/2" × 48" |
| Storage leg doors1x6 | 2 | 3/4" × 5 1/2" × 23 3/4" |
Buy 5 boards at 8 ft.
3 boards
2 boards
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Attach the legs to the desk shelf with your choice of fastener — brad nails and glue, 2" screws, or pocket holes, in any combination. Pocket holes make the strongest joint here and are recommended. Tip: use one of the 4" divider pieces as a temporary spacer to set your shelf height consistently.
Install the six Euro hinges at this stage — it's much harder to get a drill inside the project as it closes in. Screw them to the project with the flat front flush to the front edges; a scrap block helps hold them flush. Exact placement isn't critical, just close to the diagram.
Attach the inner leg pieces to the shelf — pocket holes recommended for strength. Then attach the top to the outer legs; 1-1/4" brad nails with glue are ideal here since they're the easiest to hide on a visible top surface.
Attach the dividers inside the project with 1-1/4" brads and glue. They're spaced to fit an 8-1/2" x 11" book or paper in each opening, but they're not structural — move them wherever suits what you'll store without weakening anything.
Position the 1x6 fold-down faces under the project — the center one is the keyboard tray, the two leg panels are storage doors — and attach them through the hinges with screws. They should swing down cleanly and sit flush when closed.
If the piece needs more support, enclose the back with 1x6 boards (attached with 1-1/4" brads and glue) to add rigidity. The keyboard fold-down can be further strengthened with a hidden chain or hinge support on the insides of the dividers, which stops it from swinging too far.
Sand and finish or paint.
