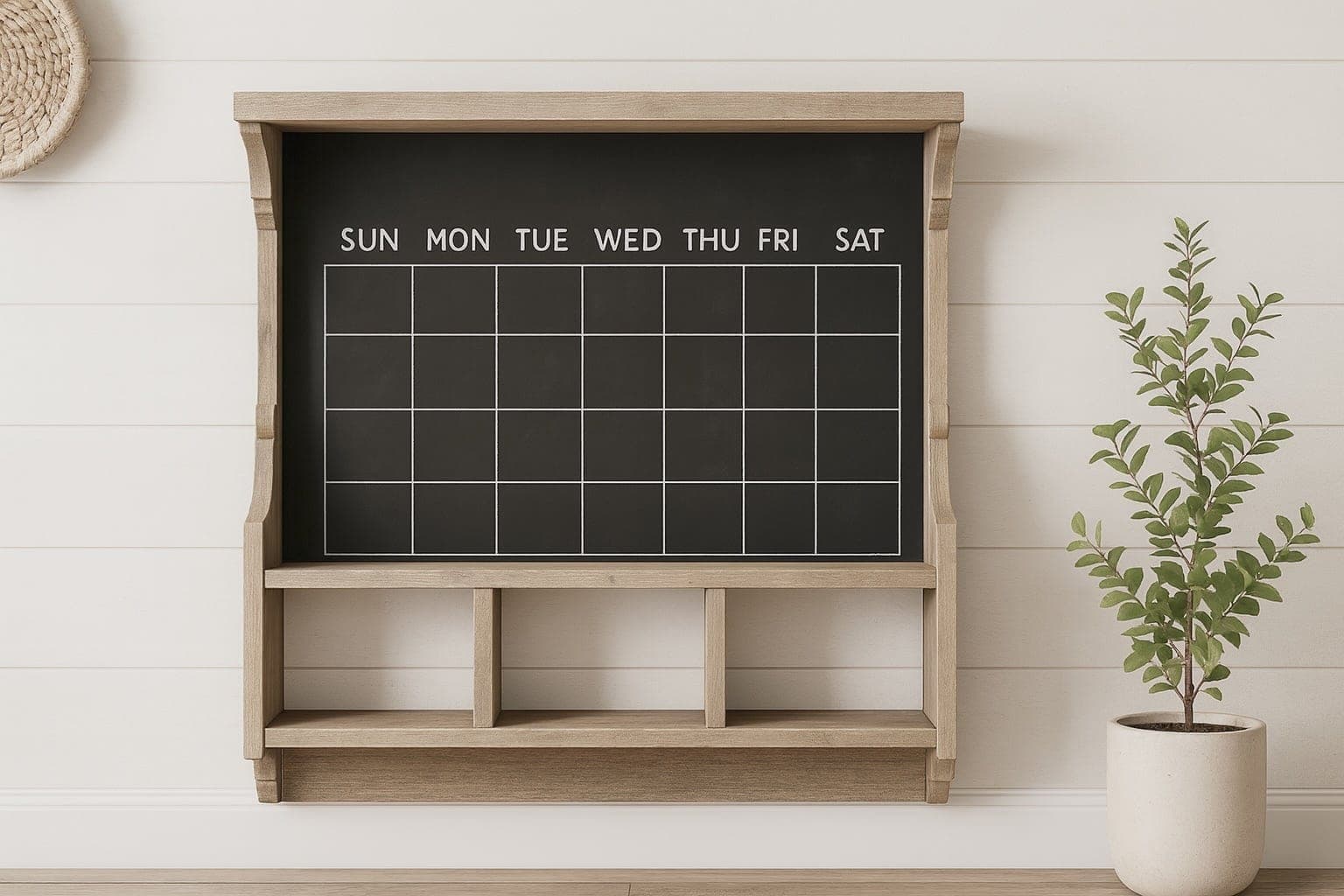

A wall-hung organizer that packs a lot into one panel: open shelves, small cubbies, a row of hooks, and a chalkboard for notes. Built from 1x6 boards with a chalkboard panel you can buy or make yourself from hardboard and chalkboard paint.
The hardest step is the shaped sides. Both side pieces get a decorative profile cut with a jigsaw, and they have to match — so make one pattern, transfer it to both, cut just outside the line, and sand the pair together until they're identical. A mismatch here is the flaw the eye finds first on a symmetric piece.
Everything else is friendly. The box goes together with 1-1/4" pocket screws or 2" finish nails and glue from the outside faces; the middle shelf sits 10-3/4" up from the bottom, and the cubby dividers both divide the cubbies and help you place that middle shelf. Finish the wood frame before adding the chalkboard, and hang it from studs or a rated picture-hanging kit — loaded with keys and mail it has some weight.
| Item | Qty |
|---|---|
| 1x6 whitewood, 12 ftSides, shelves, dividers. | 12 foot |
| 1x4 whitewood, 30"Bottom. | 1 each |
| Chalkboard, 31-1/2" x 18-1/4"Or make your own from hardboard and chalkboard paint. | 1 each |
| Hooks | 3 each |
| Heavy-duty picture hanging kit | 1 each |
| Pocket-hole screws, 1-1/4" / finish nails, 2" | 40 each |
| Wood glue | 4 oz |
Overall cost: $$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Sides1x6Decorative profile cut to match with a jigsaw. | 2 | 3/4" × 5 1/2" × 29" |
| Bottom1x4 | 1 | 3/4" × 3 1/2" × 30" |
| Shelves1x6 | 3 | 3/4" × 5 1/2" × 30" |
| Cubby dividers1x6 | 2 | 3/4" × 5 1/2" × 6 1/2" |
| ChalkboardChalkboard/hardboard | 1 | 1/4" × 18 1/4" × 31 1/2" |
Buy 4 boards at 8 ft.
2 boards
1 board
1 board
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
This is the hardest step: getting the sides to match. Carefully transfer the pattern to both 1x6 sides and cut them with a jigsaw. Sand the pair together until the edges are even — a mismatch stands out on a symmetric piece.
Attach the two sides to the bottom with 1-1/4" pocket screws, or 2" finish nails and glue driven from the outside faces.
Add the shelves with the same joinery. The middle shelf sits 10-3/4" up from the bottom of the sides — dry-fit the cubby dividers to help you place it accurately.
Add the cubby dividers with 2" finish nails and glue from the top and bottom. Finish the wood frame before adding the chalkboard. Mount the hooks, set the chalkboard, and hang the shelf from wall studs or a rated picture-hanging kit.
