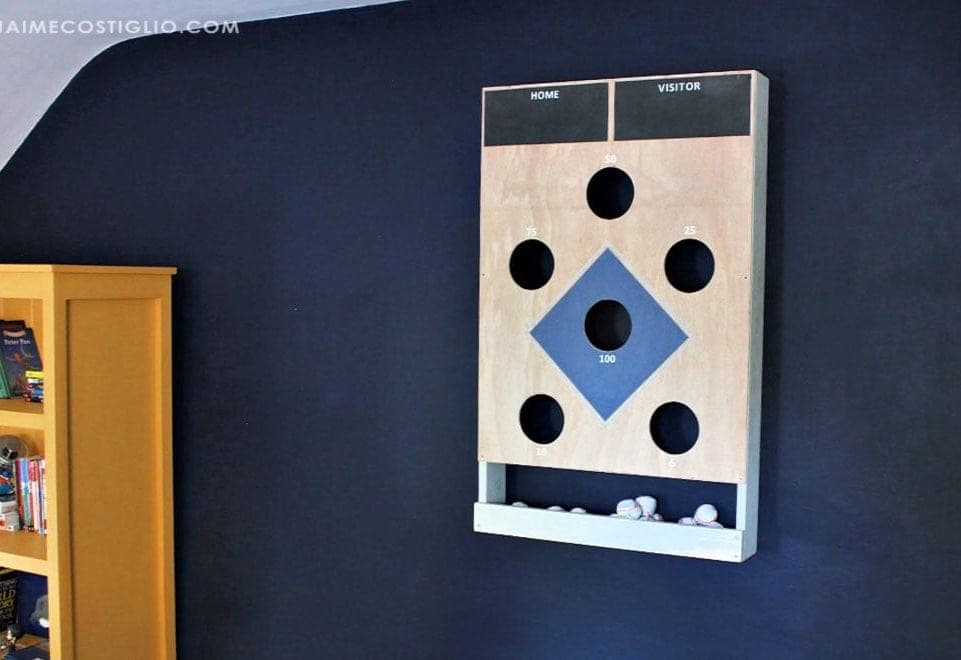

The mounting system doubles as decoration: layer and glue the 1x4 boards together to build a french cleat, then hook that cleat around the 1x2 at the top of the board's back frame so the whole game hangs flush and level without visible hardware on the front. Trim the cleat's ends to fit your specific wall spot before hanging.
Mark out the baseball-diamond hole pattern on the plywood face after it's attached to the frame, then drill each hole with a 4" hole saw and sand the edges smooth — bean bags need a clean, splinter-free opening to drop through reliably.
| Item | Qty |
|---|---|
| Pine, 1x4, 8 ft | 2 each |
| Pine, 1x2, 4 ft | 1 each |
| 1/4" plywood, 24 in x 48 in | 1 each |
| 1-1/4" and 3/4" brad nails | 1 box |
| Wood glue | 2 oz |
Overall cost: $. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Frame sidesPine 1x4 | 4 | 3/4" × 3 1/2" × 22 1/2" |
| Frame top/bottomPine 1x4 | 2 | 3/4" × 3 1/2" × 38" |
| Back supportPine 1x2 | 1 | 3/4" × 1 1/2" × 22 1/2" |
| Front bottomPine 1x2A 1x3 also works here. | 1 | 3/4" × 1 1/2" × 24" |
| Playing surface1/4" plywood, 24 in x 48 in | 1 | 1/4" × 24" × 32" |
Buy 4 boards at 8 ft.
2 boards
1 board
1 board
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Build the basic frame of the project using 1-1/4" brad nails and glue.
Attach the back support to the top of the frame with 1-1/4" brad nails and wood glue.
Attach the front bottom piece with 1-1/4" brad nails and wood glue.
Attach the 1/4" plywood to the front of the frame with 3/4" brad nails and glue. Mark out the baseball-diamond hole pattern and drill the holes with a 4" hole saw. Sand any rough edges smooth.
Layer the 1x4s over each other and nail and glue together to build a french cleat. Make sure the cleat fits inside the back of the project and hooks around the 1x2 at the top. Trim the ends if necessary, then hang the cleat on the wall in the desired location and hang the game on it.
