This is the shop workhorse that earns its floor space: a mobile plywood cart on casters with a top recessed 3/4", so you drop in interchangeable inserts and reconfigure it in seconds. A flush plywood insert makes it an assembly bench; a miter-saw insert with side wings brings the saw's bed level with the top for long-board support; a Kreg-jig insert puts the pocket-hole jig at a fixed station. Build the cart once, then make inserts forever.
The carcass is honest plywood-and-1-by casework. Legs are two 1x3s laminated into an L, the base and top are 1x4 frames, and a lower shelf on 1x3/1x2 supports holds the inserts you're not using — a nice touch, since insert storage is the thing people forget. Everything joins with pocket screws.
The recessed top is the key dimension: inset the top panel exactly 3/4" below the frame so a 3/4" insert lands flush. The tip in the source — clamping a couple of 1x2s 1-1/2" down as a ledge to rest the panel on while you fasten it — is worth doing; holding a plywood top at an exact reveal one-handed is a fight. Put casters at all four corners (the extra caster-mount board is cheap insurance) so a loaded cart still rolls and locks.
| Item | Qty |
|---|---|
| 3/4" MDF or plywood, 4x8 sheetTop, base panel, and inserts. | 2 each |
| 1/4" plywood, 2x4 ftBack. | 1 each |
| 1x3 board, 8 ftLegs and supports. | 3 each |
| 1x4 board, 8 ftBase and top frames. | 4 each |
| 1x2 board, 8 ftShelf supports. | 1 each |
| Pocket-hole screws, 1-1/4" | 80 each |
| Locking casters, 3"All four corners, at least two locking. | 4 each |
| Wood glue | 6 oz |
Overall cost: $$$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Top and base panels3/4" plywood/MDF | 2 | 3/4" × 24" × 36" |
| Shelf panel3/4" plywood/MDF | 1 | 3/4" × 23 3/4" × 36" |
| Back1/4" plywood | 1 | 1/4" × 23" × 36" |
| Base/top frame long1x4 | 4 | 3/4" × 3 1/2" × 37 1/2" |
| Base/top frame short1x4 | 4 | 3/4" × 3 1/2" × 24" |
| Leg halves1x3Two laminated per leg. | 8 | 3/4" × 2 1/2" × 21" |
| Side shelf supports1x3 | 2 | 3/4" × 2 1/2" × 19" |
| Shelf ledger supports1x2 | 2 | 3/4" × 1 1/2" × 23 3/4" |
| Caster mount boards1x3Added at the bottom to give the casters solid backing. | 2 | 3/4" × 2 1/2" × 24" |
Buy 11 boards at 8 ft.
1 board
1 board
4 boards
3 boards
1 board
1 board
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Make the base from two 1x4 @ 37.5" and two 1x4 @ 24" pieces, the 24" pieces set inside the long ones. Pocket-hole both ends of the short pieces to join them. This is the bottom of the cart.
Glue and pocket-screw two 1x3s together to form each L-shaped leg, four total, with pocket holes at each end to attach to the base and top. Fasten the legs to the base frame.
Build a second 1x4 frame identical to the base and fasten it to the tops of the legs. The cart's box is now standing.
Drop the 3/4" top panel into the top frame inset exactly 3/4" down, so a 3/4" insert will land flush. Clamp a pair of 1x2s 1-1/2" down inside the frame as a ledge to rest the panel on while you pocket-screw it all the way around — holding it at an exact reveal one-handed is a losing fight.
Nail or screw the 1/4" back on. Add the 1x3 side supports 17-1/2" up from the bottom, then a 1x2 shelf support inside each, and drop in the shelf panel, pocket-screwing its sides to the supports. Add the caster mount boards at the bottom and screw locking casters to all four corners.

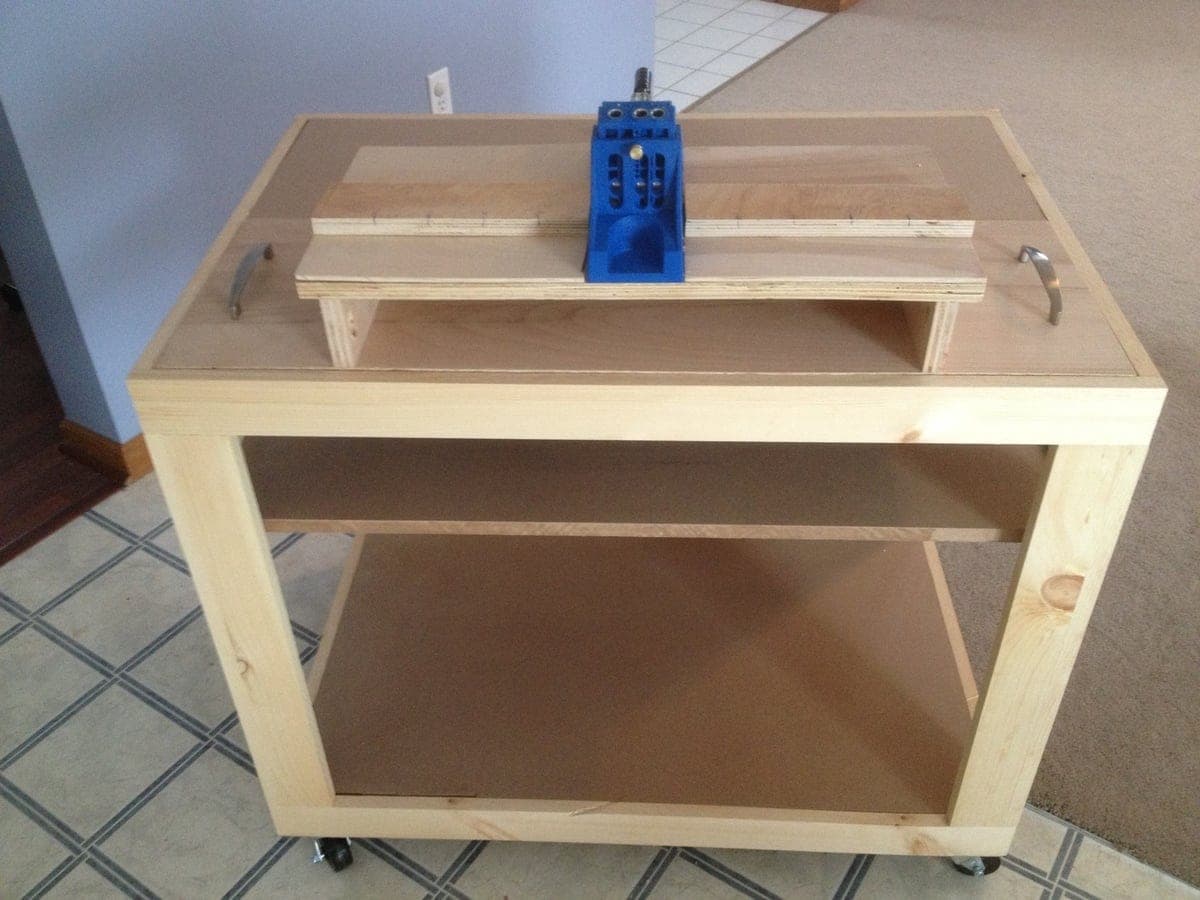

Cut flush inserts at about 35-7/8" x 23-7/8" to sit in the recess. For a miter-saw insert, build up side wings to the saw's bed height so long boards ride level — those wings double as storage for offcuts. For a Kreg-jig insert, mount the jig centered with 1"-high side rails at the jig's board height, and add handles for carrying. Store the spares on the lower shelf.
