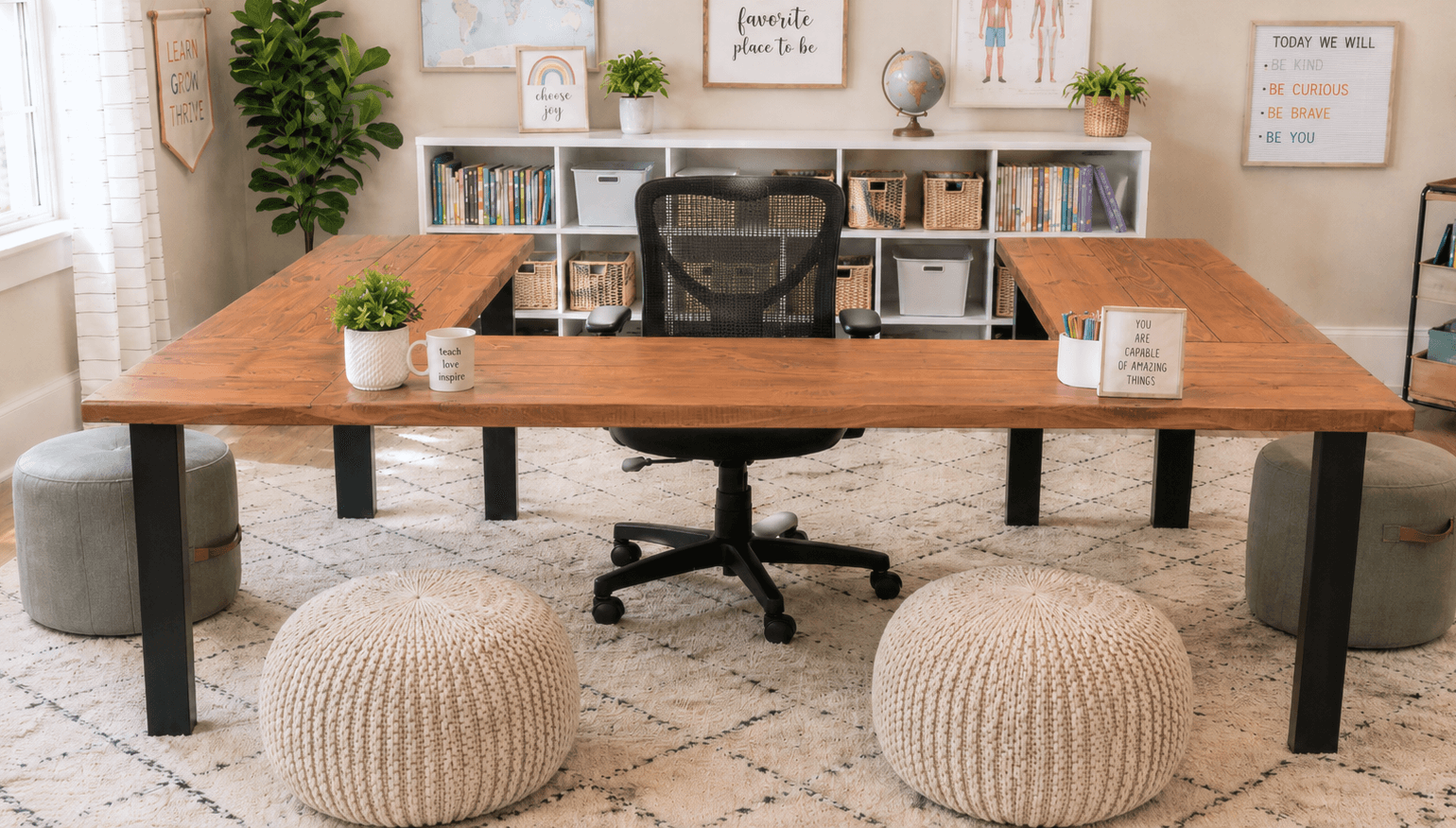

A U-shaped desk is the most workspace you can fit against one wall: a six-foot main run with two 24" returns, so two kids work side by side or one spreads out across three surfaces. This build gets there with humble stock — 1x10 tops, a 1x3-and-2x4 frame, and six legs each built up from a 2x4 laminated to a 2x2, which gives an L-profile leg that looks more furniture than framing.
The frame goes together first as a U (two return frames, back apron, inner supports), then the legs attach with — the plan's own emphasis — a LEVEL, not a tape measure, checking each leg as it's screwed. On a piece with six legs, level-as-you-go is the only method that doesn't end in shimming.
The top is where you choose your finish quality: screw the 1x10s down individually (fast, rustic, visible seams), or take the plan's tip and pocket-hole the whole top into one panel first, then attach it as a unit — flatter, cleaner, and worth it on a desk where pencils will find every seam. Either way, finish with polyurethane; a school desk's topcoat gets erased, markered, and glue-sticked, and poly is what shrugs that off.
| Item | Qty |
|---|---|
| 1x3, 8 ftAprons and frames. | 4 each |
| 2x2, 8 ftThe leg build-ups. | 1 each |
| 2x4, 10 ftLegs. | 1 each |
| 2x4, 8 ftLegs and blocking. | 1 each |
| 1x10, 6 ftReturn desktop pieces. | 2 each |
| 1x10, 8 ftMain desktop pieces. | 1 each |
| Self-tapping wood screws, #8 x 2", star drive | 50 each |
| Brad nails, 1-1/4", 18 ga | 60 each |
| Wood glue | 8 oz |
| Wood filler | 4 oz |
| Primer and paint, or stain | 1 quart |
| PolyurethaneThe desk top's armor. Recommended by the plan, seconded by every parent. | 1 quart |
Overall cost: $$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Long frame rails1x3 | 5 | 3/4" × 2 1/2" × 38 1/2" |
| Short frame rails1x3 | 2 | 3/4" × 2 1/2" × 13 1/2" |
| Back apron1x3 | 1 | 3/4" × 2 1/2" × 68 1/2" |
| Legs, 2x4 half | 6 | 1 1/2" × 3 1/2" × 24" |
| Legs, 2x2 half | 6 | 1 1/2" × 1 1/2" × 24" |
| Blocking | 3 | 1 1/2" × 3 1/2" × 13 1/2" |
| Main desktop1x10 | 2 | 3/4" × 9 1/4" × 72" |
| Return desktops1x10 | 4 | 3/4" × 9 1/4" × 23 7/8" |
Buy 13 boards at 8 ft.
3 boards
2 boards
4 boards
4 boards
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Assemble the two side frames from 1x3s per the diagram — predrill and use the 2" screws; 1x3 stock splits near its ends without pilot holes.
Screw the 68-1/2" back apron across the two return frames. The U now exists in outline.
Attach the inner front rail per the diagram — it stiffens the main span and gives the desktop its front landing.
Glue and brad each 2x2 to a 2x4, edges flush, making six L-section legs. The L is stiffer than either board alone and reads as a deliberate furniture leg instead of framing.
Screw each leg to its frame corner with multiple 2" screws and glue, checking the leg plumb with a level AS you drive. Six legs on three frames: the level-as-you-go method is the only one that ends with all six touching the floor.
Screw the 2x4 blocking pieces in per the diagram — they back up the desktop seams where the returns meet the main run.
Position the two 72" 1x10s and screw down into the frame.
The better-top option, straight from the plan: pocket-hole ALL the top boards into one flat panel first, then attach the finished panel. Extra hour, visibly nicer desk — take the option if the desk lives anywhere guests see.
Add the four return desktop pieces and screw down. Fill every hole and seam, sand to 120, prime and paint (or stain), and topcoat the entire work surface with polyurethane — two coats minimum. School desks are finished for war, not for looks.
