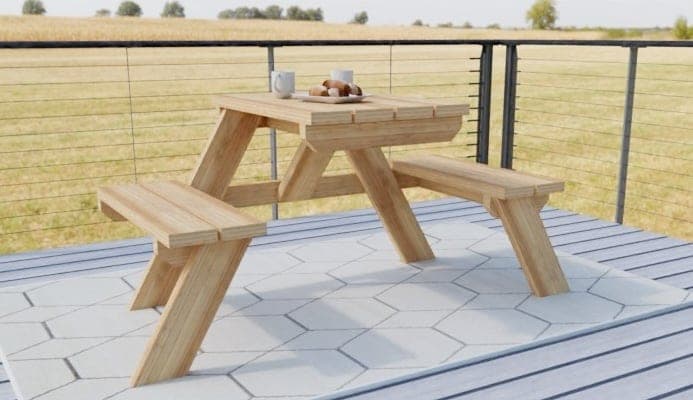

A full picnic table seats eight and owns the whole yard. This one seats two people across from each other and fits where a bistro set would — but it's built like a picnic table: 2x6 top and seats, 2x4 frames, angled legs, all screwed together with exterior fasteners. It's the picnic table idea at espresso scale.
The structure is smarter than it looks. The seat frame and tabletop frame are separate assemblies on their own 30°-angled legs, joined to each other at the back — the table half leans on the seat half, and a single 45°-beveled 2x6 cross support under the tabletop ties the cantilever back into the base. That cross support is not optional trim: without it, the table half hinges on its connection every time someone leans on the far edge.
The fussiest moment is step 7, and it's an alignment problem, not a cutting problem: the tabletop assembly and seat assembly have to be held in position — seat level, top level, back stringer tight — while you drive the connecting screws. A second person or a wall to lean against turns a frustrating step into a two-minute one. Check level on both surfaces BEFORE the four-screws-per-joint go in, because after them, it's pry-bar territory.
The optional dog-ear corner cuts on the frame ends are worth the extra ten minutes — on a table this small, the frame corners sit exactly at knee height.
| Item | Qty |
|---|---|
| 2x4, 10 ftFrames and stringers. | 2 each |
| 2x6, 10 ftTop, seats, and legs. Pick straight ones — the legs are cut from these. | 4 each |
| Exterior screws, 2-1/2", self-tapping, star drive | 75 each |
| Exterior wood stainPenetrating, deck- or fence-rated. | 1 qt |
Overall cost: $$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Outer tabletop supports2x4Optional dog-eared corners. | 2 | 1 1/2" × 3 1/2" × 23 1/2" |
| Inner tabletop supports2x4 | 2 | 1 1/2" × 3 1/2" × 26" |
| Tabletop boards2x6 | 4 | 1 1/2" × 5 1/2" × 32" |
| Back legs2x6Both ends cut at 30° off square, ends parallel. | 2 | 1 1/2" × 5 1/2" × 32 7/8" |
| Seat back stringer2x4 | 1 | 1 1/2" × 3 1/2" × 60" |
| Seat supports2x4 | 2 | 1 1/2" × 3 1/2" × 24 1/2" |
| Seat front stringers2x4 | 2 | 1 1/2" × 3 1/2" × 11 1/2" |
| Seat boards2x6 | 4 | 1 1/2" × 5 1/2" × 32" |
| Front legs2x6Both ends cut at 30° off square, ends parallel. | 2 | 1 1/2" × 5 1/2" × 19" |
| Tabletop cross support2x6Both ends beveled 45°, ends NOT parallel. This brace is what makes the cantilevered top rigid. | 1 | 1 1/2" × 5 1/2" × 21 3/4" |
Buy 8 boards at 8 ft.
5 boards
3 boards
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Screw the two inner supports between the two outer supports — 2-1/2" screws, two per joint. If you want the softened look, mark dog-ear cuts on the outer corners with a speed square and take them off with the circular saw now, while the frame is easy to handle.
Lay the four 2x6 top boards across the frame — ends flush with the outer supports, 1-1/2" overhang each side, gaps evened out. Screw down.
Set the gaps with spacers (a stack of washers works) rather than by eye; four boards make any drift obvious.
Screw the two long 30° legs to the tabletop supports, three screws per joint. The parallel 30° ends mean the leg leans while both the floor end and the frame end sit flush — orient both legs leaning the same direction.
Assemble the seat frame — the 60" back stringer, the two seat supports, and the two short front stringers. Same screws, same optional dog-ears on the exposed corners, which here sit right at calf height.
Screw the four seat boards to the seat frame with even gaps, then attach the two short 30° front legs.
Stand the tabletop assembly and seat assembly together — this is the have-a-helper step, or back the pieces against a wall. Check that the seat is level, the top is level, and the long stringer is seated tight against the table structure. Adjust until all three are true.
Then commit: 2-1/2" screws, four per joint. Everything about how this table sits is decided right here.
Fit the 45°-beveled 2x6 cross support under the tabletop. Screw through the sides of the tabletop supports into it, and from the back side of the stringer into the end of the tabletop support.
This brace closes the structural triangle — push down hard on the table's front edge before and after installing it and you'll feel exactly what it does. Sand everything, ease the edges, and stain.
