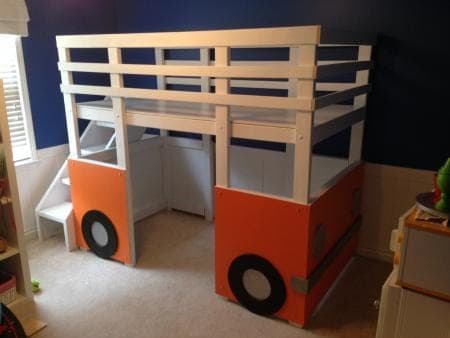

Under the decoration, this is a straightforward 2x4 loft bed platform on four legs — the surf-bus look comes entirely from what gets wrapped around it afterward: plywood side panels shaped and detailed to read as a van, round wheels that can be made to spin on a single bolt, a built-up grill, and craft-store or shop-cut headlight rounds. Building the structural platform and legs first, and treating the decorative shell as its own separate phase, keeps the project from feeling overwhelming — get the bed itself square, sturdy, and at the right height before worrying about a single wheel or headlight.
The upper rail trim pieces are all cut to fit rather than to a fixed number, since small variations in your framing will change their exact lengths — measure your own assembled platform before cutting these. The 4" lag bolts holding the bed deck to the legs are worth using over plain screws if you ever want to break the bed down again; 3" screws work fine if you don't plan to disassemble it.
| Item | Qty |
|---|---|
| 1/4" to 1/2" plywood, paneling, or MDF, 4x8 sheetDecorative cover for the bus body. | 3 each |
| 2x4 board, 8 ft | 16 each |
| 1x3 board, 8 ft | 5 each |
| 1x4 board, 8 ft | 3 each |
| 1x6 board, 10 ft | 2 each |
| 1x2 board, 8 ftFor the front grill. | 2 each |
| Lag bolts, 4"Attaches the bed deck to the legs so it stays removable; 3" screws work if you don't need to disassemble it. | 8 each |
| Pocket-hole screws, 2-1/2" | 80 each |
| Finish nails, 1-1/4" | 100 each |
| Wood screws, 2" | 40 each |
| Wood glue | 8 oz |
| Plywood scrapLeftover offcuts from the sheet goods above, for the wheels. | 1 each |
| Plywood scrap or craft-store precut roundFor the headlight rounds. | 4 each |
Overall cost: $$$$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Platform frame ends2x4 | 2 | 1 1/2" × 3 1/2" × 39" |
| Platform frame sides2x4 | 2 | 1 1/2" × 3 1/2" × 72" |
| Platform frame center joists2x4 | 3 | 1 1/2" × 3 1/2" × 36" |
| Platform deck1/2" plywood or MDF | 1 | 1/2" × 39" × 75" |
| Leg verticals2x4 | 8 | 1 1/2" × 3 1/2" × 73" |
| Leg horizontals2x4 | 8 | 1 1/2" × 3 1/2" × 17" |
| Leg end supports2x4 | 4 | 1 1/2" × 3 1/2" × 39" |
| Upper rail, side long1x4Cut to fit your assembled platform. | 1 | 3/4" × 3 1/2" × 75" |
| Upper rail trim, side long1x3Cut to fit. | 2 | 3/4" × 2 1/2" × 75" |
| Upper rail, mid1x4Cut to fit. | 1 | 3/4" × 3 1/2" × 54 1/2" |
| Upper rail trim, mid1x3Cut to fit. | 2 | 3/4" × 2 1/2" × 54 1/2" |
| Upper rail, end short1x4Cut to fit. | 1 | 3/4" × 3 1/2" × 42 3/4" |
| Upper rail trim, end short1x3Cut to fit. | 2 | 3/4" × 2 1/2" × 42 3/4" |
| Upper rail, end1x4Cut to fit. | 1 | 3/4" × 3 1/2" × 43 1/2" |
| Upper rail trim, end1x3Cut to fit. | 2 | 3/4" × 2 1/2" × 43 1/2" |
| Base panels, small1/2" plywood or MDF | 4 | 1/2" × 24" × 29" |
| Base panels, large1/2" plywood or MDF | 2 | 1/2" × 43" × 29" |
| Ladder rails1x6Shortest-point measurement; bottom end cut at 5° off square. | 2 | 3/4" × 5 1/2" × 56 1/2" |
| Ladder rungs1x6 | 4 | 3/4" × 5 1/2" × 15 1/2" |
| Grill uprights1x2 | 4 | 3/4" × 1 1/2" × 32" |
| Grill crosspieces1x4 | 2 | 3/4" × 3 1/2" × 9" |
| WheelsPlywood scrap16" diameter circles. | 4 | 1/2" × 16" × 16" |
| Headlights, largePlywood scrap or craft-store precut round6" diameter. | 2 | 1/2" × 6" × 6" |
| Headlights, smallPlywood scrap or craft-store precut round4" diameter. | 2 | 1/2" × 4" × 4" |
| Bumpers2x4Cut to fit the front and back of the bed. | 2 | 1 1/2" × 3 1/2" × 39" |
Buy 36 boards at 8 ft.
16 boards
Frame the bed platform with the 2x4 frame ends, sides, and center joists. Use the 1-1/2" pocket-hole setting to drill your holes, and attach with 2-1/2" pocket-hole screws.
Attach the plywood or MDF deck to the top of the platform framing. Use either glue and 1-1/4" finish nails, or 2" wood screws.
Build four legs from the leg verticals and horizontals, following your reference diagram, using 1-1/2" pocket holes and 2-1/2" pocket-hole screws.
Mark each leg set at the height you want the finished bed. Attach the bed platform to the legs from the inside with 2-1/2" screws or the 4" lag bolts — lag bolts keep the whole bed removable later if you ever need to break it down.
Attach the end rails to the legs and side rails with 2" wood screws.
Drill 1-1/2" pocket holes on each end of the 2x4 bottom supports and attach with 2-1/2" pocket-hole screws.
Cover the base of the bed in plywood or MDF. Use 2" wood screws if you want the pieces easy to disassemble later, or nails and glue for a permanent build.
Cut the wheels from scrap plywood and attach them to the side panels. Use a single bolt through the center of each if you'd like the wheels to spin.
Cut the bumpers to fit the front and back of the bed. Build the grill from the uprights and crosspieces using 3/4" pocket holes and 1-1/4" pocket-hole screws, then attach it to the front with finish nails and glue. Cut the headlights as 4" and 6" rounds from plywood, or use precut wood rounds from a craft store.
Attach the rungs to the underside of the ladder rails with 3/4" pocket holes, 1-1/4" pocket-hole screws, and glue. Round the top edge of the rails with a jigsaw. Attach the finished ladder to the inside of the bed's 2x4 legs with screws.
No reviews yet
Sign in to review this plan or share your build.
No reviews yet. Be the first to build this.
2 boards
3 boards
6 boards
2 boards
1 board
1 board
2 boards
1 board
1 board
1 board
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
