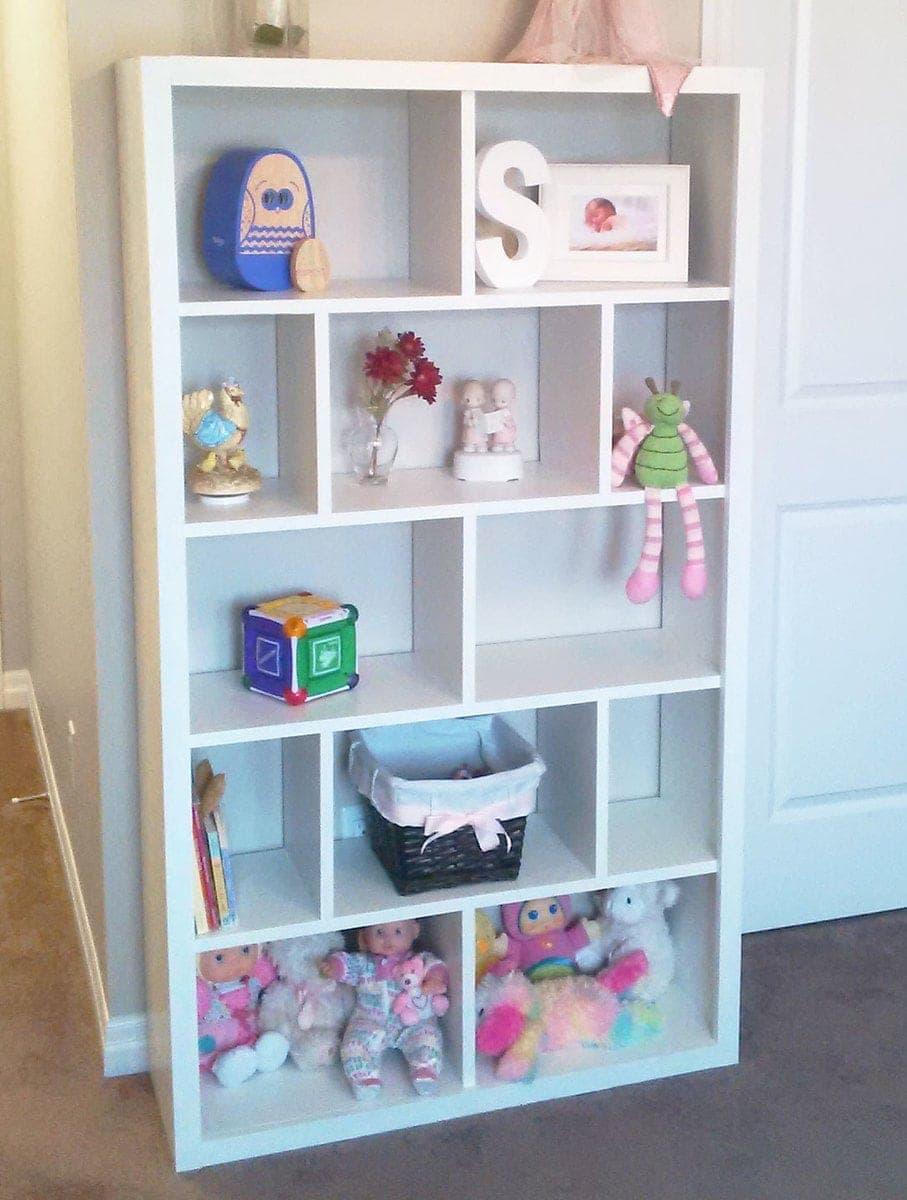

This is a tall 1x12 bookcase divided into a grid of cubbies that reads like a wall of subway tile — a clean, offset pattern of shelves and vertical dividers wrapped in face frames. The cleverness is that the face frames aren't just cosmetic: on a bookcase whose back isn't fully panelled, they're what keep the whole thing from racking. So the 'style' and the 'structure' are the same 1x2 pieces.
Build the basic carcass first — shelves between two sides. Pocket holes are the right call here specifically because the back is open in the cubby areas; screws through the back would have nothing to bite. If you don't have a pocket-hole jig, 2" countersunk screws and glue work, they just show more.
The dividers between shelves are glued and nailed and are not structural, so they can go in quickly. Then the face frames — front and back both — beef the case up and lock the grid. Build the frames first if you have a jig, then attach with glue and 1-1/4" nails; otherwise run the long pieces first, then fit the short ones. Small 1/4" plywood backs go behind the middle cubbies to finish them and add a little more rigidity. Paint suits the tile look.
| Item | Qty |
|---|---|
| 1x12, 8 ftSides, shelves, dividers. | 4 each |
| 1x2, 8 ftFront and back face frames and trim. | 6 each |
| Plywood, 1/4 in (quarter sheet or scraps)Middle cubby backs. | 1 each |
| Pocket-hole screws, 1-1/4 in | 1 box |
| Brad nails, 3/4 in and 1-1/4 in | 1 box |
| Wood glue | 1 bottle |
| Paint | 1 quart |
Overall cost: $$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Sides1x12 | 2 | 3/4" × 11 1/4" × 63 1/2" |
| Shelves1x12 | 6 | 3/4" × 11 1/4" × 34 1/2" |
| Vertical dividers1x12 | 6 | 3/4" × 11 1/4" × 11 1/2" |
| Top vertical divider1x12 | 1 | 3/4" × 11 1/4" × 12 1/4" |
| Side trim1x2 | 4 | 3/4" × 1 1/2" × 63 1/2" |
| Top/bottom trim1x2 | 4 | 3/4" × 1 1/2" × 33" |
| Cubby backs1/4 in plywood | 2 | 1/4" × 12 1/2" × 17 1/2" |
Buy 12 boards at 8 ft.
5 boards
6 boards
1 board
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Build the basic bookshelf by attaching the shelves between the two sides. Use pocket holes — the back isn't fully covered, which helps prevent racking but also means screws through the back would have nothing to grip. If you don't have a jig, 2" countersunk screws and glue will do; they just show. Keep the whole box square.
With the basic box built, add the dividers between the shelves to create the cubby grid. The top divider is taller than the rest. These are glued and nailed in place — they're not structural, so they go in quickly and don't need pocket holes.
Face frames on both the front and back beef up the bookcase and lock the grid against racking. If you have a jig, build the frames first, then attach with glue and 1-1/4" nails. Otherwise attach the long pieces first, then fit the short ones between them. Nail and glue the frames to every shelf and the top divider too, so the whole thing ties together.
Add the 1/4" plywood backs to the middle cubbies with glue and 3/4" nails — short nails are ideal here so nothing blows through the thin plywood. Fill nail holes, sand, and paint. Paint suits the subway-tile look better than stain, which would fight the clean grid.
