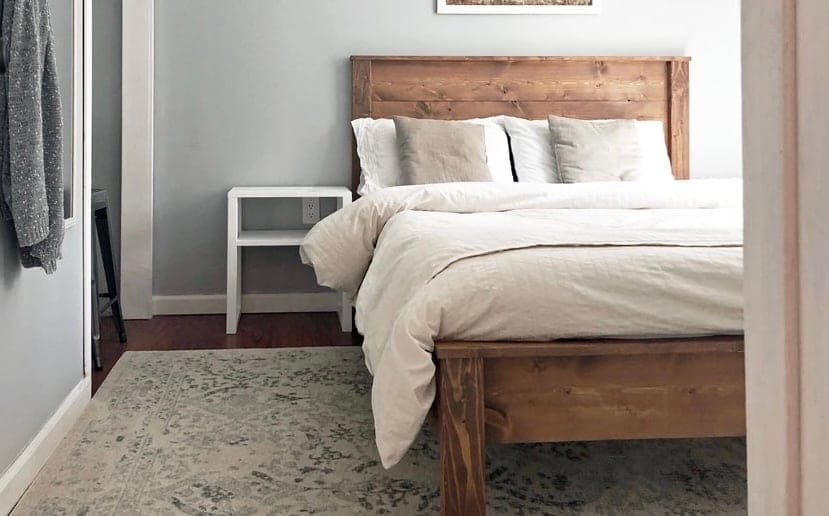

A 'panel bed' earns its name from the headboard: horizontal 1x8s stacked edge to edge over 2x4 legs, glued along every seam, capped with a 1x3 top rail that hides all the end grain. This design gets that clean furniture look with zero pocket holes — the fastener strategy is glue plus brads where looks matter (easy to fill, easy to hide), and 3" screws where structure matters.
The layout trick in step 1 does the aligning: a pencil line ripped down each headboard leg, 2-1/4" in from the outside edge, gives every panel board the same registration — no measuring per board, no creep. And the glue between the 1x8s' edges is not optional: it's what turns five separate boards into one stiff panel that won't develop gaps or rattle.
This is the queen version; other sizes change lengths only. The bed frame inside is the standard center-rail system — cleats on the side rails, a legged 2x4 spine down the middle, and 2x4 slats every 4" (generous, and generous is right: 2x4 slats at that spacing will outlive the mattress). The spacer-block tip in step 5 is the kind of small thing that makes solo assembly possible — cut it, use it, thank it.
| Item | Qty |
|---|---|
| 1x8, 10 ftPanel boards — can be cut in half at the store for transport. | 2 each |
| 1x8, 8 ftThe side rails. | 2 each |
| 1x3, 6 ftHeadboard and footboard top caps. | 2 each |
| 2x4, 8 ftLegs, cleats, center frame — six of these become the bed slats. | 11 each |
| Brad nails, 1-1/4", 18 gaOr 2" self-tapping screws where the nailer can't reach. | 50 each |
| Self-tapping wood screws, #10 x 3", star drive2-1/2" or 2-3/4" substitute fine. | 40 each |
| Wood glueEvery panel seam gets a bead — it's what makes five boards act like one panel. | 8 oz |
| Stain or paint | 1 quart |
Overall cost: $$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Panel boards1x8Three on the headboard, one on the footboard (queen). | 4 | 3/4" × 7 1/4" × 57" |
| Headboard legs | 2 | 1 1/2" × 3 1/2" × 45 1/4" |
| Top caps1x3 | 2 | 3/4" × 2 1/2" × 62 1/2" |
| Footboard legs | 2 | 1 1/2" × 3 1/2" × 14 1/2" |
| Side rails1x8 | 2 | 3/4" × 7 1/4" × 80 3/4" |
| Side rail cleats | 2 | 1 1/2" × 3 1/2" × 80 3/4" |
| Headboard frame railCut to fit your assembled bed. | 1 | 1 1/2" × 3 1/2" × 57" |
| Center frame spine | 1 | 1 1/2" × 3 1/2" × 78 1/2" |
| Center frame legs | 2 | 1 1/2" × 3 1/2" × 12 1/2" |
| Bed slats1x4s or 1x3s substitute if cheaper or on hand. | 18 | 1 1/2" × 3 1/2" × 31 1/2" |
Buy 19 boards at 8 ft.
11 boards
6 boards
2 boards
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Lay out the two headboard legs and strike a pencil line down each, 2-1/4" in from the outside edge — every panel board's end registers to it.
Dry-fit all the panel boards first. Then glue and fasten the TOP 1x8 to the legs, and work downward, running a bead of glue along each board-to-board edge as you go. That seam glue is the panel's real strength.
Glue the headboard's whole top edge, set the 1x3 cap with even overhangs at the ends and flush at the back, and fasten — brads if you have the nailer (they vanish under filler), screws if you don't.
Same construction at ankle height: one panel board across the short legs, capped with the other 1x3.
Glue each 2x4 cleat and lay a 1x8 side rail on top of it; fasten from the outside — nails preferred, again for the hiding. The cleat is the structure; the 1x8 is the face.
Screw the side rails to the legs with the 3" screws. The plan's sanity-saver: cut a spacer block from 2x4 scrap to hold the rail at its height while you drive — solo assembly goes from juggling to routine.
Measure the actual width between the cleats at the headboard (about 57" on a queen, but measure yours), cut the 2x4 to fit, and screw it to the headboard. It's the fourth side of the slat-support rectangle.
Screw the two 12-1/2" legs to the 78-1/2" center support with 3" screws — a T-section beam that carries the middle of every slat.
Center the spine down the bed and screw it to the headboard frame rail and footboard with 3" screws. Its top must land level with the side cleats — the slats sit on all three.
Lay the eighteen 2x4 slats across cleats and spine, about 4" apart, and screw down with 3" screws. 2x4 slats at 4" spacing is deliberate overkill — this platform will never bow, squeak, or care what mattress you put on it.
Fill the brad holes, sand, finish, and slide the mattress in.
