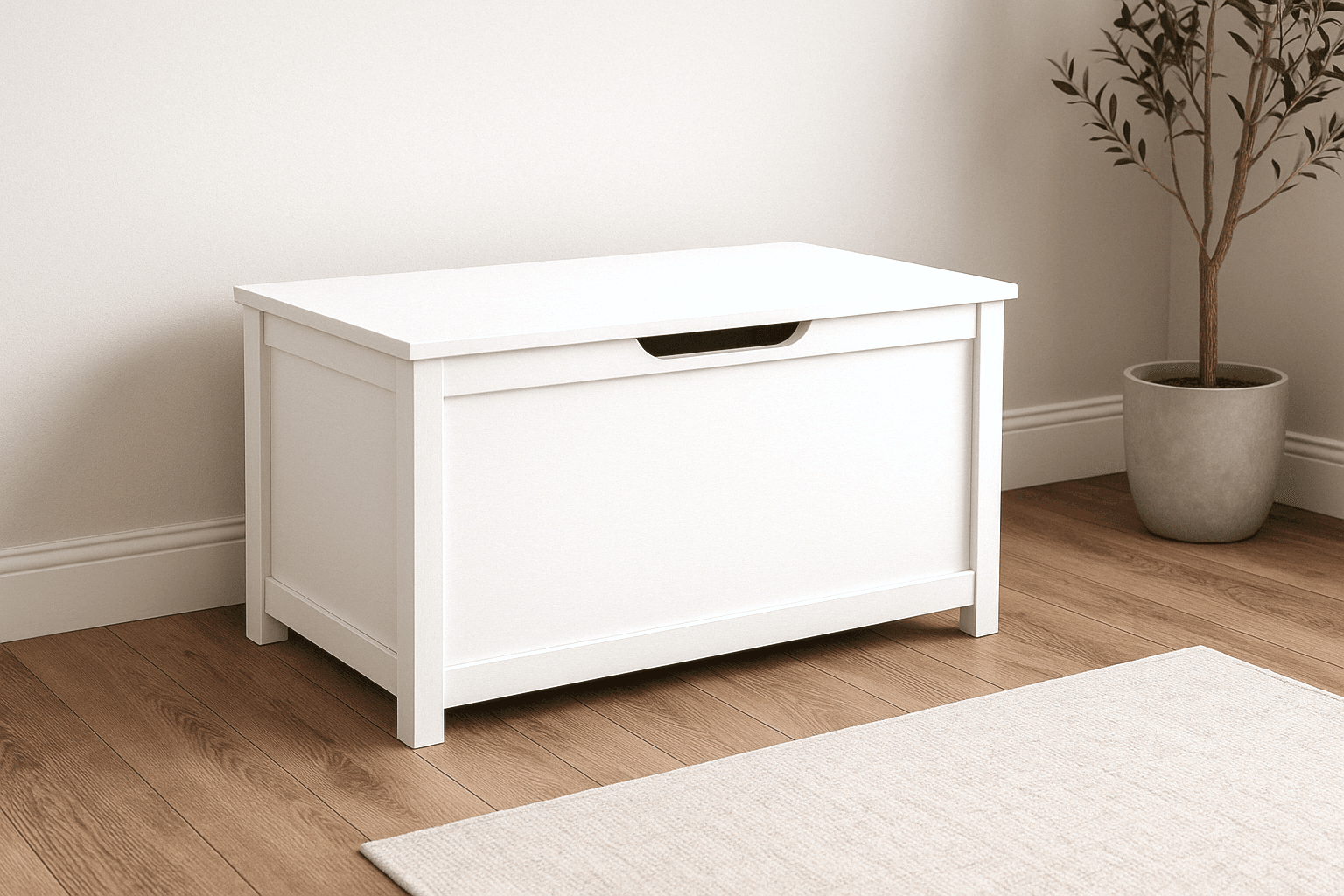

Most plywood toy boxes are six slabs of 3/4" sheet screwed together — heavy, clunky, and an inch and a half of wall thickness eaten out of the toy space. This one is built the way doors are built: 1/2" plywood panels framed in 1x3 and 1x2, standing on 2x2 legs. It's lighter, it looks furniture-grade, and 1/2" plywood is far easier to cut and carry than 3/4".
The trade-off is that frame-and-panel construction demands straight plywood cuts. A wavy edge that a 3/4" butt joint would hide will telegraph straight through this design as a gap in the frame line. Use a straight-edge guide or a track for every sheet cut, and check that matching panels are actually identical before assembly — if they're not, trim the pair to match now, not after the legs are on.
Two pocket-hole sizes run through this build: 1/2" holes with 1" screws for the plywood panels, 3/4" holes with 1-1/4" screws for the 1x frames. Drill all of one setting before switching — resetting the jig per part is how holes end up the wrong depth.
One thing that is not optional on a toy box: the lid hardware. Fit a lid support (soft-close or friction stay) so the lid can't slam on small fingers, and stick felt pads where the lid lands. That hardware costs less than one trip to urgent care.
| Item | Qty |
|---|---|
| Hardwood plywood, 1/2", 4x4 ft sheetAll four panels and the bottom. Pick a flat sheet with one clean face. | 1 each |
| Project panel, 3/4", 36" x 16"The lid. An edge-glued pine panel — flatter and nicer-edged than plywood for a lid. | 1 each |
| 1x3, 8 ftFrame rails and bottom cleats. | 2 each |
| 1x2, 8 ftOne for the frames, one more if you add the optional top lip. | 2 each |
| 2x2, 8 ftLegs. | 1 each |
| Pocket hole screws, 1"For the 1/2" plywood joints. | 50 each |
| Pocket hole screws, 1-1/4"For the 3/4" frame joints. | 50 each |
| Lid hinges with soft-close supportNon-negotiable on a toy box: a support that keeps the lid from slamming shut or flopping backward. Add felt pads. | 1 each |
| Wood glue | 4 oz |
Overall cost: $$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Side panels1/2" plywood | 2 | 1/2" × 12" × 12" |
| Side frame rails, 1x3 | 2 | 3/4" × 2 1/2" × 12" |
| Side frame rails, 1x2 | 2 | 3/4" × 1 1/2" × 12" |
| Front/back panels1/2" plywood | 2 | 1/2" × 12" × 32" |
| Front/back frame rails, 1x3 | 2 | 3/4" × 2 1/2" × 32" |
| Front/back frame rails, 1x2 | 2 | 3/4" × 1 1/2" × 32" |
| Legs2x2 | 4 | 1 1/2" × 1 1/2" × 18 1/2" |
| Bottom cleats1x3 | 3 | 3/4" × 2 1/2" × 13" |
| Bottom1/2" plywood | 1 | 1/2" × 13" × 33" |
| Lid3/4" project panel | 1 | 3/4" × 16" × 36" |
| Top lip, back (optional)1x2Only if adding the lip for a cushion. | 1 | 3/4" × 1 1/2" × 33 1/2" |
| Top lip, sides (optional)1x2 | 2 | 3/4" × 1 1/2" × 14" |
Buy 8 boards at 8 ft.
1 board
1 board
2 boards
2 boards
1 board
1 board
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Set the jig to 1/2" and drill pocket holes around all sides of every 1/2" plywood piece. Then reset once to 3/4" and drill the 1x frame parts.
Batching by setting isn't just convenience — every jig reset is a chance to drill a blowout hole at the wrong depth, and you only find out when a screw tip pokes through a show face.
Join a 12" x 12" plywood panel between a 1x3 rail (bottom) and 1x2 rail (top) with the 1" pocket screws into the 1/2" holes.
The panel edges and rail ends must finish flush, and the two side assemblies must match each other exactly. If they don't, trim the proud edge of the whole panel down now — a mismatch here becomes a visibly out-of-square box.
Same construction at 32" long: plywood panel between a 1x3 and a 1x2. Same flushness check, same matching-pair check.
Screw each side assembly between a pair of 2x2 legs through the pocket holes.
Fill any pocket holes you can reach NOW — once the box is closed up, half of them become impossible to plug neatly.
Join the front and back panels to the side/leg assemblies. Check the diagonals across the top — equal diagonals mean square, and square matters because the bottom panel is about to be cut to fit this exact opening.
Screw the three 1x3 cleats low inside the box, then rest the bottom panel on them. Attach the plywood to the sides with 1/2" pocket holes and 1" screws as well — it stiffens the whole box and pulls it square.
A toy box bottom takes real abuse (kids stand in them; ask anyone who's owned one). The pocket-screwed perimeter is what keeps it from ever sagging off the cleats.
Mark the dipped cutout on the front top edge, cut it with a jigsaw, and sand until it's genuinely smooth — round the edges over. This is where hands and forearms land every single time the box is used.
Hinge the project-panel lid to the back rail. Fit the lid support and adjust it so the lid neither slams shut nor falls backward against the wall, and add felt pads where the lid meets the box.
If you want a cushion on top, add the optional 1x2 lip around the lid edge to keep it located. Sand everything a kid can touch, break every edge, and finish with something wipeable.
