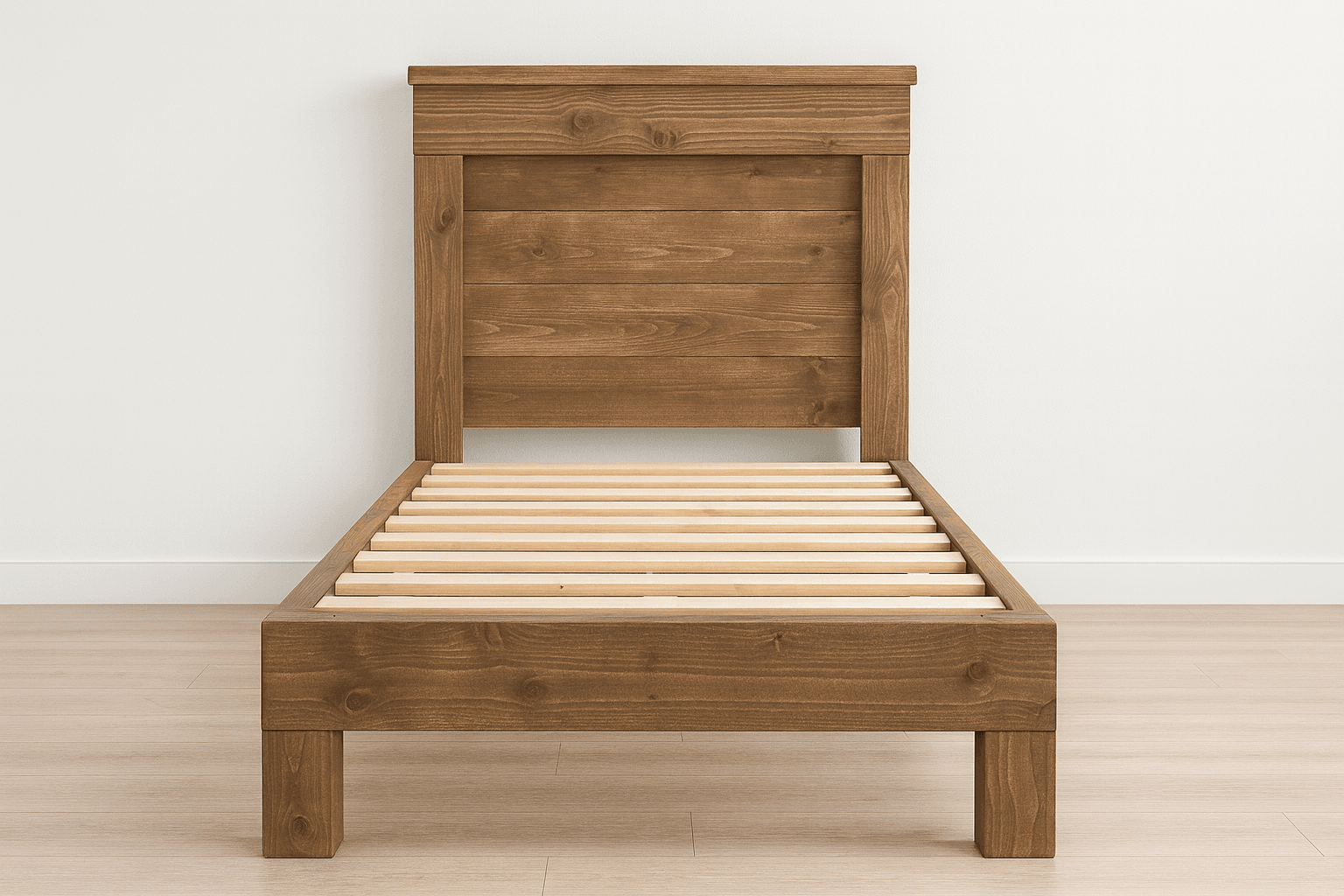

This is the bed frame for someone who has never built a bed frame. Every joint is a self-tapping screw driven through one board into another — no pocket holes, no dowels, nothing hidden. The design gets its strength from where the screws go, not from clever joinery: the legs sandwich the side rails, the 2x2 cleats carry the slats, and a 2x4 cap on the headboard keeps the paneling from warping.
Two decisions matter before you buy wood. First, size: the cut list below is for a queen (80" x 60") — twin and full change only the lengths, and the notes carry those numbers. Full, queen, and king also need a center support rail and leg; a twin doesn't span far enough to need one. Second, the headboard paneling: 1x6 boards give the farmhouse plank look, but any 3/4" material works — plywood for a smooth painted panel, shiplap if you want the shadow lines.
Stain or paint the boards before assembly. It sounds fussy, but a headboard is a grid of inside corners after it's together, and every one of them is miserable to brush. Finish flat boards, assemble, then touch up the cut ends.
| Item | Qty |
|---|---|
| 2x4, 8 ftLegs, headboard top, and center support. Pick yellow-toned 'whitewood' — it's easier to drive screws into than fir. Twin needs only 2. | 4 each |
| 2x6, 12 ftSide rails plus headboard/footboard rails. Twin can use 10-footers. | 2 each |
| 2x2, 8 ftSlat cleats and headboard back cleats. | 3 each |
| 1x6, 10 ftHeadboard paneling — each 10-footer yields two 57" panels. Any 3/4" material works: plywood for smooth, shiplap for farmhouse. | 3 each |
| 1x4, 10 ftBed slats — two 57" slats per board. 1x3s or strips of 3/4" plywood work too. | 6 each |
| Self-tapping screws, #9 x 2-1/2", star driveThe main assembly screws. | 70 each |
| Self-tapping screws, #8 x 1-3/4", star driveFor attaching the 1x6 paneling and 1x4 slats. | 50 each |
| Stain or paintApply to the boards before assembly; touch up cut ends after. | 1 quart |
Overall cost: $$$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Headboard legs | 2 | 1 1/2" × 3 1/2" × 37" |
| Side rails72" for twin/full. | 2 | 1 1/2" × 5 1/2" × 77" |
| Footboard legs | 2 | 1 1/2" × 3 1/2" × 12 1/2" |
| Headboard back cleats | 2 | 1 1/2" × 1 1/2" × 42 1/2" |
| Footboard legs, front | 2 | 1 1/2" × 3 1/2" × 7" |
| Slat cleats72" for twin/full. These run inside the side rails and carry every slat. | 2 | 1 1/2" × 1 1/2" × 77" |
| Headboard and footboard rails39" twin, 54" full. | 2 | 1 1/2" × 5 1/2" × 60" |
| Headboard top cap40" twin, 55" full. Not decorative — it keeps the paneling from warping. | 1 | 1 1/2" × 3 1/2" × 61" |
| Headboard paneling36" twin, 51" full. | 5 | 3/4" × 5 1/2" × 57" |
| Bed slatsSource lists 10, but at 80" of mattress length 12 gives sane spacing — match the queen shopping list. 36" twin, 51" full (10 slats). | 12 | 3/4" × 3 1/2" × 57" |
| Inside bed supportCenter rail — full/queen/king only. 75" for full. | 1 | 1 1/2" × 3 1/2" × 80" |
| Headboard bed supportFull/queen/king only. 51" for full. | 1 | 1 1/2" × 3 1/2" × 57" |
| Center legFull/queen/king only. King needs two center supports. | 1 | 1 1/2" × 3 1/2" × 11 3/4" |
Buy 28 boards at 8 ft.
4 boards
4 boards
Each side of the bed is a leg set: headboard leg, side rail, footboard leg. Build them as mirror images of each other — lay them side by side and check before driving a single screw, because it's genuinely easy to build two lefts.
Attach the legs to the side rails with the 2-1/2" screws, two or three per joint.
Screw the 7" 2x4 pieces to the fronts of the footboard legs, driving the long screws from the back so nothing shows. Then add the 2x2 back cleats to the headboard legs, flush to the outside edges — these are what the paneling lands on later.
Run the long 2x2 cleats along the inside faces of the side rails with the 2-1/2" screws. Their height sets your mattress height — flush the cleat bottom with the rail bottom and the slats sit low, which most mattresses want.
Screw generously. Every night, the entire load of the mattress and its occupants goes through these two sticks.
Carry the pieces into the bedroom before you tie them together — a finished queen frame does not go around a stairwell corner. Attach the headboard and footboard rails to the side rail assemblies with the long screws.
Check the frame is square by measuring both diagonals; shove the long corner until they match.
Screw the 2x4 cap flat across the top of the headboard. This isn't trim — five 1x6s screwed only at their ends will cup and twist with the seasons, and the cap ties them all to something rigid.
Then screw the paneling boards on from the back with the 1-3/4" screws, so the headboard face shows no fasteners at all.
A twin mattress spans 39" and the slats handle that alone. Anything wider needs help: build the center rail with its leg, and add the support cleat at the headboard end. King beds need two of these rails.
Skip this and the bed will work fine — for a month. Then the slats start to bow and squeak.
Cut the slats, space them evenly along the cleats — a gap of 2–3" between slats is right for foam mattresses — and screw each end down with the shorter screws. One screw per end is enough; the screw's job is to stop the slat wandering, not to carry load.
No reviews yet
Sign in to review this plan or share your build.
No reviews yet. Be the first to build this.
3 boards
5 boards
12 boards
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
