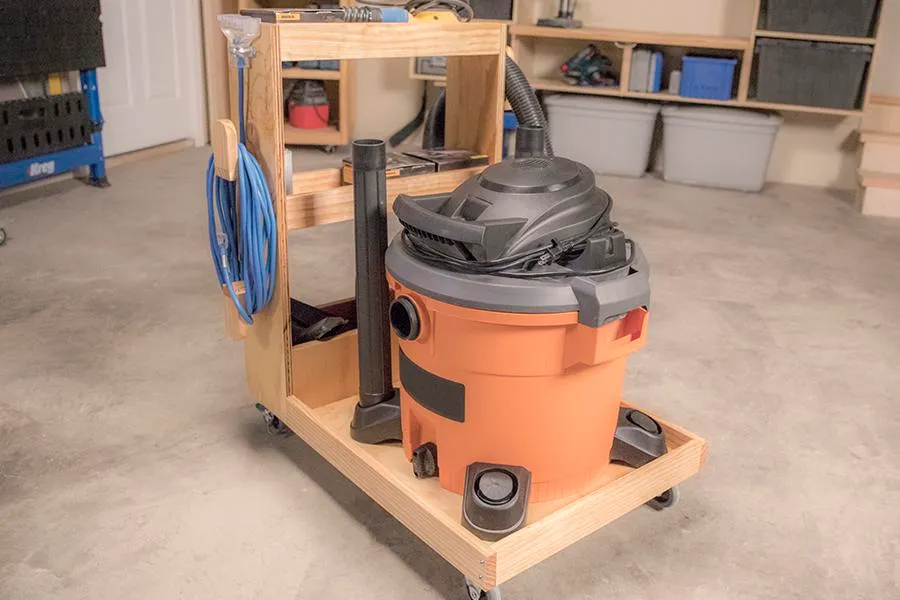

Make your shop vacuum easier to move around, plus create storage for hoses and other accessories, with this handy vacuum cart. It’s sized to hold a 16-gallon shop vacuum, and offers lots of additional storage space. You can build one easily using a couple of 1x3 boards and a half-sheet of plywood.
Tools
Essential
- Circular Saw
- Drill / Driver
- Jigsaw
- Pocket Hole Jig
- Random Orbit Sander
Optional / nice to have
- Bar / Pipe Clamps
- Tape Measure
Materials
| Item | Qty |
|---|---|
| Board, 1x3 x 96" | 2 board |
| Plywood, 3/4" x 48" x 48" | 1 board |
| 1 1/4" coarse-thread Kreg Pocket-Hole Screws | 65 each |
| 3" swivel locking casters | 4 each |
| #12 x 3/4" pan-head wood screws | 16 each |
Overall cost: $$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
Cut list
| Part | Qty | T × W × L |
|---|---|---|
| Cart Bottom | 1 | 3/4" × 20" × 29" |
| Side Panel | 2 | 3/4" × 20" × 29" |
| Bin Side | 2 | 3/4" × 5" × 20" |
| Shelf Bottom | 2 | 3/4" × 5" × 20" |
| Shelf End | 4 | 3/4" × 2" × 20" |
| End Rail | 1 | 3/4" × 2" × 20" |
| Side Rail | 2 | 3/4" × 2" × 23" |
| Hose Cleat | 2 | 3/4" × 2" × 3" |
| Hose Stop | 2 | 3/4" × 2" × 5" |
| Cord Cleat | 2 | 3/4" × 2" × 2" |
| Cord Stop | 2 | 3/4" × 2" × 2" |
What to buy
Buy 4 boards at 8 ft.
3/4" × 20"
1 board
3/4" × 5"
1 board
3/4" × 2"
2 boards
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Instructions
1Make the Bottom
- Cut the Bottom to size from 3/4 " sanded plywood, as shown in the cutting diagram.
- Set your Kreg® Pocket-Hole Jig for 3/4"-thick material, and then drill pocket holes at the locations shown.
- Sand the faces smooth.
2Add the Side Panels
- Cut two Side Panels to size from 3/4" sanded plywood, as shown in the cut diagram.
- Attach the Side Panels to the Bottom, at the locations shown, using 1 1/4" coarse-thread Kreg Pocket-Hole Screws. Make sure the Sides are flush with the Bottom as noted in the illustration.
3Make Bin Sides
- Cut two Bin Sides to size from 3/4 " sanded plywood as shown in the cut diagram.

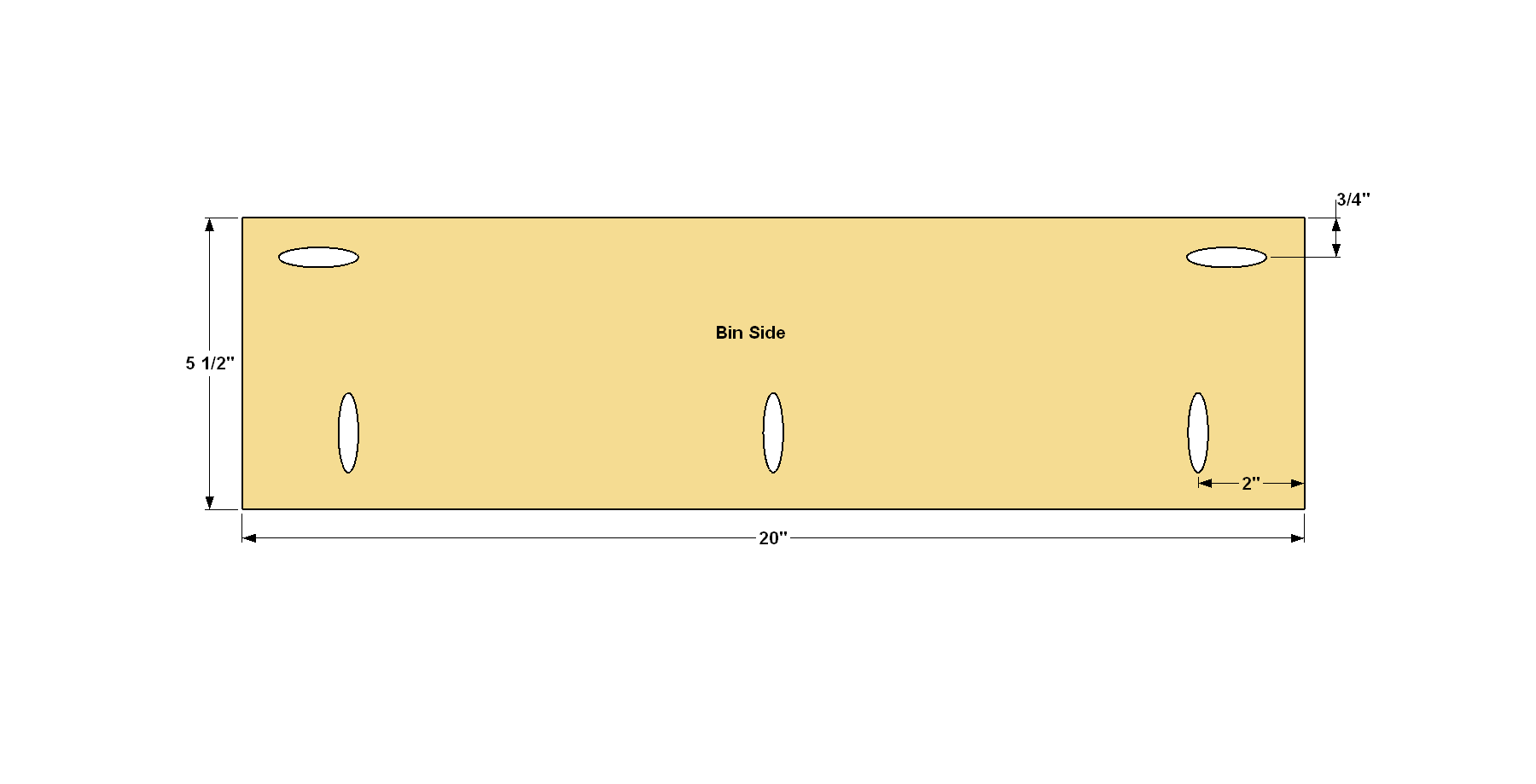

- Drill pocket holes at the locations shown.
- Sand the faces smooth.
4Attach the Bin Sides

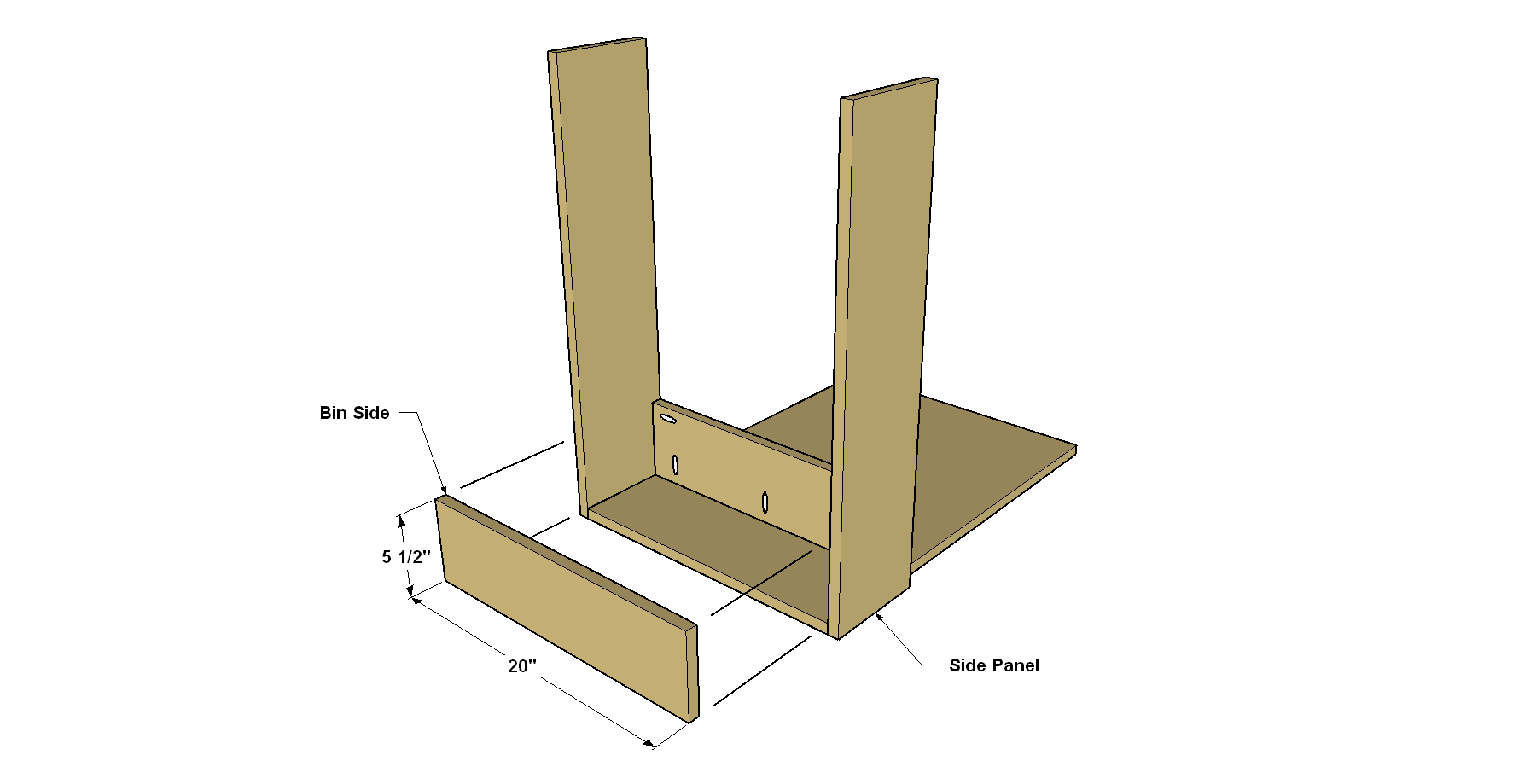

Now you can attach the Bin Sides. They are positioned between the two Side Panels. Secure them to the Side Panels and to the Bottom using 1 1/4" coarse-thread Kreg Pocket-Hole Screws.
5Make the Shelf Bottoms
- Cut two Shelf Bottoms to size from 3/4 " sanded plywood, as shown in the cut diagram.

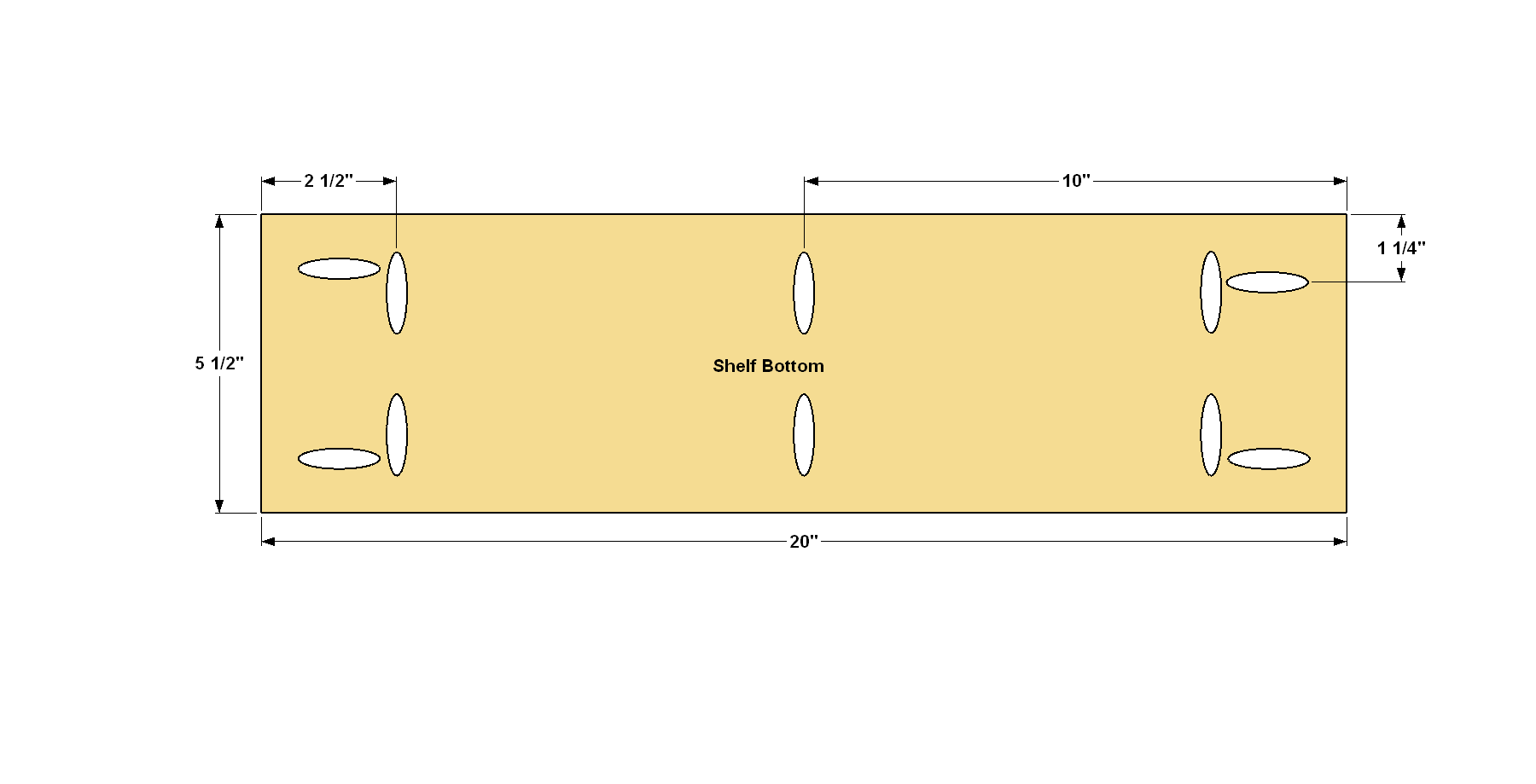

- Drill pocket holes at the locations shown.
- Sand the faces smooth
6Add the Shelf Ends
- Cut four Shelf Ends to size from a 1x3 board, as shown in the cutting diagram.

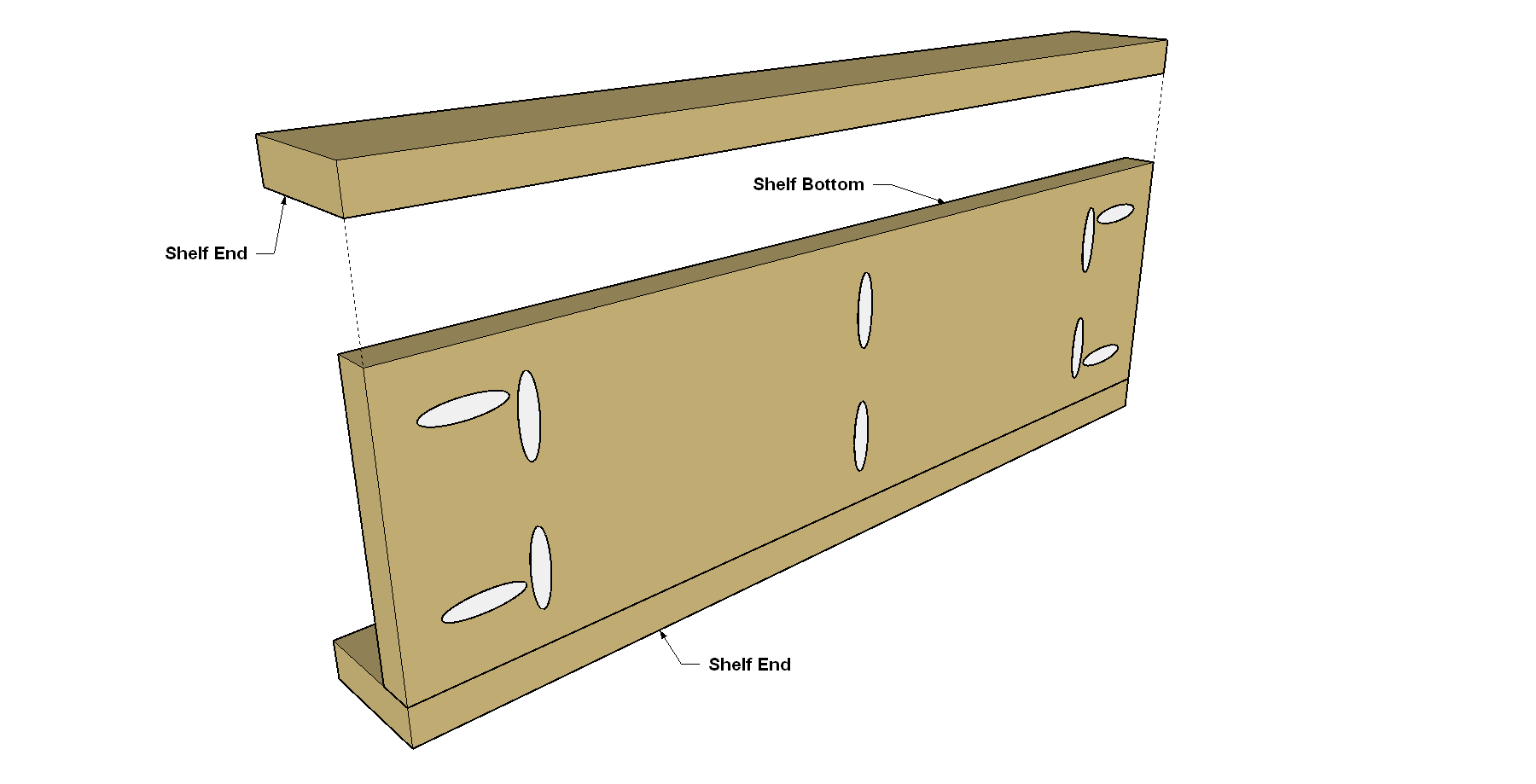

- Sand the faces and edges smooth. Secure two Shelf Ends to each Shelf Bottom using 1 1/4" coarse-thread Kreg Pocket-Hole Screws, as shown.
7Attach the Shelves

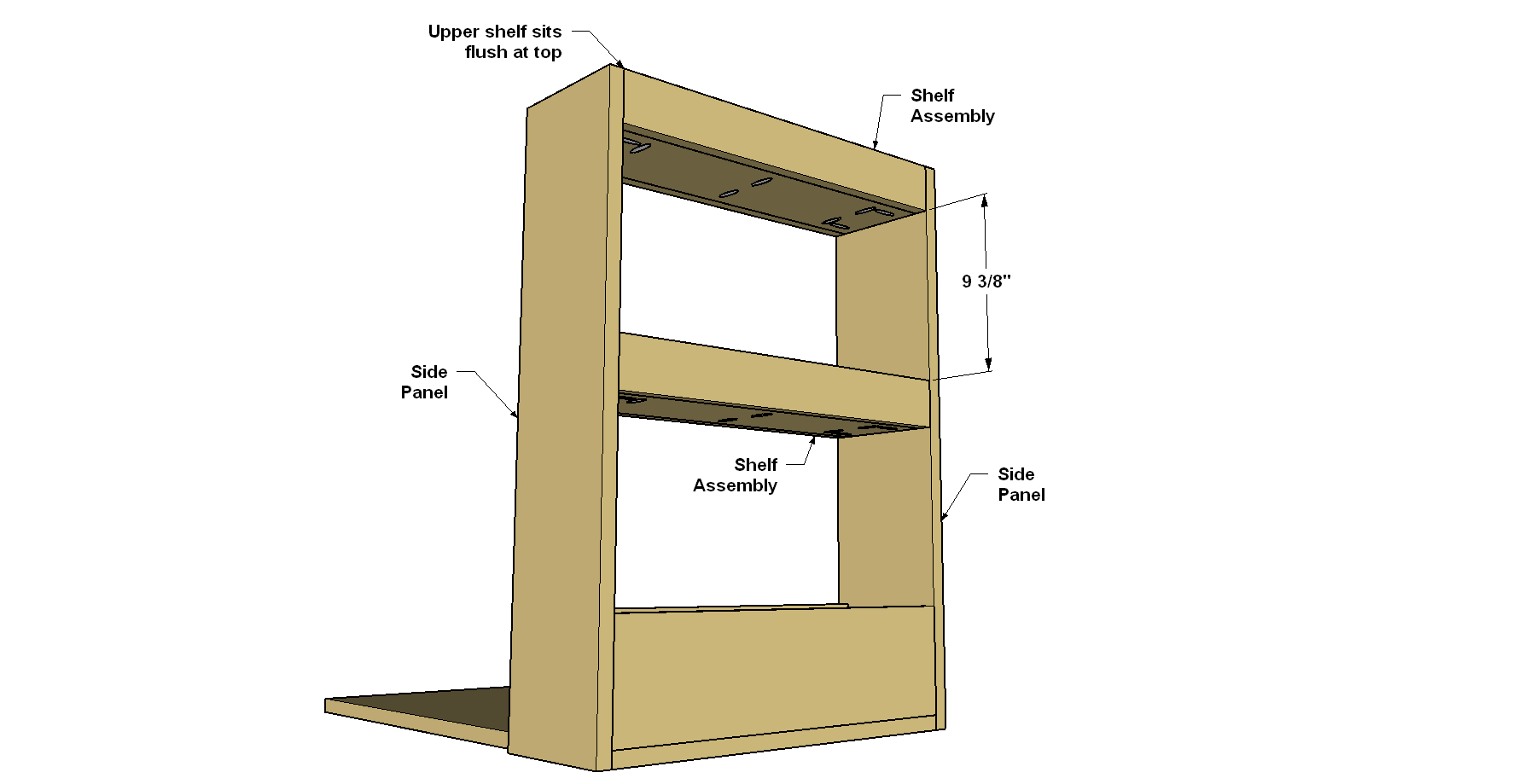

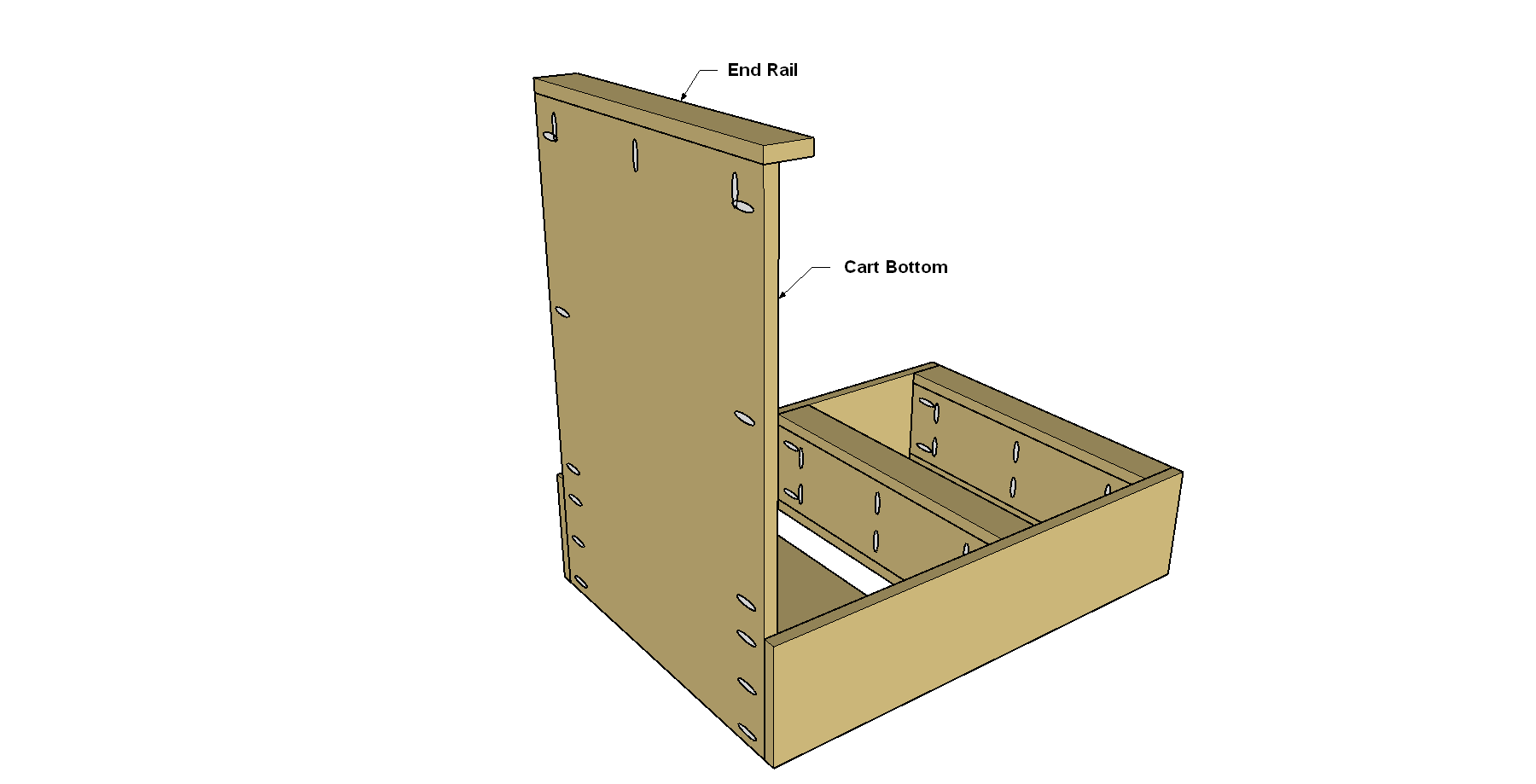

Set the upper shelf assembly in place so it is flush at the top and edges of the Side Panels, as shown, and then secure it using 1 1/4" coarse-thread Kreg Pocket-Hole Screws. Position the second shelf assembly at the location shown, and secure it using 1 1/4" coarse-thread Kreg Pocket-Hole Screws, as well.
8Add an End Rail to the Bottom
- Cut the End Rail to size from a 1x3 board as shown in the cutting diagram.
- Sand the faces and edges smooth.
- Position the End Rail as shown, and then secure it with 1 1/4" coarse-thread Kreg Pocket-Hole Screws.
9Add Side Rails to the Bottom
- Cut two Side Rails to size from a 1x3 board, as shown in the cutting diagram.
- Sand the faces and edges smooth.

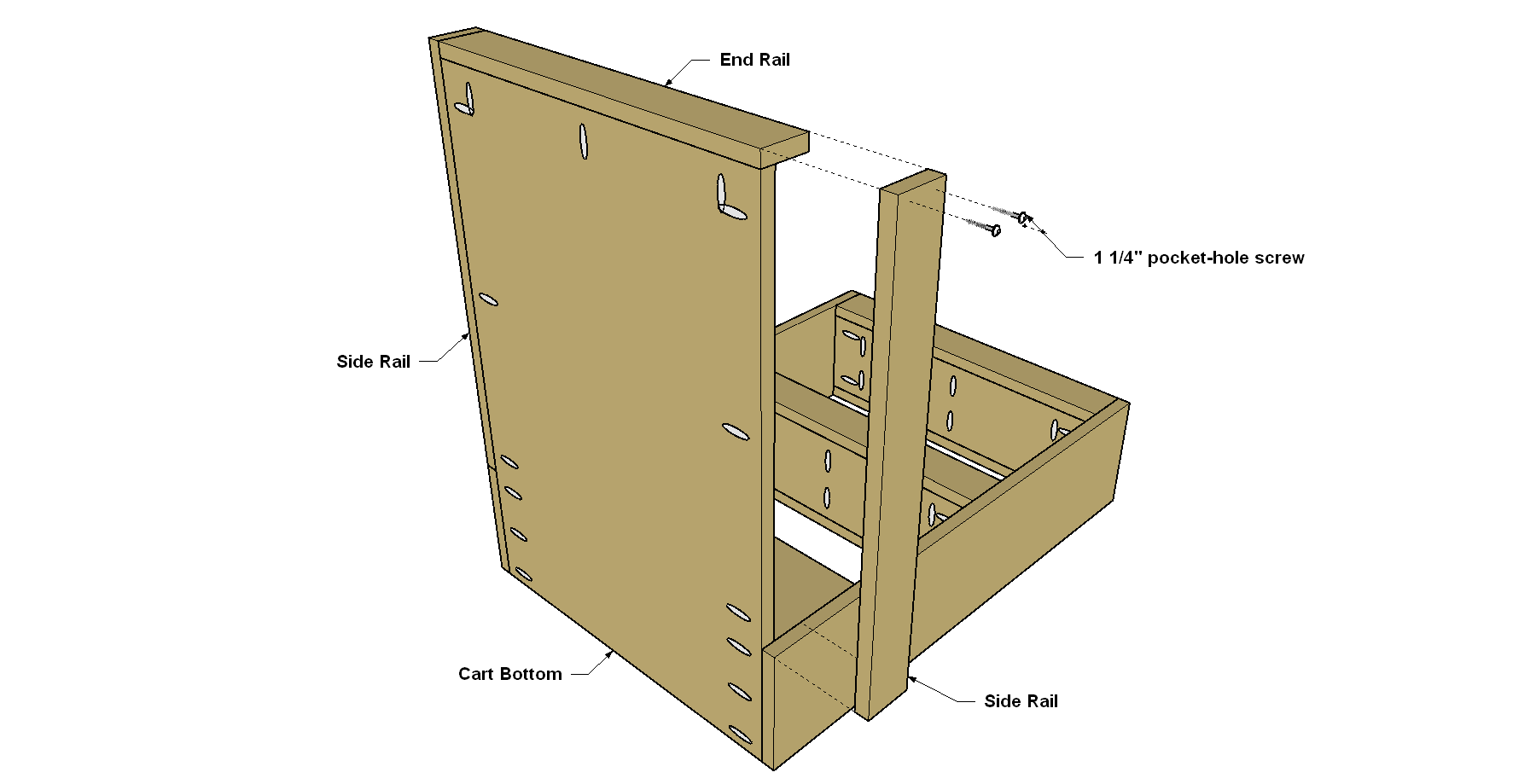

- Position the Side Rails as shown, and then secure them to the Bottom using 1 1/4" coarse-thread Kreg Pocket-Hole Screws. Drive two 1 1/4" coarse-thread Kreg Pocket-Hole Screws through each Side Rail and into the end of the End Rail, as well, to reinforce this joint.
10Make the Cord Holders and Hose Holders
- Cut two Cord Cleats and two Hose Cleats to length from 1x3 boards, as shown in the cutting diagram.
- Drill pocket holes in the two Hose Cleats and the two Cord Cleats at the locations shown, and then set them aside for the moment.

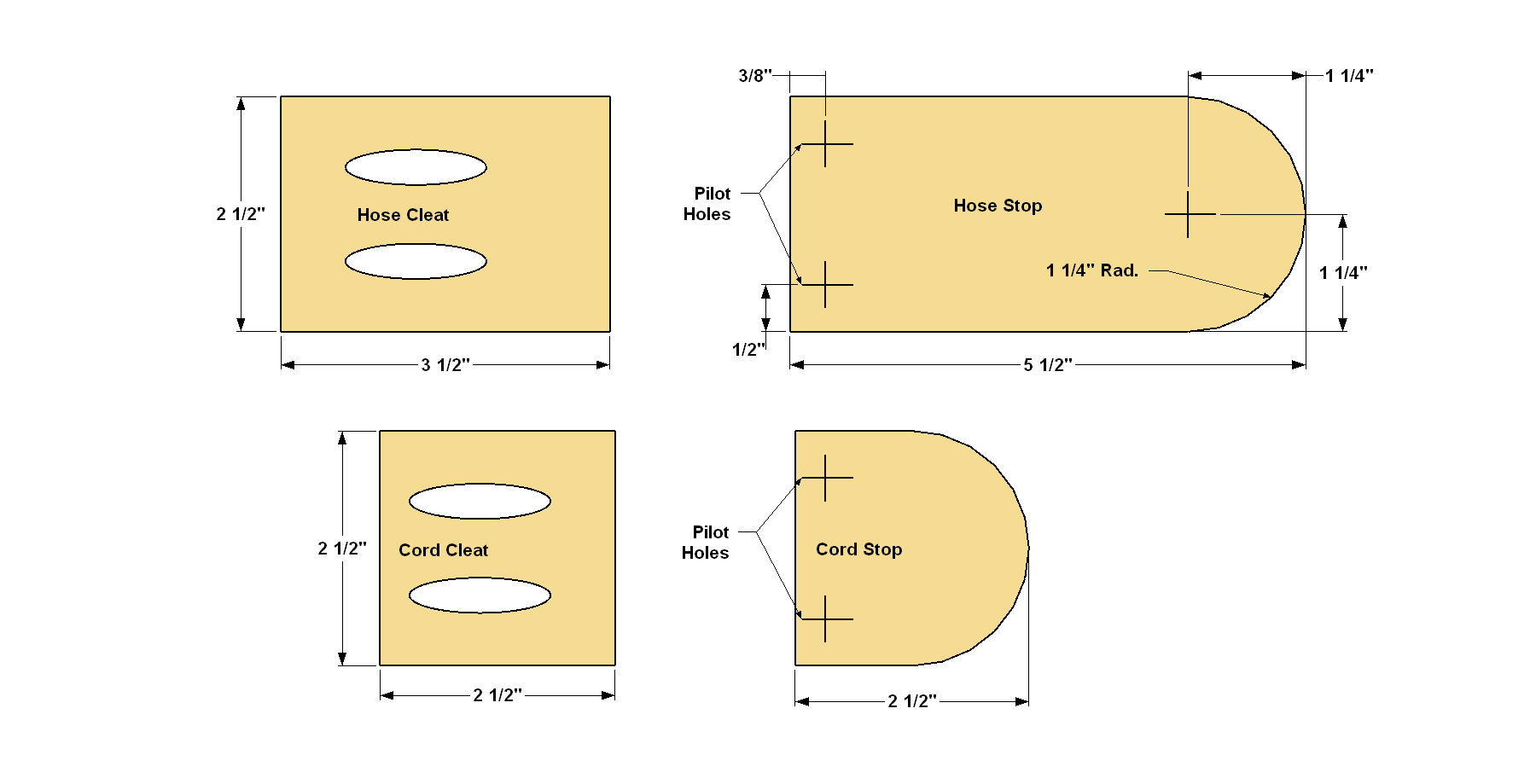

- Cut two Hose Stops to size as shown in the cut diagram. For the two Cord Stops, cut them oversized, as shown in the cutting diagram. Starting with oversize pieces allows you to clamp them to the edge of a work surface while you cut the radius on the end using a jigsaw.
- Lay out and cut the radius on each Cord Stop and Hose Stop, sand the cut ends smooth, and then cut each Cord Stop to final length.
- Finally, drill pilot holes in the Hose and Cord Stops at the locations shown.
- Sand all the faces and edges of all the parts.
11Assemble the Cord and Hose Holders

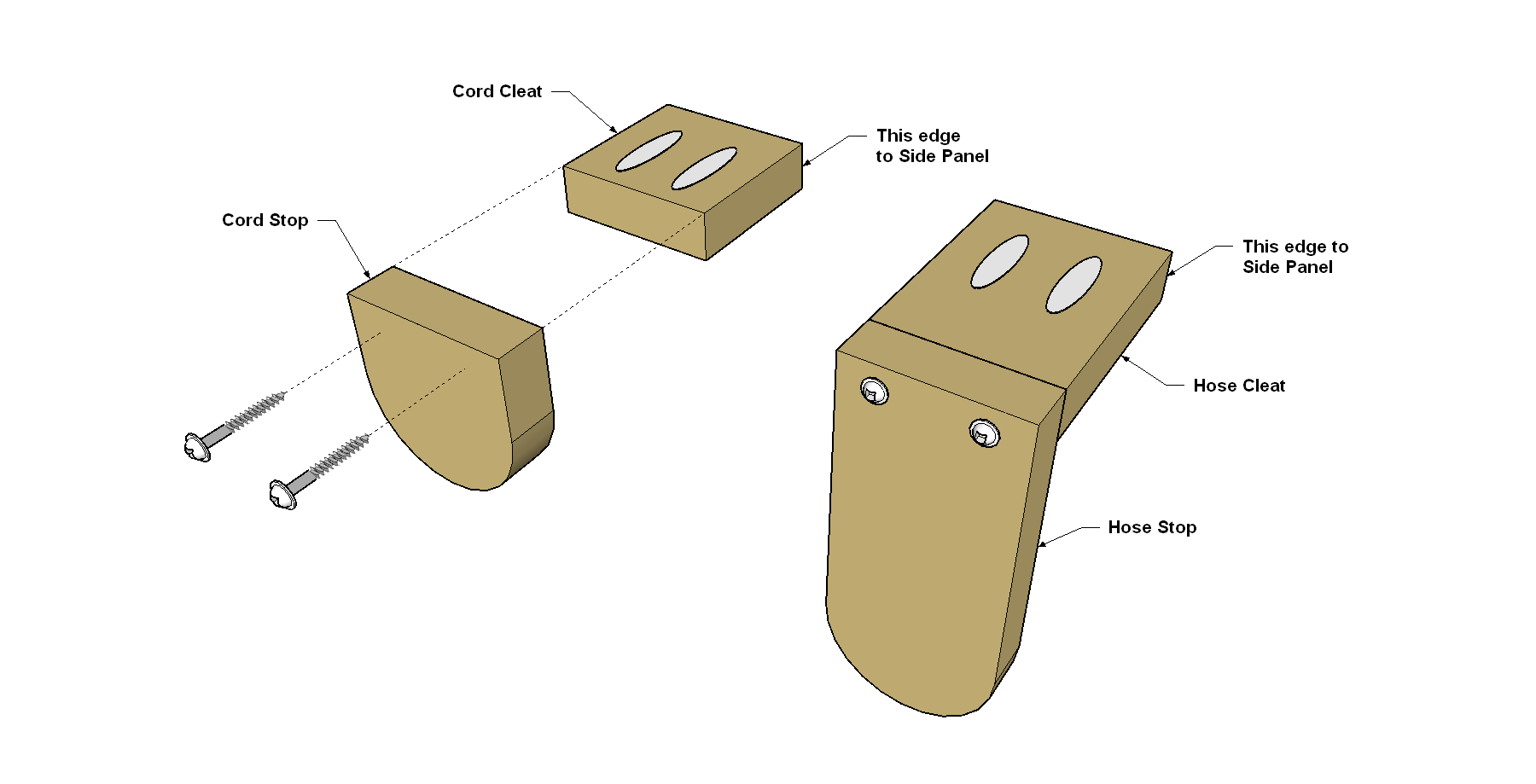

Secure the Cord Cleats to the Cord Stops, and the Hose Cleats to the Hose Stops, using glue and 1 1/4" coarse-thread Kreg Pocket-Hole Screws, as shown.
12Attach the Holders

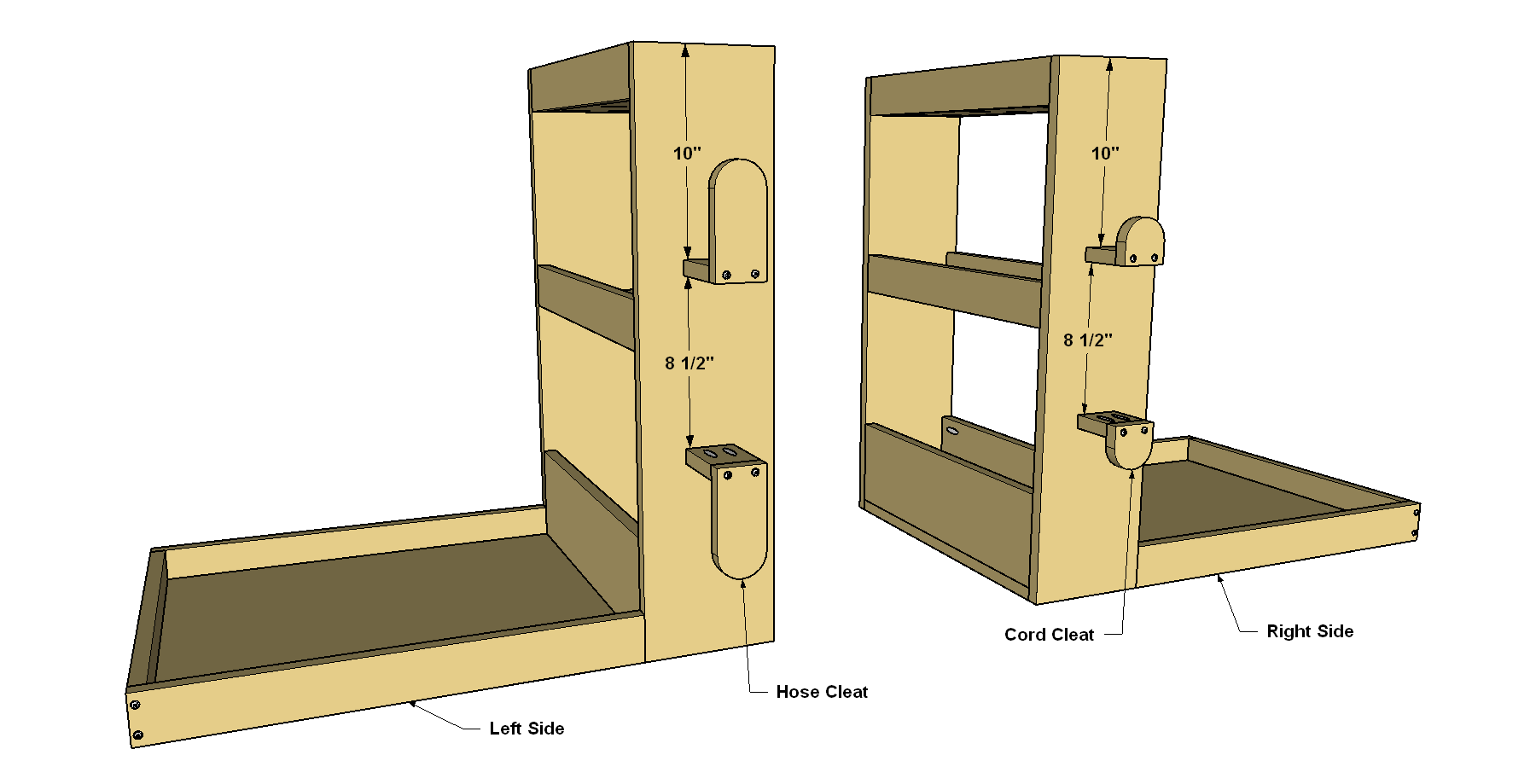

Secure the cord holders and hose holders to each Side Panel at the locations shown using glue and 1 1/4" coarse-thread Kreg Pocket-Hole Screws.
13Add the Casters and Finish

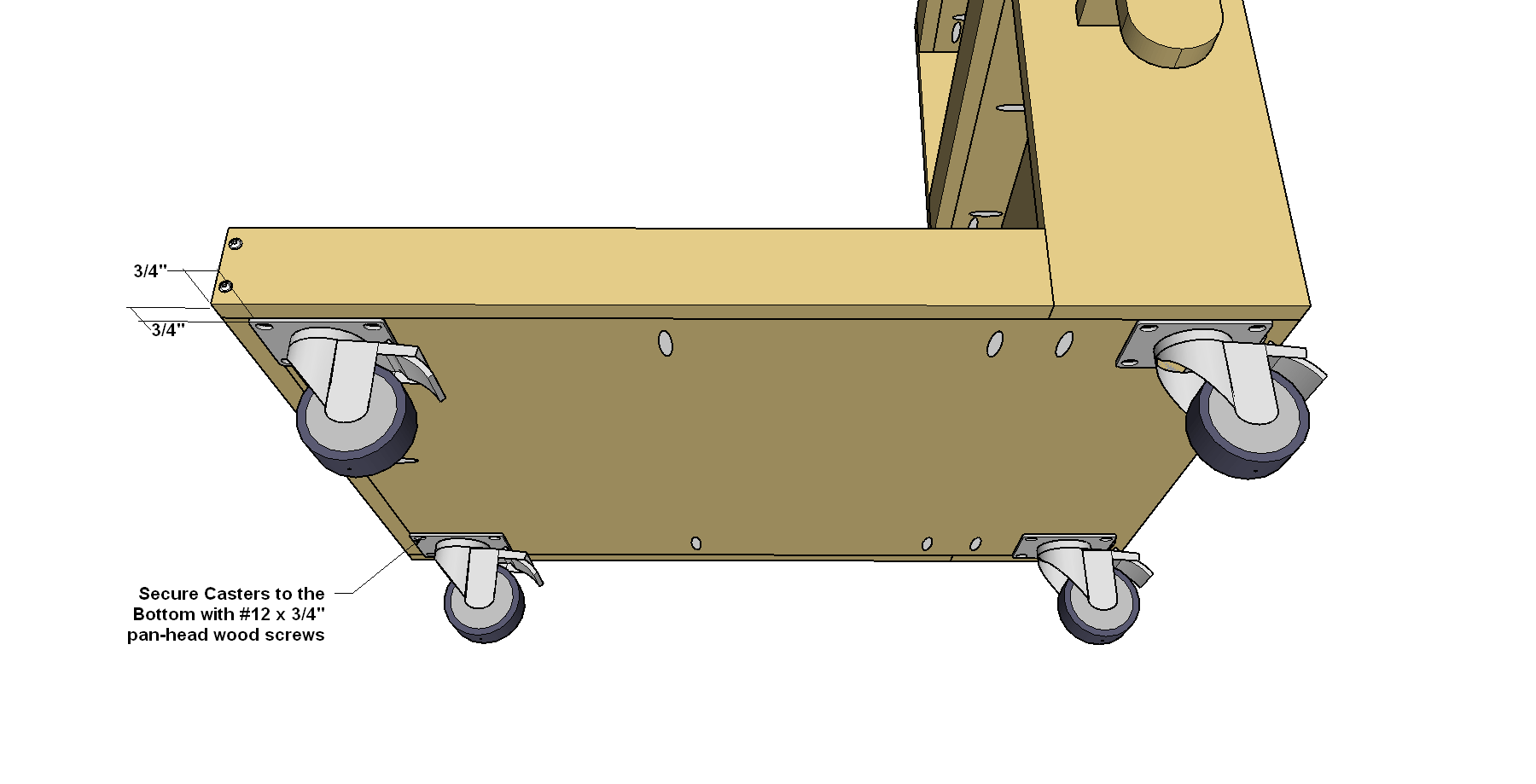

Secure the Casters to the Bottom Panel at the locations shown using #12 x 3/4" pan-head wood screws. With those on, you can decide if you want to apply a finish. You certainly don’t need to, but adding a simple coat of oil will help protect the wood and keep it looking better over the long haul. After that, load up you shop vacuum (we removed the casters from the vacuum), and add all of the accessories you want to keep on your cart.
