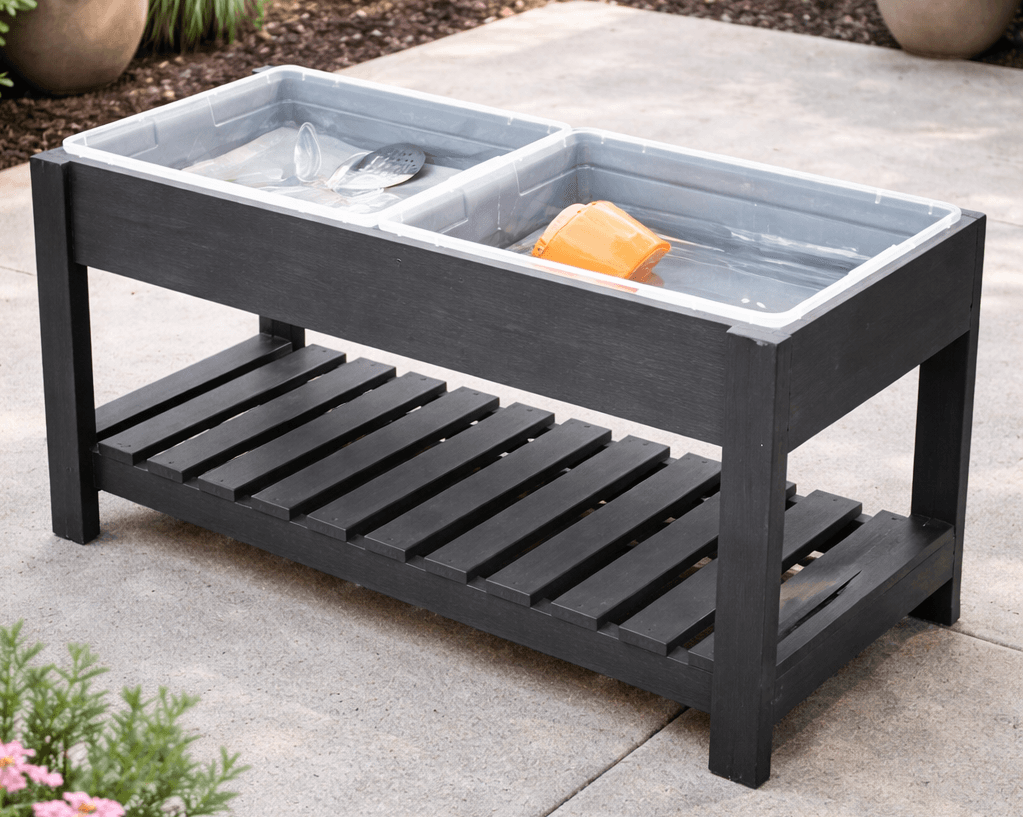

The design brief for a sand-and-water table is short: hold two plastic tubs at toddler height, survive being outside, and let the tubs lift out for dumping and hosing. This build does it with a 1x6 top frame divided into two tub-sized openings, 1x3 legs, and a slatted 1x3 shelf underneath for buckets and molds.
The first item on the shopping list is the most important instruction: buy the tubs FIRST. The frame openings are sized so the tubs hang by their rims, and plastic tubs come in every size but the one a plan assumes. Get your tubs, measure the rims and the bodies, and adjust the frame dimensions before cutting — the listed cuts fit the source's tubs and are a starting point, not gospel.
The fastener note in the source is real-world experience talking: outdoors, use screws, not nails. Wet wood swells and shrinks with every rain cycle, and that movement walks nails out of their holes a little at a time — on a kids' table, a proud nail head is a cut waiting to happen. Self-tapping exterior screws stay put. And pre-drill the 1x3s; they split near ends.
Everything gets sanded and every edge gets rounded, because the users are three years old and made of elbows.
| Item | Qty |
|---|---|
| Plastic tubsBUY THESE FIRST and size the frame openings to their rims. The cut list assumes the source's tubs. | 2 each |
| 1x3, 8 ftLegs, shelf frame, and shelf slats. | 5 each |
| 1x6, 12 ftTop frame. Have the store cut it to 4 ft and 8 ft for transport — plan the crosscuts so all the pieces still come out. | 1 each |
| Exterior screws, #8 x 2", self-tapping | 30 each |
| Exterior screws, #8 x 1-1/4", self-tapping | 50 each |
| Exterior wood glue | 4 oz |
Overall cost: $$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Top frame sides1x6 | 2 | 3/4" × 5 1/2" × 43 1/4" |
| Top frame divider1x6Splits the top into the two tub bays — position it to YOUR tubs' rim sizes. | 1 | 3/4" × 5 1/2" × 15" |
| Top frame ends1x6 | 2 | 3/4" × 5 1/2" × 16 1/2" |
| Shelf frame sides1x3 | 2 | 3/4" × 2 1/2" × 43 1/4" |
| Shelf frame ends1x3 | 2 | 3/4" × 2 1/2" × 16 1/2" |
| Legs1x3 | 4 | 3/4" × 2 1/2" × 24" |
| Shelf slats1x3 | 12 | 3/4" × 2 1/2" × 16 1/2" |
Buy 7 boards at 8 ft.
2 boards
5 boards
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Assemble the 1x6 top frame — sides, ends, and the center divider that creates the two tub bays. Exterior glue at every joint and the 2" screws, pilot-drilled.
Before driving a single screw, set your actual tubs in the dry-fit frame: rims should catch on the frame all around, bodies should hang free. Move the divider until both tubs fit. The tubs are the spec; the cut list is the suggestion.
Build the 1x3 shelf frame to the same outer footprint as the top frame — same construction, lighter stock. This one carries buckets and shovels, not sand and water; it doesn't need the 1x6 beef.
Flip the TOP frame face-down on a flat surface and screw a leg into each corner with the 1-1/4" screws and glue. Then slide the shelf frame down over the legs to its height and screw it to all four.
Do this on a genuinely flat surface — a table this small shows every millimeter of leg mismatch as a wobble, and toddlers lean on everything.
Screw the twelve shelf slats across the shelf frame with the 1-1/4" screws, even gaps — the gaps drain rain and shed sand instead of collecting both.
Sand everything and round over every edge and corner a kid can find (they will find all of them). Drop in the tubs: sand one side, water the other, chaos both. The tubs lift out for dumping — which is the entire maintenance plan.
