About this build

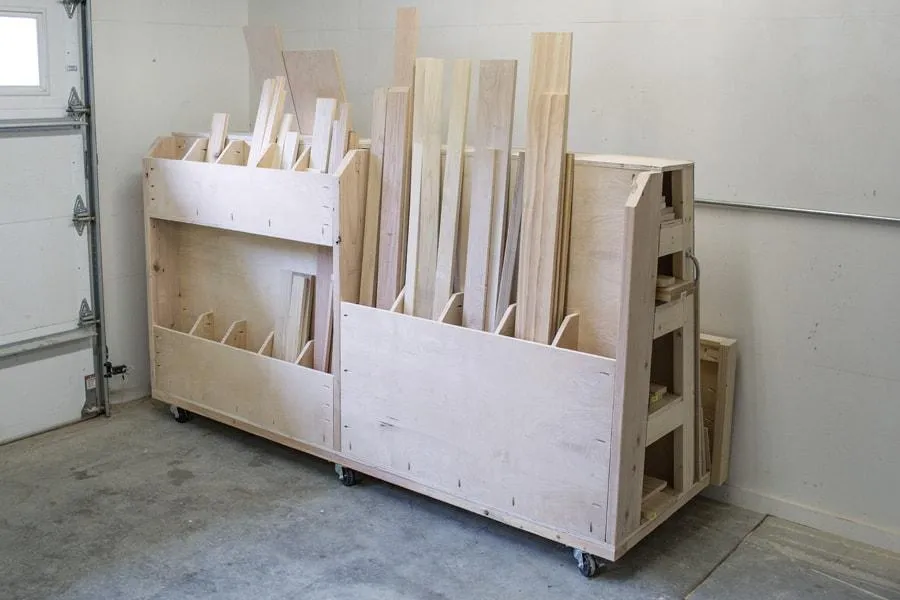

Finding a place to store lumber and sheet goods can be challenging. This lumber cart keeps them all organized with shelves to store long boards, upright bins for shorter pieces, and a large area to hold sheet goods. Plus, the cart rolls, so you can push it wherever you need to in your work space.
Tools
Essential
- Circular Saw
- Drill / Driver
- Hammer
- Jigsaw
- Miter Saw
- Random Orbit Sander
Optional / nice to have
- Bar / Pipe Clamps
- Combination Square
- Tape Measure
Materials
| Item | Qty |
|---|---|
| Board, 1x2 24" | 1 board |
| Board, 1x3 48" | 1 board |
| Board, 1x3 96" | 2 board |
| Board, 2x4 96" | 6 board |
| Board, 2x6 96" | 2 board |
| Board, 2x8 96" | 2 board |
| Plywood, 1/4" Thick Full Sheet | 1 board |
| Plywood, 3/4" Thick Full Sheet | 5 board |
| 2 1/2" coarse pocket hole screws | 22 each |
| 1 1/4" coarse pocket hole screws | 150 each |
| 4d finish nails | 125 each |
| 3" heavy duty locking swivel casters | 6 each |
| 3/8" x 1 1/2" lag screws | 24 each |
| 6 1/2" utility pulls | 2 each |
| Wood glue | 1 each |
| 3/8" washers | 24 each |
Overall cost: $$$$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
Cut list
| Part | Qty | T × W × L |
|---|---|---|
| Base stiles | 2 | 1" × 3" × 96" |
| Base rails | 5 | 1" × 5" × 25" |
| Bottom panel | 1 | 3" × 32" × 96" |
| Front rail | 1 | 3/4" × 2" × 96" |
| Front stiles | 2 | 3/4" × 2" × 16" |
| Front panel | 1 | 3" × 21" × 96" |
| Front panel trim | 1 | 3/4" × 2" × 96" |
| Front panel ends | 2 | 1" × 3" × 22" |
| End panel | 1 | 3" × 13" × 21" |
| End panel trim | 1 | 3/4" × 1" × 13" |
| Support frame back stiles | 3 | 1" × 7" × 46" |
| Support frame front stiles | 3 | 1" × 3" × 47" |
| Support frame top rails | 3 | 1" × 3" × 7" |
| Support frame middle rails | 3 | 1" × 3" × 9" |
| Support frame bottom rails | 3 | 1" × 3" × 11" |
| Support frame backing | 1 | 1" × 48" × 96" |
| Bottom shelf | 1 | 3" × 10" × 96" |
| Middle shelf | 1 | 3" × 8" × 96" |
| Top shelf | 1 | 3" × 6" × 96" |
| Cap | 1 | 3" × 9" × 96" |
| Support panels | 2 | 3" × 45" × 46" |
| Right back panel | 1 | 3" × 24" × 45" |
| Right back dividers | 4 | 3" × 5" × 27" |
| Bottom left back panel | 1 | 3" × 12" × 45" |
| Bottom left back dividers | 4 | 3" × 5" × 15" |
| Shelf panel | 1 | 3" × 10" × 45" |
| Shelf bottom | 1 | 3" × 6" × 45" |
| Shelf dividers | 4 | 3" × 5" × 13" |
What to buy
Some parts are longer than a 8 ft board, so there is no honest board count to show here. Open the board plan to pick a longer stock length — it names every part that does not fit.
3" × 45"
1 board
3" × 32"
0 boards
3" × 24"
1 board
3" × 21"
0 boards
3" × 13"
1 board
3" × 12"
1 board
3" × 10"
1 board
3" × 9"
0 boards
3" × 8"
0 boards
3" × 6"
1 board
3" × 5"
3 boards
1" × 48"
0 boards
1" × 7"
2 boards
1" × 5"
2 boards
1" × 3"
3 boards
3/4" × 2"
1 board
3/4" × 1"
1 board
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Instructions

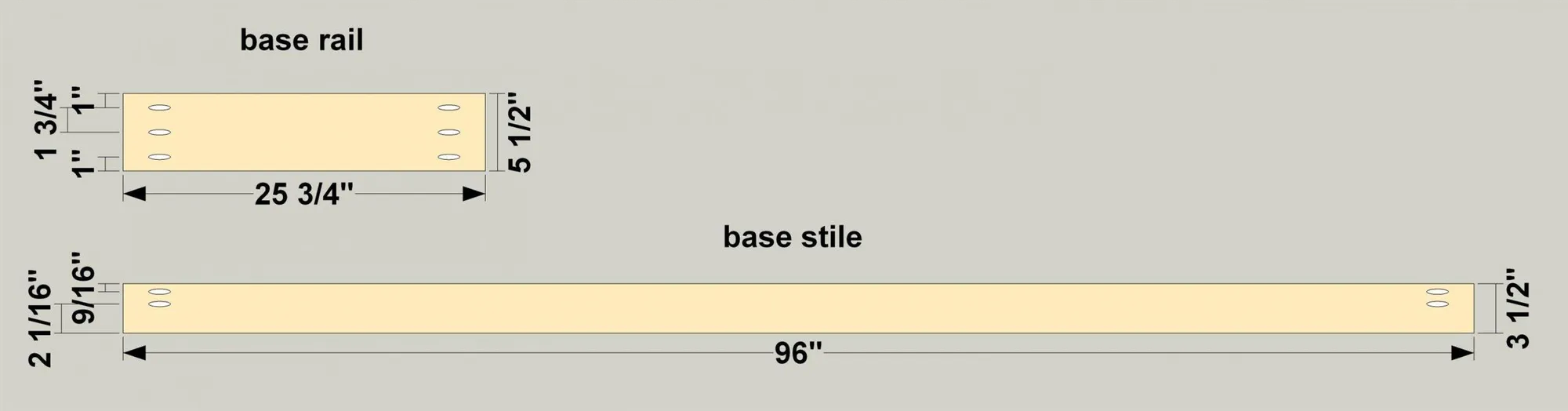

1Create the Base Parts
- Cut two Base Stiles to length from 2x4 boards, and five Base Rails to length from 2x6 boards, as shown in the cutting diagram.
- Then, with your jig set up for 1 1/2” stock, drill pocket holes in the base rails and in one of the base stiles, as shown. Note that the pocket holes are set toward one edge of the stile.

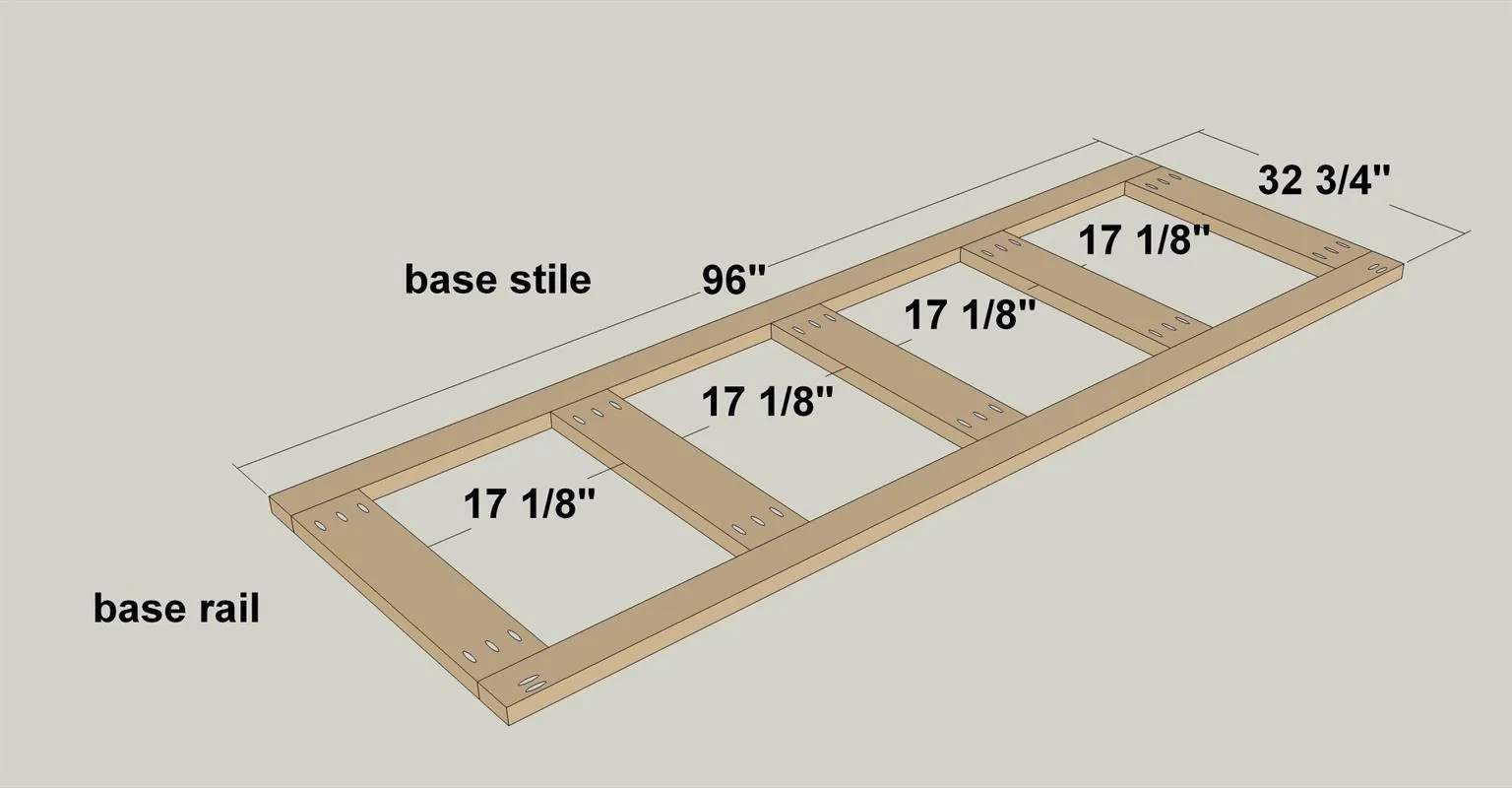

2Assemble the Base
Screw the base rails to the base stiles using 2 1/2” coarse thread pocket hole screws. Note the position of the stile that has pocket holes.

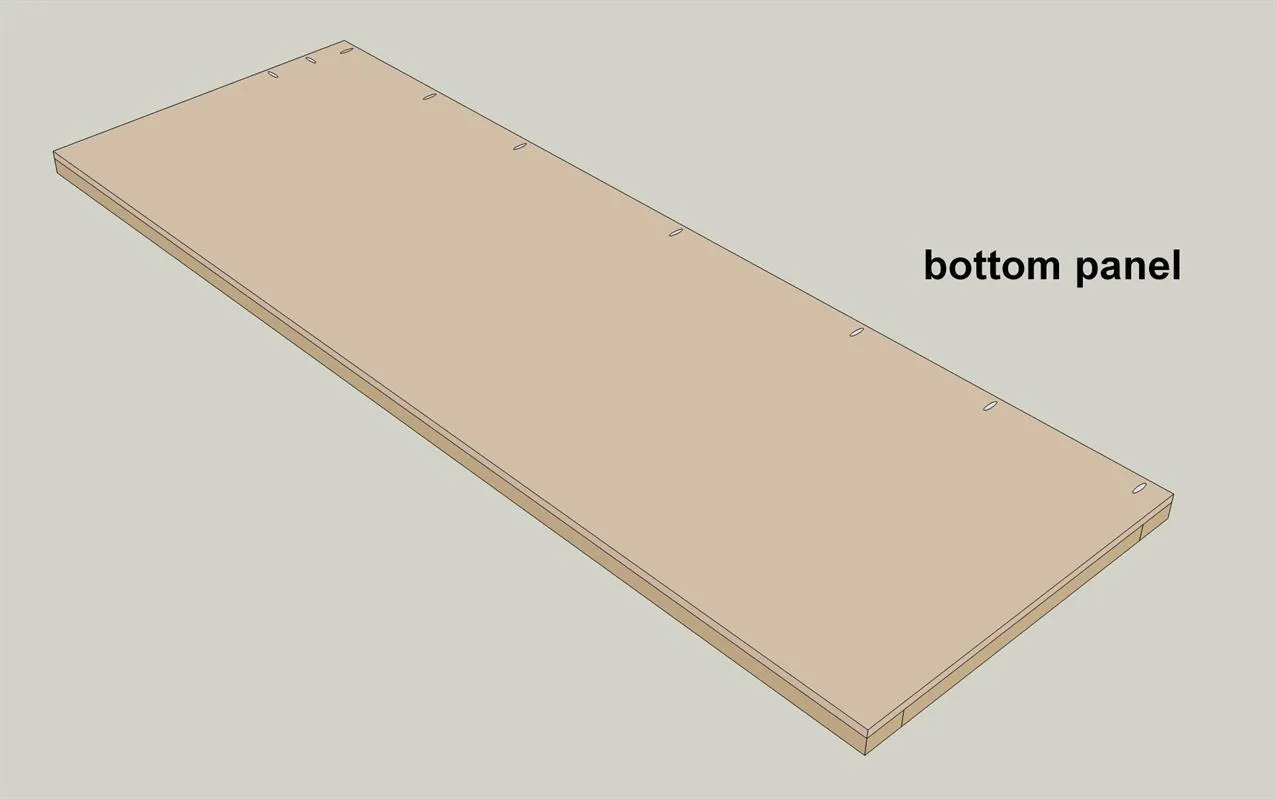

3Make a Bottom Panel

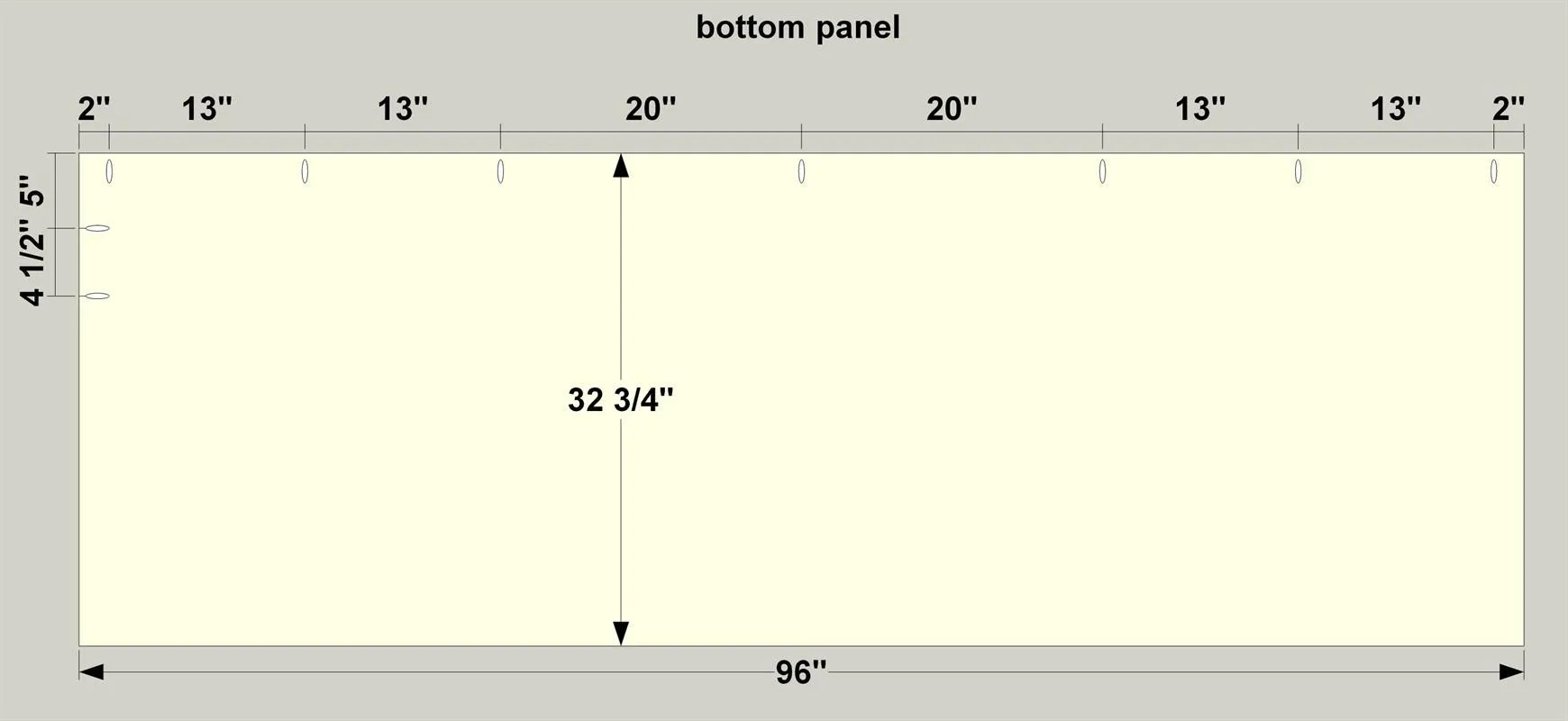

Cut a Bottom Panel to size from 3/4” plywood, as shown in the cutting diagram. Then, with your jig set up for 3/4” stock, drill pocket holes in the Bottom Panel, as shown.
4Attach the Bottom Panel
- Flip the base stile/rail assembly over (so the pocket holes face down).
- Apply beads of glue to the rails and stiles, and then lay the Bottom Panel on the assembly so that the pocket holes in the bottom panel are over the base stile that has pocket holes.
- Attach the bottom panel using 4d finish nails every 6” to 8”.
5Create Front Rails, Stiles, Trim

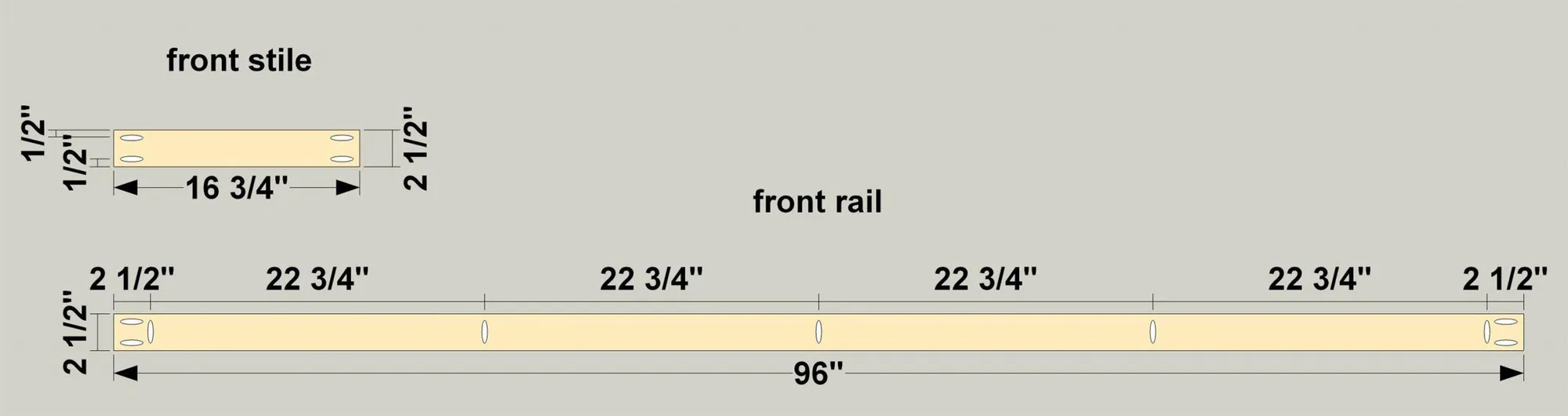

Cut one Front Rail, and two Front Stiles to length from 1x3 boards, and create one Front Panel Trim from a 1x3 board, as shown in the cutting diagram. With your jig set up for 3/4” stock, drill pocket holes in the front rail and the front stiles, as shown.

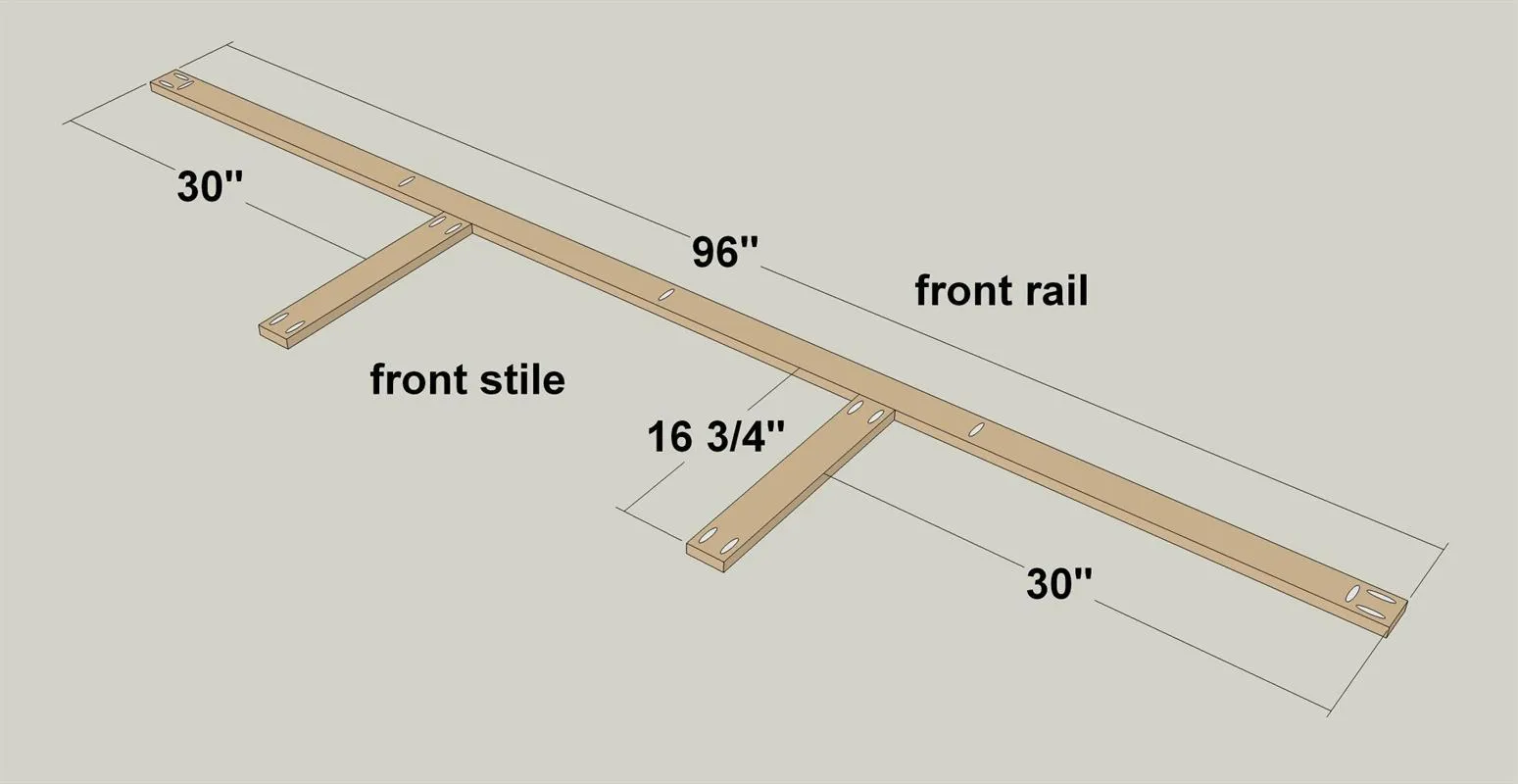

6Assemble the Front Rail and Stiles
Screw the front rails to the front stile using 1 1/4” coarse-thread pocket hole screws.

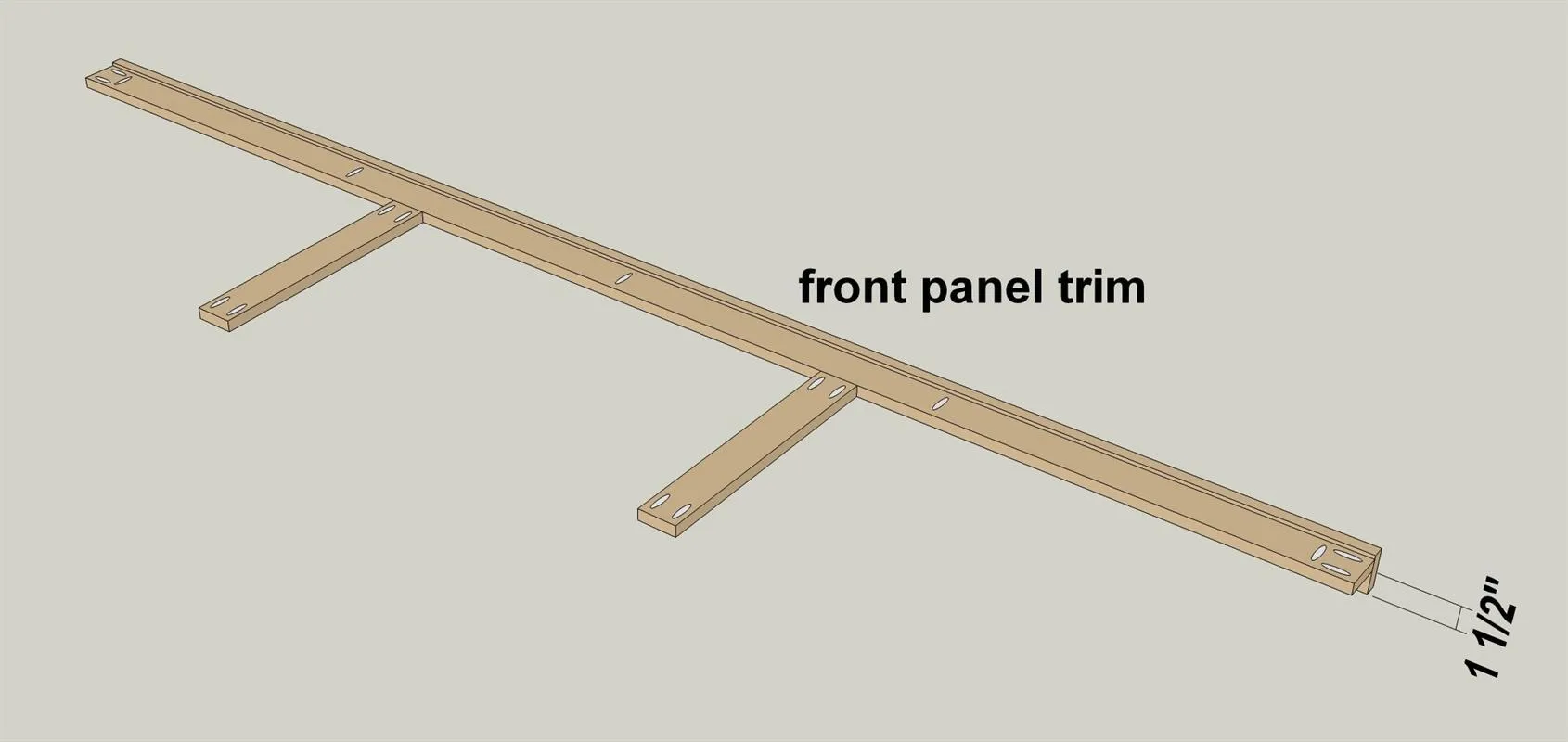

7Attach the Front Panel Trim
Attach the front panel trim using 1 1/4” coarse-thread pocket hole screws, making sure the trim overhangs the assembly by 1/4” on the pocket-hole side.

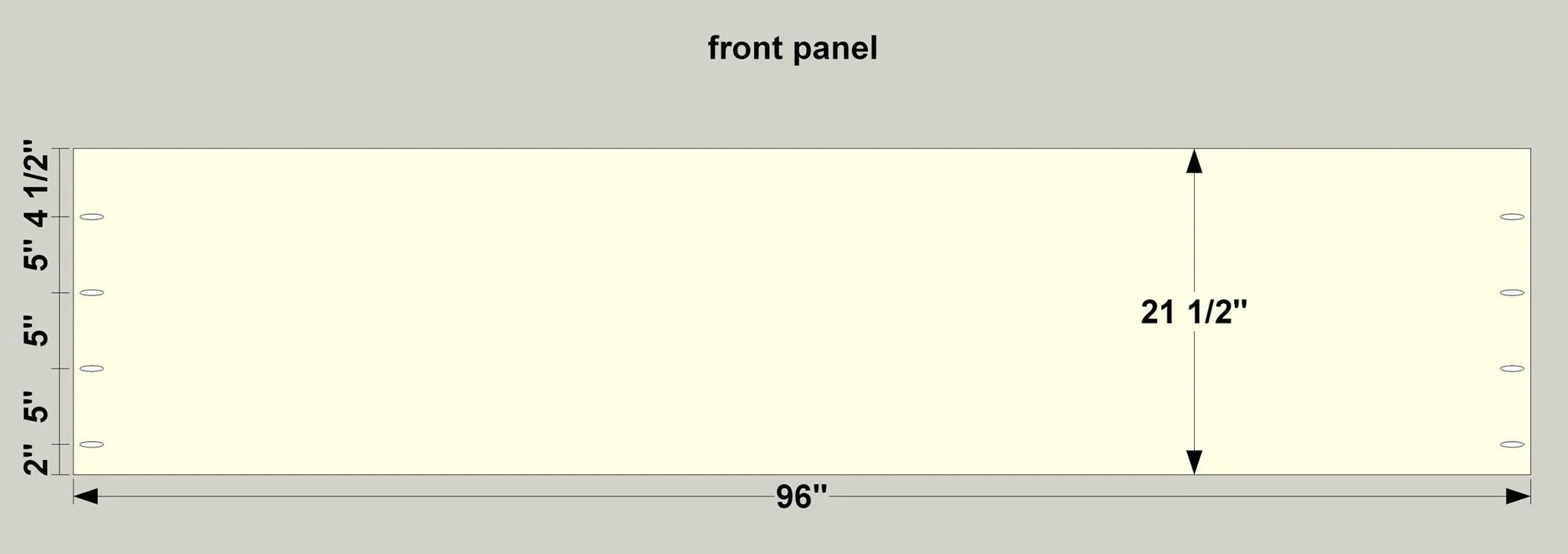

8Make a Front Panel and Ends
- Cut a Front Panel to size from 3/4” plywood, as shown in the cutting diagram.
- Cut two Front Panel Ends to length from a 2x4 board, as shown in the cutting diagram.
- Cut a 1 1/2” x 1 1/2” notch off one of the front panel ends, as shown. With your jig set up for 3/4” stock, drill pocket holes in the front panel, as shown.

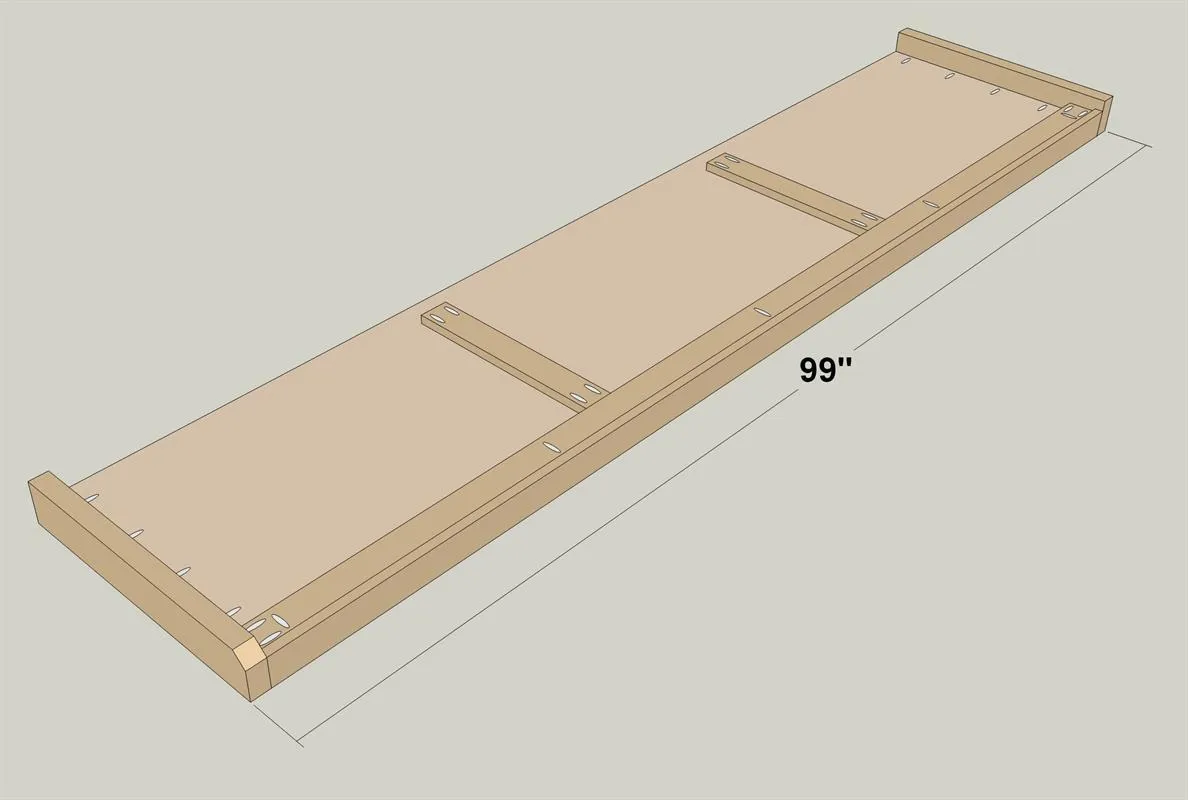

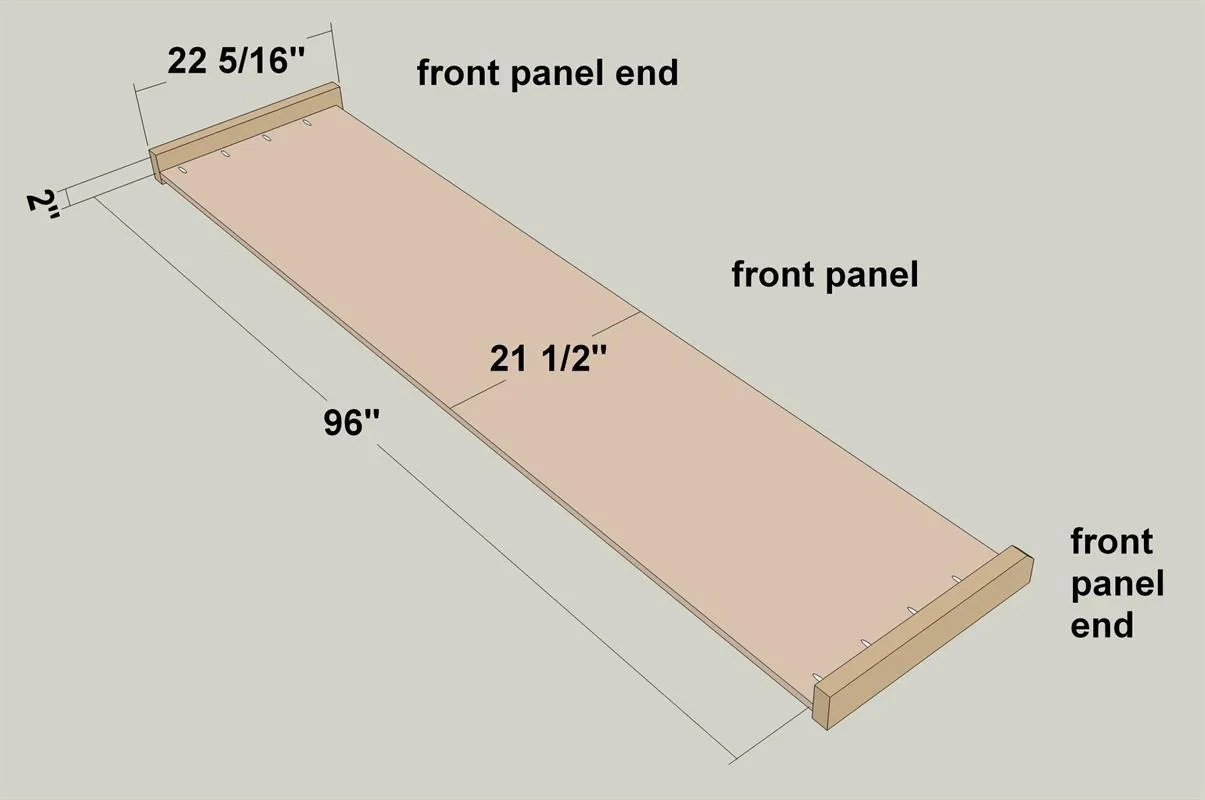

9Attach the Front Panel Ends
Attach the front panel ends to the front panel using 1 1/4” coarse-thread pocket hole screws, making sure the front panel ends are offset as shown.

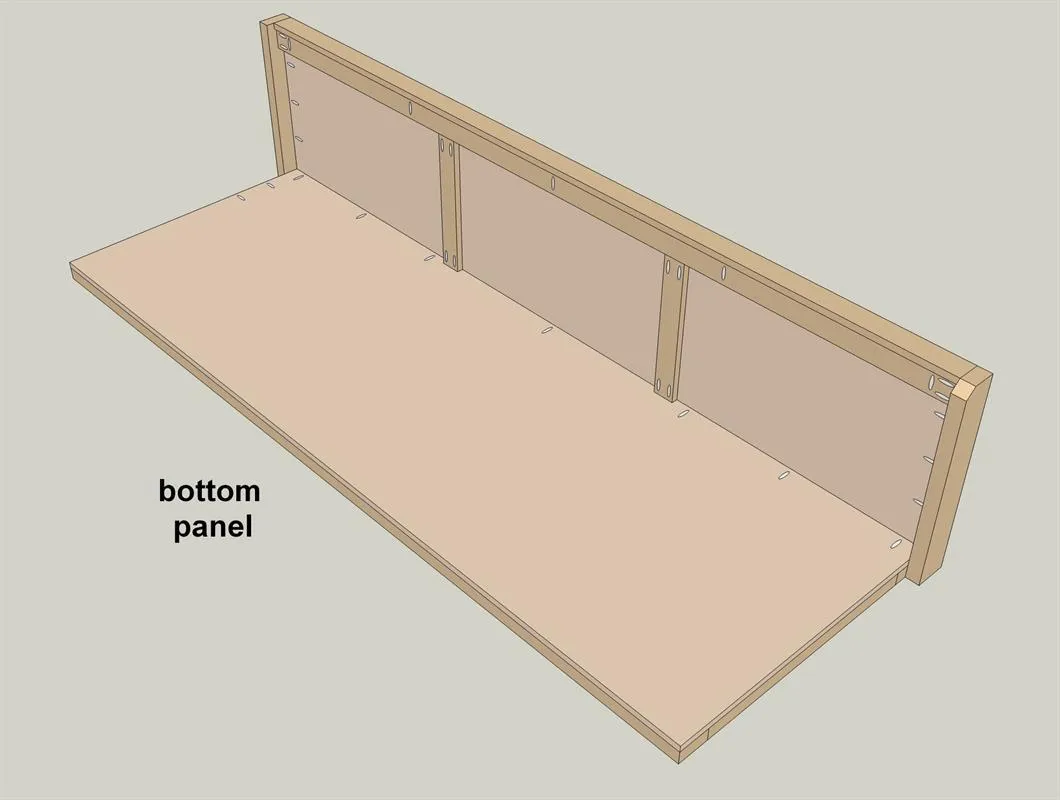

10Complete the Front Assembly
Apply beads of glue on the face of the front rail/stile assembly that doesn’t have pocket holes. Then attach it to the front panel assembly to the using glue, 1 1/4” coarse-thread pocket hole screws, and 4d finish nails.
11Joint the Front to the Base
- Attach it to the front assembly to the base assembly using glue and 1 1/4” coarse-thread pocket hole screws.
- Also be sure to attach the base stile to the panel ends using 2 1/2” pocket screws.
- Check that the assembly is square as you do this.
- Also drive 4d finish nails through the front panel and into the base stile.

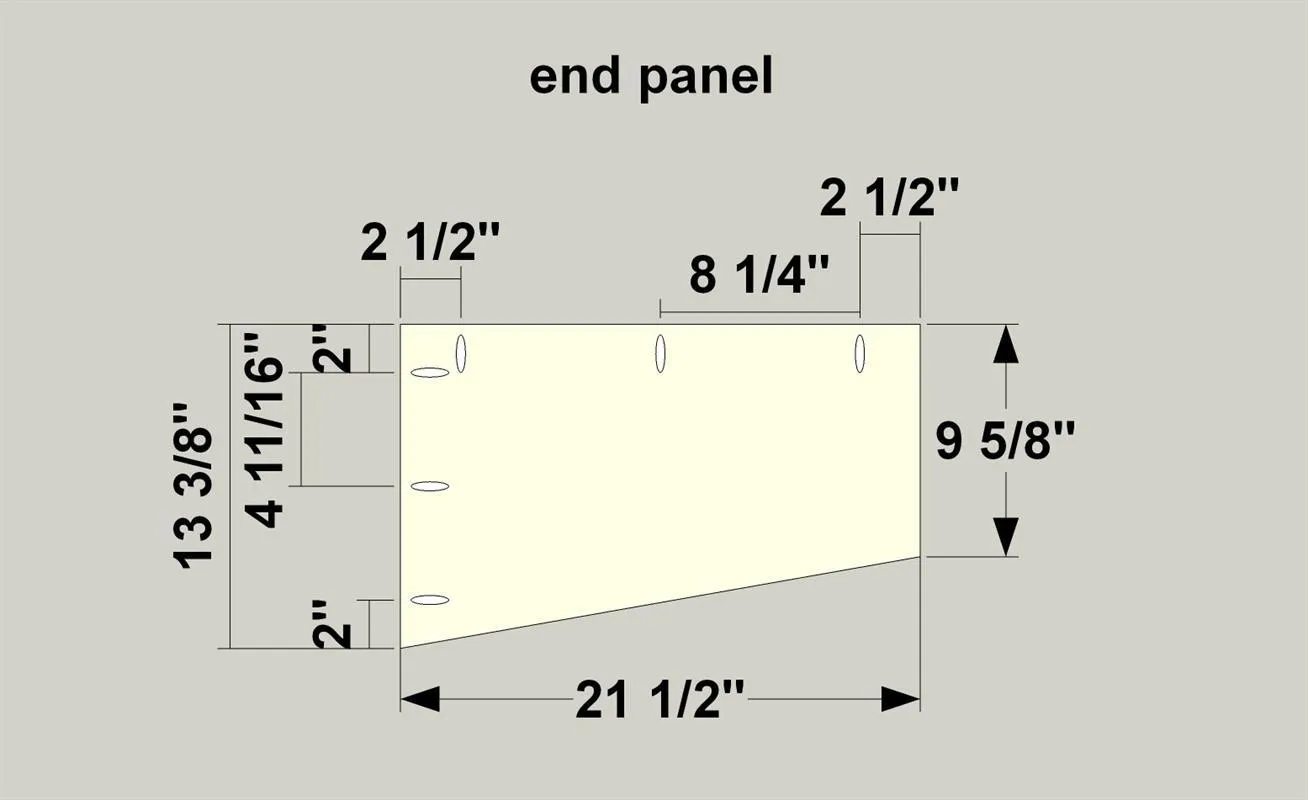

12Make the End Panel Parts
- Cut an End Panel to size from 3/4” plywood, as shown in the cutting diagram.
- Also cut one End Panel Trim to length from a 1x2 board, as shown in the cutting diagram.
- Then with your jig set up for 3/4” stock, drill pocket holes in the end panel, as shown.

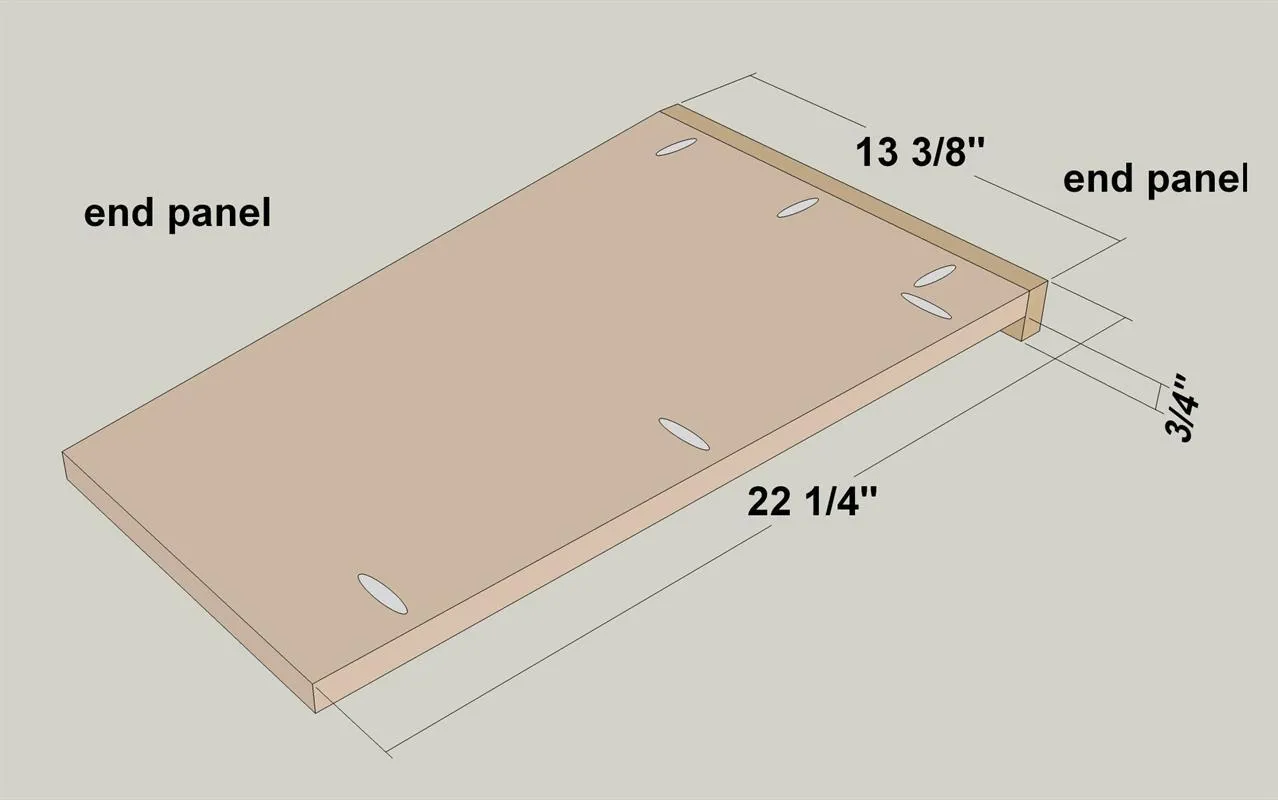

13Attach the End Panel Trim
Attach the end panel trim to the end panel using glue and 1 1/4” coarse-thread pocket hole screws.

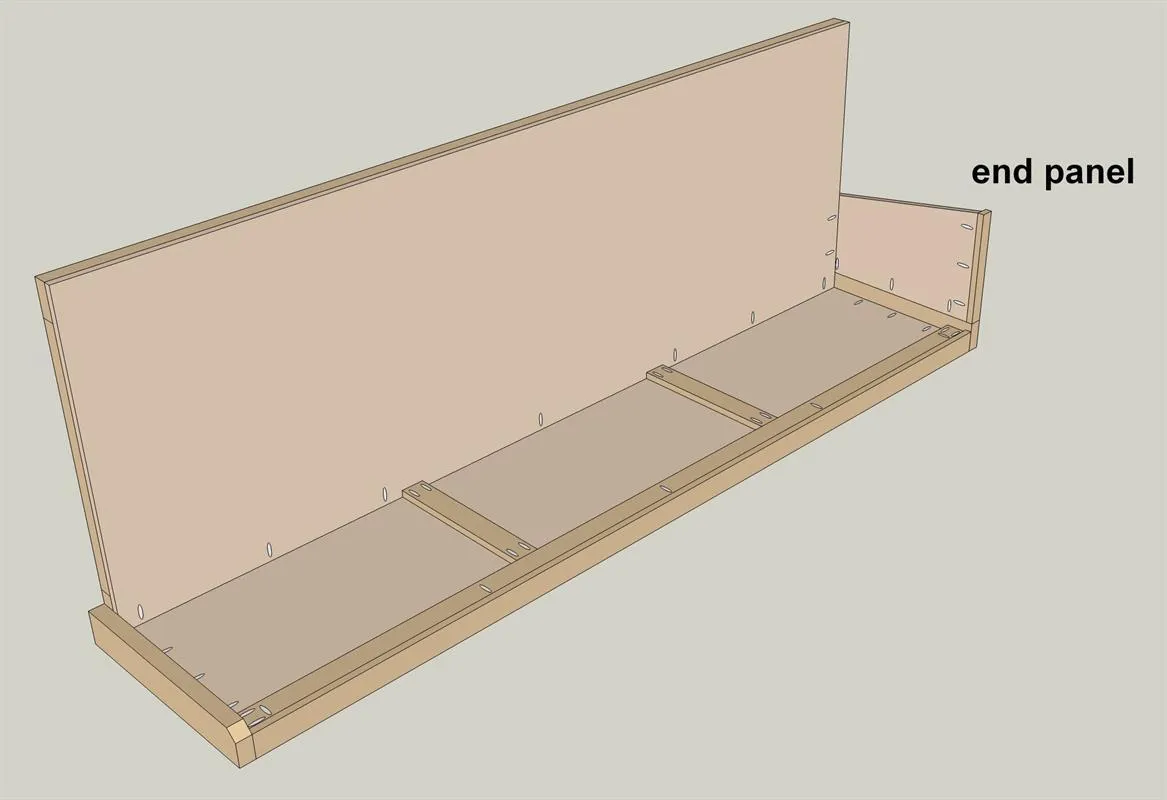

14Add the End Assembly
- Attach the end panel assembly to the base/front assembly using glue and 1 1/4” coarse-thread pocket hole screws.
- Also attach the casters to the underside of the bottom stiles by positioning them, drilling holes, and using bolts and washers. Our casters called for 3/8" bolts, as shown in the materials list.
- Check the mounting hole size in your casters.
15Cut the Support Frame Parts
Cut three Support Frame Front Stiles and nine Support Frame Rails to size from 2x4 boards, and then cut three Support Frame Back Stiles from 2x8 boards, as shown in the cutting diagram. Notch the top end of each back stile as shown.

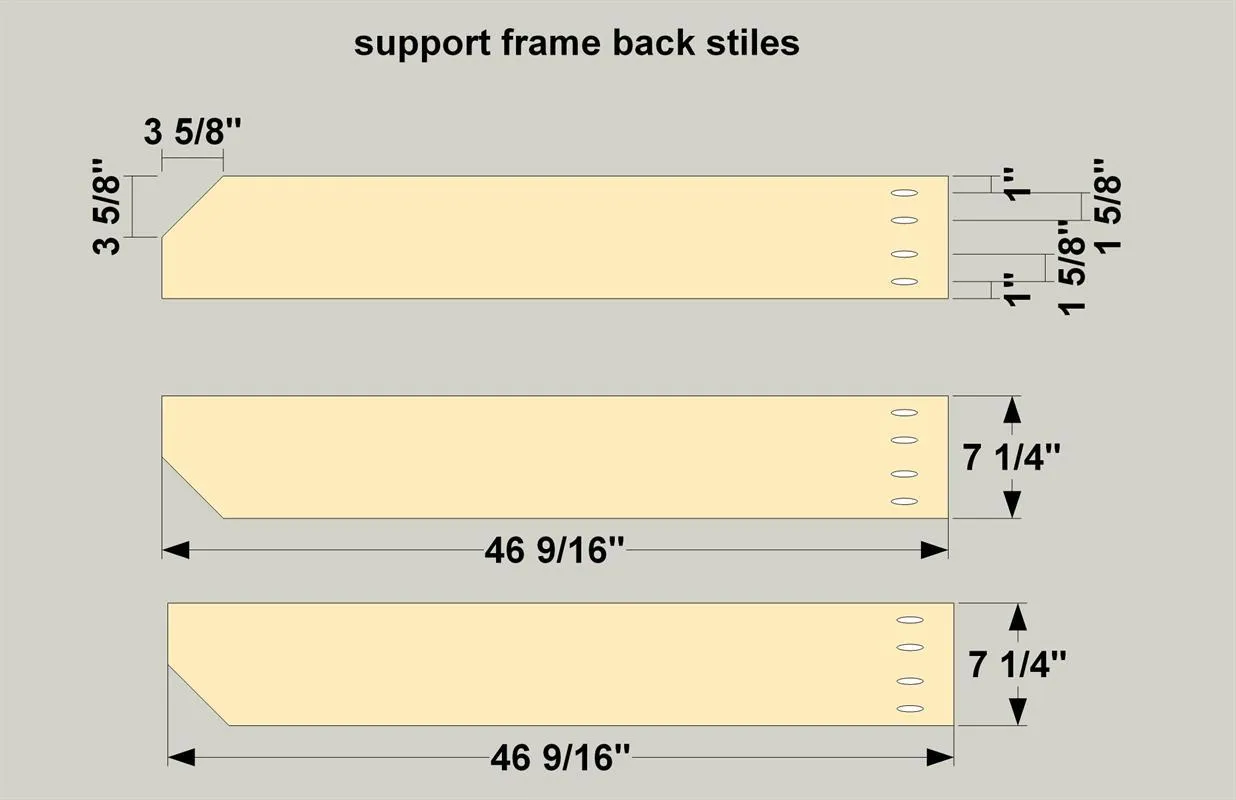

16Drill the Back Stiles
With your jig set up for 1 1/2” stock, drill pocket holes in one end of the back stiles, as shown.

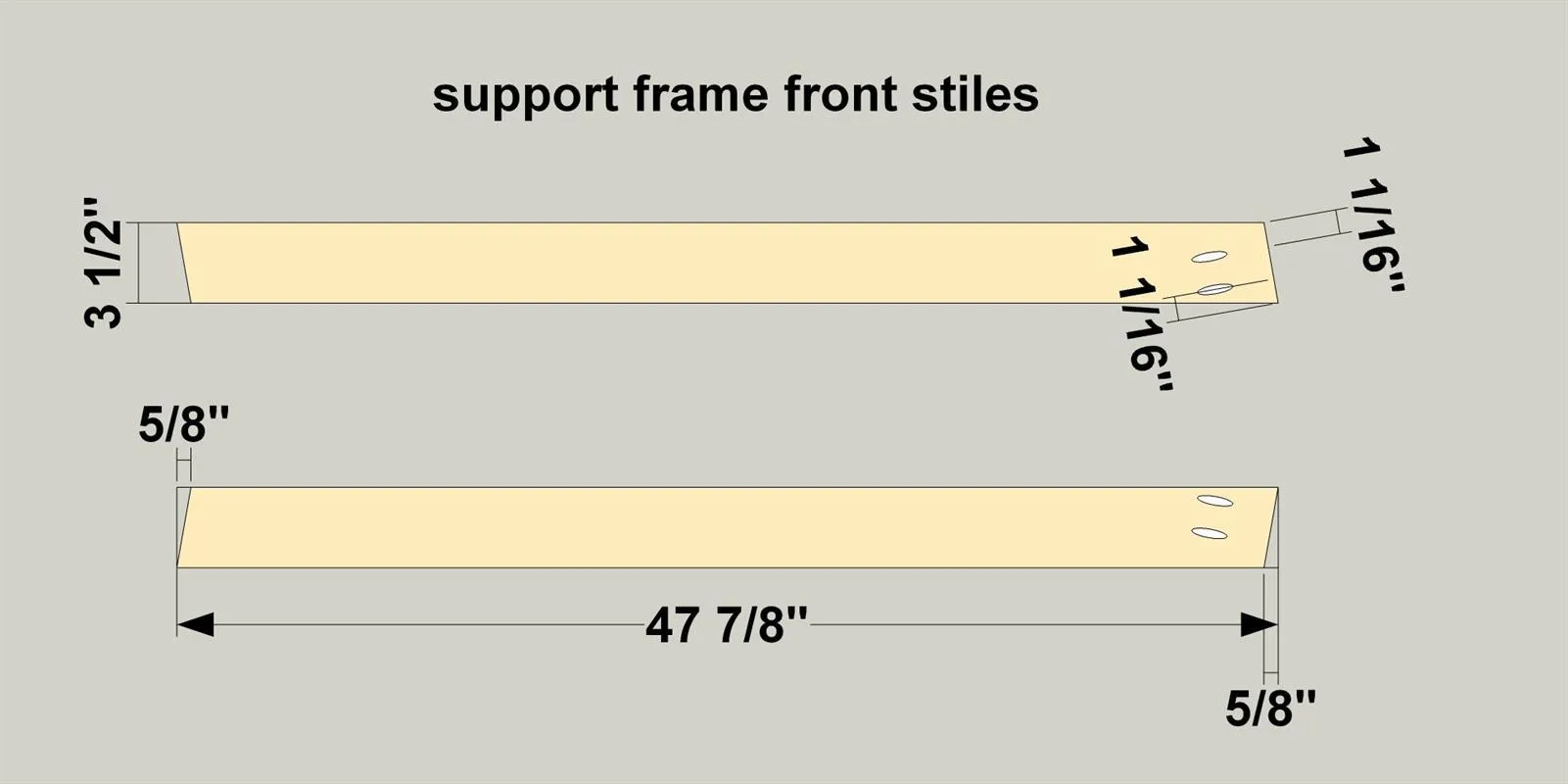

17Drill the Front Stiles
With your jig set up for 1 1/2” stock, drill pocket holes in the front stiles, as shown.

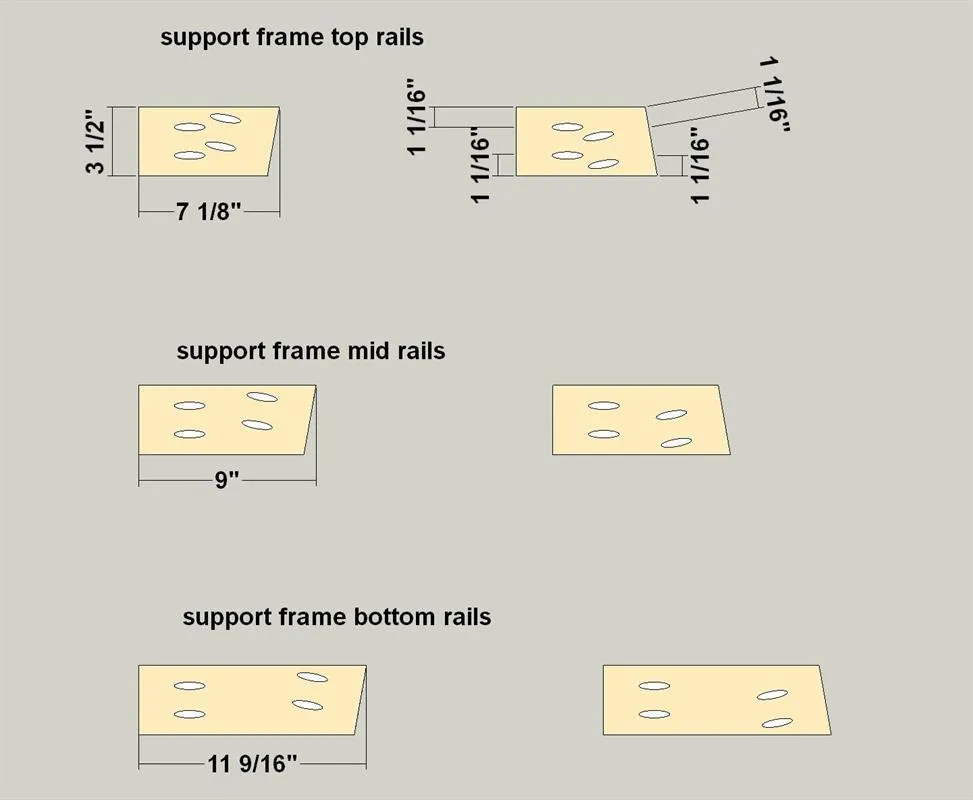

18Drill the Frame Rails
With your jig set up for 1 1/2” stock, drill pocket holes in the rails, as shown.

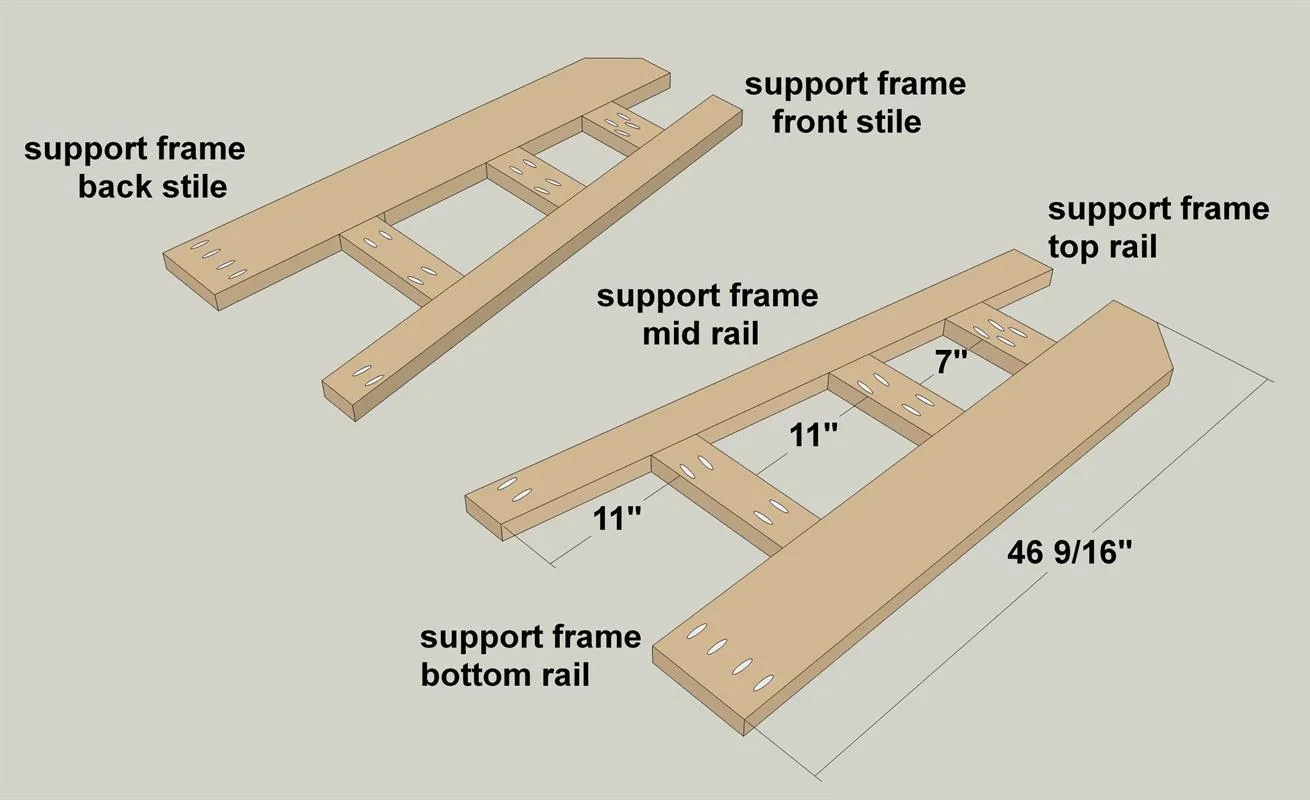

19Assemble the Frame Parts
Assemble all three support frames using 2 1/2” coarse-thread pocket hole screws.

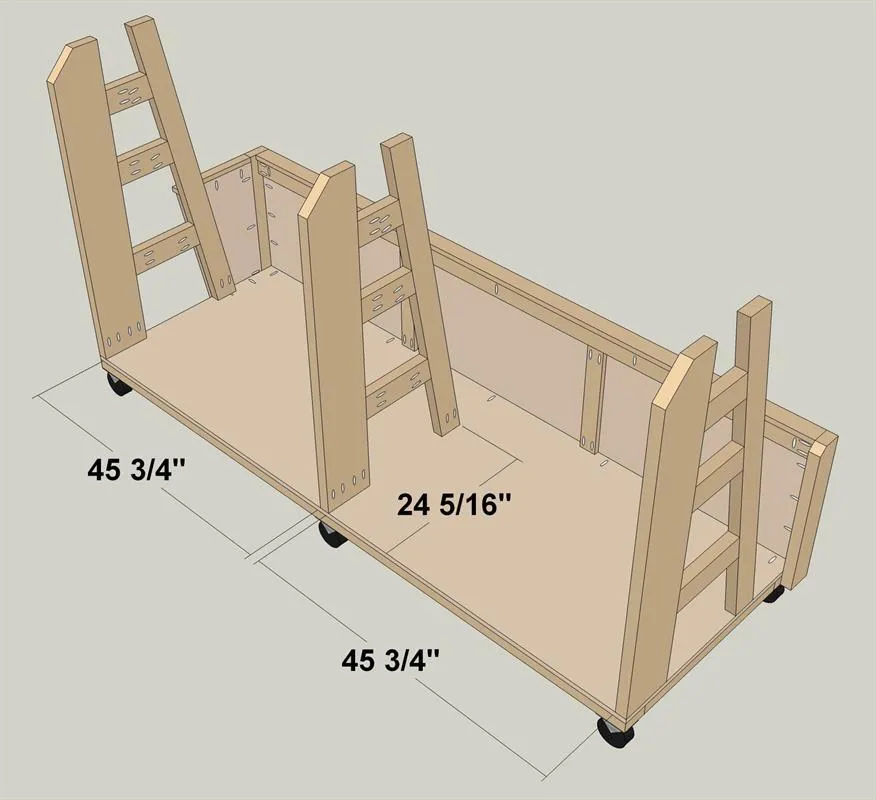

20Install the Frames
Attach the support frames to the cart base using 2 1/2” coarse-thread pocket hole screws.

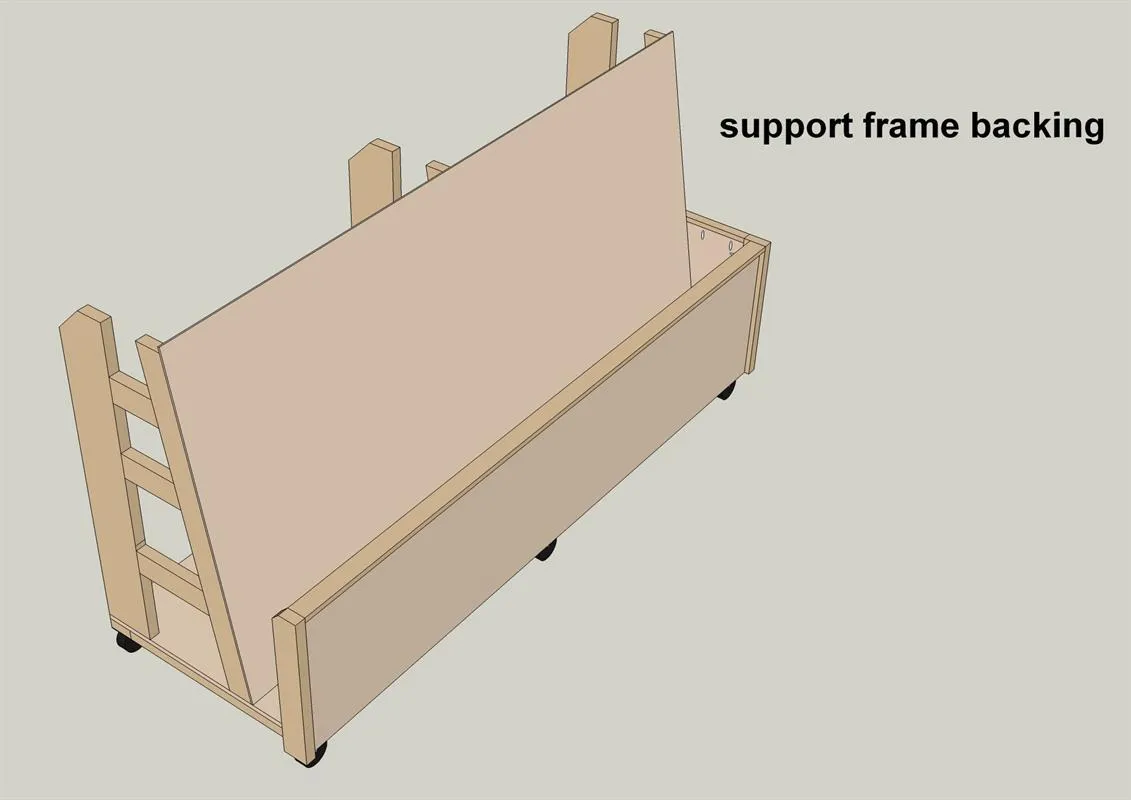

21Add the Support Frame Backing
Attach a Support Frame Backing (made from a sheet of 1/4” plywood, as shown in the cutting diagram) to the support frames using glue and 4d finish nails.

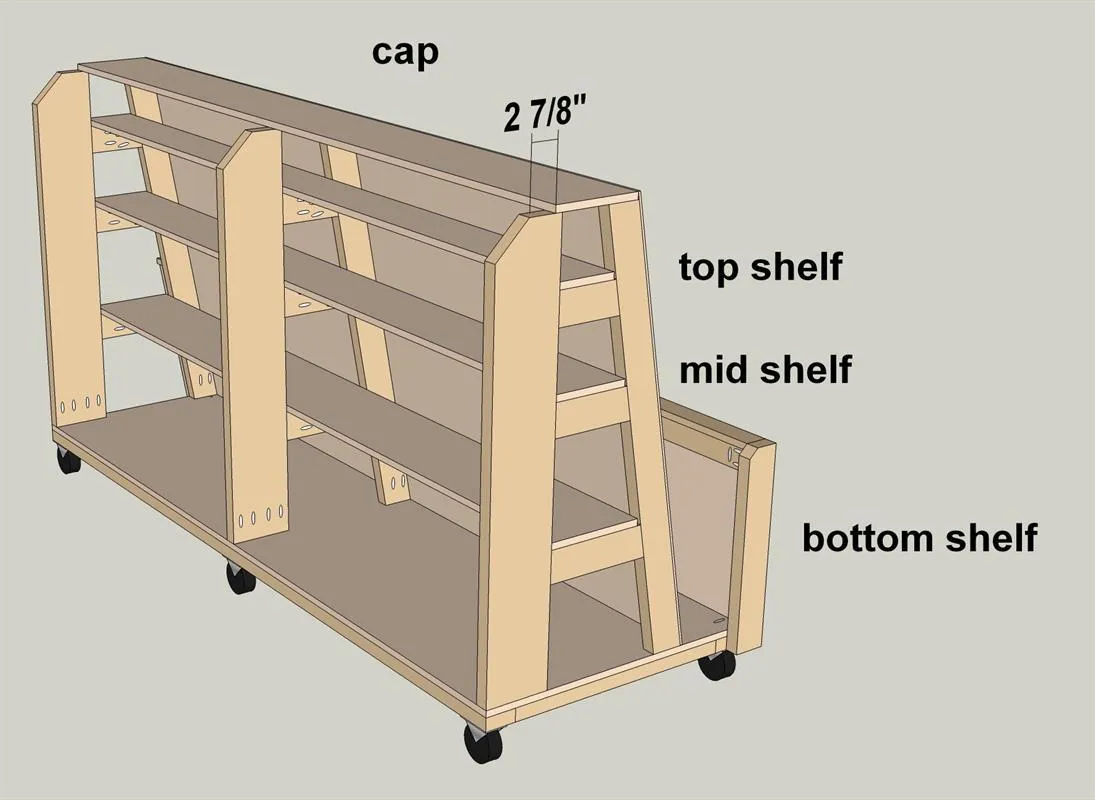

22Add the Cap and Shelves
Cut one Cap, one Top Shelf, one Mid Shelf, and one Bottom Shelf to size from 3/4” plywood, as shown in the cutting diagram. Then attach the cap and shelves to the support frame rails using glue and 4d finish nails.

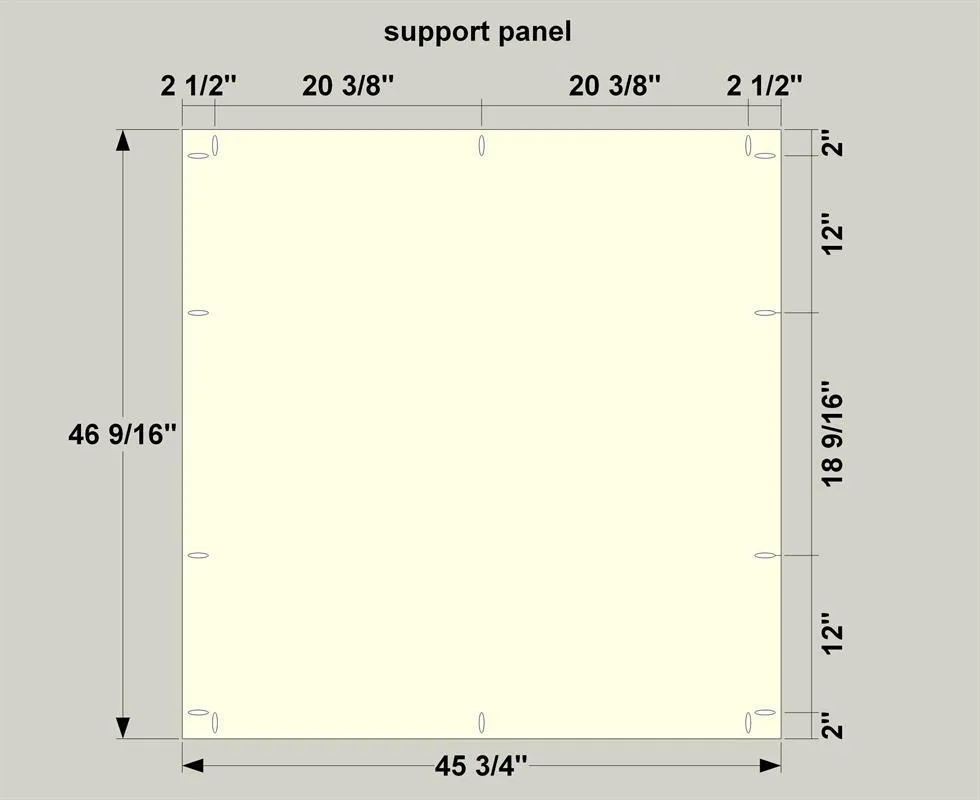

23Create Two Support Panels
Cut two Support Panels to size, as shown in the cutting diagram. Then, with your jig set for 3/4” stock, drill pocket holes in the panels, as shown.

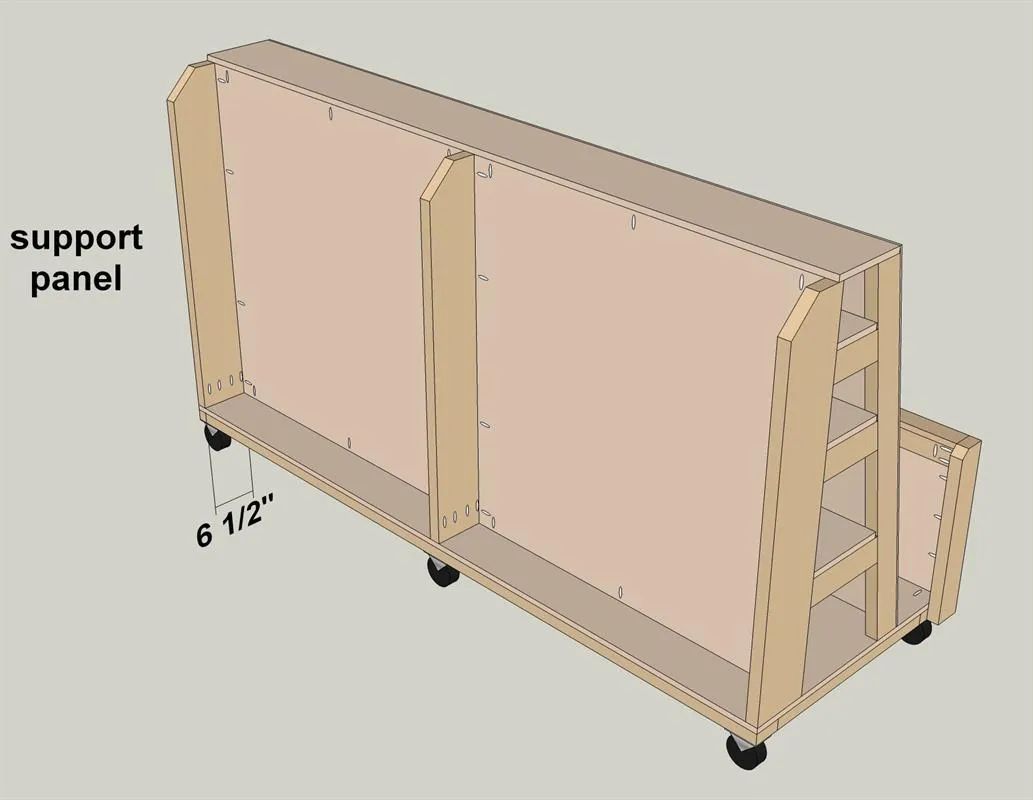

24Attach the Support Panels
Attach the support panels using 1 1/4” coarse-thread pocket hole screws.

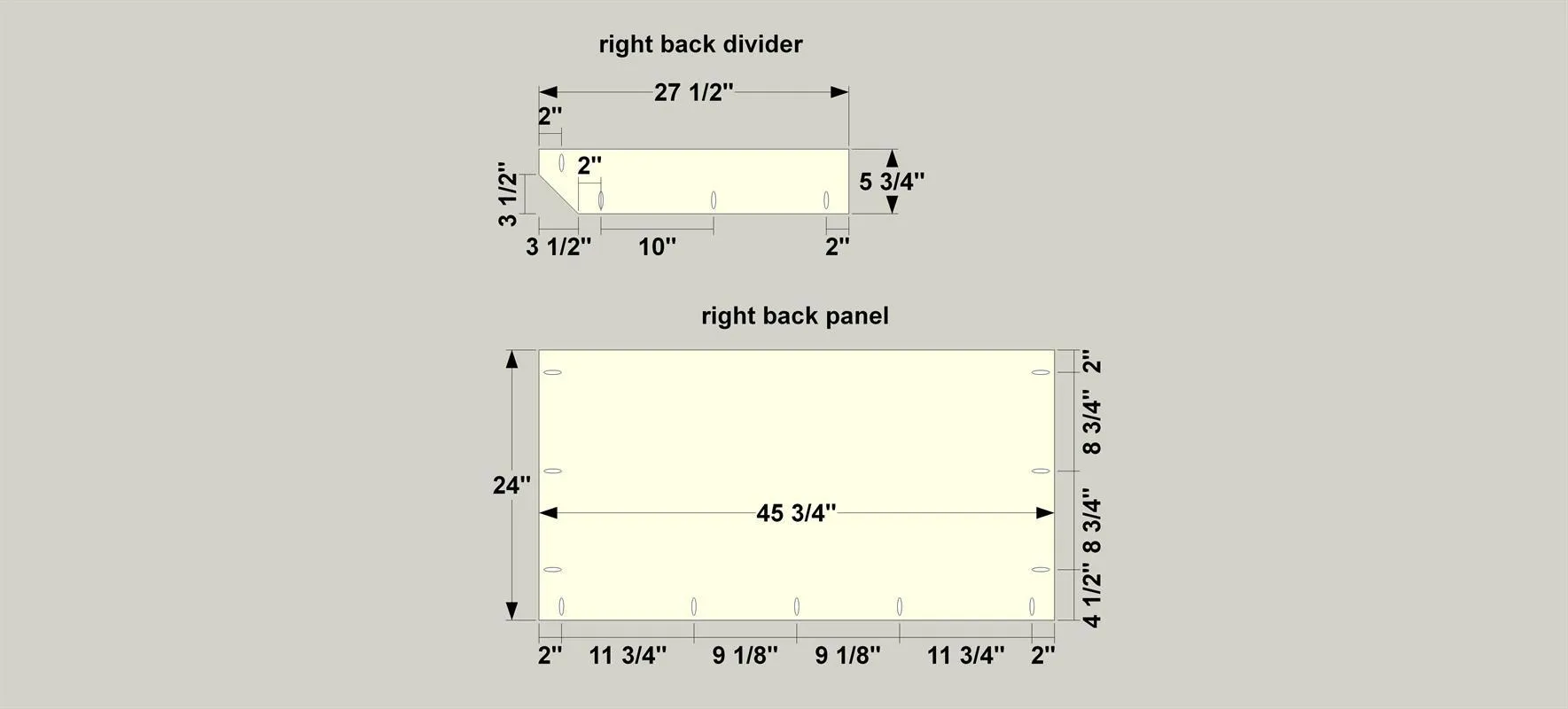

25Create the Right Back Parts
Cut one Right Back Panel and four Right Back Dividers to size from 3/4” plywood, as shown in the cutting diagram. Then, with your jig set for 3/4” material, drill pocket holes in the back panel and the dividers, as shown.

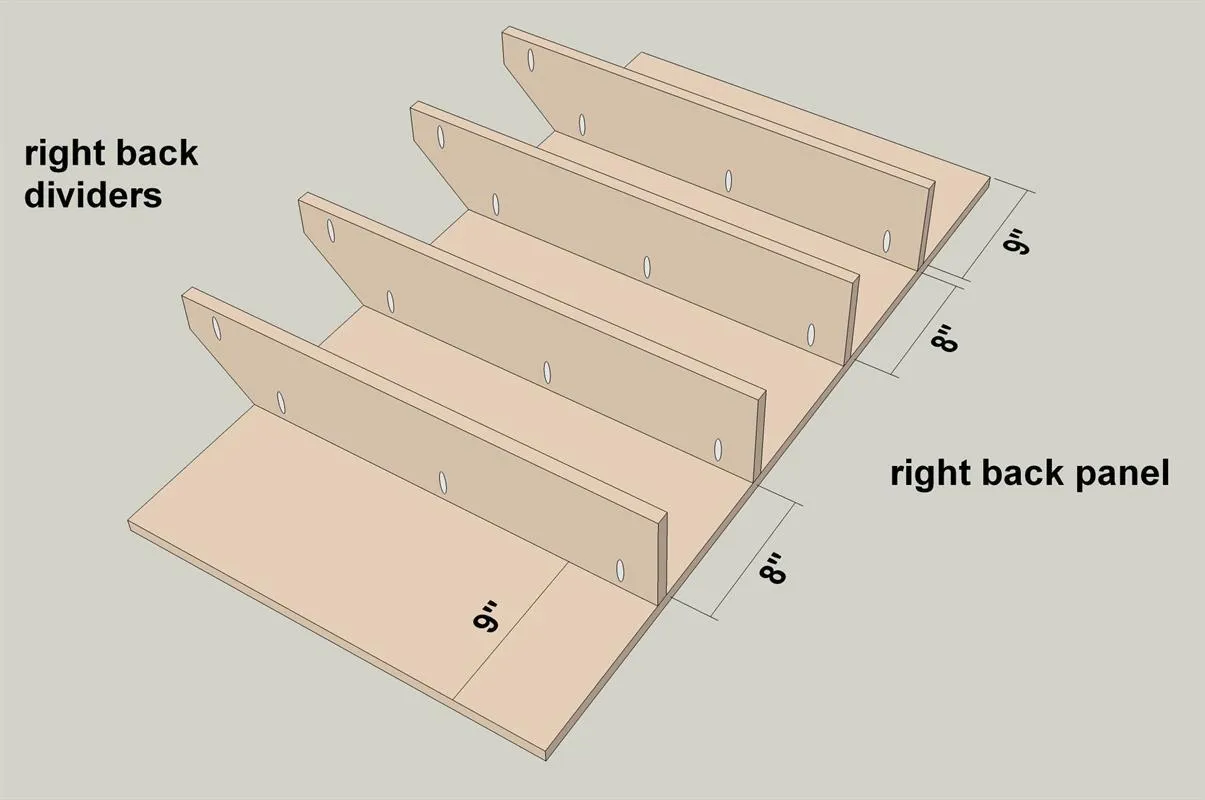

26Attach the Dividers
Attach the dividers to the back panel—on the face without pocket holes—using 1 1/4” coarse-thread pocket hole screws, as shown.
27Install the Right Back Assembly
Attach the right back/divider assembly to the cart using 1 1/4” coarse-thread pocket hole screws, as shown.
28Cut the Remaining Back Parts
Cut one Bottom Left Back Panel and four Bottom Left Dividers to size from 3/4” plywood, as shown in the cutting diagram. Then cut one Shelf Panel, one Shelf Back, and four Shelf Dividers to size from the sheet, as well.
29Drill the Shelf Parts

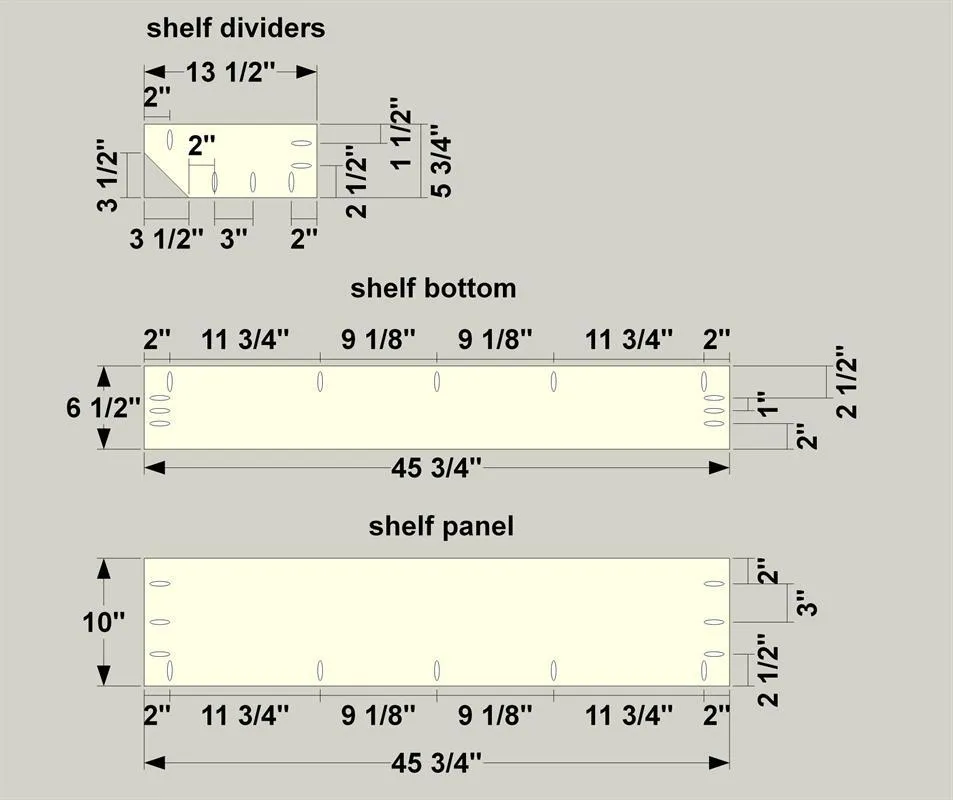

With your jig set for 3/4” material, drill pocket holes in the shelf dividers, shelf panel, and shelf back, as shown.

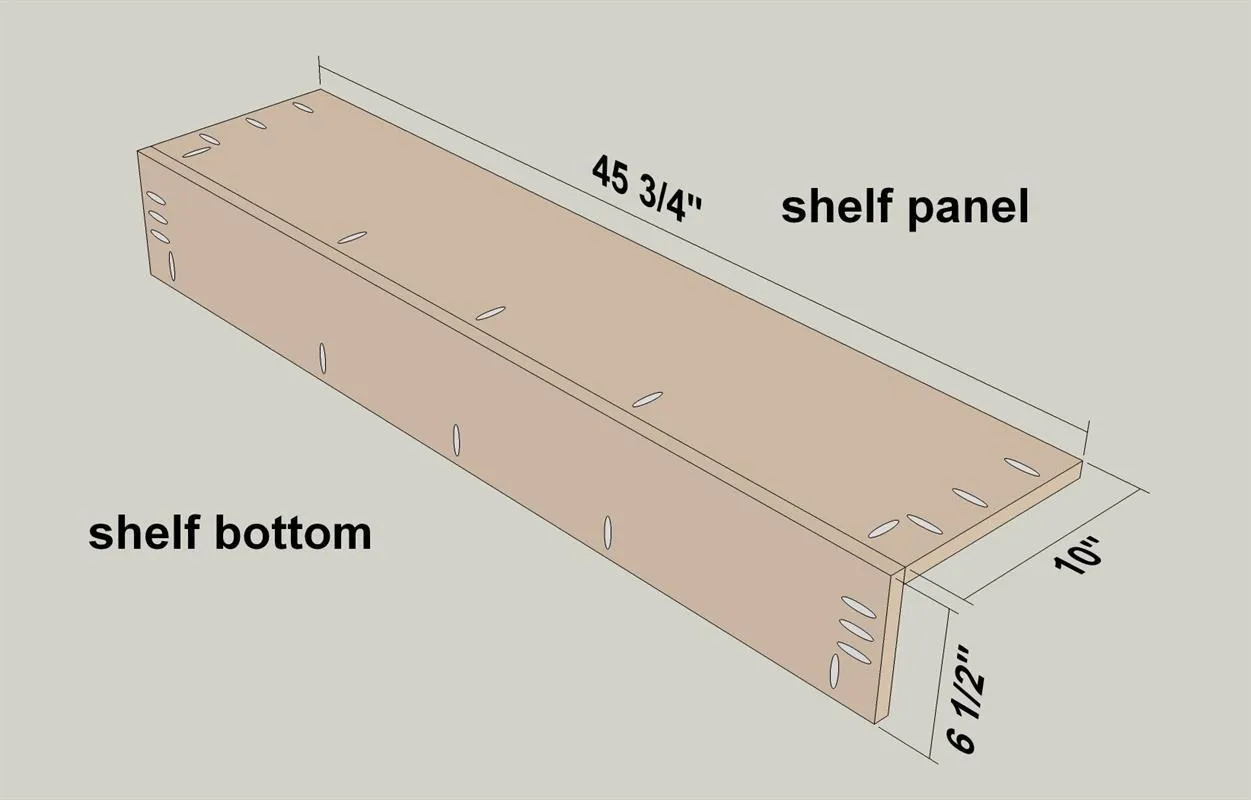

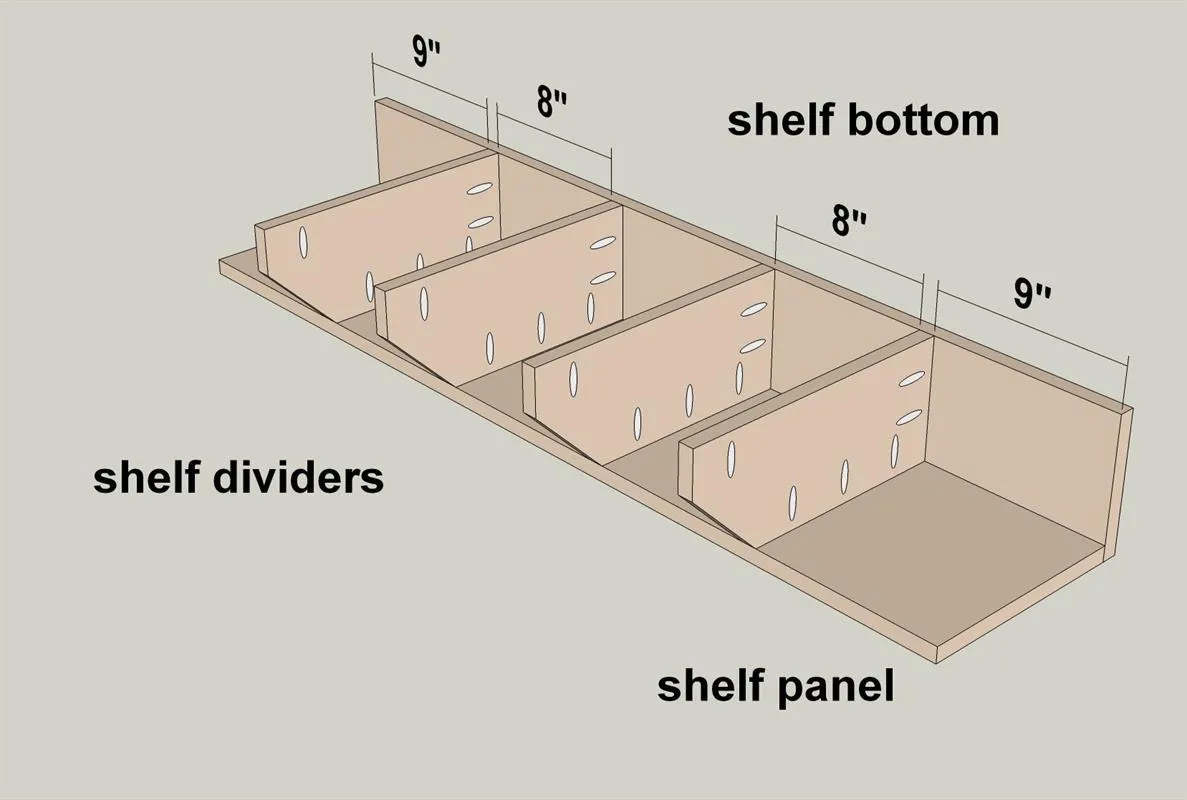

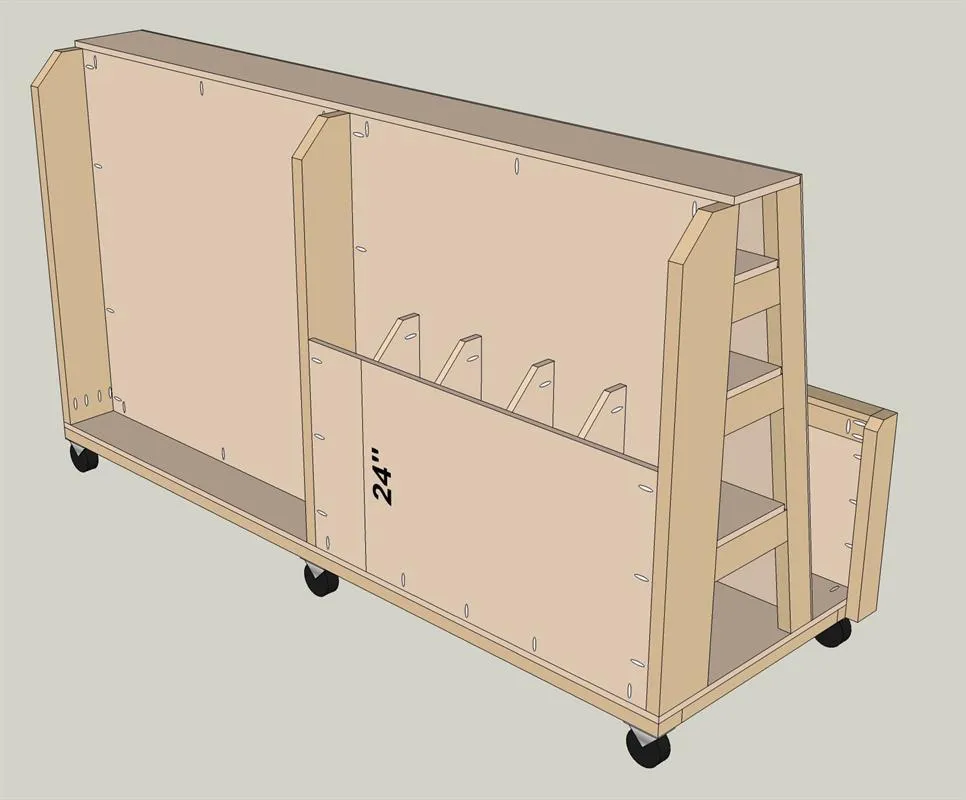

30Assemble the Shelf and Back
Attach the shelf bottom to the shelf panel—with all pocket holes facing out—using 1 1/4” coarse-thread pocket hole screws, as shown.
31Add the Shelf Dividers
Attach the shelf dividers using 1 1/4” coarse-thread pocket hole screws, as shown.

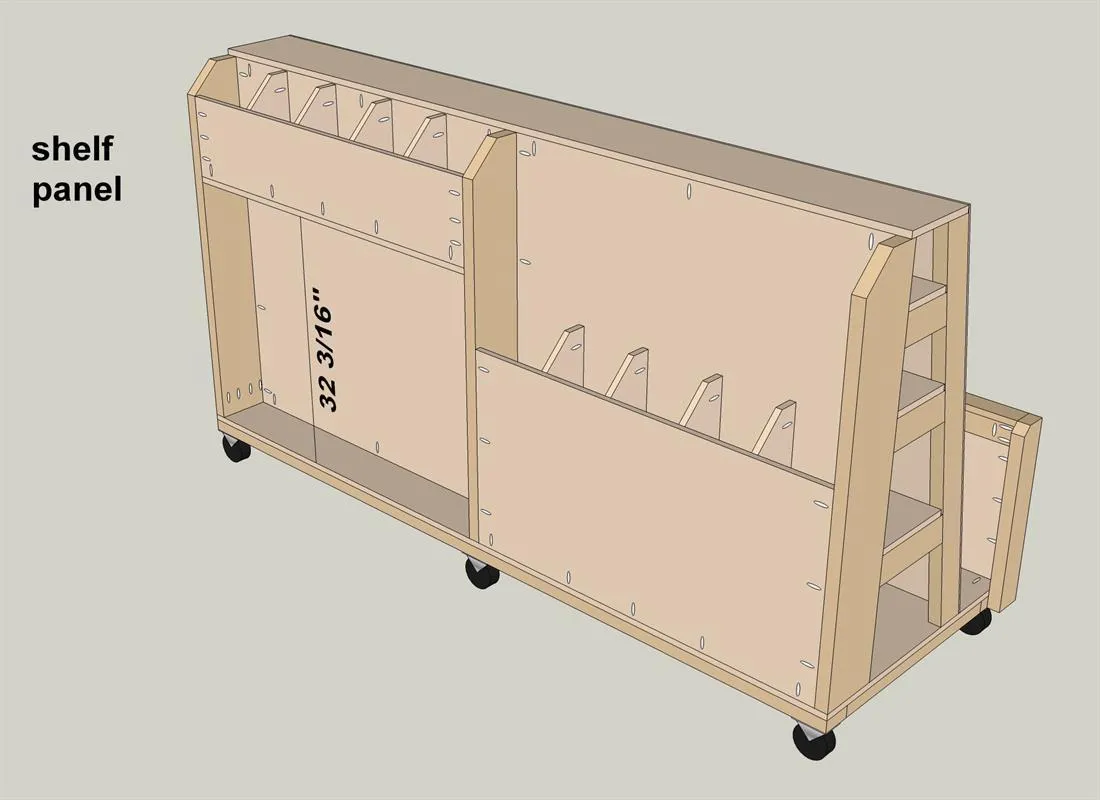

32Install the Shelf Assembly
Attach the shelf/divider assembly to the cart using 1 1/4” coarse-thread pocket hole screws, as shown.

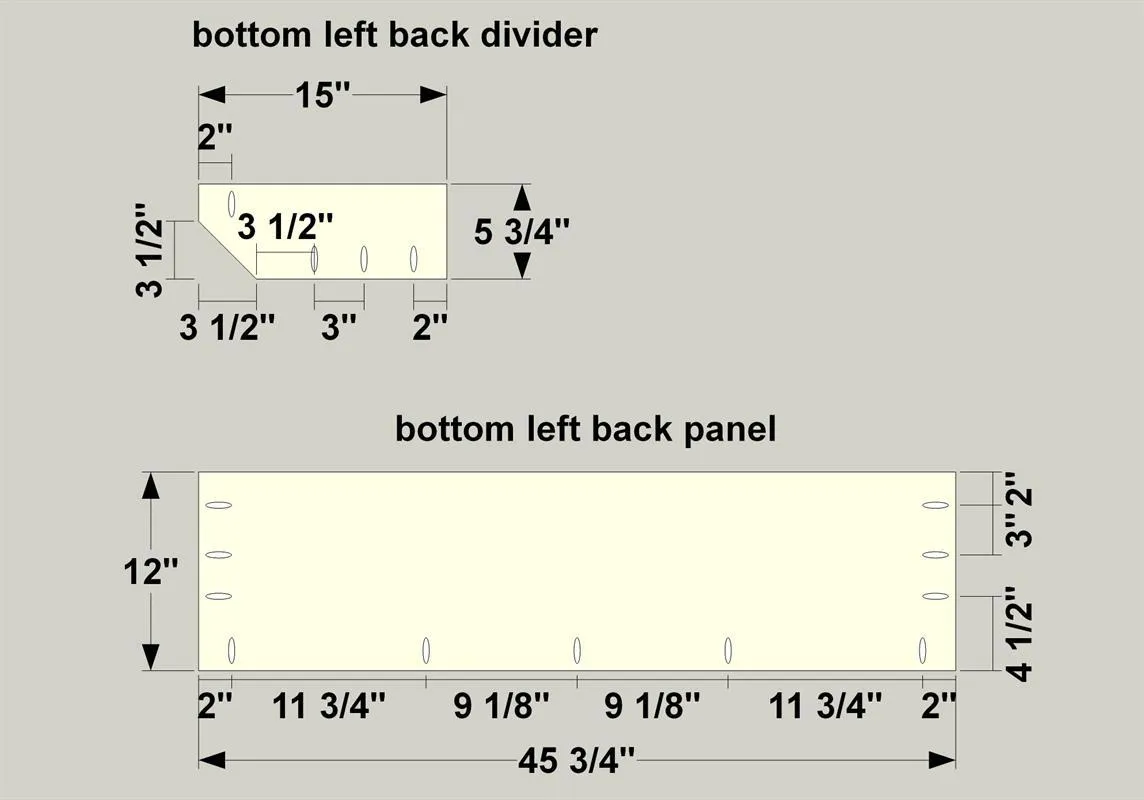

33Drill the Bottom Left Parts
With your jig set for 3/4” material, drill pocket holes in the left back panel and the left dividers, as shown.

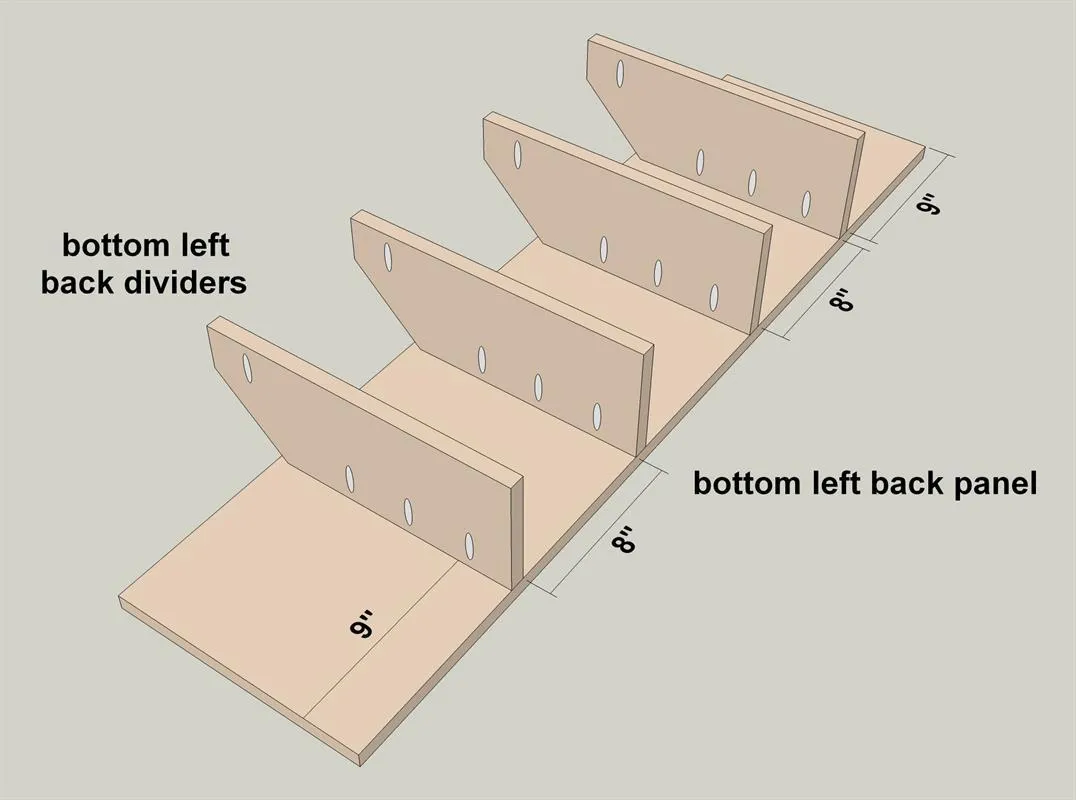

34Attach the Dividers
Attach the bottom left dividers to the bottom left back panel—on the face without pocket holes—using 1 1/4” coarse-thread pocket hole screws, as shown.

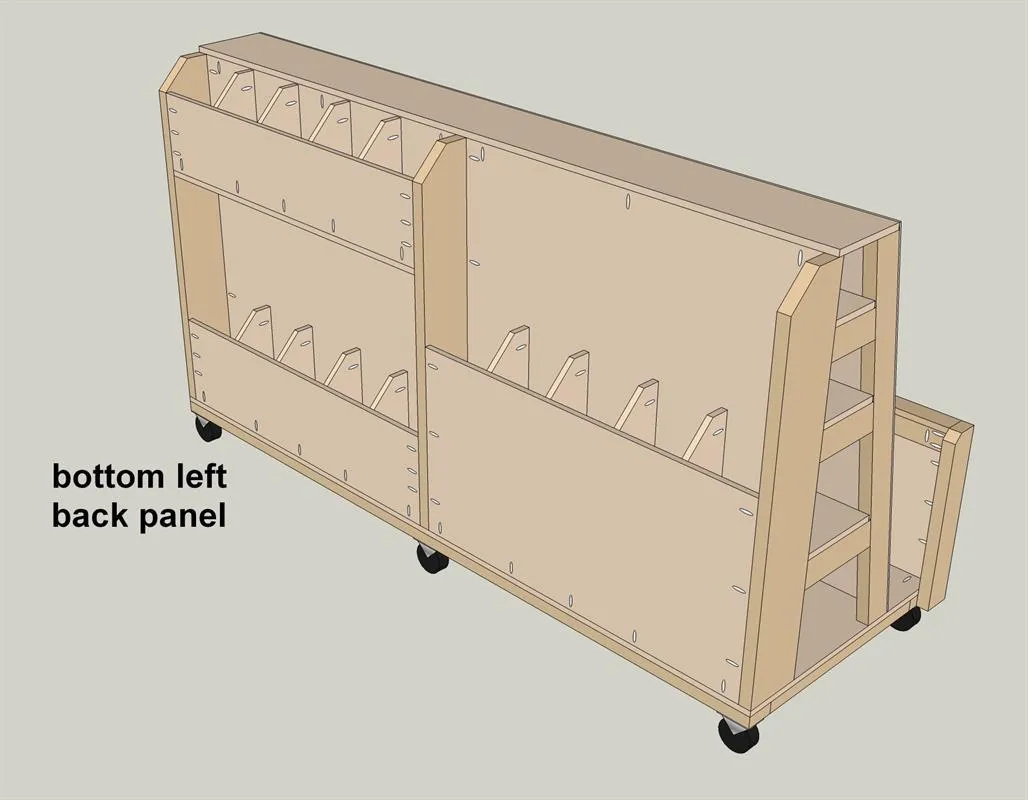

35Install the Last Assembly
Attach the left back panel/divider assembly to the cart using 1 1/4” coarse-thread pocket hole screws, as shown.
