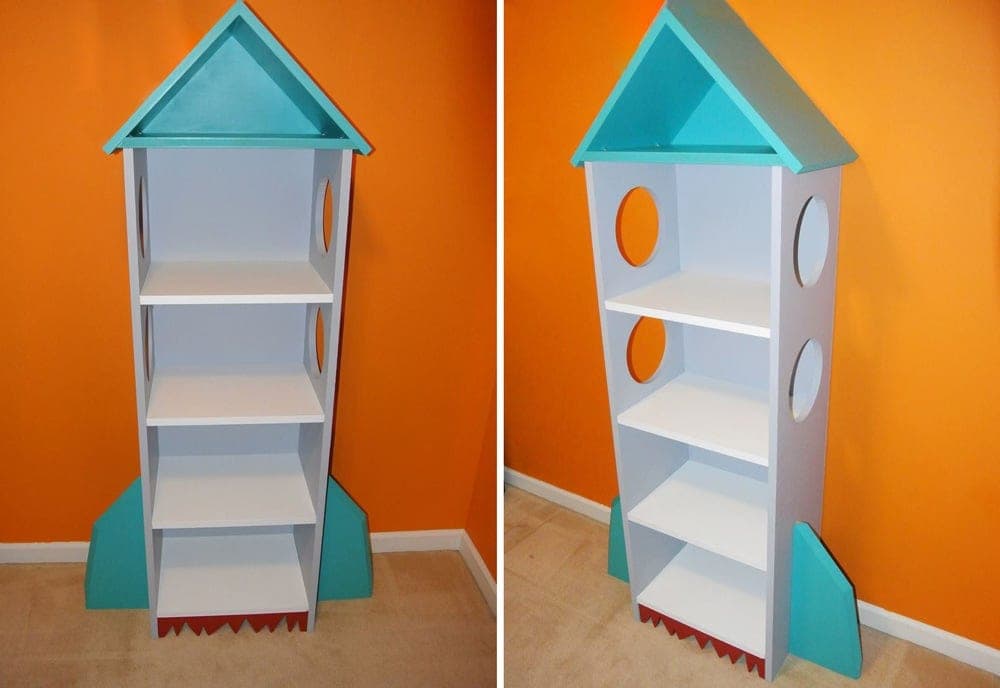

Underneath the theming, this is a standard shelf tower — two sides and four shelves — with three details doing all the visual work: jigsaw-cut fins nailed to the outside, a beveled two-piece roof that comes to a point like a nose cone, and a plywood back cut to trace the whole rocket silhouette rather than a plain rectangle. Building the box first and adding the rocket details after is what keeps this manageable; the shelf tower itself is beginner-friendly, and the rocket shape is trim, not structure.
The roof is the one part that needs real care: it's two pieces beveled at 45° on their top edge only, meeting at a ridge, so dry-fit both before nailing to make sure the point closes cleanly. Trace the plywood back directly off the assembled bookcase rather than trusting a fixed dimension — the exact rocket outline depends on your actual fin and roof placement.
| Item | Qty |
|---|---|
| 1x12 board, 8 ft | 3 each |
| 1x8 board, 4 ft | 1 each |
| 1x4 board, 17 in | 1 each |
| 1/4" plywood, full sheet | 1 each |
| Brad nails, 1-1/4" and 3/4" | 100 each |
| Wood glue | 4 oz |
Overall cost: $$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Sides1x12 | 2 | 3/4" × 11 1/4" × 51 1/2" |
| Shelves1x12 | 4 | 3/4" × 11 1/4" × 16 1/2" |
| Rocket fins1x8Jigsaw a fin profile before attaching. | 2 | 3/4" × 7 1/4" × 18" |
| Footer1x4 | 1 | 3/4" × 3 1/2" × 16 1/2" |
| Top shelf1x12Long point to long point, both ends beveled 45°, NOT parallel. | 1 | 3/4" × 11 1/4" × 19 1/2" |
| Roof pieces1x12Long point to point measurement; only the ridge end is beveled 45°, the tail cut is square. | 2 | 3/4" × 11 1/4" × 15" |
| Back panel1/4" plywoodTrace and cut to the assembled bookcase's actual rocket silhouette. | 1 | 1/4" × 18" × 61 1/4" |
Buy 6 boards at 8 ft.
3 boards
1 board
1 board
1 board
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Attach the four shelves to the two sides using 1-1/4" brad nails and glue, 2" self-tapping screws, or 3/4" pocket holes with 1-1/4" pocket hole screws.
Cut the two rocket fins out of the 1x8 with a jigsaw. Fasten from the inside of the bookcase with 1-1/4" brad nails and glue (pocket holes from the back side into the outside of the shelf work too), keeping the bottoms flush with the bookcase's bottom edge.
Fasten the footer with nails and glue. If you want to cut a decorative flame shape out of the footer, plan your nail placement first so you don't cut through a nail when shaping it afterward.
Set your miter saw to a 45° bevel and cut the top shelf piece to a 19-1/2" long-point-to-long-point measurement. Fasten it with a 3/4" overhang on the ends, keeping the front and back edges flush.
Cut the two roof pieces to a 15" long-point-to-long-point measurement, with only the ridge end beveled at 45° — the tail cut stays square. Dry-fit both pieces against each other and the top shelf before nailing; a gap at the ridge is the most visible mistake this build can make. Attach with 1-1/4" brad nails and glue.
Set the assembled bookcase on the 1/4" plywood sheet, trace the outline in pencil, remove it, and cut along the line with a jigsaw. Attach the traced back panel with 3/4" brad nails and glue into every board it crosses.
